Description

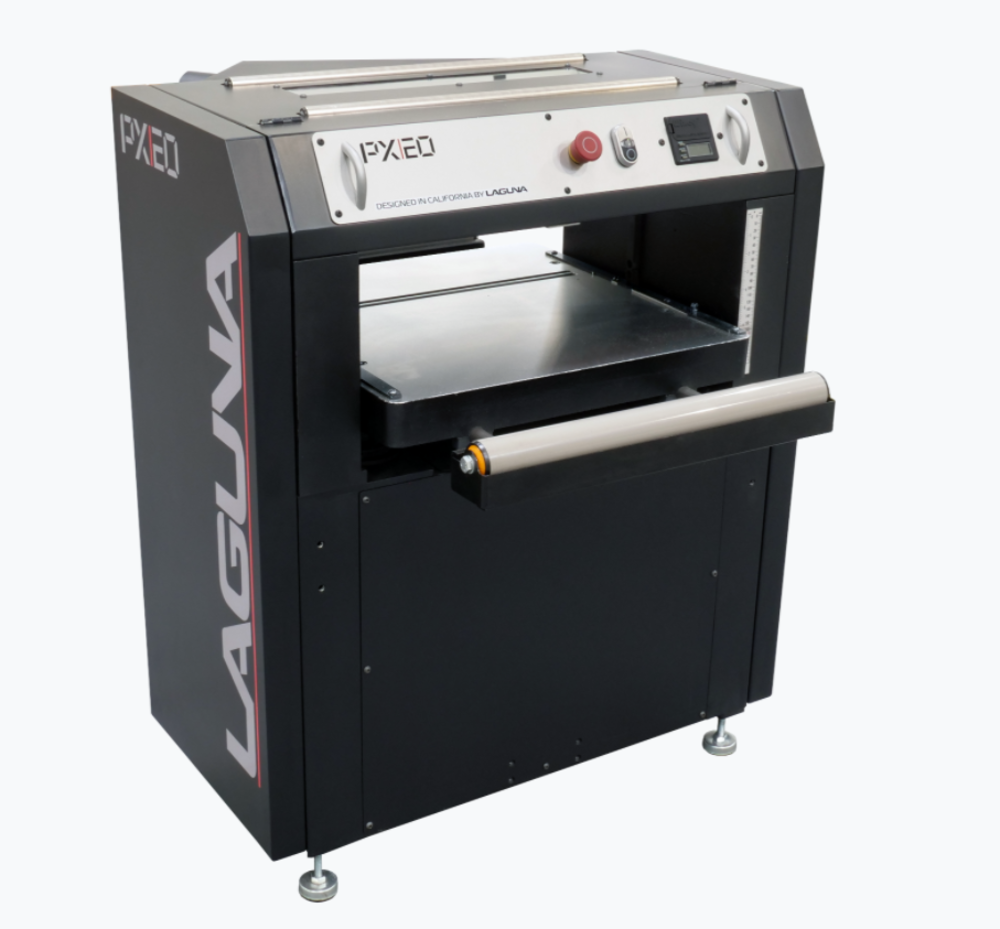

Laguna PX|20 SHEARTEC: II Planer 5HP 220V 1PH
The all-new PX|20 planer signals an innovative new design for Laguna planers. The PX|20 planer has a 4-post bed support to provide precise and consistent performance with every cut. It also has an Ergonomic control panel where the controls are at the top of the machine for easier access and visibility.
Features
Serrated Infeed Roller – The serrated infeed roller and pressure bar are mounted close to the cutterhead to virtually eliminate snipe
Digital Readout – The DRO has been moved to the control panel to provide better ergonomics and make precision settings easier
Infeed and Outfeed Rollers – The PX|20 features infeed and outfeed rollers to assist with material loading and feeding while keeping a compact footprint
4-Post Bed Support – Provides precise and consistent performance with every cut
Ergonomic Control Panel – Machine controls have been moved to the control panel at the top of the machine and angled toward the machine operator for easy access and better visibility. Combined with the new cabinet, the PX|20 sports a sleek, modern design
The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force, preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig

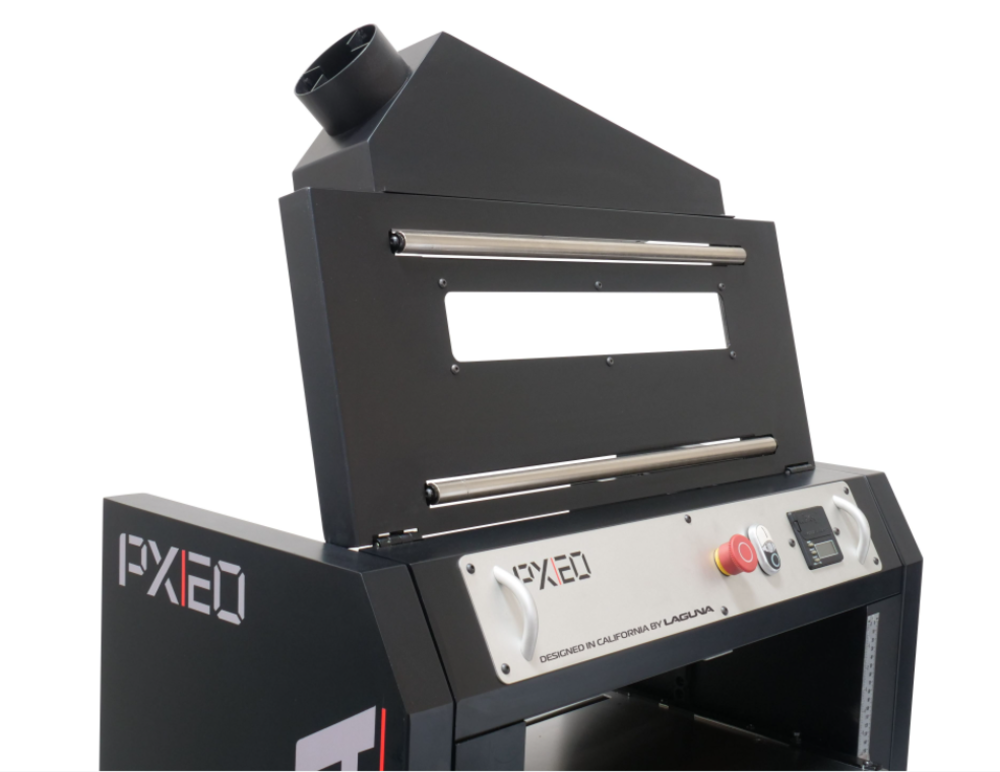

Improved Dust Collection – The 4” diameter dust chute offers the option to point to right or left to optimize dust collection system layout
Specifications
Acme Tools Brand Name
LAGUNA TOOLS
Acme Tools Part Number
MPLANPX20-0130
Assembled Depth (in)
36
Assembled Height (in)
40
Assembled Weight (lbs)
535
Assembled Width (in)
36
California Proposition 65 Warning Required
Yes
Cordless / Corded
Corded
Country of Origin
China
Height (in)
40
Maximum Width Cutting Capacity (in)
20 in
Motor Horsepower (hp)
5 HP
Package Contents
1 PX|20 SHEARTEC: II Planer
Package Depth
42
Package Height
46
Package Weight
638
