Description

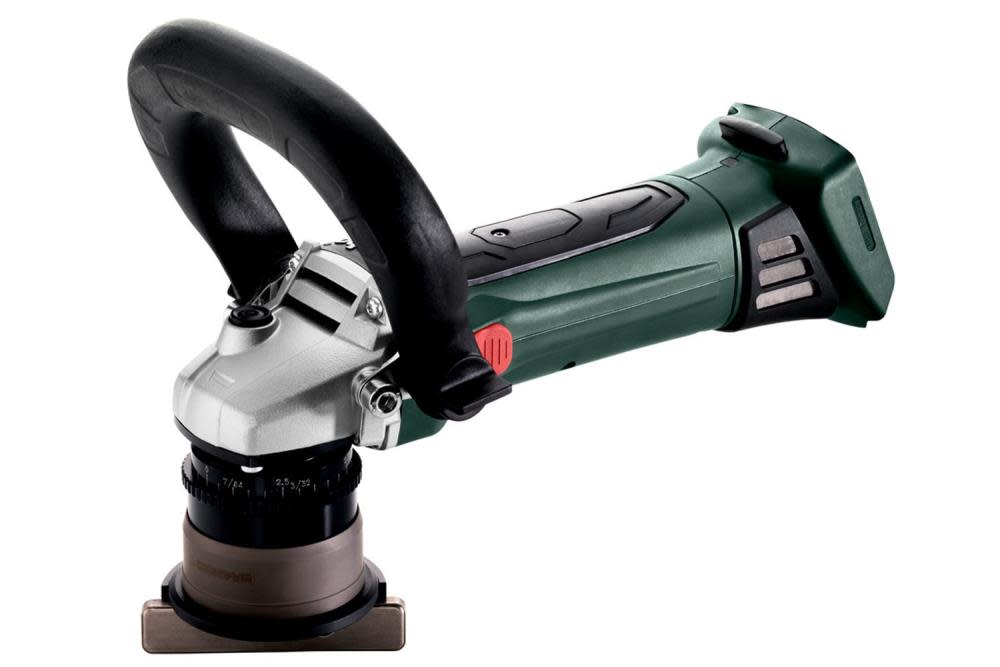

KFM 18 LTX 3 RF Cordless Beveling Tool
Most powerful cordless metal bevelling tool for 45° chamfers up to 4 mm and radii of 2 and 3 mm. Surfaces free from oxide and burrs as ideal preparation for the application of powder or paint coatings for maximum protection from corrosion. One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working.
Features
Slim cutter head for working on tubes, on drilled holes from Ø 13 mm, and on exterior contours
Parallel stop for a uniform finish when processing straight edges
Battery pack can be swiveled for better working in hard to reach places
Overload protection: protects the motor from overheating
Electronic soft start for smooth start-up
Restart protection: prevents unintentional start-up after power supply interruption
Detachable dust filter protects motor from coarse particles
Ultra-M Technology: highest power, gentle charging, and 3 year warranty on the battery pack
Specifications
Acme Tools Brand Name
METABO
Acme Tools Part Number
601754840
Assembled Weight (lbs)
6.8
Battery Composition
Lithium-Ion (Li-ion)
Battery Size
Battery Packs
Battery Voltage (V)
18
California Proposition 65 Warning Required
No
Charger Included
No
Color / Finish
Green/black
Cordless / Corded
Cordless
Country of Origin
Germany
CSA Certified
No
ETL Listed
No
Grinder Switch Type
Sliding Switch
Grinder Type
Bevel
Housing Material
Cast aluminum
Internal Supplier Part #
601754840
Internet Product Code (IPC)
D98FEBB8E0C
Length (in)
14.4
Lock-on Switch
Yes
Manufacturer Warranty
30-day performance, 3-year limited
Maximum RPM
7000.0
Net Tool Weight (lbs)
4.9
Number of Batteries Included
0
Overall Weight (lbs)
6.8
Package Contents
Beveling Tool, (2) Carbide indexable inserts 45° chamfer, (2) Carbide indexable inserts radius R2, (2) Carbide indexable inserts radius R3, Guide Stop, Screwdriver Torx 15, Bow type handle, Dust Protection Filter, MetaLoc case, without battery pack, without charger
Package Depth
24.938
Package Height
5.188
Package Weight
7.0
Package Weight (lbs)
7
Powered Tool Power Source
Electric – Cordless
Product Storage Included
Case
Switch Type
Sliding Switch
UL Listed
No
Variable Speed
Yes
Width (in)
3.1
