Description

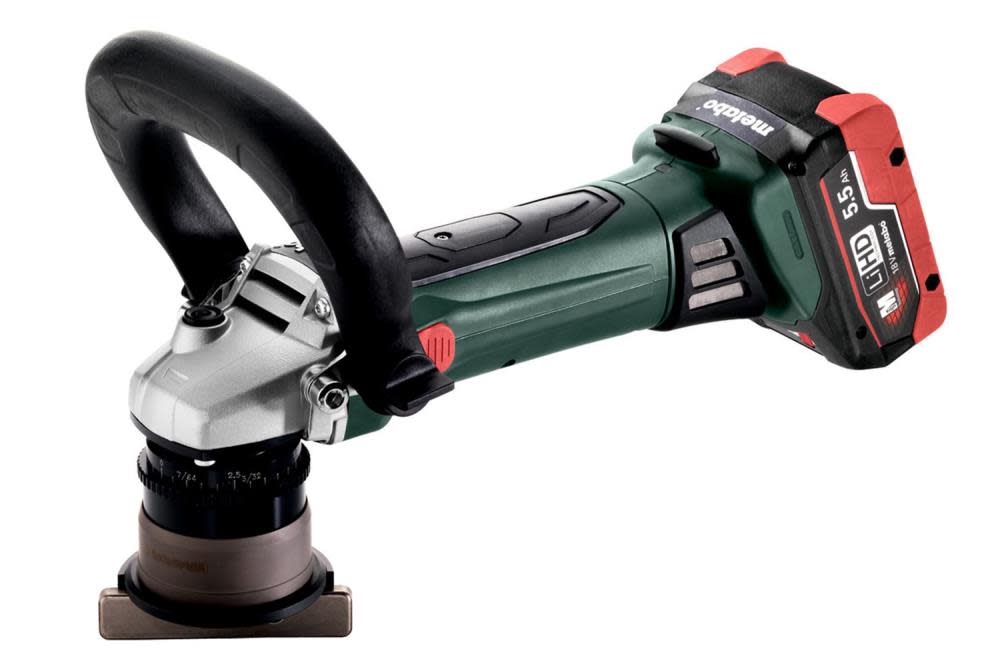

KFM 18 LTX 3 RF Cordless Beveling Tool
Most powerful cordless metal bevelling tool for 45° chamfer up to 4 mm and radii of 2 and 3 mm. Surfaces free from oxide and burrs as ideal preparation for the application of powder or paint coatings for maximum protection from corrosion. One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working.
Features
Slim cutter head for working on tubes, on drilled holes from Ø 13 mm, and on exterior contours
Parallel stop for a uniform finish when processing straight edges
Battery pack can be swiveled for better working in hard to reach places
Overload protection: protects the motor from overheating
Electronic soft start for smooth start-up
Restart protection: prevents unintentional start-up after power supply interruption
Detachable dust filter protects motor from coarse particles
LiHD Battery Pack for ultimate power, extremely long run time and service life
Ultra-M Technology: highest power, gentle charging, and 3 year warranty on the battery pack
Specifications
Acme Tools Brand Name
METABO
Acme Tools Part Number
601754750
Assembled Weight (lbs)
6.8
Battery Ampere-hour (Ah)
5.5
Battery Composition
Lithium-Ion (Li-ion)
Battery Size
Battery Packs
Battery Voltage (V)
18
California Proposition 65 Warning Required
No
Charger Included
Yes
Color / Finish
Green/black
Cordless / Corded
Cordless
Country of Origin
Germany
CSA Certified
No
ETL Listed
No
Grinder Switch Type
Sliding Switch
Grinder Type
Bevel
Housing Material
Cast aluminum
Internal Supplier Part #
601754750
Internet Product Code (IPC)
E5740545861
Length (in)
14.4
Lock-on Switch
Yes
Manufacturer Warranty
30-day performance, 3-year limited
Maximum RPM
7000.0
Net Tool Weight (lbs)
4.9
Number of Batteries Included
2
Overall Weight (lbs)
6.8
Package Contents
Beveling Tool, (2) Carbide indexable inserts 45° chamfer, (2) Carbide indexable inserts radius R2, (2) Carbide indexable inserts radius R3, Guide Stop, Screwdriver Torx 15, Bow type handle, Dust Protection Filter, 2 LiHD Battery Packs (18 V/5.5 Ah), Charger ASC 30-36 V “AIR COOLED”, MetaLoc case
Package Depth
14.313
Package Height
5.188
Package Weight
8.0
Package Weight (lbs)
8
Powered Tool Power Source
Electric – Cordless
Product Storage Included
Case
Switch Type
Sliding Switch
UL Listed
No
Variable Speed
Yes
Width (in)
3.1
