Kawasaki Gasoline Engine Air Cooled V Twin 4 Stroke 25hp 675cc

Kawasaki Gasoline Engine Air Cooled V Twin 4 Stroke 25hp 675cc

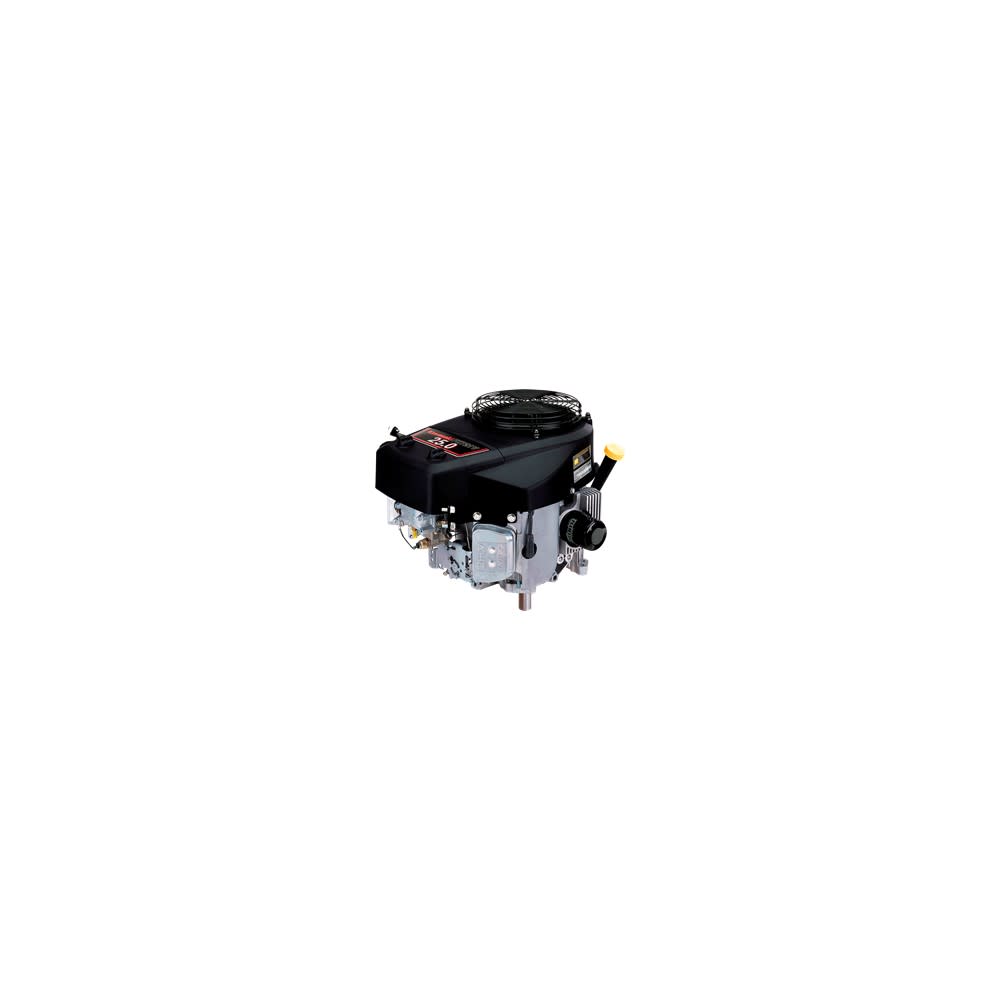

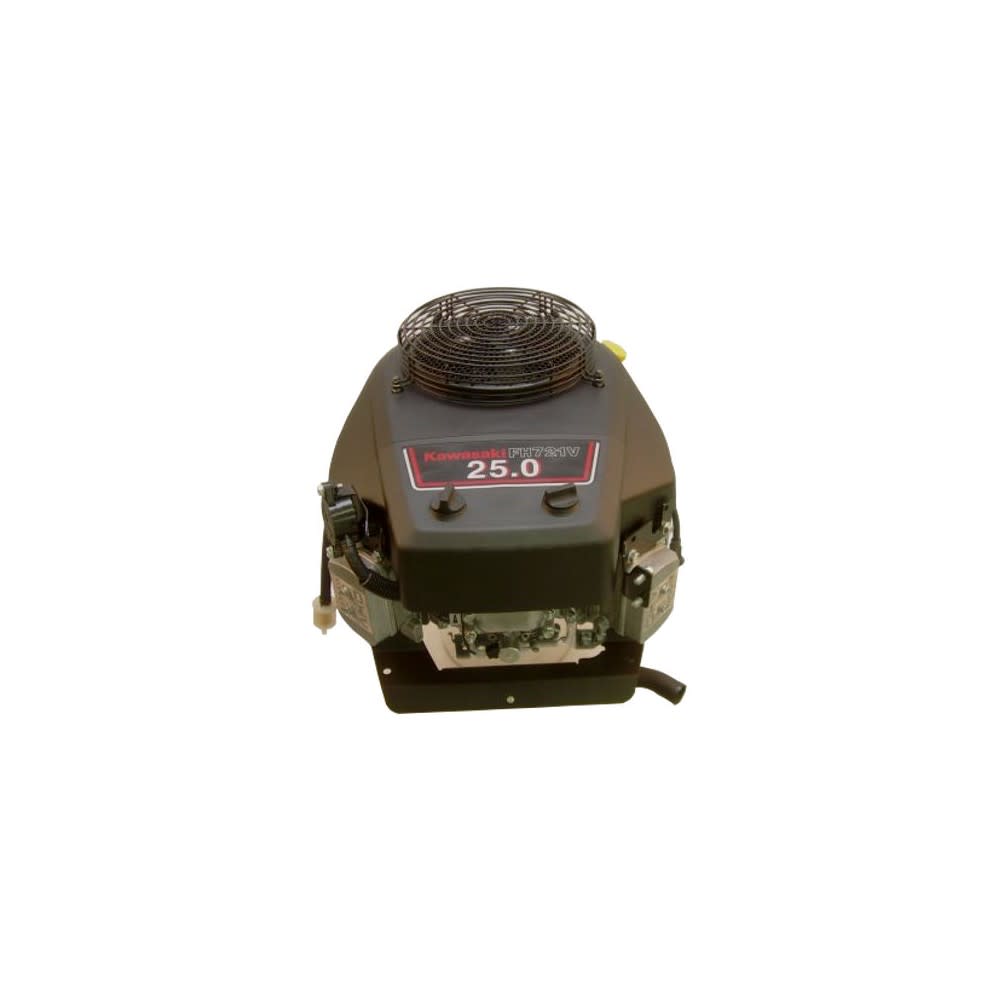

The Kawasaki FH721V is a 0.68 l (675 cc, 41.19 Cu In.) V-twin 90 Deg air-cooled 4-stroke internal combustion small gasoline motor with vertical shaft, manufactured by Kawasaki Heavy Industries Ltd., for general-purpose applications. The FH721V has vertical PTO shaft, V-twin 90 Deg design with cast iron cylinder liners and overhead valves (OHV). The engine is equipped with twin-barrel, float type carburetor with fixed main jet, pulse type fuel pump and flywheel magneto transistor type ignition system. The Kawasaki FH721V uses a full pressure lubrication system with spin-on oil filter and dual element air cleaner. The engine was equipped with BENDIX type electric starter and 12V-13A charging coil with a regulator. The Kawasaki FH721V develops 25.3 PS (18.6kW 25HP) at 3600 Rpm and 56 Nm (5.7 kg·m, 41.3 Ft. lb) at 2400 Rpm of torque. A 72.5 mm (2.85 In.) cylinder bore and 76 mm (2.99 In.) piston stroke give the motor a total of 675 cc (41.19 Cu In.) of displacement. Compression ratio rating is 8.1:1..
