Description

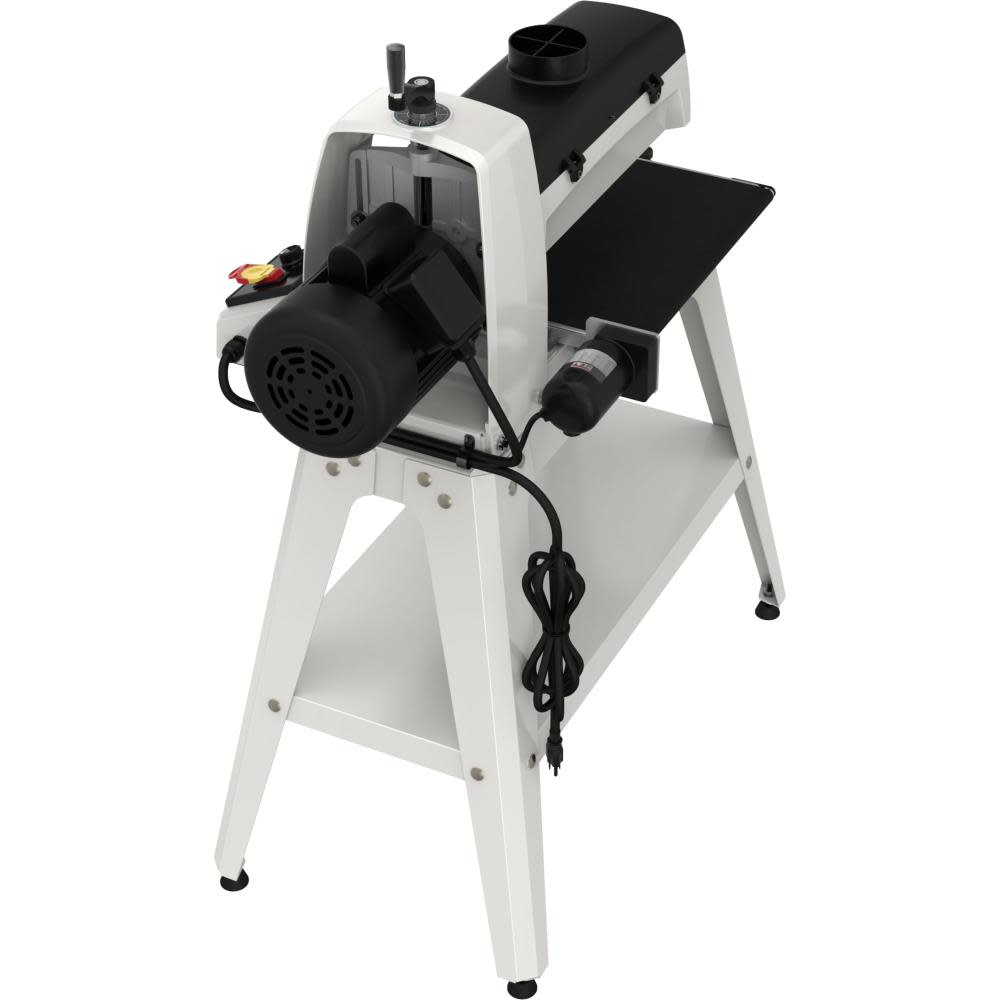

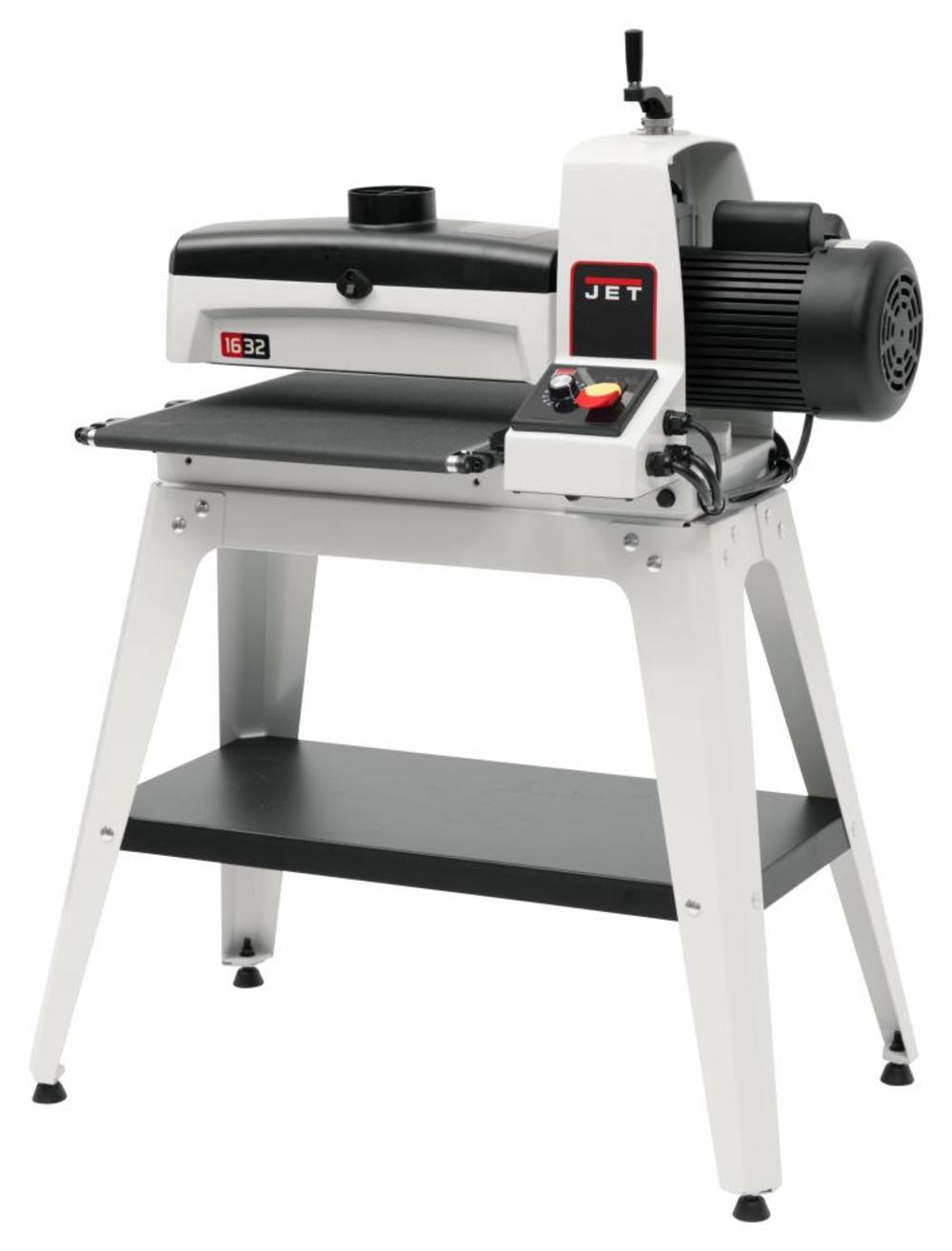

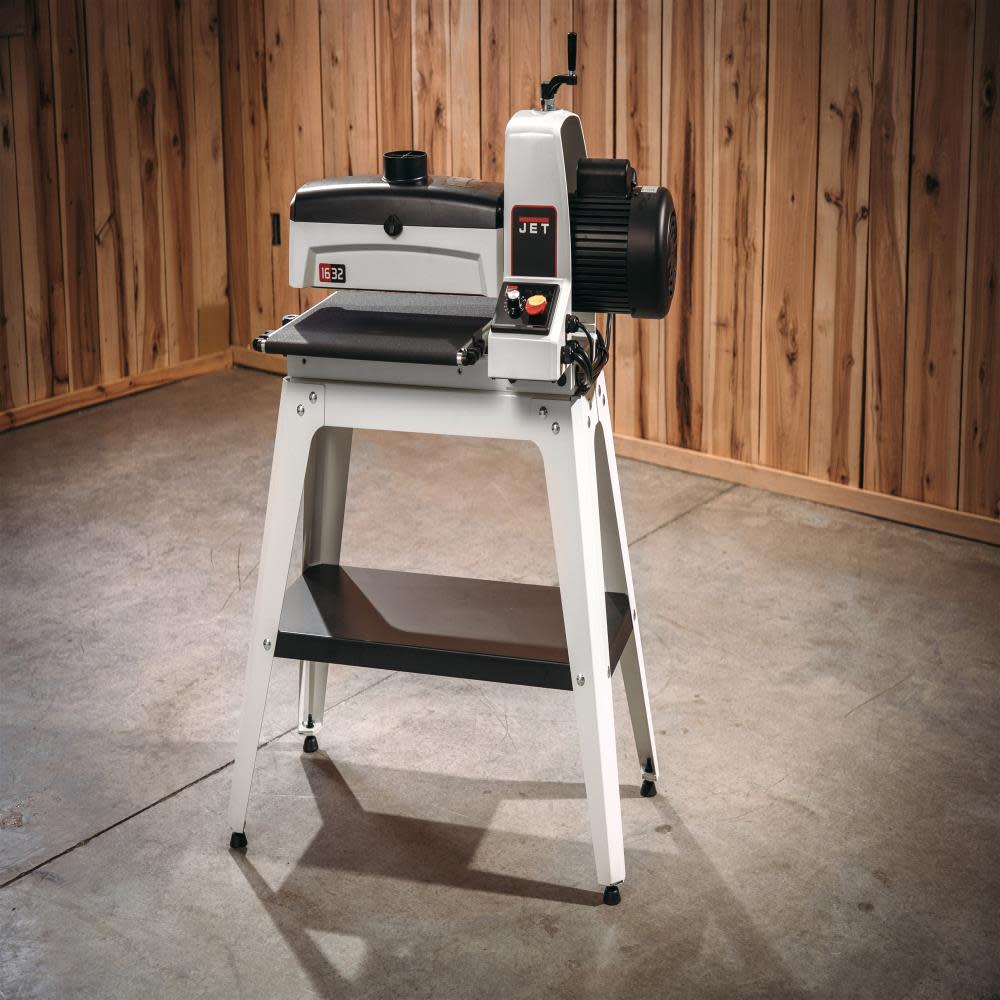

JWDS-1632, 16-32 Drum Sander with Stand

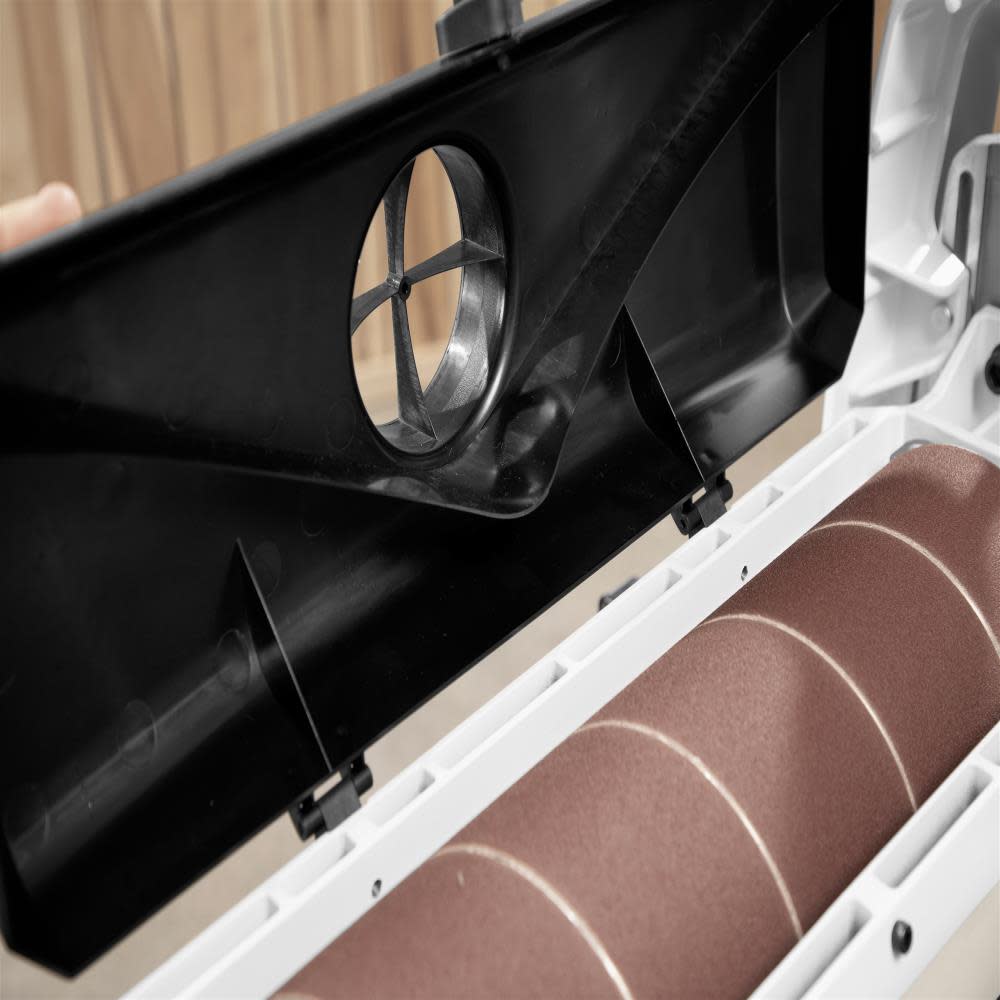

Introducing the newly redesigned 16-32 drum sander from Jet. The innovative tool-less parallelism system keeps adjustments simple. The worktable is easily positioned by a turn of the parallelism dial. The variable-speed rate permits you to choose the optimal feed rate for a full range of projects, while the SandSmart™ feature continuously monitors the load on the drum motor to prevent an overload situation. The mirrored design of the dust hood optimizes dust collection preventing chips and dust from getting between your work-piece and the finish. The Jet 1632 drum sander delivers everything you need for an effortless finish.
Features
SandSmart™ control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload

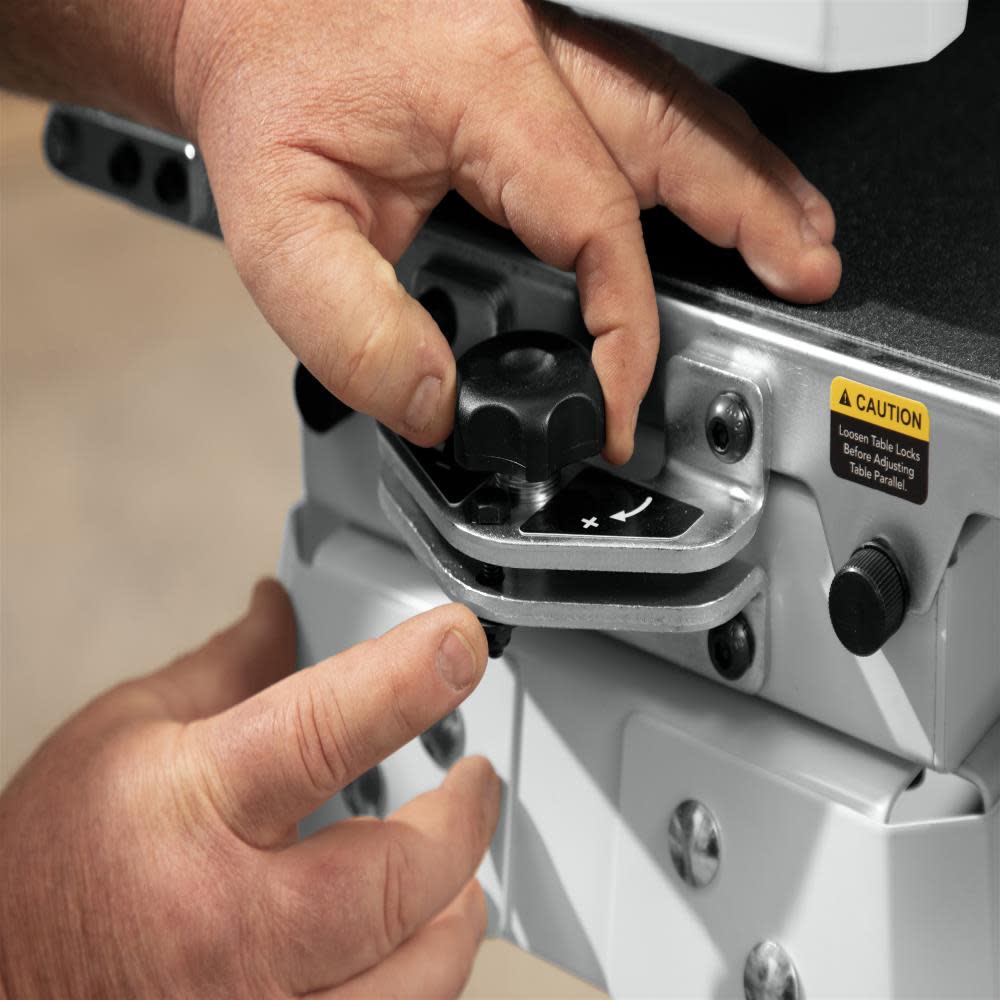

Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed – no tools required
Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position

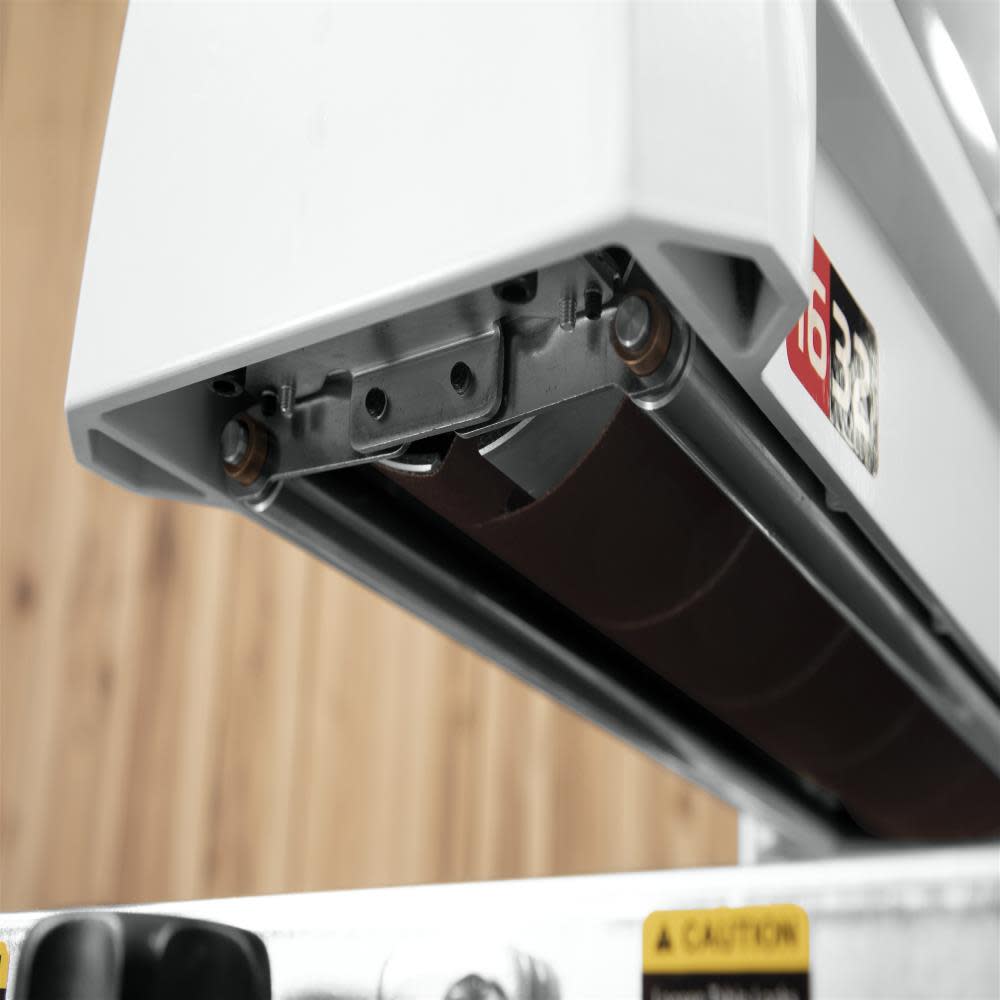

Snipe is virtually eliminated thanks to the adjustable tension rollers that apply downward pressure to the workpiece

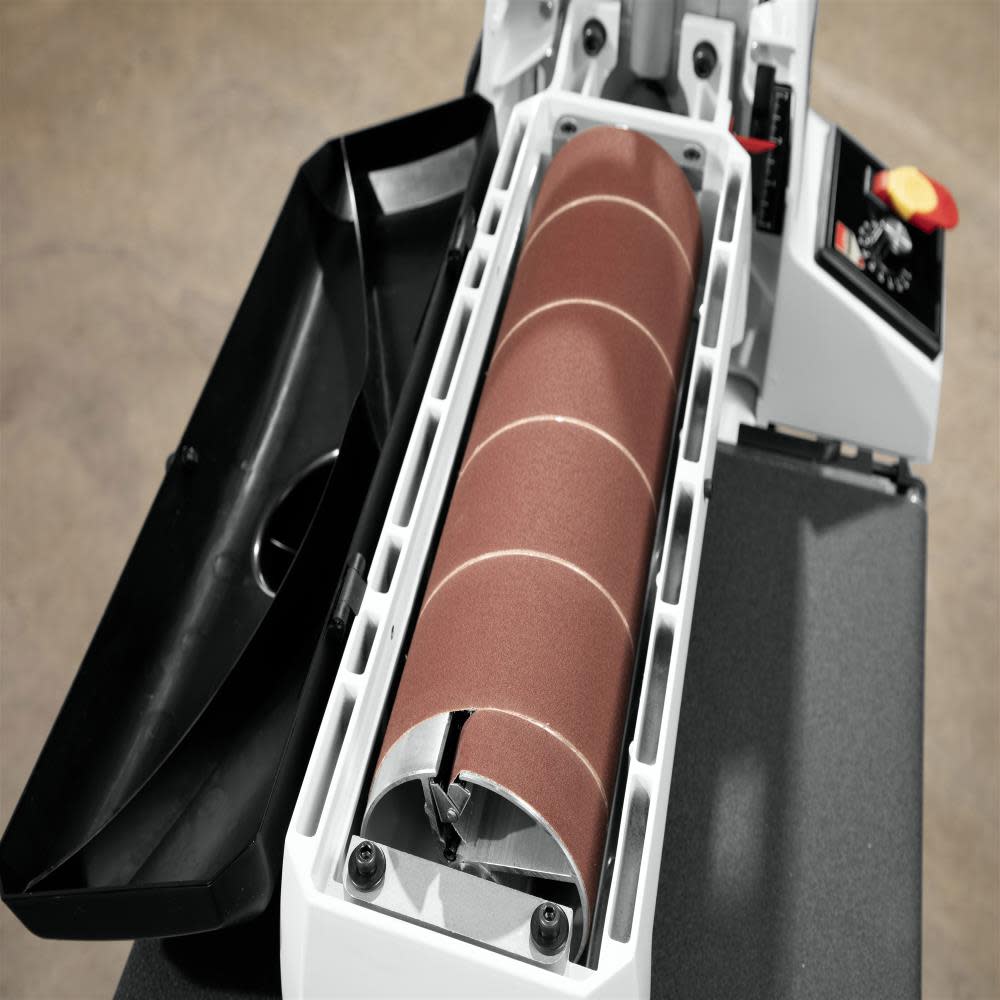

Tool less abrasive take-up clips make changing abrasives quick and easy

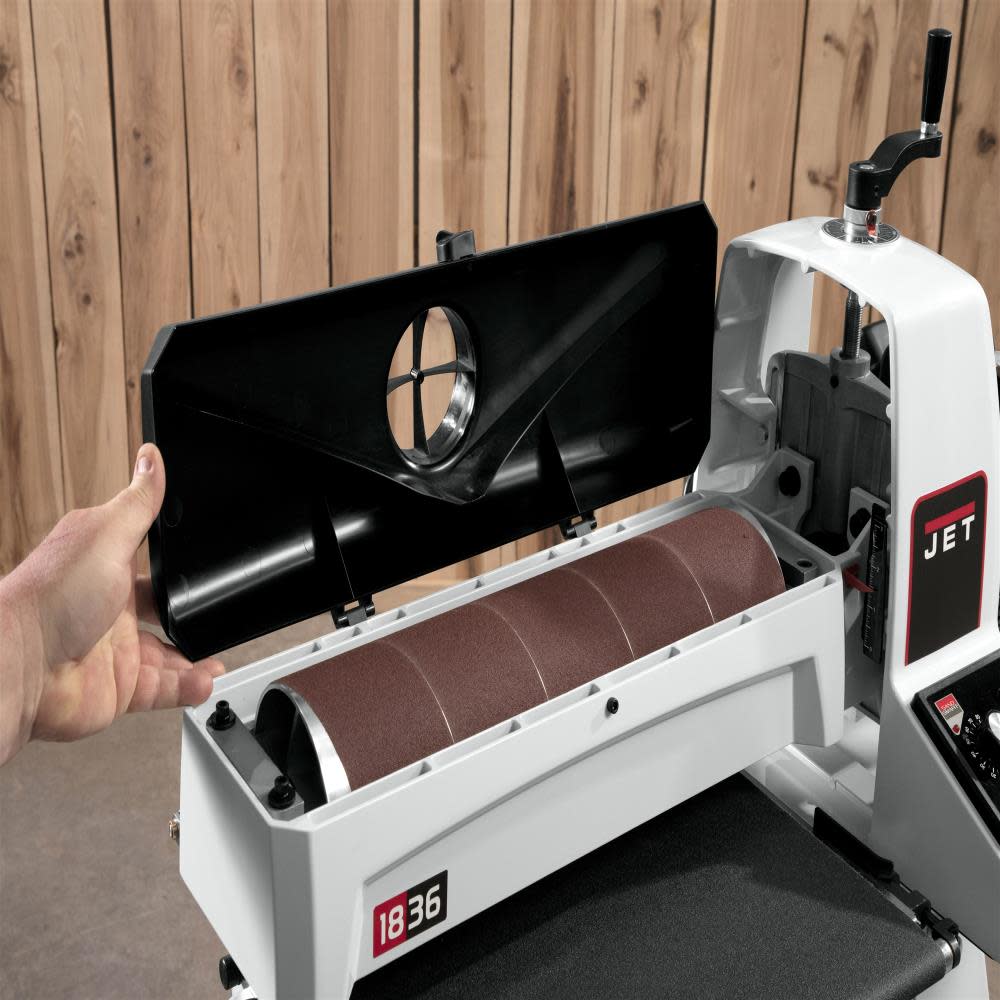

Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage
Precision-flattened reinforced steel conveyor bed
Redesigned conveyor system pulls the workpiece through the sander instead of pushing

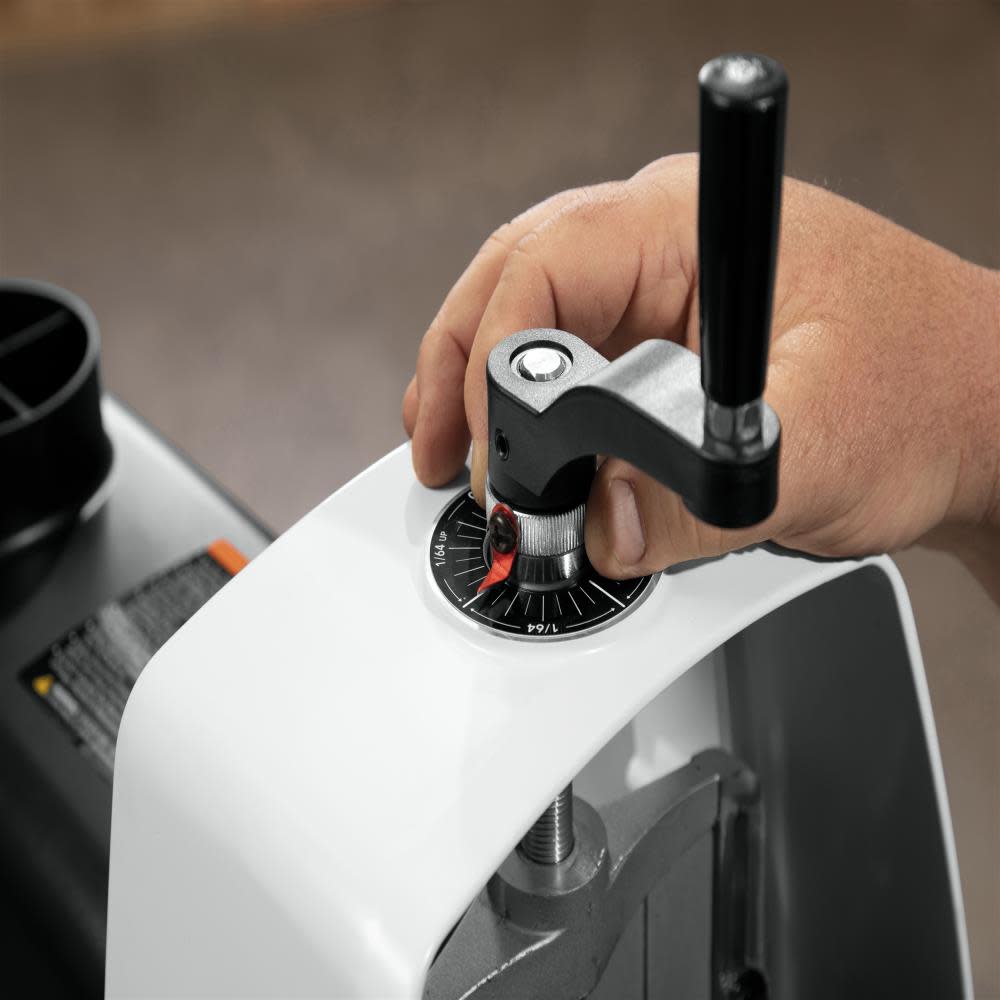

One rotation of the top-position handwheels adjusts the drum height by 1/16 In
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
723520K
Amperage (A)
20.0
Assembled Weight (lbs)
156.0
Bench or Stationary
Stationary
California Proposition 65 Warning Required
Yes
Color / Finish
See Image
Conveyor Maximum Speed (Ft/Min)
10
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
No
Drum Diameter (in)
5.0
Drum Length (in)
16.0
Dust Collection
Yes
Dust Collection Method
Dust Port
ETL Listed
No
Horsepower (hp)
1.5
Housing Material
Steel
Internal Supplier Part #
723520K
Internet Product Code (IPC)
71FFA101632
Manufacturer Warranty
2 Year
Maximum Stock Thickness (in)
3.0
Maximum Stock Width (Single Pass) (in)
16.0
Minimum Stock Length (in)
2.375
Minimum Stock Thickness (In)
0.031
Net Tool Weight (lbs)
156.0
Package Depth
20.0
Package Height
39.66
Package Weight
182.0
Package Weight (lbs)
182
Sander Style
Drum
UL Listed
No
Variable Speed
Yes
Voltage
115 Volts
