Description

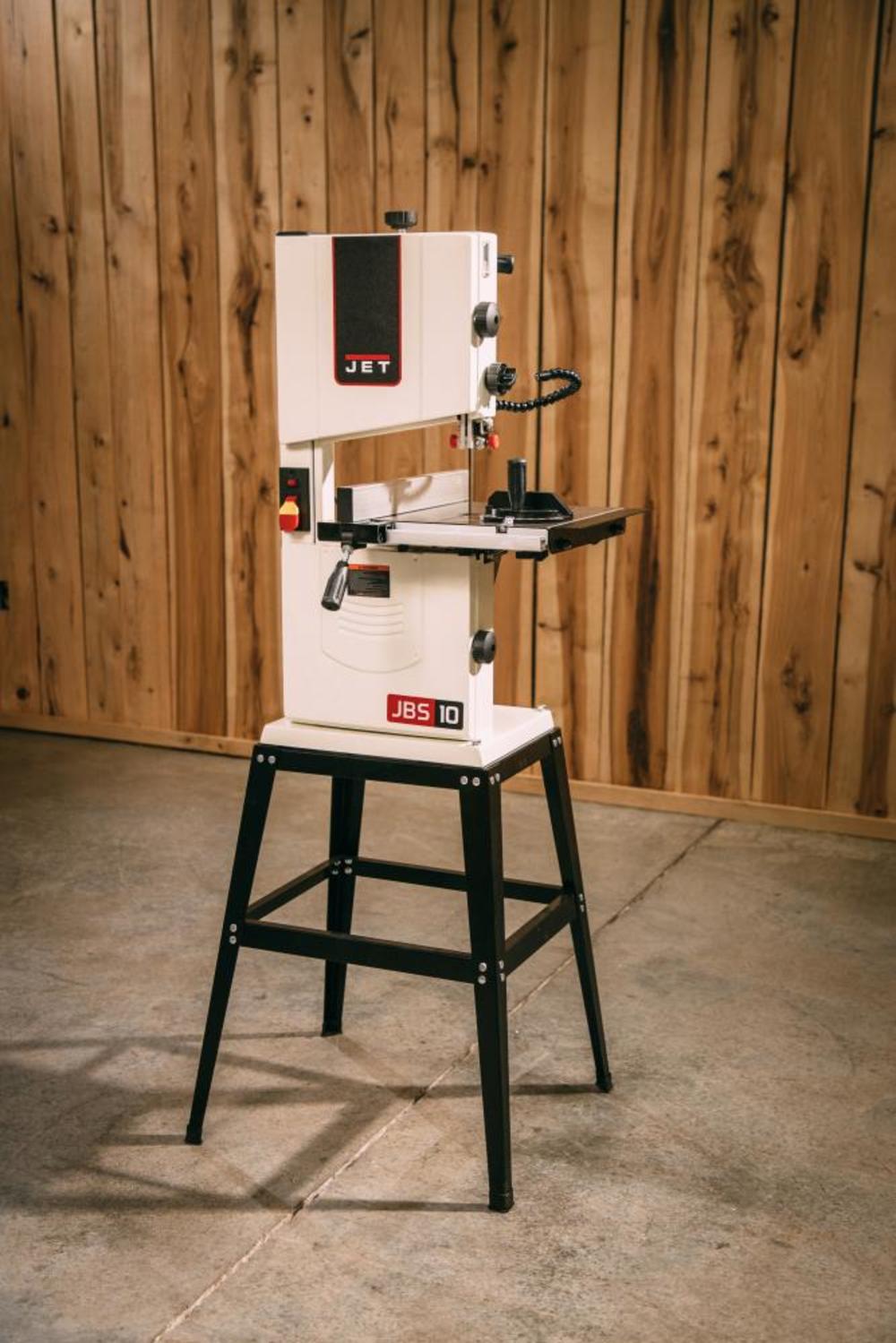

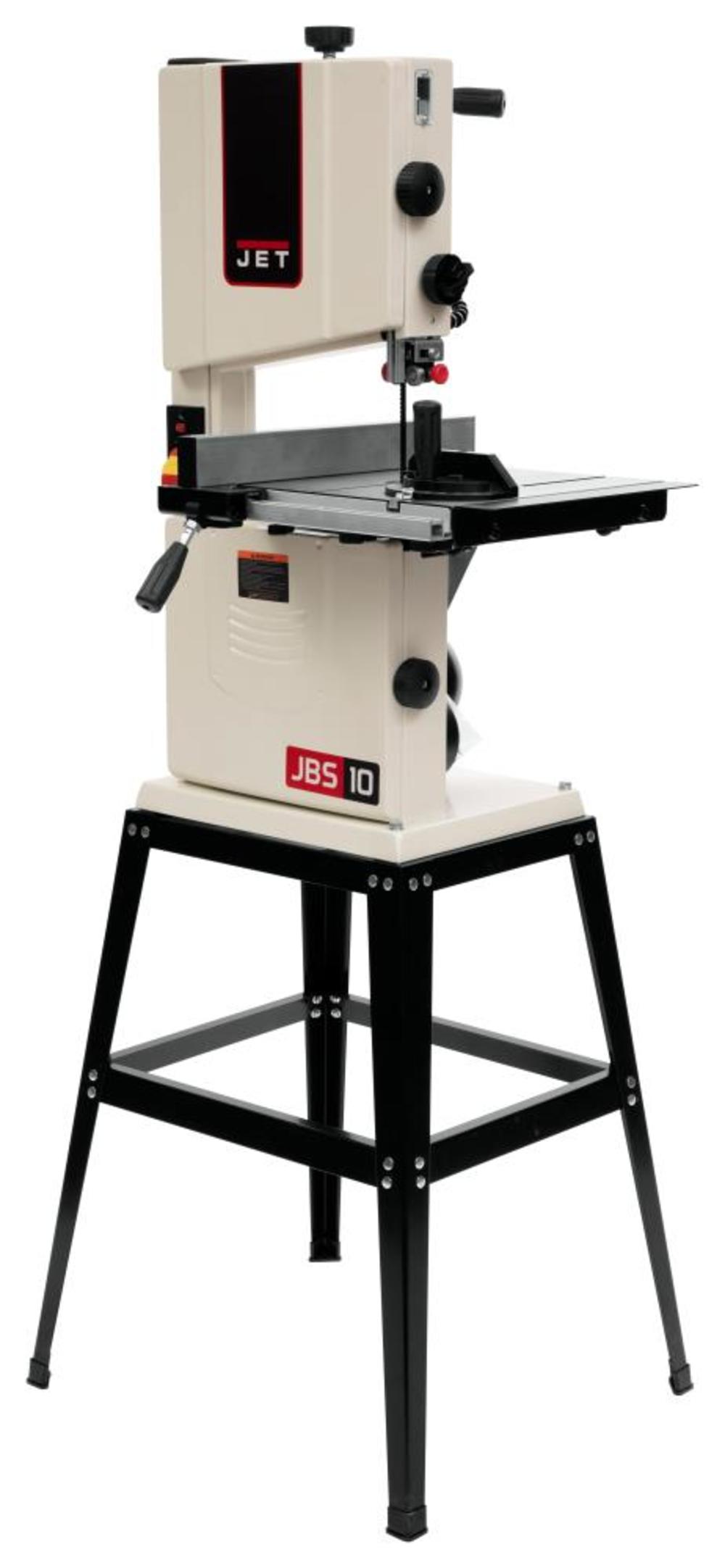

JWB-10, 10 In. Open Stand Bandsaw
Introducing the all new JET® 10 In. band saw. If space is at a premium in your shop, this is the Bandsaw for you. With quick release blade tension, upper and lower ball bearing blade guides, an extra-large cast iron tilting table, and an easily adjustable LED work light – this well-equipped Bandsaw has all the features you’re used to on bigger bandsaws.
Features
Compact bench top design allows for easy transport to different shop locations
Rigid steel stand allows Bandsaw to transition from the bench top to the floor
Reinforced steel base can be bolted to stand or work bench

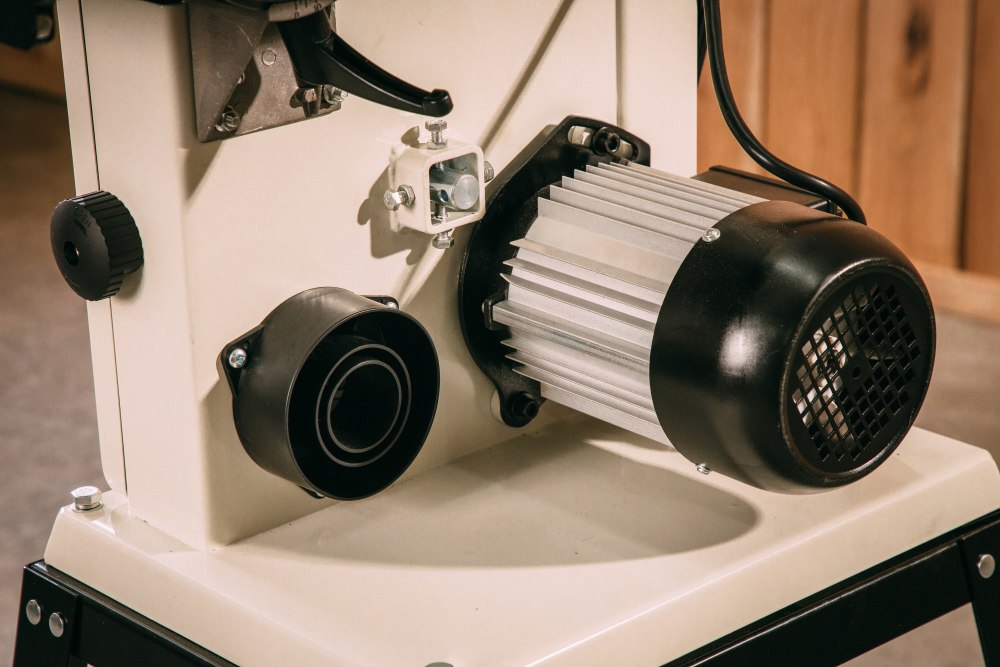

1/2 HP induction motor easily handles various cutting applications

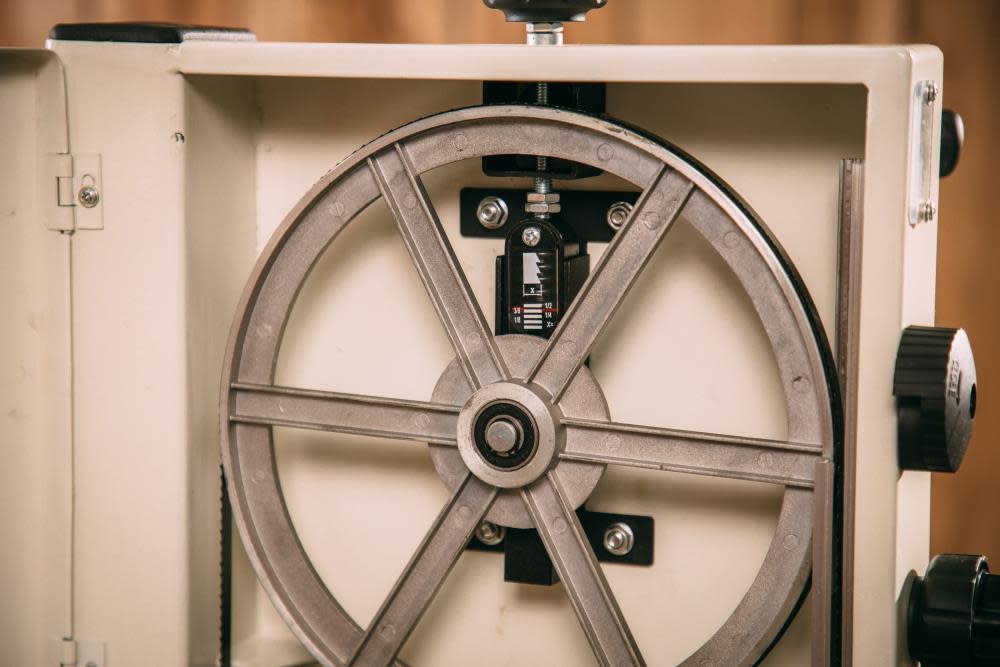

Poly-V drive system maximizes power transfer from motor to blade and reduces vibration

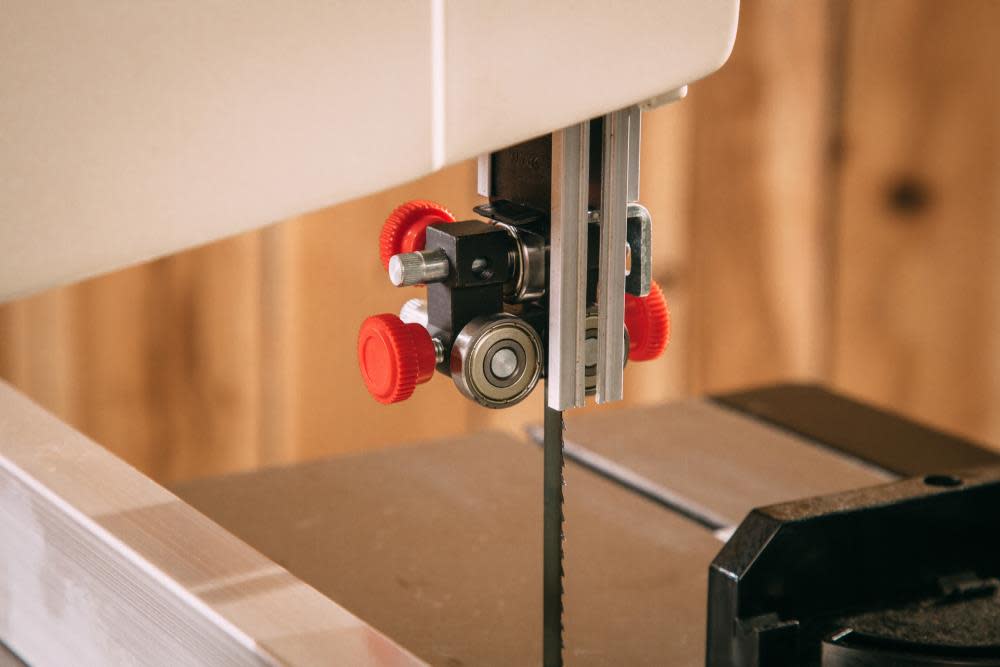

Upper and lower ball bearing blade guides provide blade stability
Extra large cast iron table with retractable extension wing provides additional work piece support

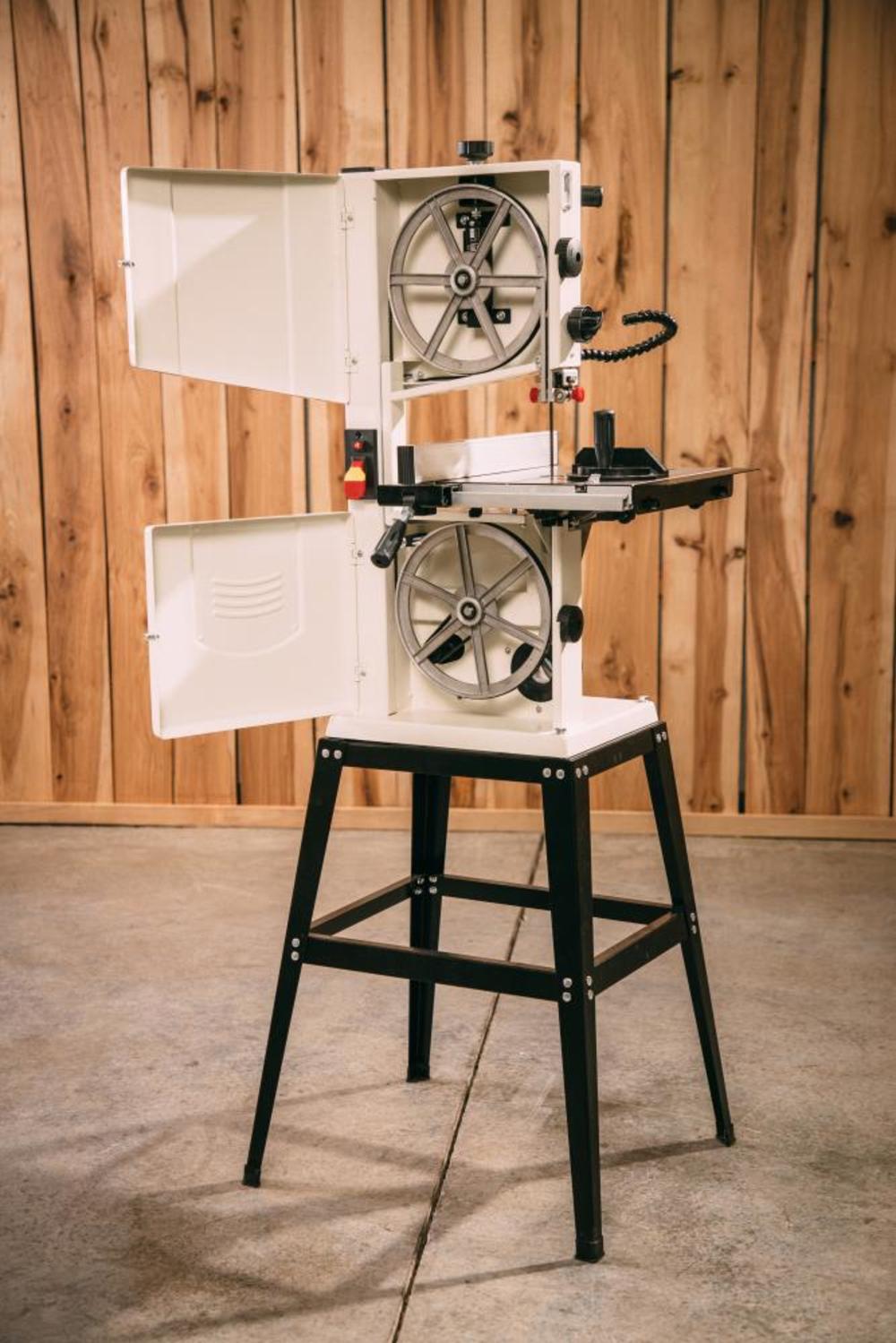

One piece welded frame design reduces machine vibration and flex

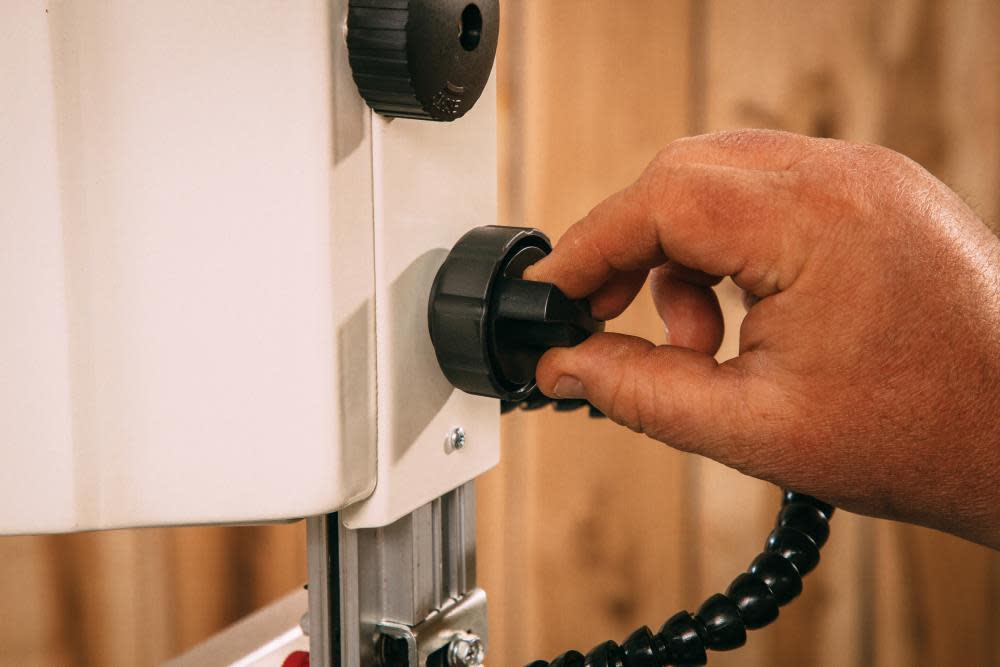

Oversized, ergonomic knobs provide ease of use and maximum control
Flexible LED light provides visibility without blocking line of sight
Aluminum extruded fence ensures smooth sliding action

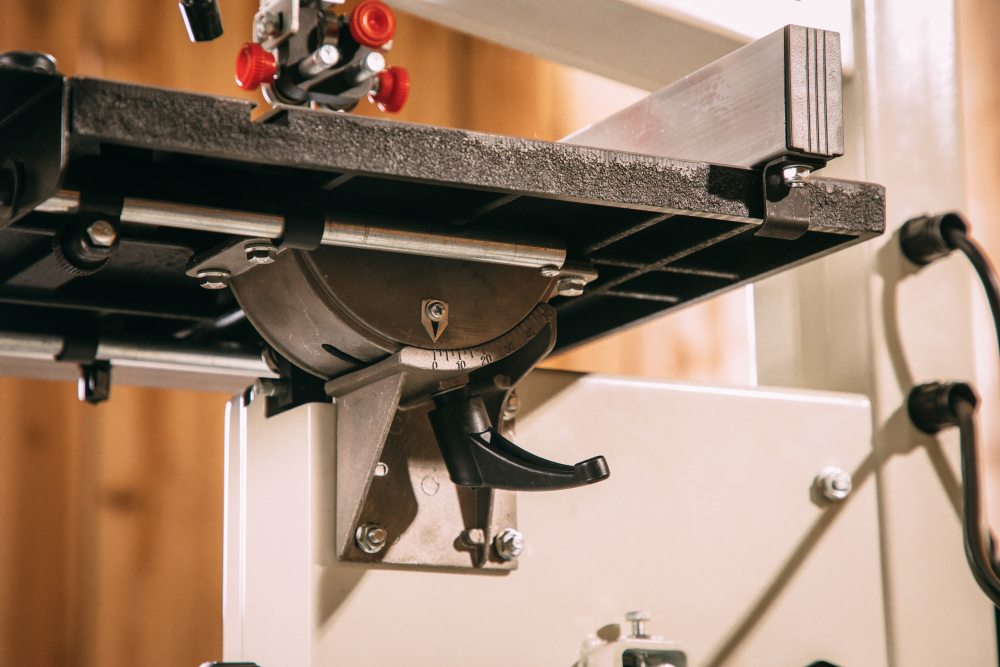

Table tilting trunnion allows working angles from 0° to 45°
Magnifying cursor enlarges measurement scale for precise fence location

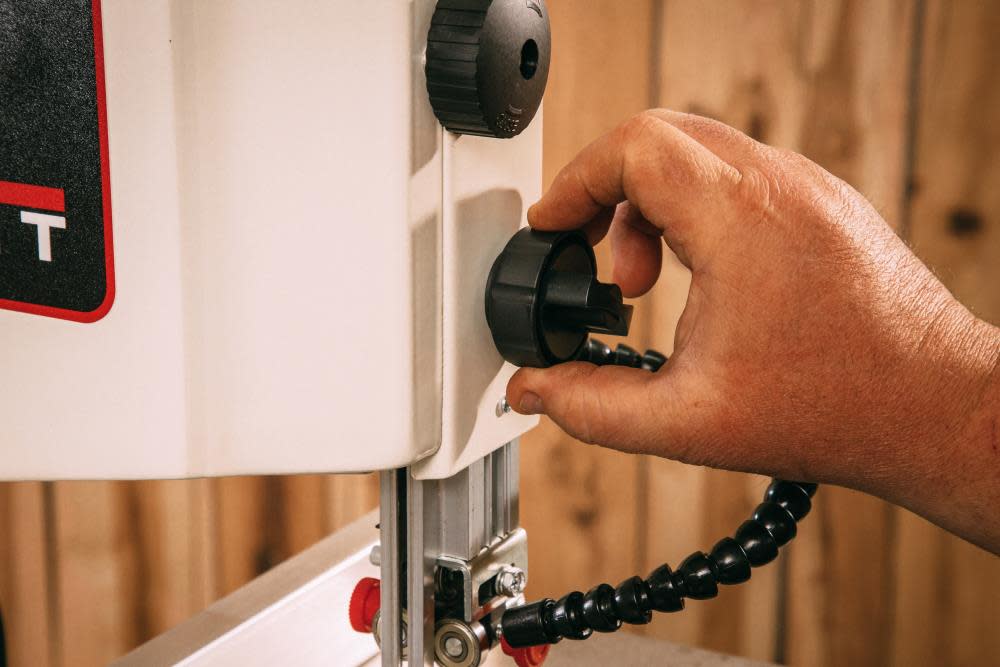

Rack and pinion blade guide adjustment with integrated locking knob for precise height control
Blade site window to view blade tracking
Dust port accepts multiple size hoses
Miter gauge and fence included
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
714000
Amperage (A)
3.4
Assembled Weight (lbs)
70.4
Band Saw Type
Stationary
California Proposition 65 Warning Required
Yes
Color / Finish
See Image
Cordless / Corded
Corded
Country of Origin
China
CSA Certified
No
Cutting Capacity Height (in)
4.125
Dust Port
Yes
Dust Port Outside Diameter (in)
4
ETL Listed
No
Horsepower (hp)
0.5
Internal Supplier Part #
714000
Internet Product Code (IPC)
A121DE44655
Manufacturer Warranty
2 Year
Material
Cast Iron
Maximum Blade Length (In)
67.5
Maximum Blade Width (In)
0.5
Maximum RPM
0
Micro Adjust Blade Guides Bottom
Yes
Minimum Blade Length (in)
67.5
Minimum Blade Width (in)
0.125
Package Depth
30
Package Height
13
Package Weight
74.8
Package Weight (lbs)
74.8
Speeds
2750
Stand Included
Yes
Table Length (in)
18.125
Table Material
Cast Iron
Table Tilt Left (Deg)
45
Table Tilt Right (Deg)
45
Table Width (in)
13.375
UL Listed
No
Variable Speed
No
Voltage
115 Volts
