Description

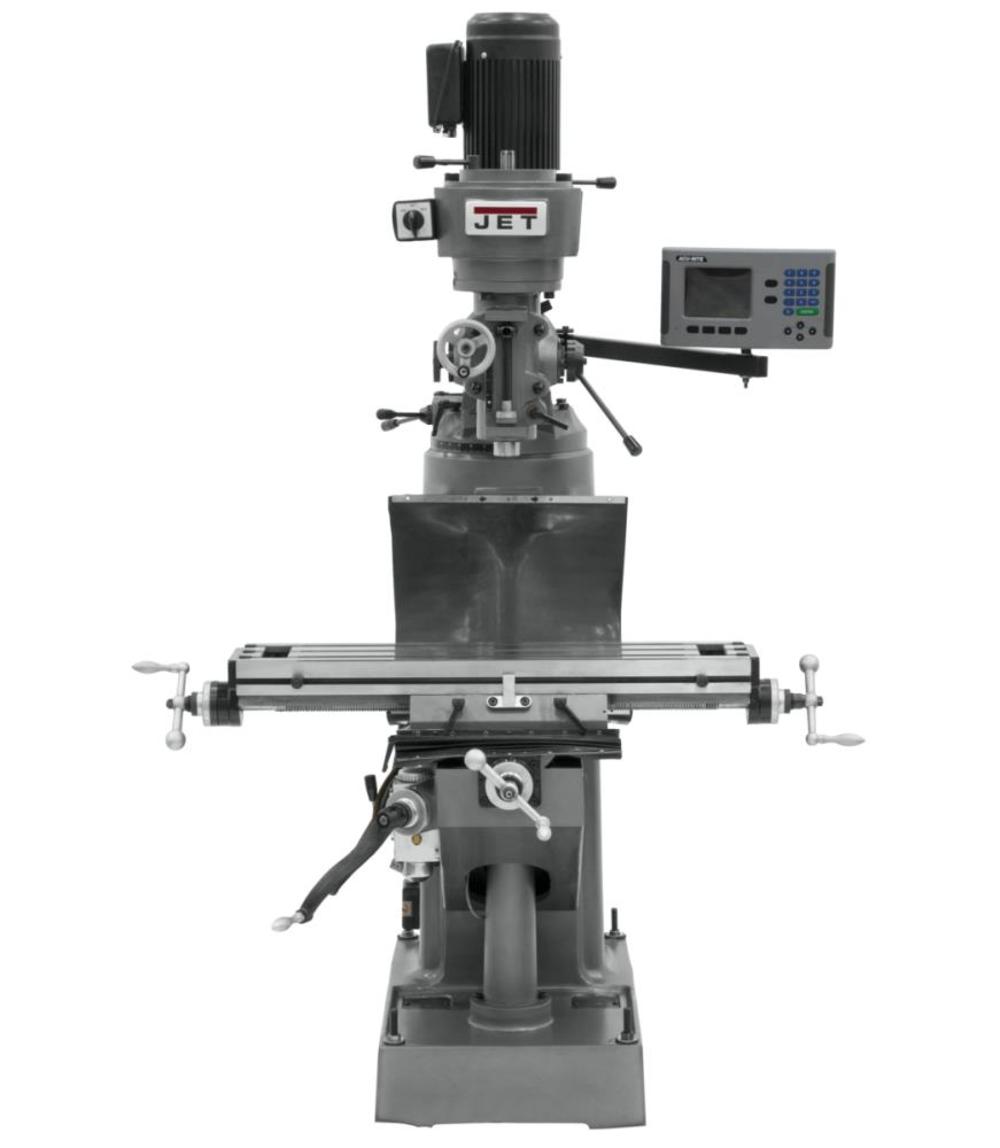

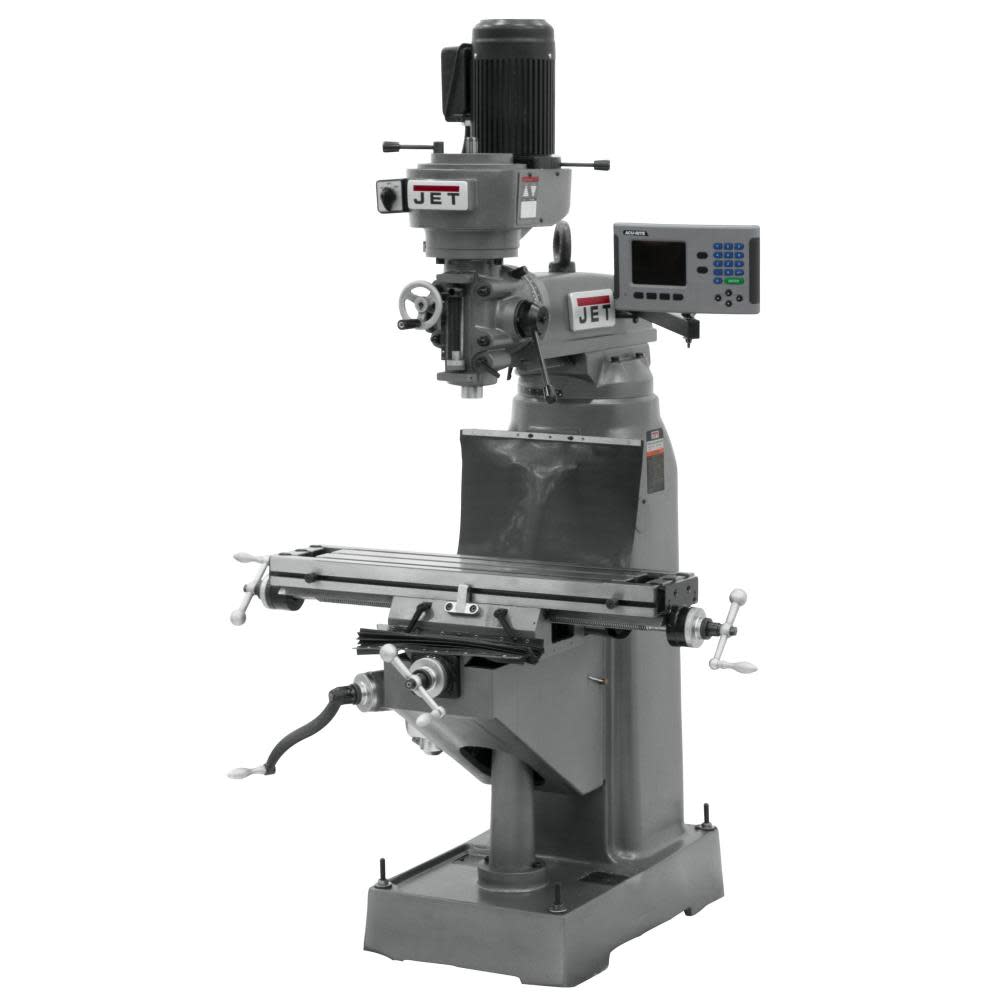

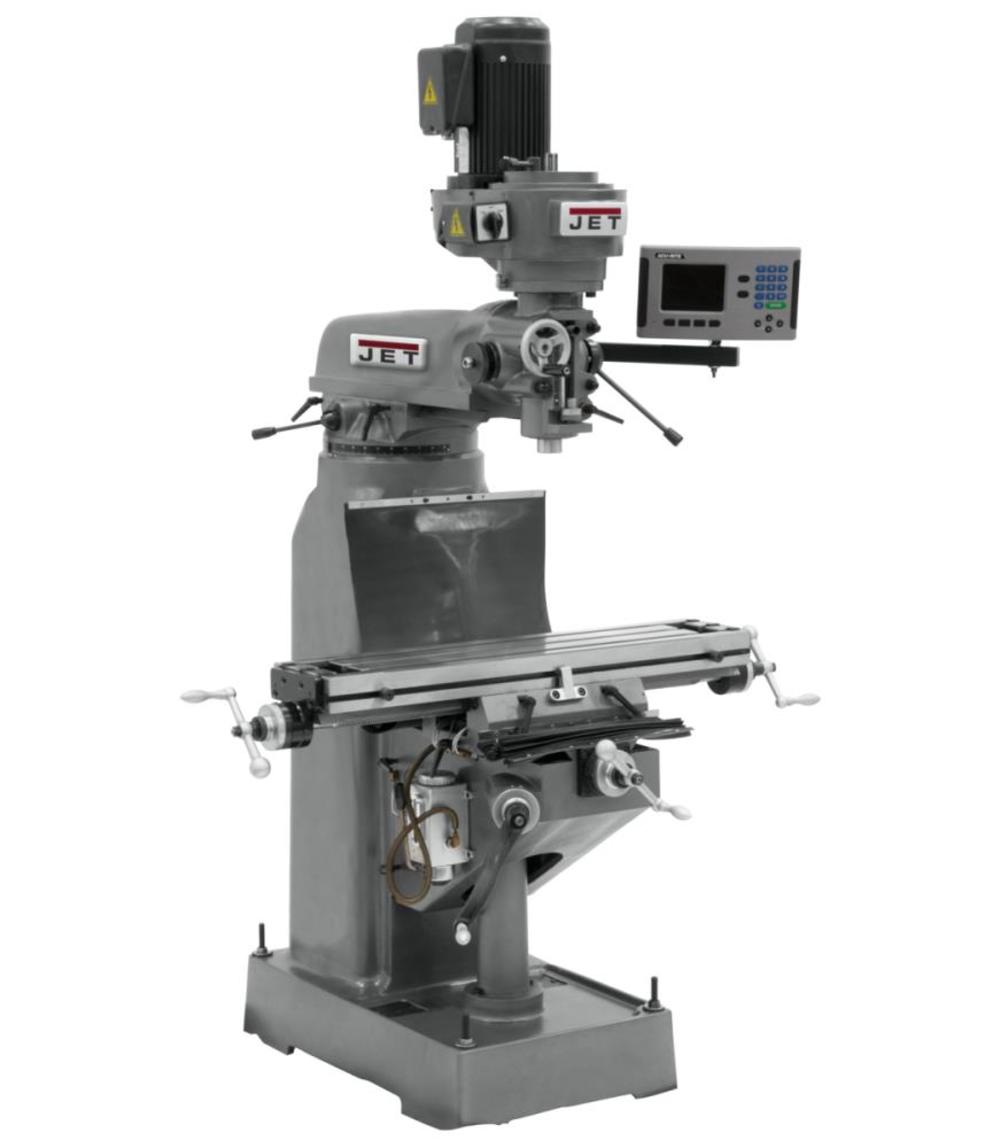

JVM-836-3 MIll with ACU-Rite 203 DRO
The precision bored and honed milling head, coupled with the hardened and ground 8” x 36” table ensures retention of tolerances, while locks on all moving surfaces increase user safety. The JET JVM-836 has features you’ve come to expect that are backed by the industry-leading JET Two Year Warranty
Features
Precision bored and honed milling head
Hardened and ground table
High precision spindle bearings
Over 10” of front to back ram travel
Locks on all movable surfaces
Hardened and ground precision table
Head tilts left or right
Graduated scale on column
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
690190
Assembled Weight (lbs)
1635
California Proposition 65 Warning Required
Yes
Chuck Capacity
.5
Chuck Style
Keyless
Color / Finish
See Image
Column Turret Diameter (in)
0
Country of Origin
China
CSA Certified
No
Digital Display
Not Required
ETL Listed
No
Head Tilt (Front Or Back)
0
Head Tilt (Left Or Right)
90
Height (in)
67.0
Includes Hold Down Foot
No
Internal Supplier Part #
690190
Internet Product Code (IPC)
CCD3B9286C7
Knee Bearing Length (in)
0
Knee Width (in)
0
Length (in)
66.0
Manufacturer Warranty
2 Year
Material
Cast Iron
Motor RPM
1720
Motor Size
#N/A
Number of T-Slots
3
Package Depth
66
Package Height
67
Package Weight
1631.0
Package Weight (lbs)
1631
Quill Diameter
3.38
Quill Feed
0
Quill Travel
0
Ram Swivel
0
Ram Travel
10.5
Ram/Turret Bearing Length (in)
0
Saddle Length (in)
0
Spindle Nose To Table
0
Spindle Taper
R-8
Spindle To Column
5.25
Stand Included
Yes
Switch Type
Push Button
T-Slot Center Distance
2.5
T-Slot Width (in)
0.625
Table Bearing Length
0
Table Load Capacity
500
Table Material
Cast Iron
Table Tilt Range (Deg)
0
UL Listed
No
Unit of Measurement
Inch
Variable Speed
Yes
Voltage
230 Volts
Weight (lbs)
1631.0
Width (in)
56.0
Work Light
No
X Axis, Longitudinal (in)
0.0
Y Axis, Cross (in)
0.0
Z Axis, Knee (in)
0
