Description

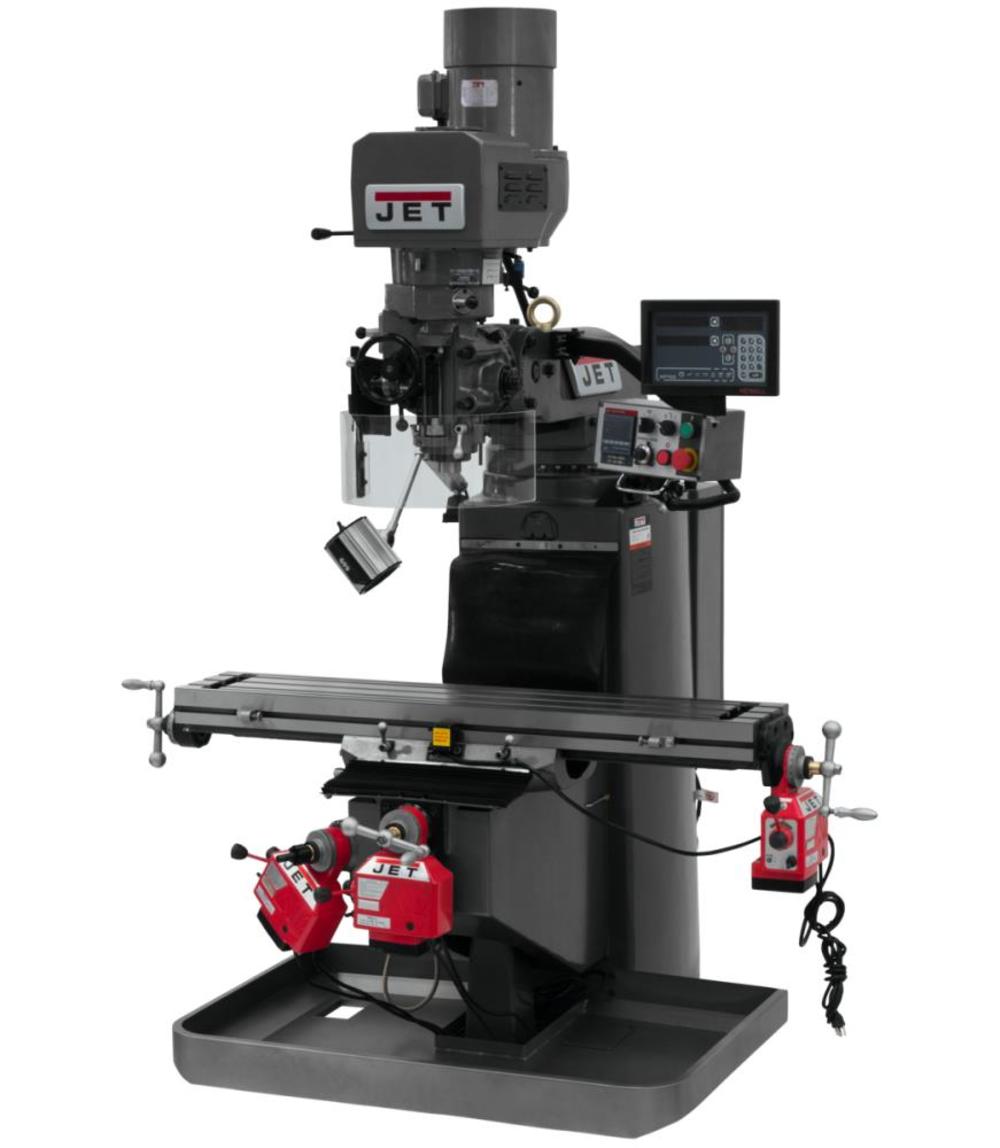

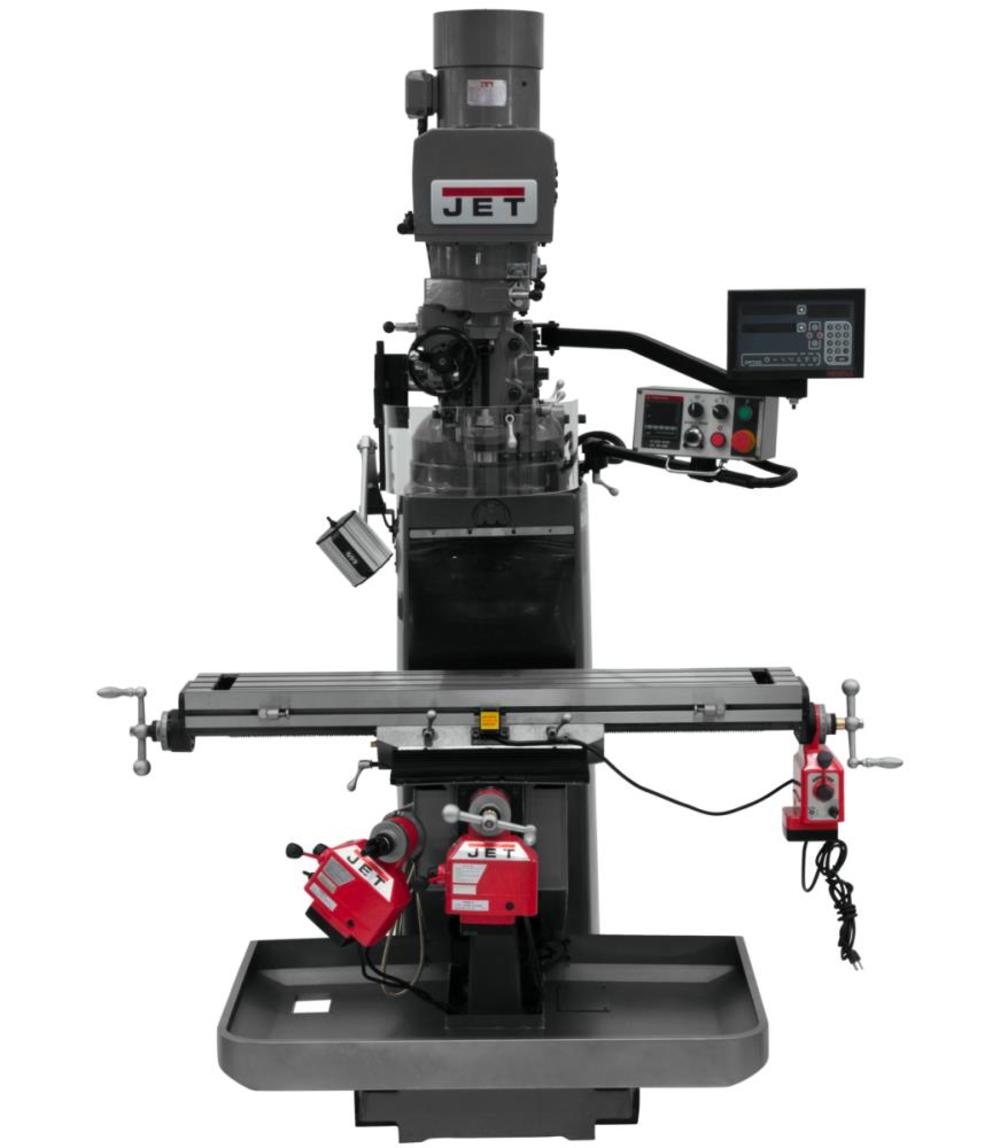

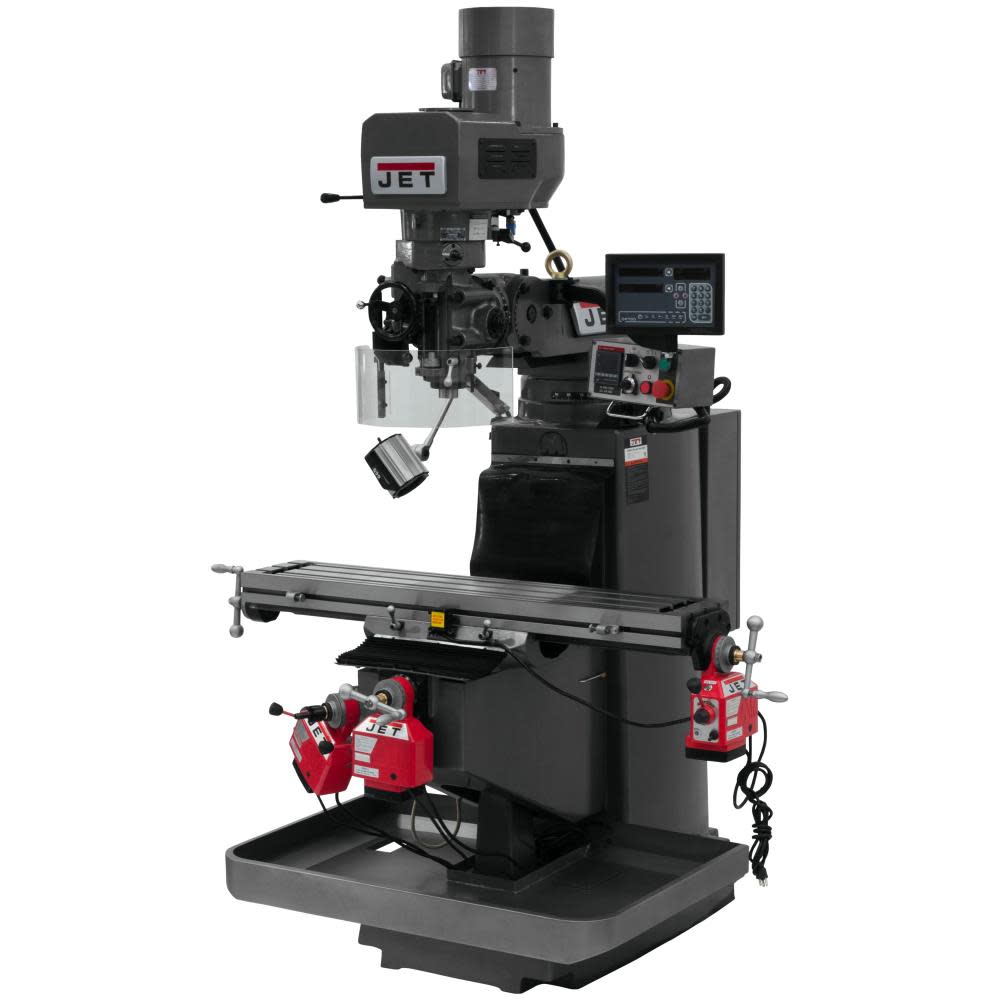

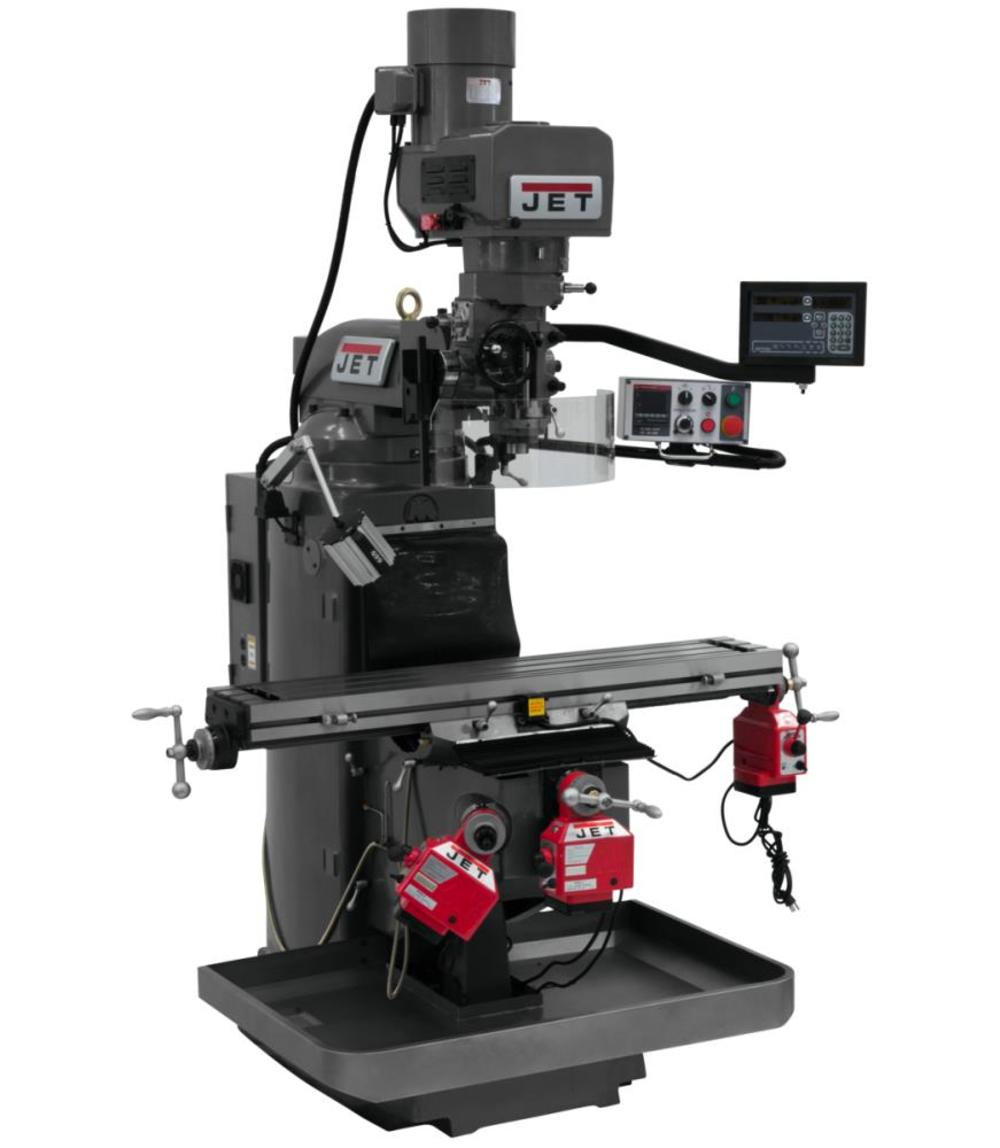

JTM-949EVS/230 Vertical Milling Machine
Constructed using the Meehanite® casting process, The NEW! JTM-949EVS, 9″ x 49″ Electronic Variable Speed Milling Machines provides consistent and reliable operation. The newly designed column and base incorporates a rigid, robust design. These new Mills have features you’ve come to expect and is backed by the industry-leading JET Two Year Warranty.
Features
New! JET designed Certified Meehanite® casting with enhanced ribbing ensures rigidity and tolerance retention
Hardened and ground table

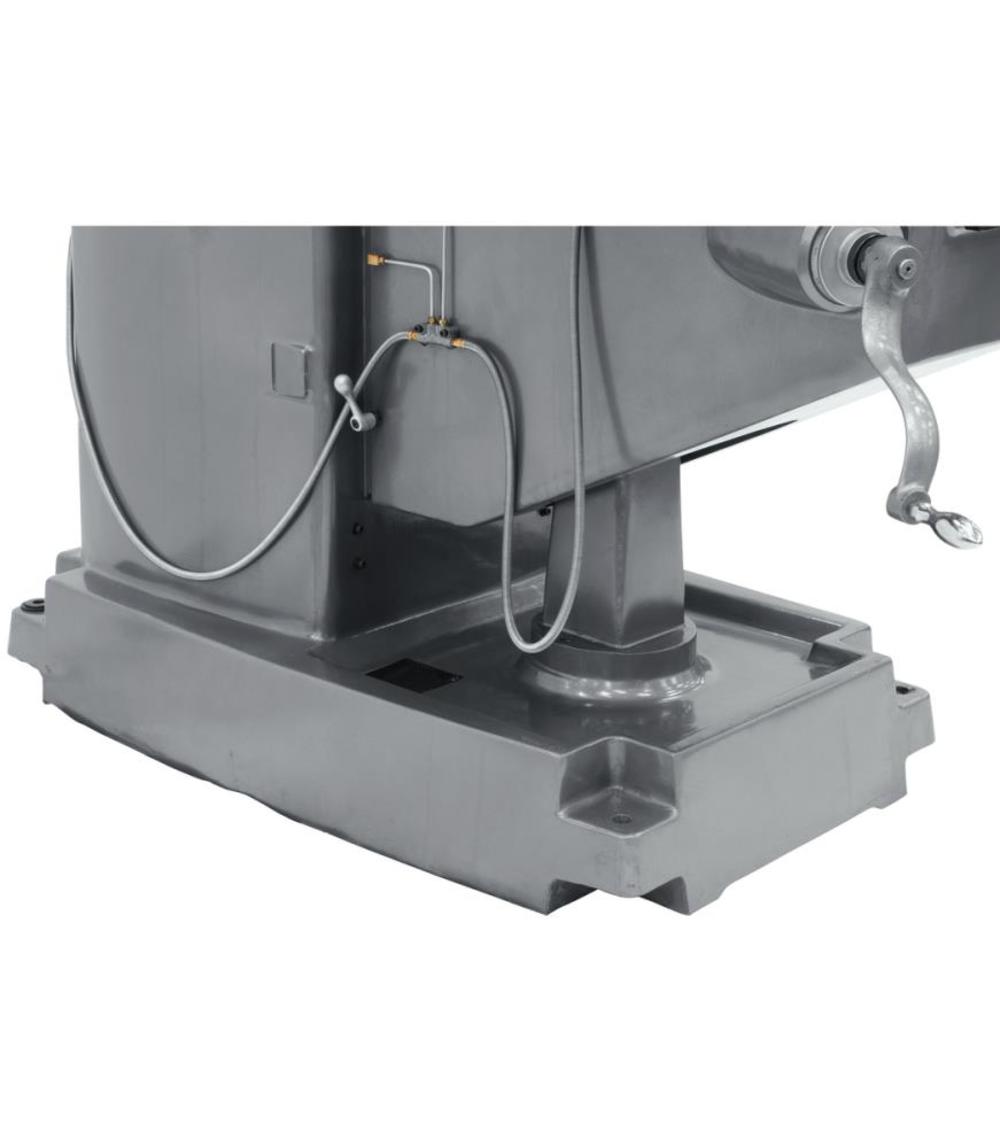

The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
Automatic oiler releases 3 to 6 cc/cy of lubrication every 30 minutes
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
690539
Assembled Weight (lbs)
2420.0
California Proposition 65 Warning Required
Yes
Color / Finish
See Image
Country of Origin
Taiwan
Head Tilt (Left Or Right)
90
Height (in)
86.0
Internal Supplier Part #
690539
Internet Product Code (IPC)
F8928CF9FDE
Length (in)
66.0
Manufacturer Warranty
2 Year
Motor RPM
1720
Motor Size
#N/A
Number of T-Slots
3
Package Depth
66
Package Height
86
Package Weight
2420.0
Package Weight (lbs)
2420
Ram Travel
15.25
Stand Included
Yes
T-Slot Width (in)
0.625
UL Listed
No
Unit of Measurement
Inch
Variable Speed
Yes
Voltage
230 Volts
Weight (lbs)
2420.0
Width (in)
63.0
X Axis, Longitudinal (in)
36.0
Y Axis, Cross (in)
0.0
