Description

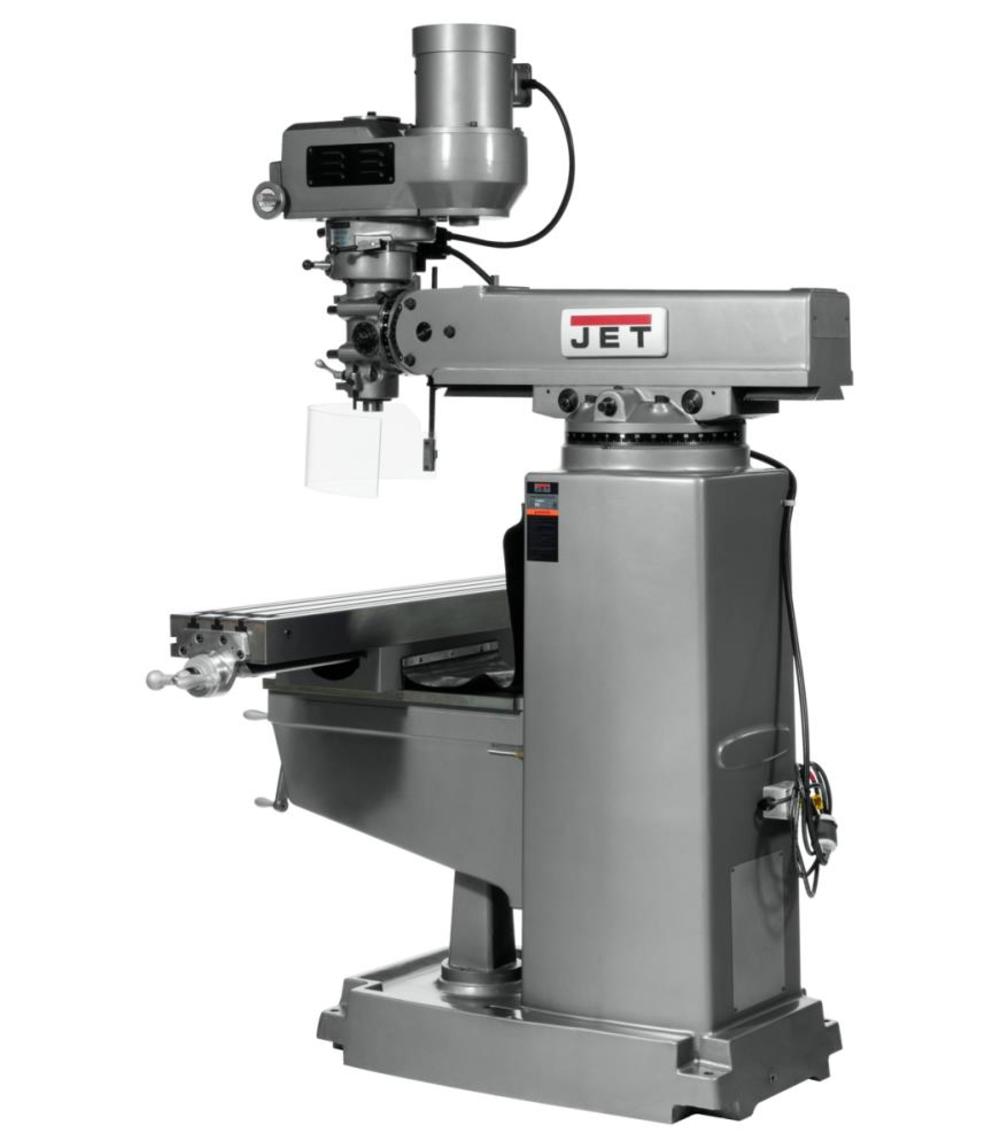

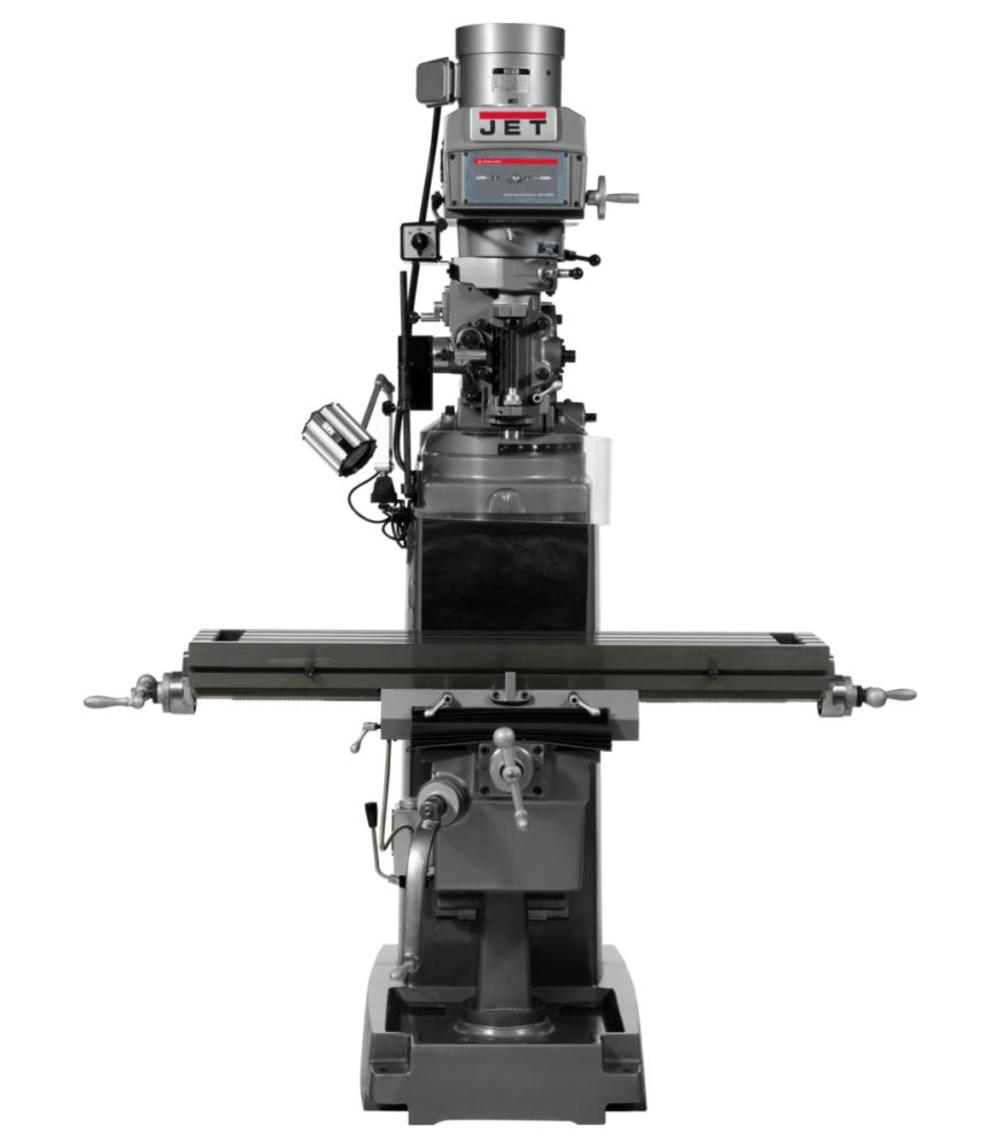

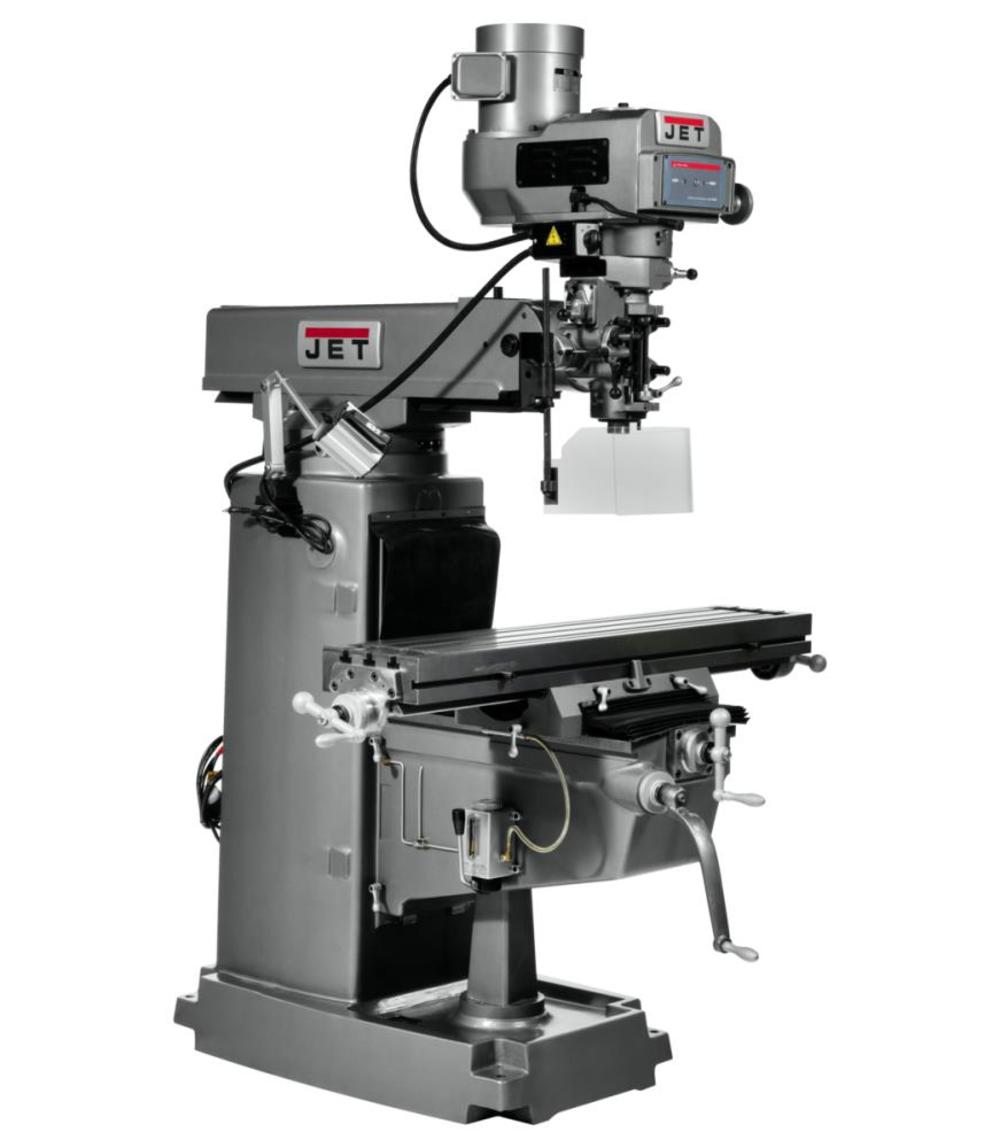

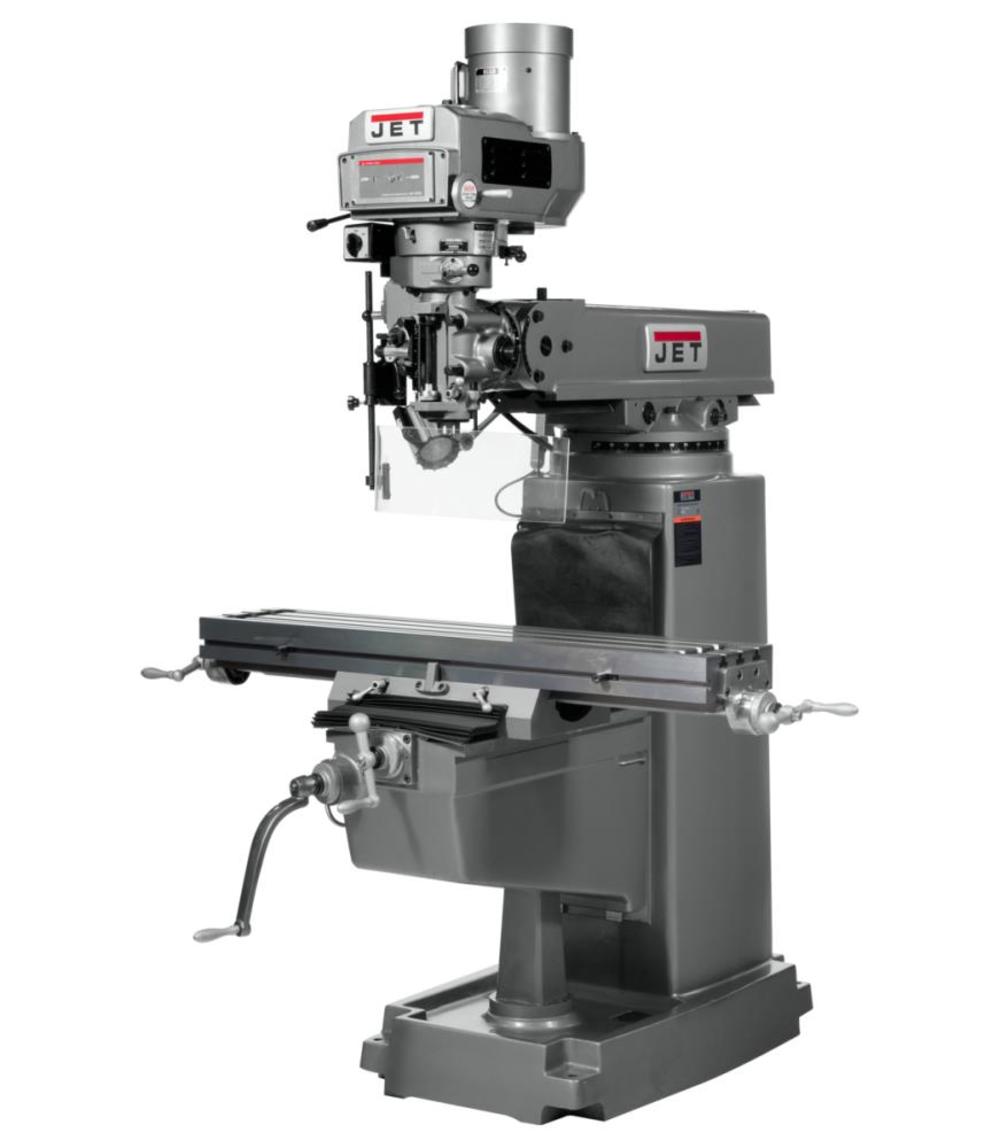

JTM-1050 Vertical Milling Machine
The JET JTM-1050 features Meehanite® castings, a heavy-duty hardened and ground 10” x 50” table, and high precision class 7 precision bearings support the spindle. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. JET precision engineering ensures superior results with all the features you’ve come to expect, all backed by the industry-leading JET Two Year Warranty
Features
Certified Meehanite® Castings
Hardened and ground table
Chrome lead screws on X and Y axis
Turcite B on X and Y axis
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
690158
Assembled Weight (lbs)
2900.0
California Proposition 65 Warning Required
Yes
Color / Finish
See Image
Country of Origin
Taiwan
Head Tilt (Left Or Right)
90
Height (in)
87.0
Internal Supplier Part #
690158
Internet Product Code (IPC)
AF421EC752E
Length (in)
68.75
Manufacturer Warranty
2 Year
Motor RPM
1720
Motor Size
#N/A
Number of T-Slots
3
Package Depth
68.75
Package Height
87
Package Weight
2900.0
Package Weight (lbs)
2900
Ram Travel
20.5
Stand Included
Yes
T-Slot Width (in)
0.625
UL Listed
No
Unit of Measurement
Inch
Variable Speed
Yes
Voltage
230/460 Volts
Weight (lbs)
2900.0
Width (in)
95.75
X Axis, Longitudinal (in)
35.0
Y Axis, Cross (in)
0.0
