JL Audio HD Series Four-Channel Mobile Amp

JL Audio HD Series Four-Channel Full-Range Mobile Amplifier, Model HD6004

This compact multi-channel powerhouse employs our Single-Cycle Control switching design and R.I.P.S. technology to deliver 150 W x 4 or 300 W x 2. Tight power supply regulation keeps distortion down and maximizes sound quality.

When using the HD750/1 or HD1200/1 to drive a subwoofer system, the HD600/4 is the ideal satellite amplifier, delivering huge dynamics with pristine resolution. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.

It can also be deployed on its own as a very capable 3-channel system amplifier with 150 W x 2 to the satellites and 300 W x 1 to a subwoofer system.

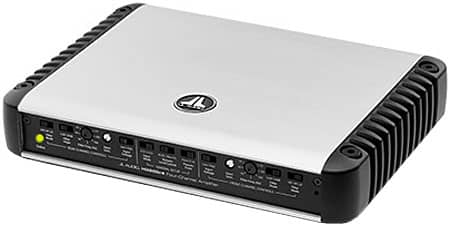

This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.

Specifications:

• Description: 4-Channel Class D Full-Range Amplifier, 150 W x 4 @ 1.5-4 Ù
• Rated Continuous (RMS) Power @ 14.4 V
  • @ 4 ohms: 150W RMS x 4
  • @ 3 ohms: 150W RMS x 4
  • @ 2 ohms: 150W RMS x 4
  • @ 1.5 ohms: 150W RMS x 4
  • Bridged @ 8 ohms: 300W RMS x 2
  • Bridged @ 4 ohms: 300W RMS x 2
• Rated Continuous (RMS) Power @ 12.5 V
  • @ 4 ohms: 150W RMS x 4
  • @ 3 ohms: 150W RMS x 4
  • @ 2 ohms: 150W RMS x 4
  • @ 1.5 ohms: 150W RMS x 4
  • Bridged @ 8 ohms: 300W RMS x 2
  • Bridged @ 4 ohms: 300W RMS x 2
• Frequency Response: 6 Hz – 30 Hz (+0, -1dB)
• S/N Ratio, referred to highest rated power: >110 dB
  (A-weighted, 20 Hz – 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W (Main Channels): >88.2 dB (A-weighted, 20
  Hz – 20 kHz noise bandwidth)
• Damping Factor @ 4 Ohms: >300 / 50 Hz
• Damping Factor @ 2 Ohms: >150 / 50 Hz
• THD+N @ Rated Power: <0.03% @ 4 Ohms per Ch.
• Input Voltage Range @ RCA Inputs: Switchable from 200 mV – 2 V RMS to 800 mV – 8 V RMS
• Min. Copper Power / Ground Wire Gauge: 4 AWG wire
• Fuse Rating: 50 A (AFS, AGU or MaxiFuse™)
• Signal Processing
  • Filter Modes: Low-Pass or High-Pass
  • Filter Slope: 12/24 dB/octave
  • Filter Frequency Range: 50 Hz – 500 Hz
  • Detented, Calibrated Filter Freq.
    Potentiometers: Yes
  • Filter Defeat Function: Yes
  • Remote Level Control: Optional (HD-RLC)
  • Remote Level Modes: 2 or All Channels
  • Channel Input Mode Switch: Yes (2/4 ch.)
  • Pass-Through Preamp Output: Buffered
  • Source Channel Selection for PreOuts: Yes

Approximate Dimensions:

• Height: 1.93″
• Width: 8.29″
• Depth: 10.74″

Approximate Weight:

• Shipping: 6 lbs
