Description

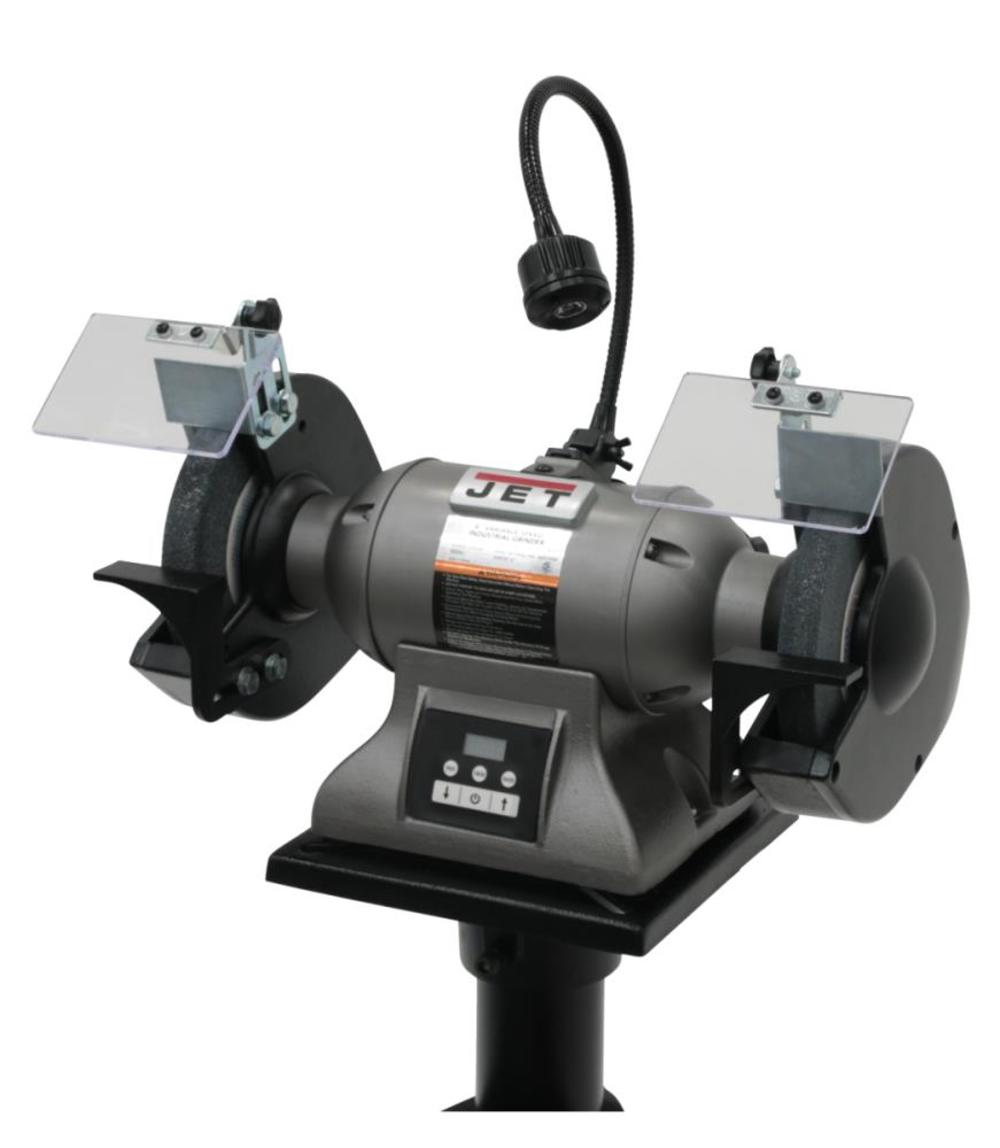

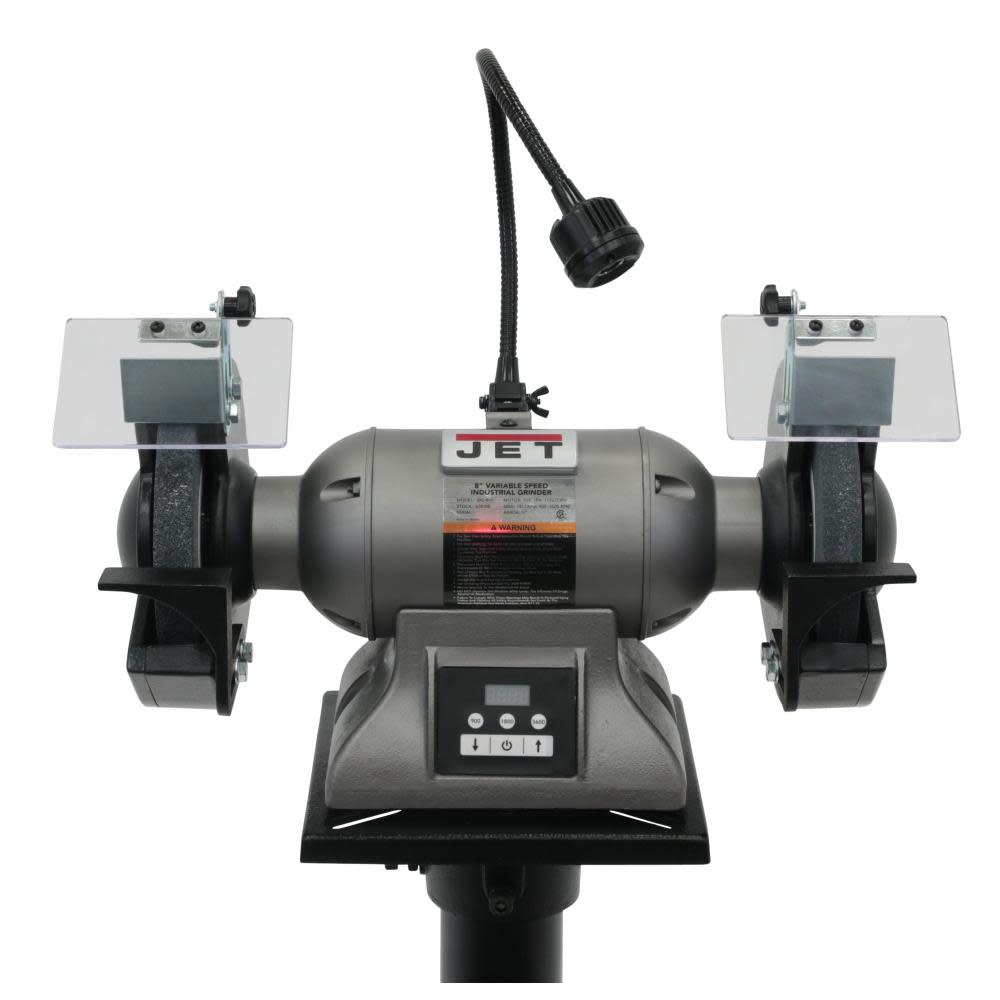

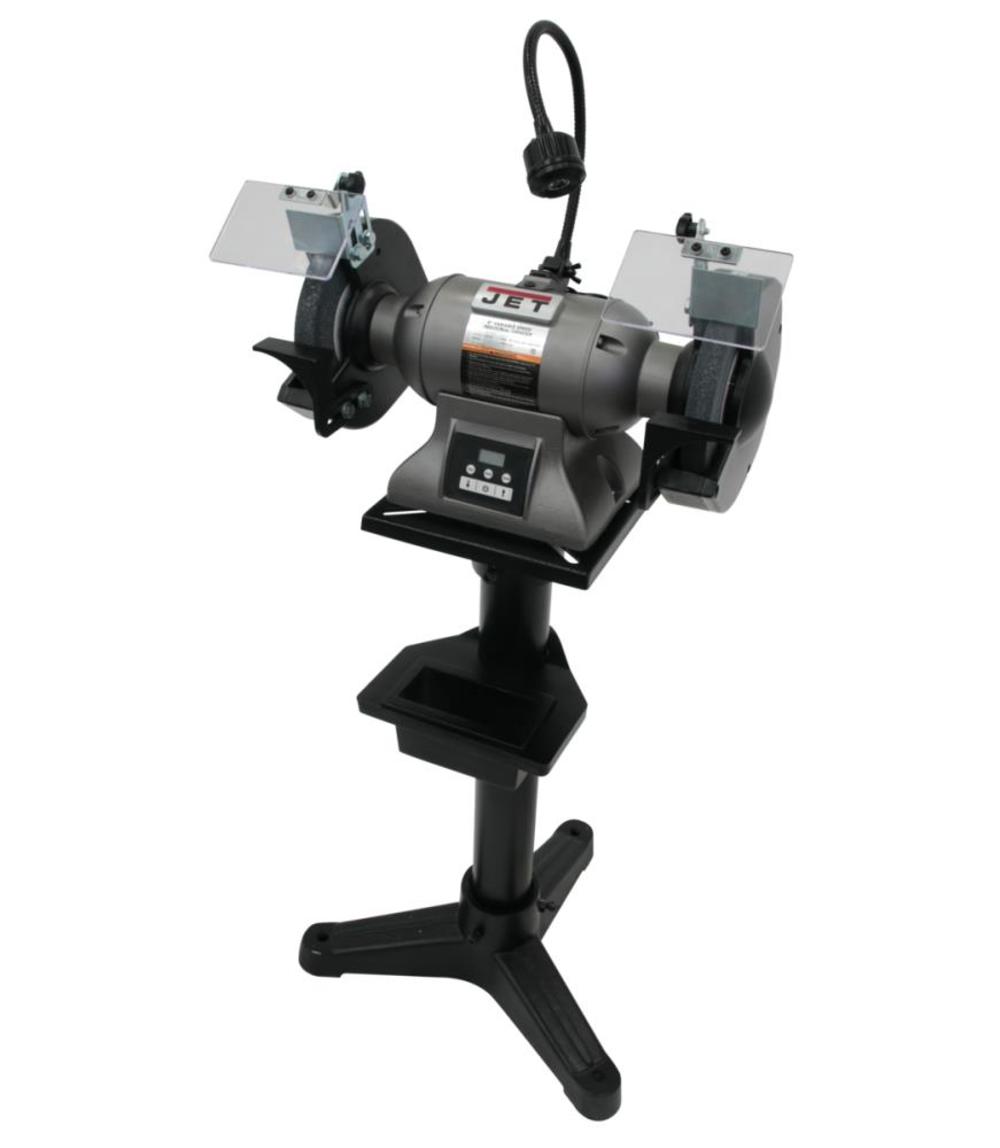

Ibo-8VS, 8″ Variable Speed Industrial Grinder
The heavy-duty one-horsepower 8 In. variable speed industrial bench grinder is engineered with a full casted body and loaded with safety innovations. The exclusive motor stop will reduce RPM speed from 3,600 to 0 In. less than 20-seconds bringing the grit wheel to a complete stop.
Features
Cast iron guards house the 36 and 60 grit wheels
Adjustable cast iron tool rests
Massive cast iron body
Totally enclosed pre-lubricated ball bearings
Wheel dresser
CSA/CUS: Following strict guidelines and electrical requirements, these Jet industrial grinders are CSA/CUS certified
Brake resistor added for rapid wheel stoppage
Large eye safety shields
Rubber mounts prevent movement
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
578208
Amperage (A)
15.0
Arbor Size (in)
0.625
Assembled Weight (lbs)
66.0
California Proposition 65 Warning Required
Yes
Color / Finish
Gray
Cord Length (ft)
6.0
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
Yes
Dust Collection
Yes
ETL Listed
No
Eye Shields
Yes
Grinder Type
Bench
Grinding Wheel Included
Yes
Height (in)
13.93
Horsepower (hp)
1.0
Housing Material
Cast Iron, Steel, Aluminum
Internal Supplier Part #
578208
Internet Product Code (IPC)
34C43BE3776
Length (in)
22.5
Manufacturer Warranty
2-Year
Motor Type
Totally enclosed fan-cooled induction with inverter
Package Depth
22.813
Package Height
14.0
Package Weight
72.0
Package Weight (lbs)
72
Spindle Speed High (rpm)
3600.0
Spindle Speed Low (rpm)
900.0
UL Listed
No
Variable Speed
Yes
Voltage
115/230 Volts
Weight (lbs)
66.0
Wheel Width (in)
1.0
Width (in)
13.375
Work Light
No
