Description

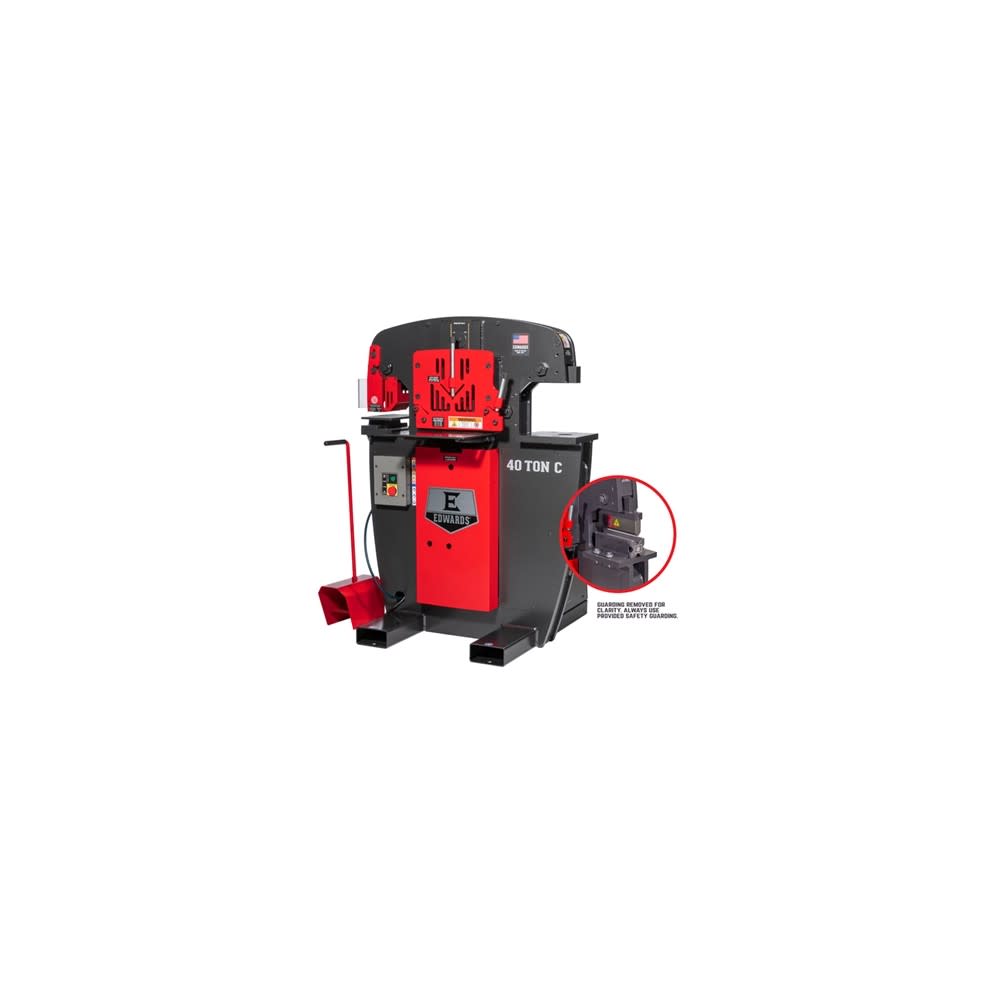

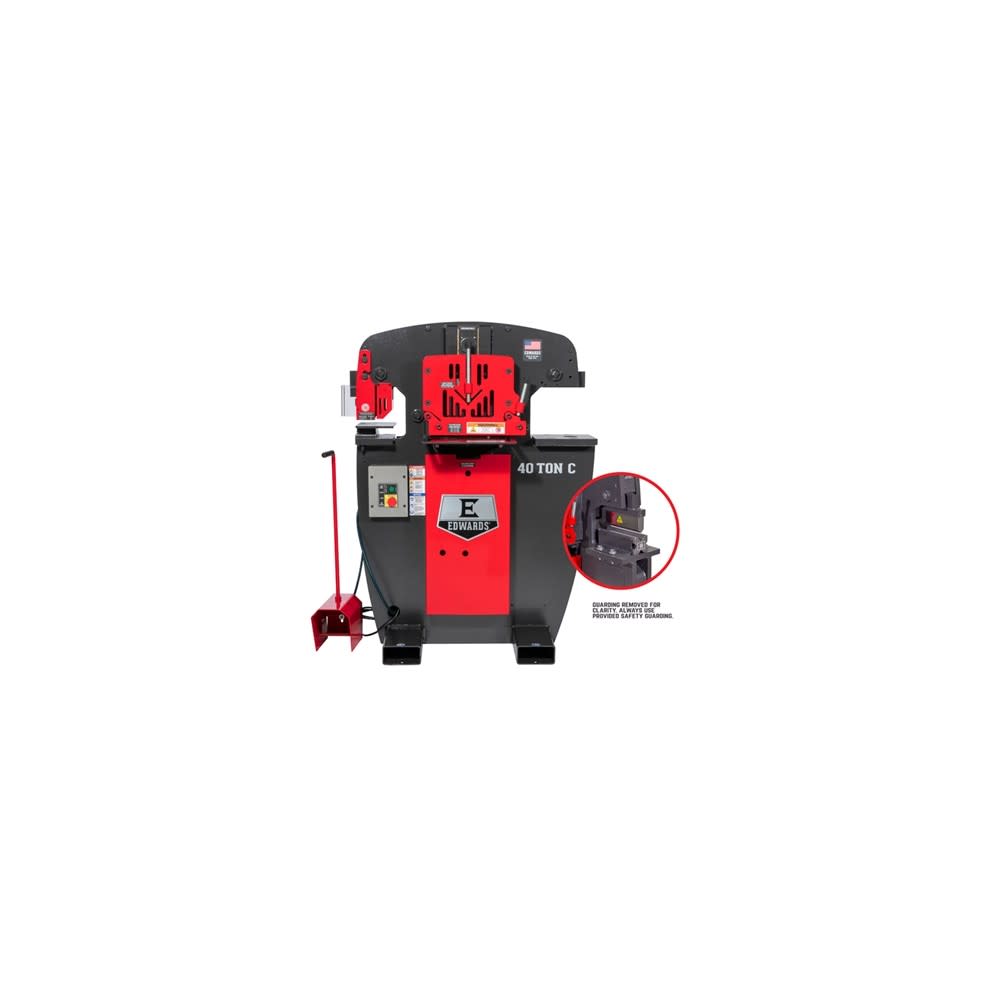

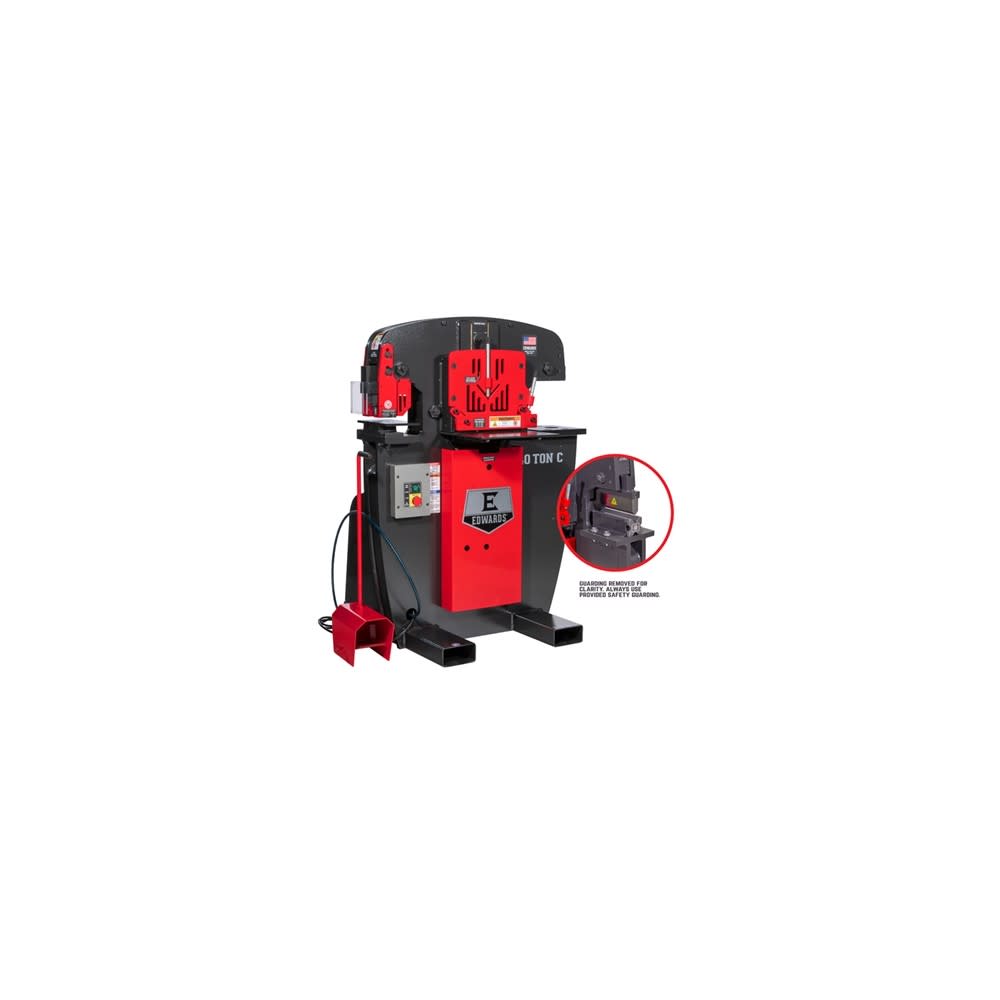

Edwards 115V 1 Phase 40 Ton C Ironworker with 8″ Brake
This 40 Ton C Ironworker is perfect for everything from a home garage or farm to a medium size workshop including a factory-installed 8 In. Brake with 4-way die allowing 1/16 In., 1/8 In., 3/16 In. and 1/4 In. material to be formed to a 90 Deg angle. Running off 115V power, you can plug this ironworker in almost anywhere and start fabricating. With four workstations and able to be customized with 11 attachments and 16 accessories available, it can be modified to your specific project.
Features
Four Workstations: Standard (3) – Punch, Flat bar shear & angle shear, Open (1) – Factory installed 8 In. brake
11 interchangeable attachments available to tailor the Ironworker to your needs

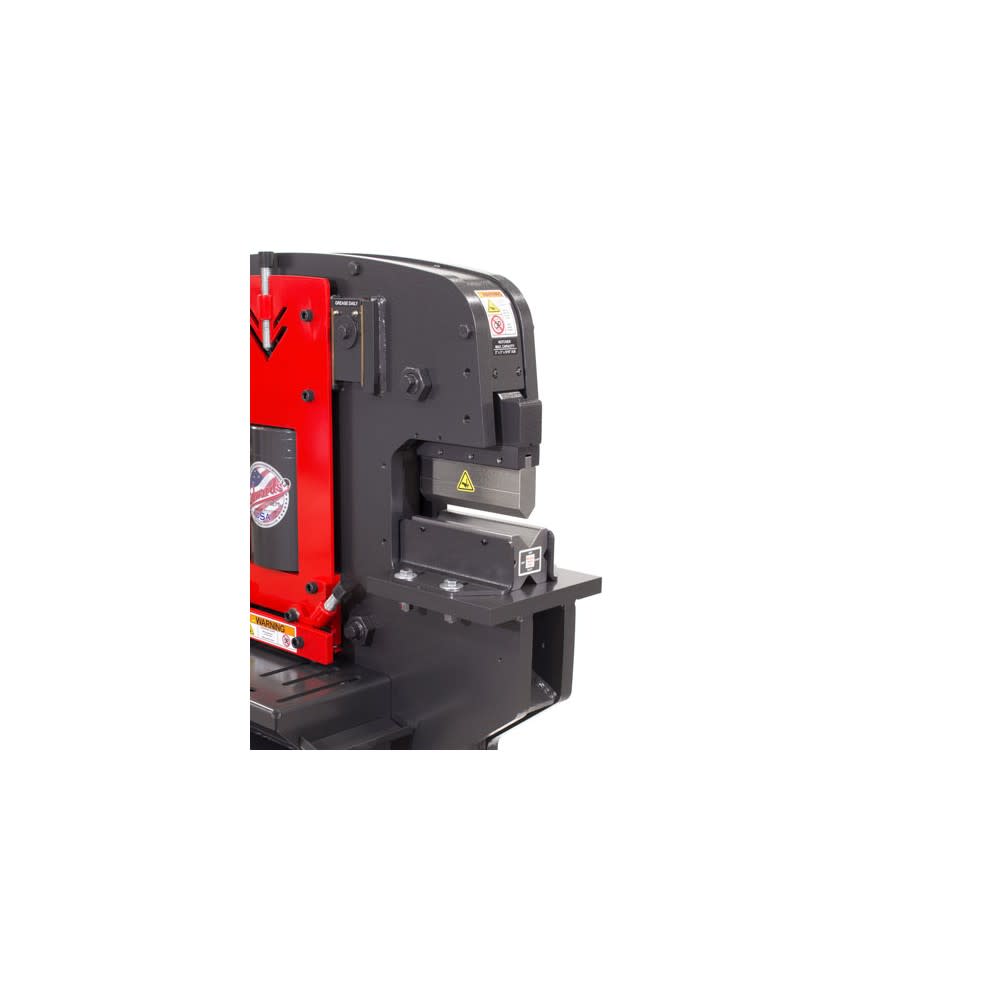

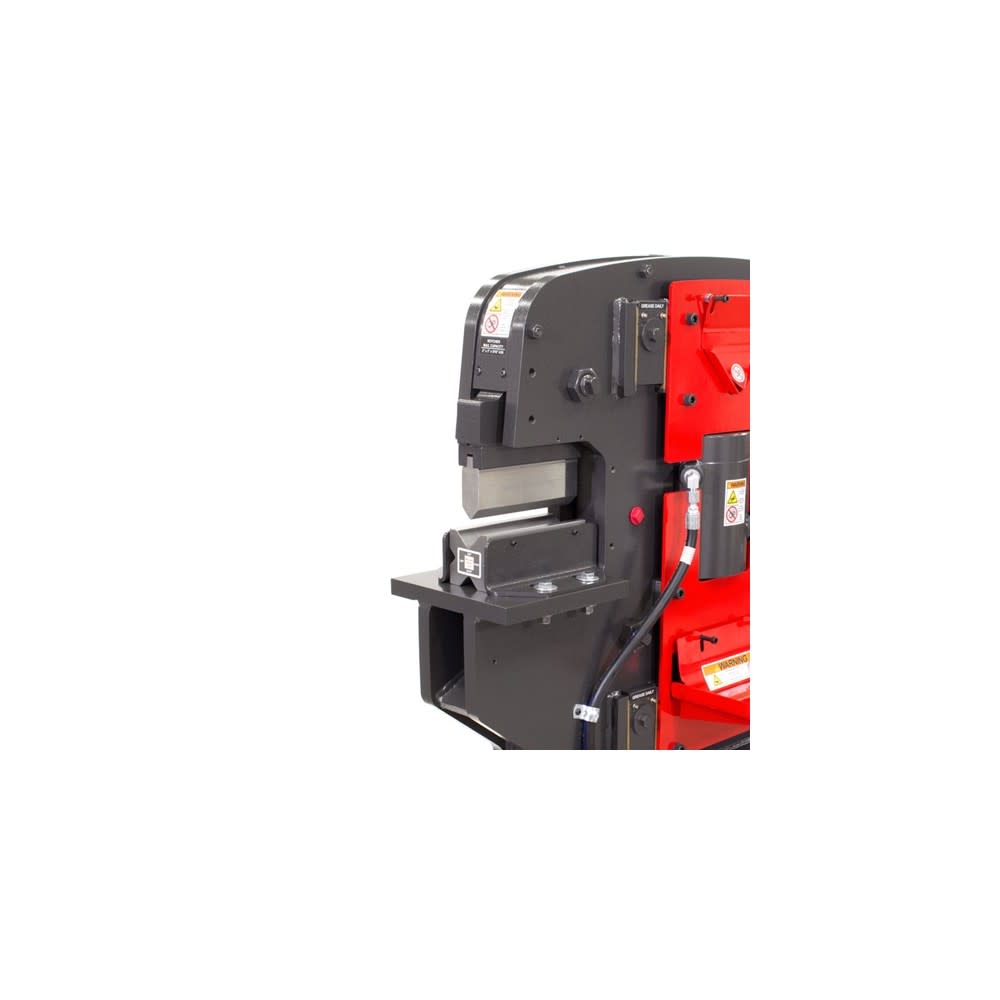

Includes an 8 In. brake with 4-way die allowing 1/16 In., 1/8 In., 3/16 In., and 1/4 In. material to be formed to a 90 Deg angle
16 optional accessories available to increase precision and efficiency
Operates on 115V power
ANSI B11.5-1988(02) compliant guarding
ETL certified controls
Integrated lock-out/tag-out system with E-Stop for added safety
Specifications
Acme Tools Brand Name
EDWARDS
Acme Tools Part Number
40151022
ANSI Safety Listing
Yes
Assembled Weight (lbs)
1720
Country of Origin
United States
ETL Listed
Yes
Horsepower (hp)
2
Maximum Pressure Rating (psi)
N/A
Motor Horsepower (hp)
2
Motor Voltage (V)
115
Package Contents
40 Ton C Ironworker with 8 In. Brake
Package Depth
53
Package Height
36.125
Package Weight
1720
Phase
1
Shop Press Type
Electric
Stroke Length (in)
1.625
Voltage
115
Weight Capacity (lbs)
1720
