Description

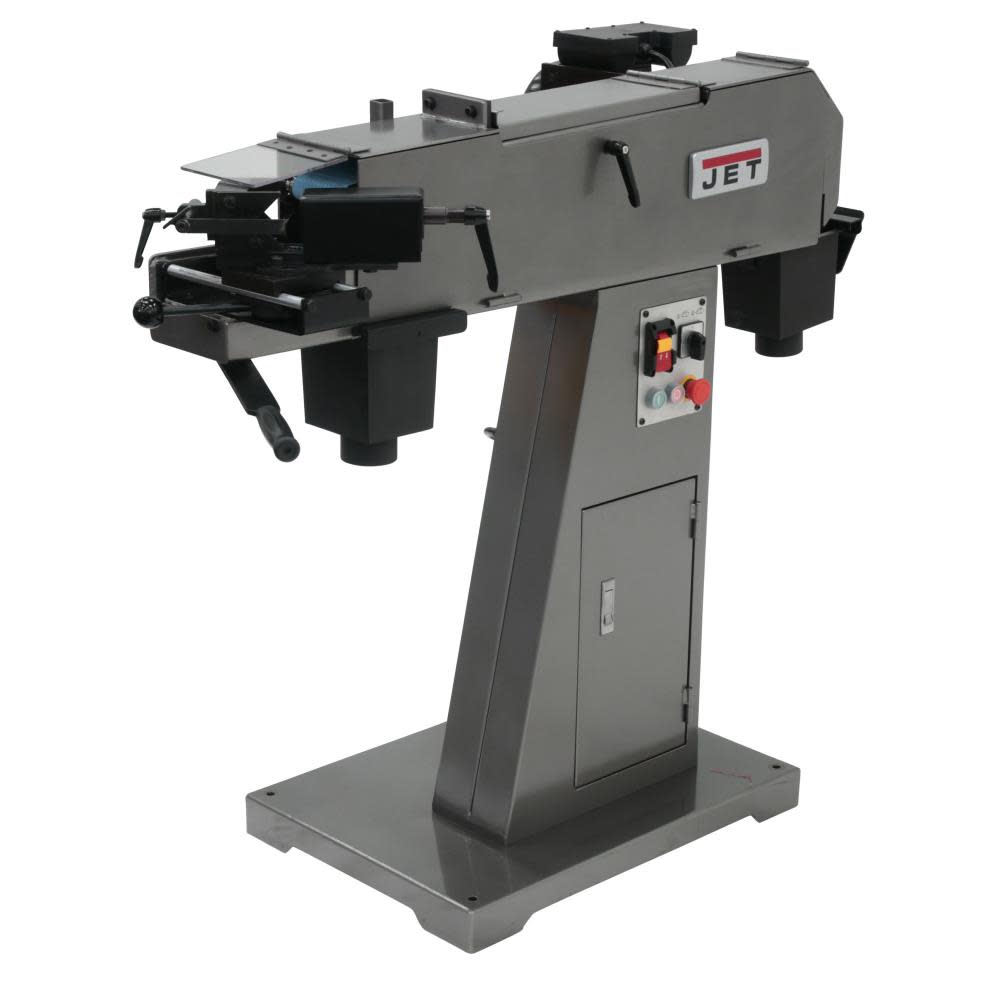

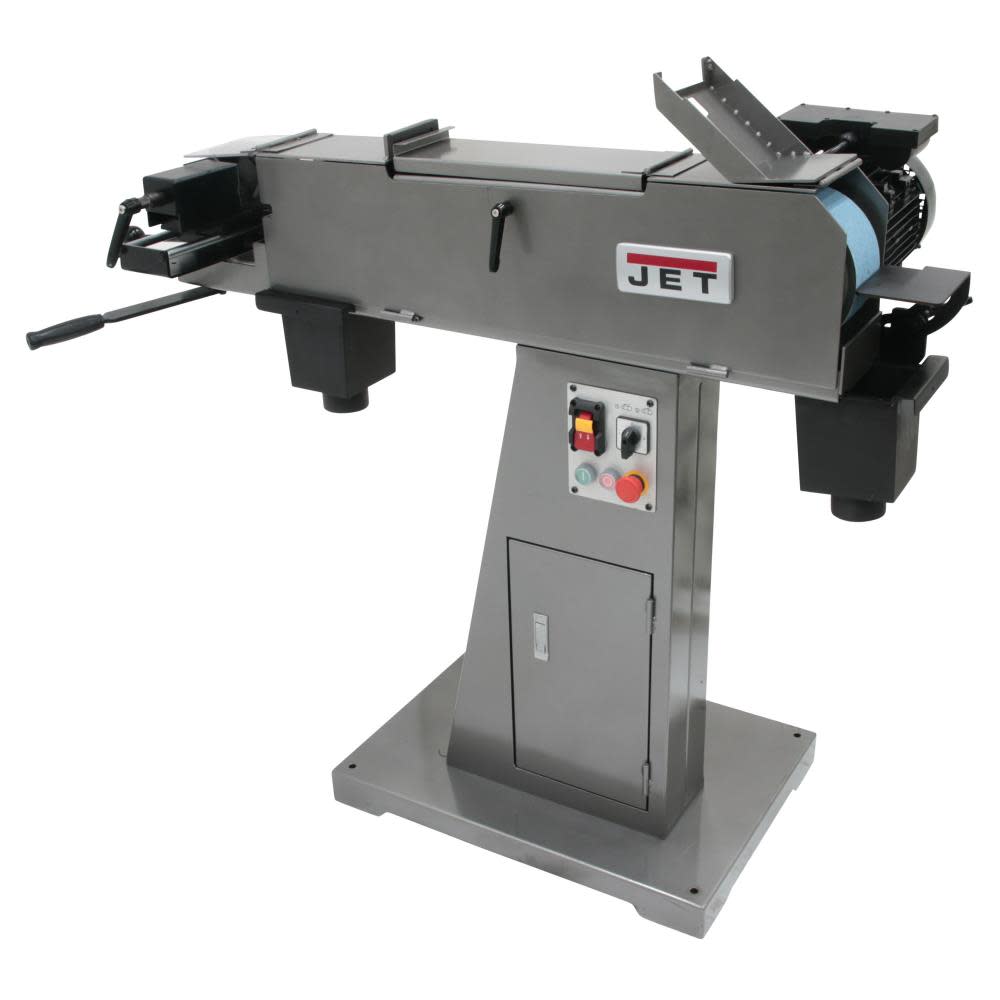

Dual Station Abrasive Notcher 3 HP, 230 V, 1Ph
The Jet dual station abrasive notcher delivers the one-two punch your shop needs to maximize output. The innovative two-station design provides quick and easy access to notching, grinding, and deburring.
Features
Constructed of heavy-duty gauge steel
Totally enclosed fan cooled, AC induction motor
CSA/CUS: following strict guidelines and electrical requirements, this Jet Notcher is CSA/CUS certified
Safety on/off switch
Two station design provides quick easy access, from grinding, notching and deburring at 3 different stations
Forward and reverse switch for change of belt direction for standard grinding on rear of machine
Seven rollers 1/2 In. to 2 1/2 In. come standard
Roll changing made easy and tool less

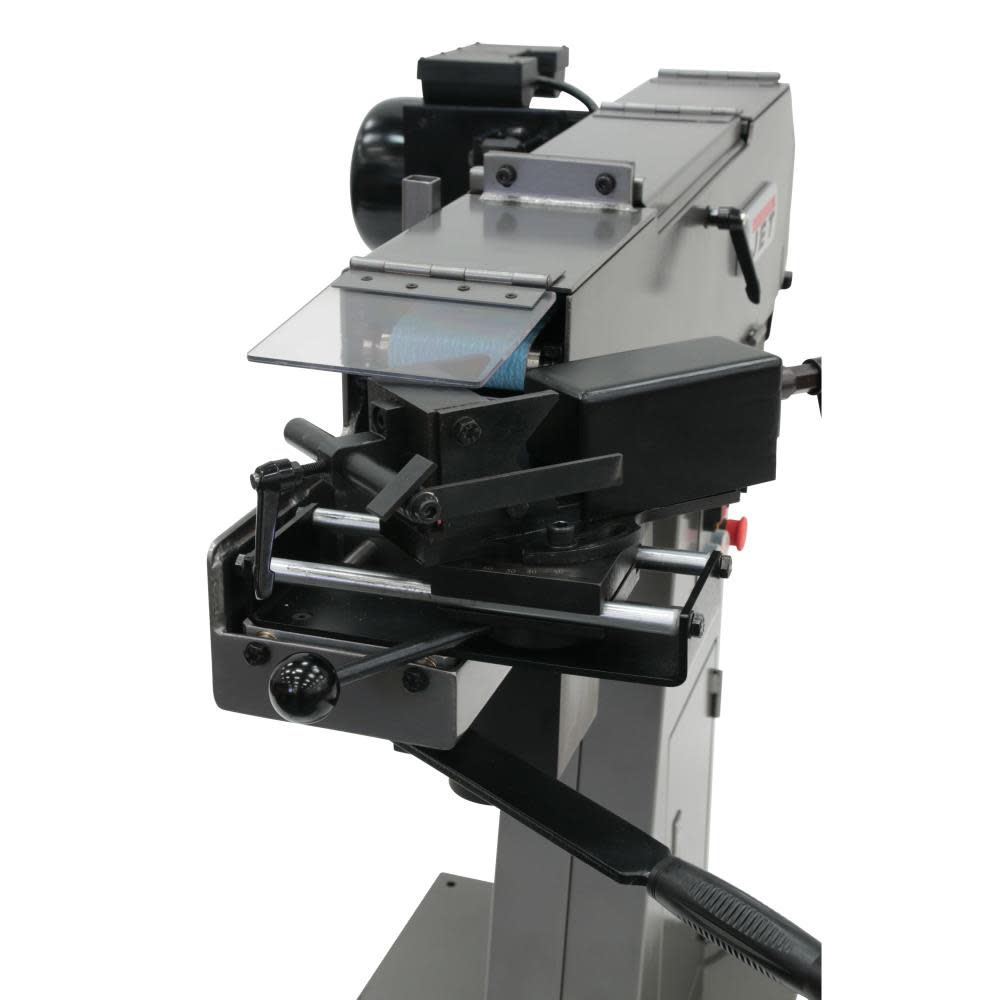

Multi-positional hand lever vise

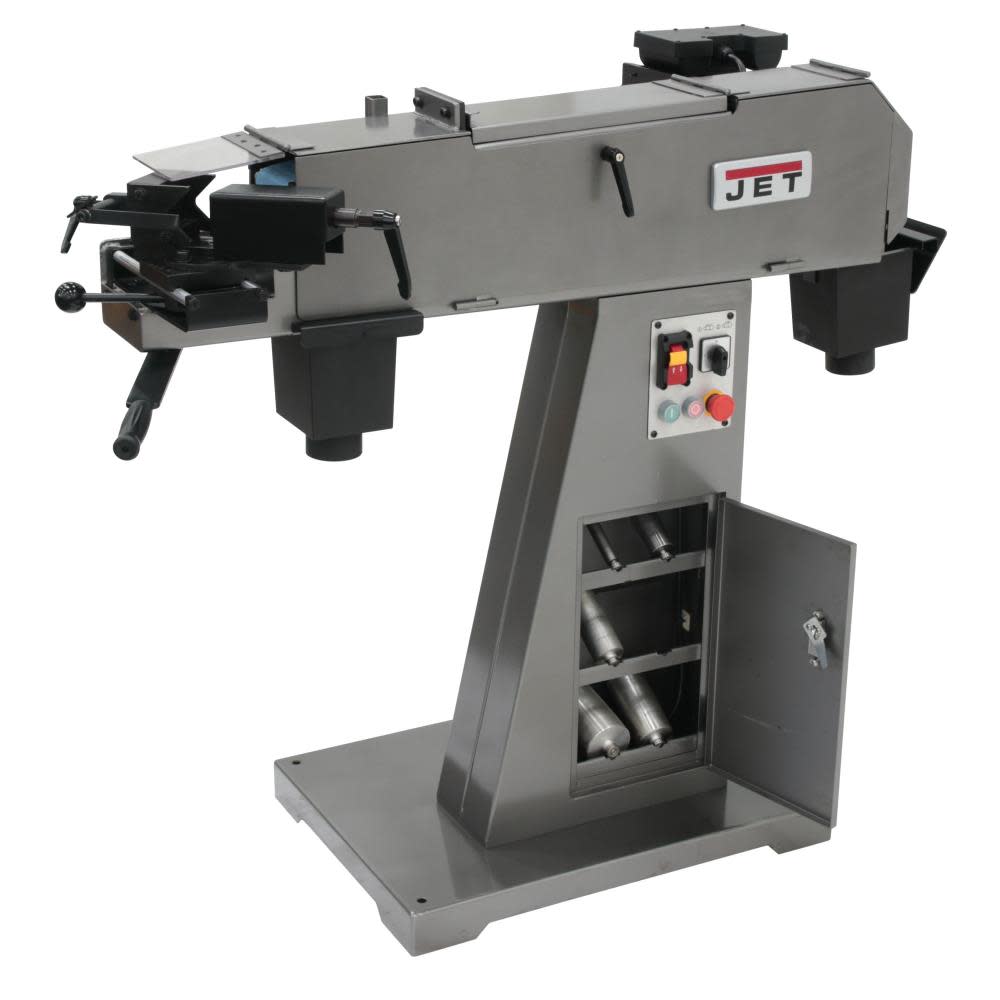

Convenient storage location in the stand for all mandrels/rollers
Two 3 In. dust ports for easy cleanup
Standard accessories
Three replacement belts, one each of 36G, 60G & 80G come standard
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
756180
Assembled Weight (lbs)
344
California Proposition 65 Warning Required
Yes
Color / Finish
Grey/Metal
Country of Origin
China
Internet Product Code (IPC)
BF994EEFAAD
Manufacturer Warranty
2 Year
Material
Sheet metal
Package Contents
1 Abrasive Notcher
1 Abrasive belt (80-grit) pre-installed
1 Set of 3 abrasive belts (36,60,80-grit)*
7 Rollers (one roller is pre-installed)
1 Open end wrench, 22/24mm
3 Hex wrenches, 4,6,8 mm
1 Operating instructions and parts list
1 Product registration card
1 Abrasive belt (80-grit) pre-installed
1 Set of 3 abrasive belts (36,60,80-grit)*
7 Rollers (one roller is pre-installed)
1 Open end wrench, 22/24mm
3 Hex wrenches, 4,6,8 mm
1 Operating instructions and parts list
1 Product registration card
Package Weight
510
Package Weight (lbs)
510
