Description

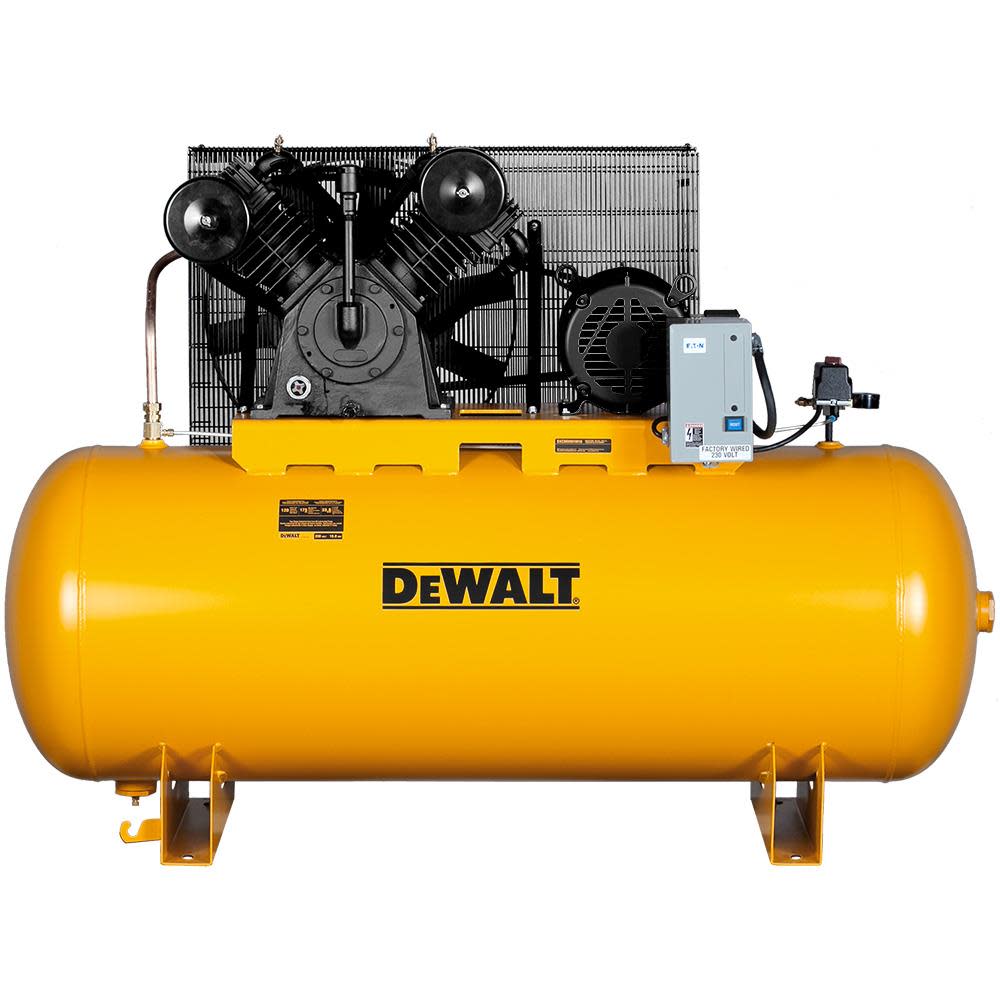

DEWALT Air Compressor Electric 120 Gallon 175 PSI

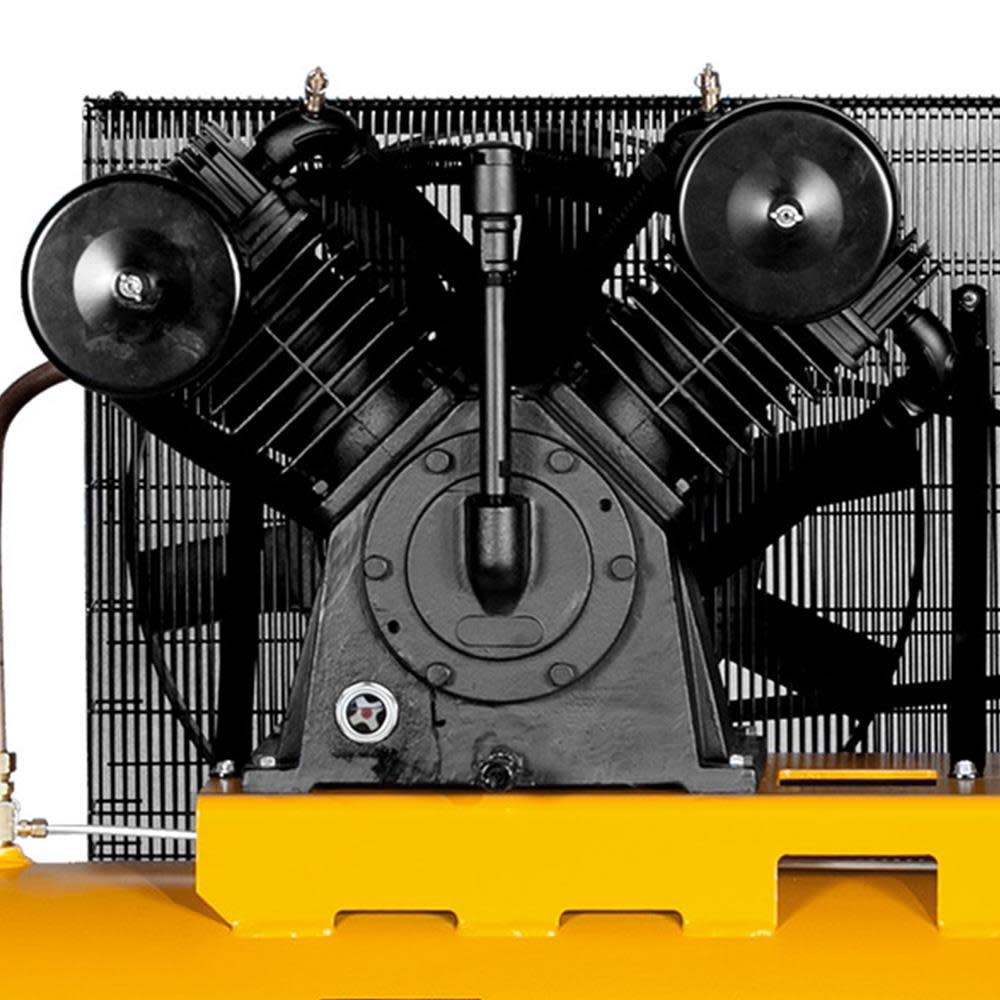

With a patented pump and piston design that improves compression efficiency, this 120 Gal. 2-Stage Electric Air Compressor is the perfect addition to your workspace. Designed to provide industrial performance while operating more than one tool at a time. The cast iron construction adds unmatched durability.
Features

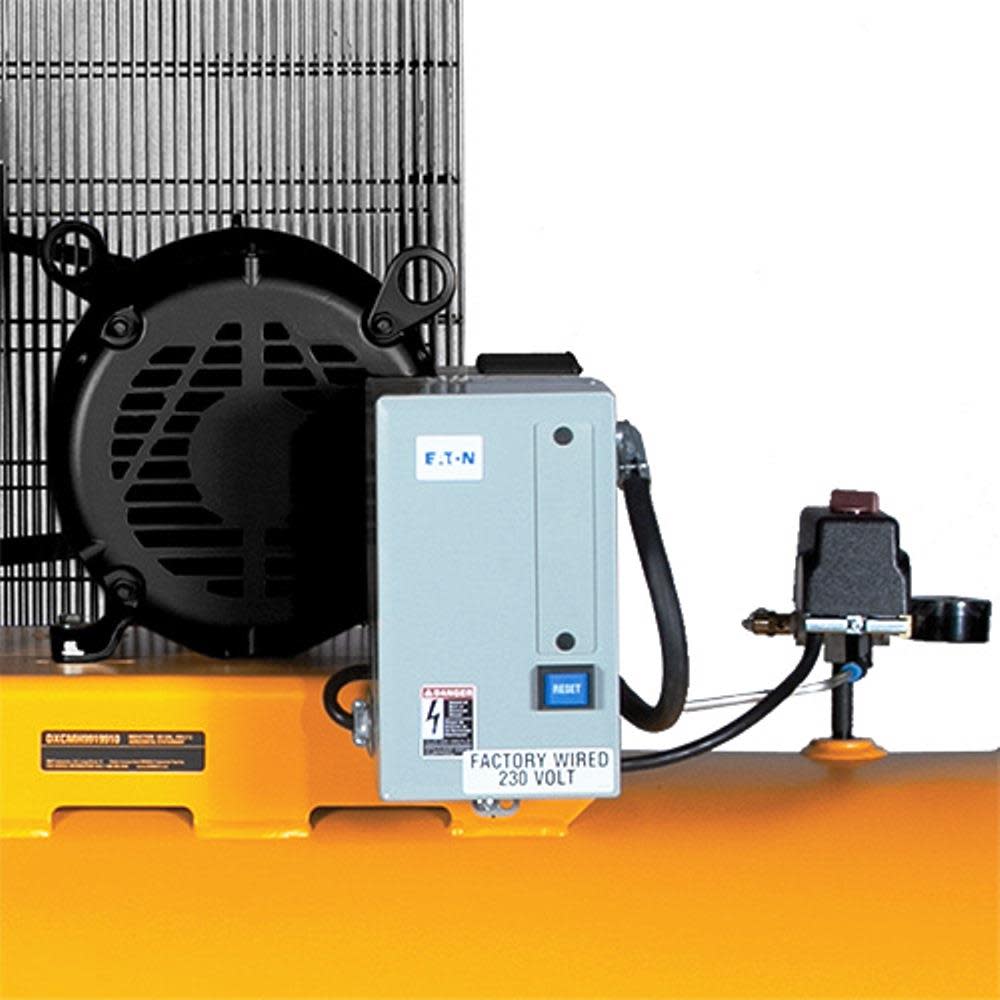

Comes equipped with pre-wired and mounted magnetic starter which saves time and money
Utilizes cast iron construction for durability, dependability and smooth operation
Featuring a running horsepower of 10.0 and a 3-phase capability
Offers a 35.0-CFM at 100-psi and 33.6-CFM at 175-psi with 230 volts.
Specifications
Acme Tools Brand Name
DEWALT
Acme Tools Part Number
DXCMH9919910
Amperage (A)
28
Assembled Weight (lbs)
920
California Proposition 65 Warning Required
Yes
Color / Finish
DEWALT Yellow
Compressor Design
Horizontal (Stationary)
Cordless / Corded
Corded
Country of Origin
United States
CSA Certified
Yes
ETL Listed
No
Height (in)
60
Horsepower (hp)
10.0
Internal Supplier Part #
DXCMH9919910
Internet Product Code (IPC)
CADE3A621A6
Length (in)
75
Manufacturer Warranty
2 Year Limited Warranty on oil lubricated pumps. 1 Year Limited Warranty on all other components.
Maximum Pressure Rating (psi)
175
Motor Type
Induction
Operating Position
Horizontal
Package Depth
75
Package Height
60
Package Weight
920
Package Weight (lbs)
920
Tank Capacity (gal)
120
Tank Configuration
Single
Tank Material
Steel
Tank Pressure Gauge
Yes
Type of Air Compressor Tank
Stationary
UL Listed
No
Voltage
230
Voltage Rating
230
Weight (lbs)
920
Wheeled
No
Width (in)
29
