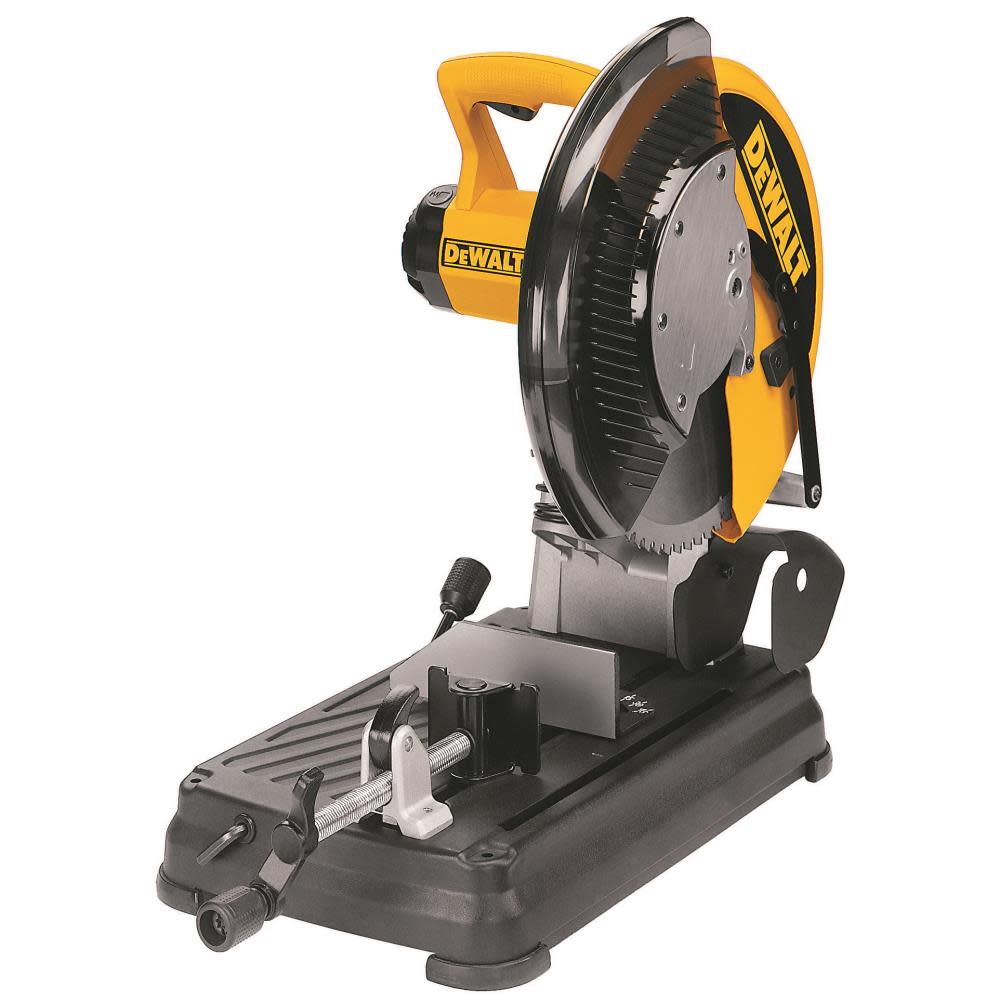

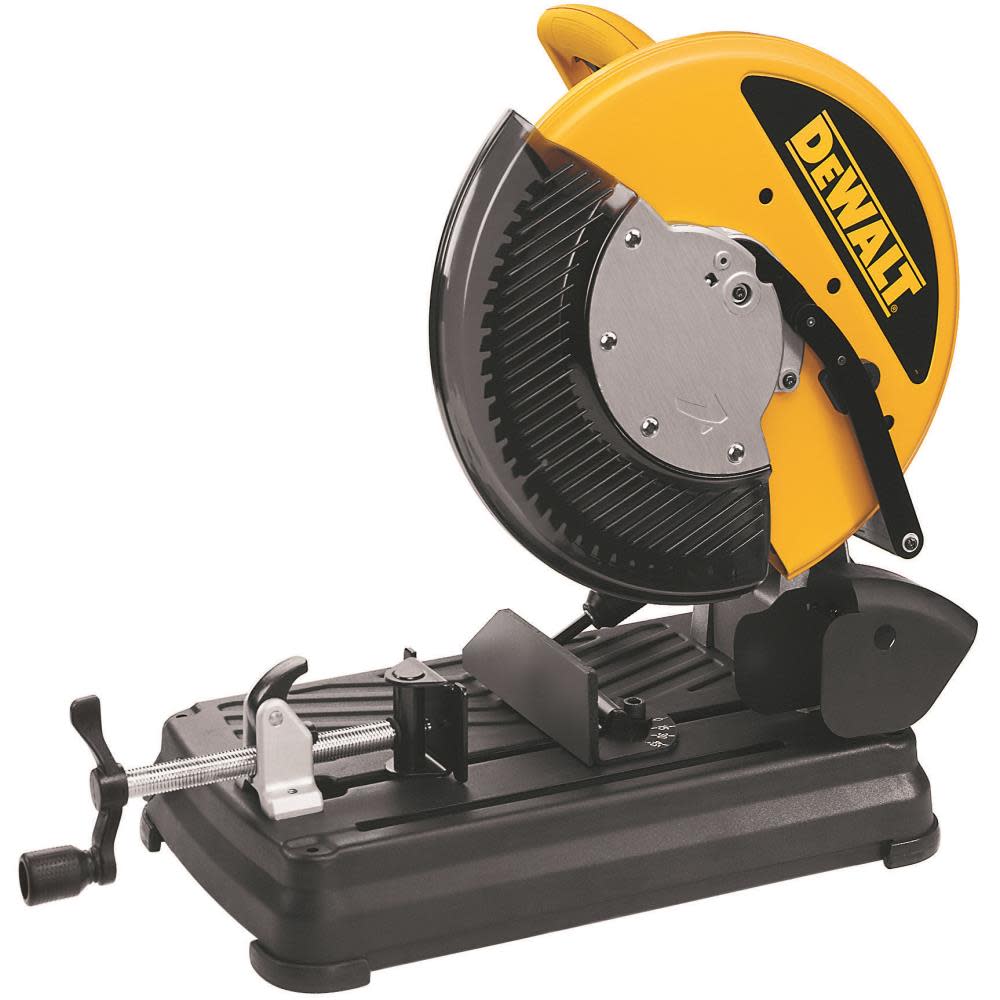

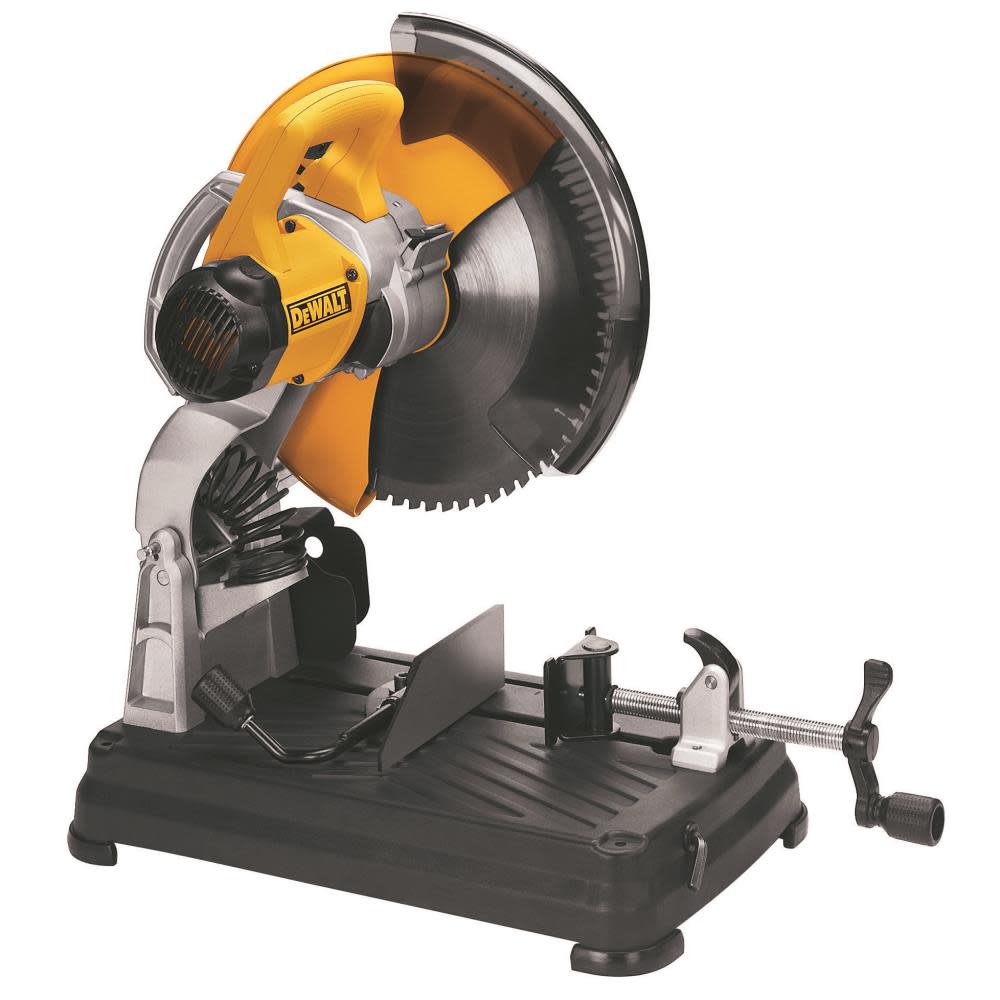

DeWalt 14″ Multi Cutter Saw
The 14-inch (355mm) Multi-Cutter Saw by DeWALT® lets you cut your pieces to the length you need to use them on your project. This DeWalt saw’s 15-amp motor spins the blade at a maximum speed of 1,300 rpm, so you can make quick work of your cutting jobs. It’s rated to cut up to eight times more quickly than portable band saws and four times more quickly than chop saws when you cut angle iron that’s 2 x 2 x 1/4-inch. This 14-inch saw includes DeWalt’s patented Quick-Fence™ for tool-free adjustments up to 45 degrees, which makes it simple to make angled cuts. The saw has a maximum cutting depth of up to 5-3/16 inches in round metal and 4-1/2 x 6-1/2 inches in rectangular metal pieces.
Features
Multi-Cutter offers versatility by cutting a wide variety of materials including ferrous and non-ferrous metals
Utilizing a carbide tipped blade allows the depth of cut to remain constant throughout blade life
Multi-Cutter cuts 4 times faster than chop saws and 8 times faster than portable band saws in 2-in x 2-in x 1/4-in angle iron
14-in 70-tooth carbide tipped blade delivers a lower cost-per-cut compared to cutting with abrasive wheels
Specially designed carbide teeth deliver fast, precise, virtually burr-free cuts reducing the need for preparation grinding, and finished cuts that are cool to the touch
Largest capacity in its class with even more capacity than a deep-cut portable band saw (5-3/16-in round and 4-1/2-in x 6-1/2-in rectangular) allowing user to cut a wider variety of different size materials for more applications

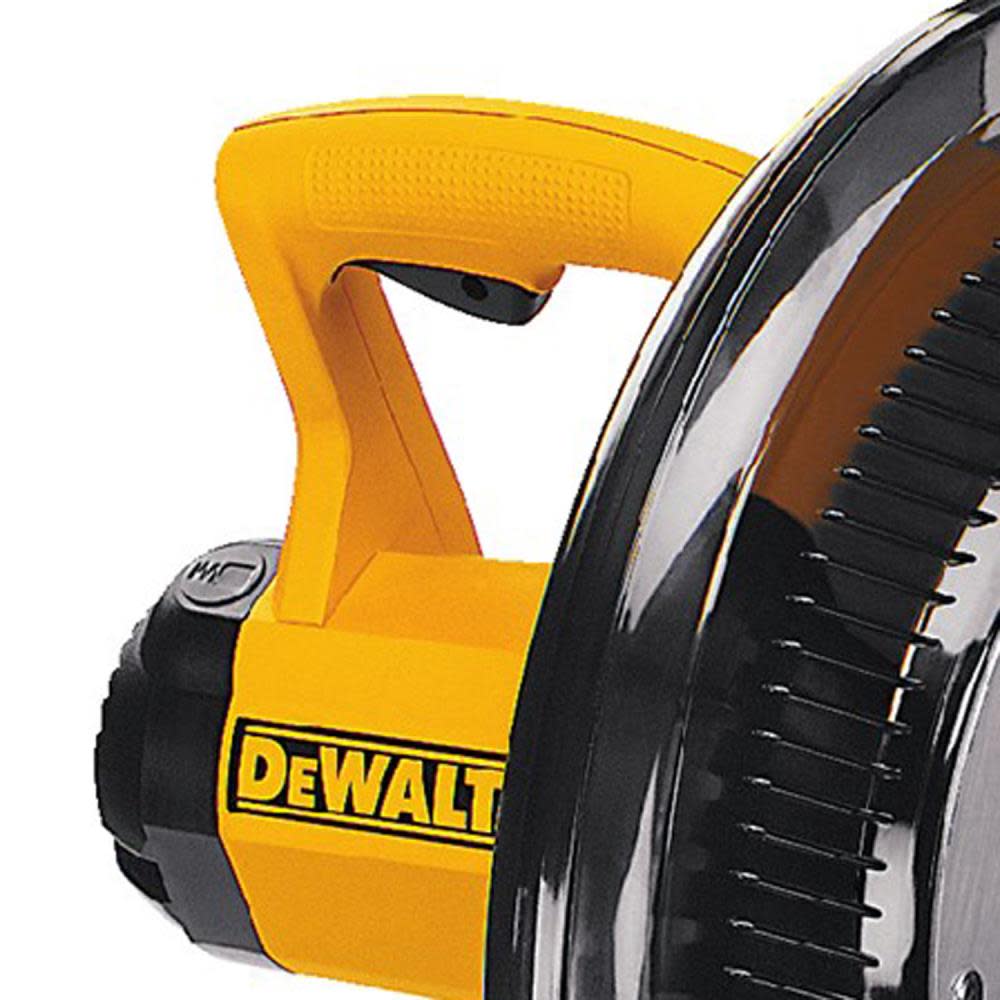

Ergonomically designed horizontal handle puts user’s wrist in a more comfortable position to help reduce user fatigue and increase productivity
15 amp/4 HP motor provides more overload capacity to increase performance and durability

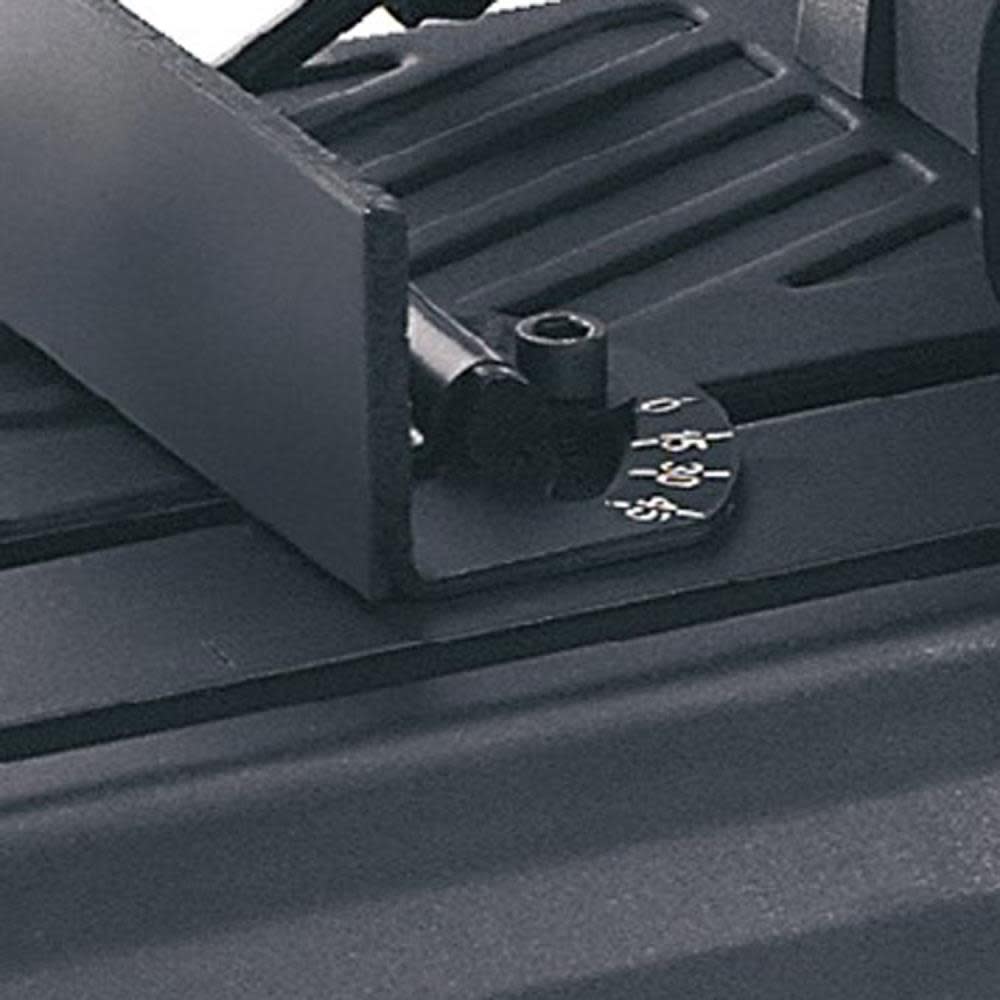

Patented, 45-degree, adjustable quick-fence allows for fast and accurate angle cuts without using a wrench
Specifications
Acme Tools Brand Name
DEWALT
Acme Tools Part Number
DW872
Amperage (A)
15.0
Arbor Size (in)
1.0
Assembled Weight (lbs)
47.0
Blade Diameter (in)
14.0
Blade Speed (rpm)
1300.0
California Proposition 65 Warning Required
Yes
Color / Finish
DeWalt® yellow and black
Cordless / Corded
Corded
Country of Origin
China
CSA Certified
Yes
ETL Listed
No
Horsepower (hp)
4.0
Internal Supplier Part #
DW872
Internet Product Code (IPC)
17BC26867D0
Length (in)
21.0
Manufacturer Warranty
Limited 3 Year Warranty / 1-Year Free Service Contract / 90-Day Money Back Guarantee
Motor Size
15 Amp / 4.0 HP motor
Net Tool Weight (lbs)
47.0
Package Contents
Tool, Blade, Wrench, Clamp
Package Depth
24.0
Package Height
18.5
Package Weight
57.65
Package Weight (lbs)
57.65
Quick Lock Vise
Yes
Quick Release Vise
Yes
Recommended Safety Equipment
Safety glasses, earplugs
Size
1.0 in
Spindle Lock
Yes
Table Material
Steel
UL Listed
No
Voltage
110 Volts
Width (in)
12.0
