Description
Deluxe XACTA® Saw 5 HP, 1Ph, 30 In. Rip

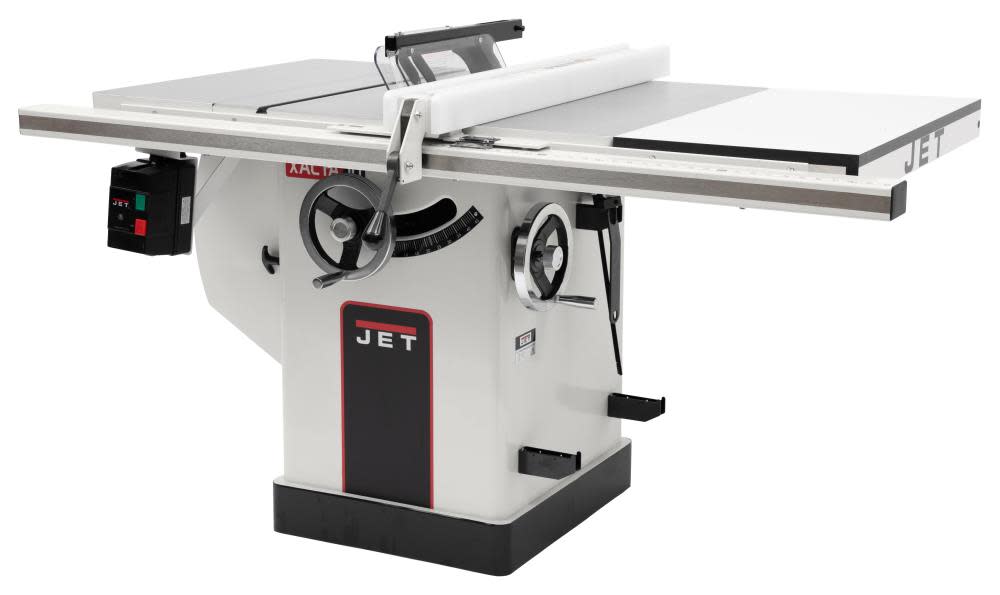

This JET® Deluxe XACTA® Saw 5 HP, 1Ph, 30-Inch Rip provides tons of room on the table. Its 30-inch fence guides materials for straight cuts, and it has a unique central body that drives dust away while you work. This Jet Deluxe Xacta Saw has a 10-inch blade and produces a maximum depth of 3 inches with each cut. It also has two expansion wings to extend its support for large materials. The machine’s 5 hp motor creates enough power to tackle dense wood stock and it features a 4-inch connection point for dust hoses. Overload protection prevents damage to the Jet saw’s motor, and it has a quick-release riving knife that prevents kickback on long materials.
Features
Jet Deluxe Xacta Saw offers the largest surface of any table saw in its class
30-inch fence guides your materials for straight and clean cuts
Unique design drives dust away while you cut
Jet Xacta saw has 10-inch blade with 3-inch cut depth
Extension wings have cast-iron construction to support large materials
5 hp motor creates powerful performance, even under load
4-inch dust collection port works with filtration systems
Overload protection shuts down motor to prevent damage

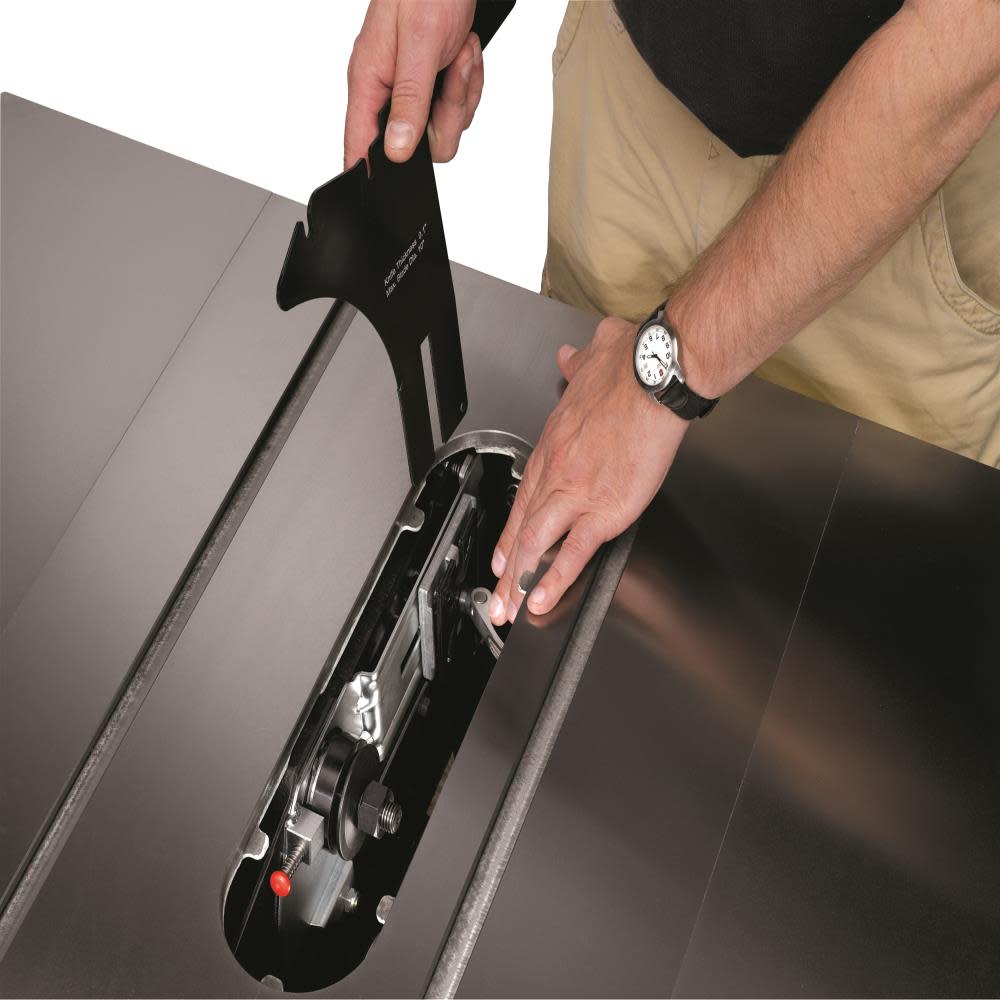

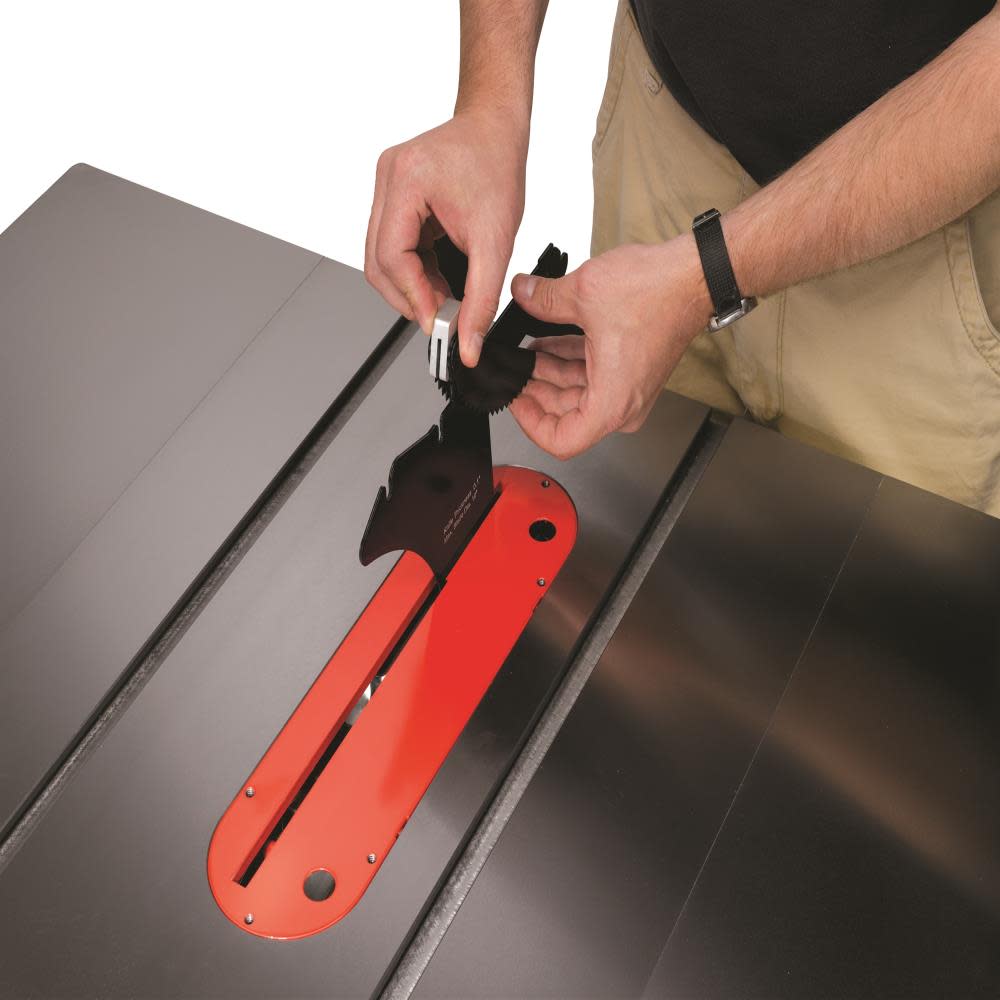

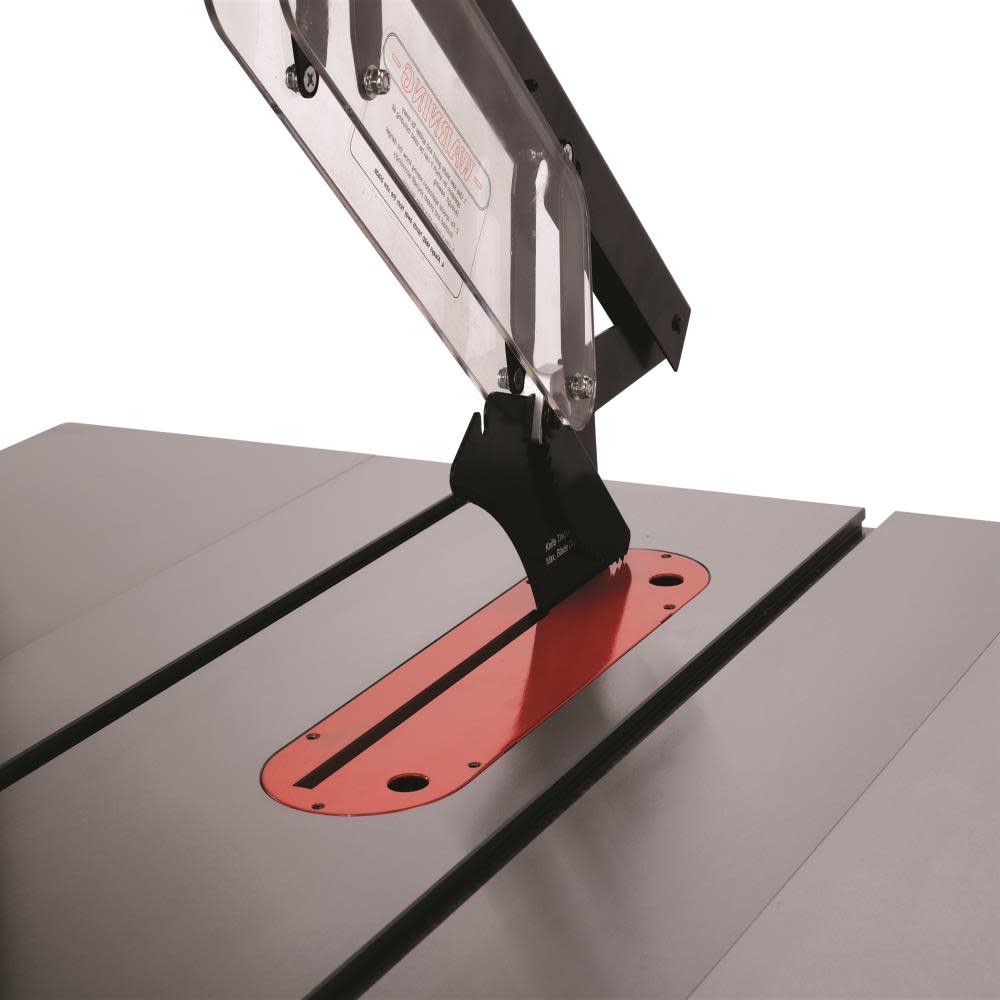

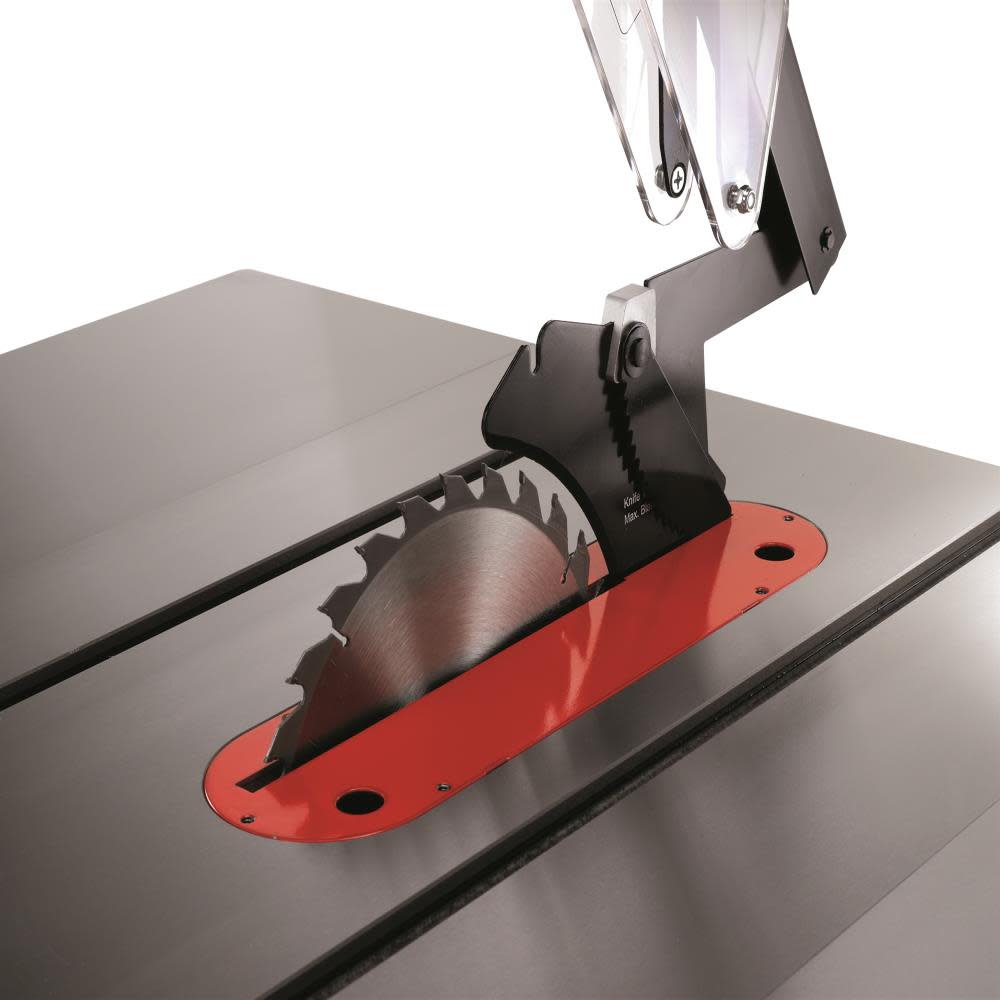

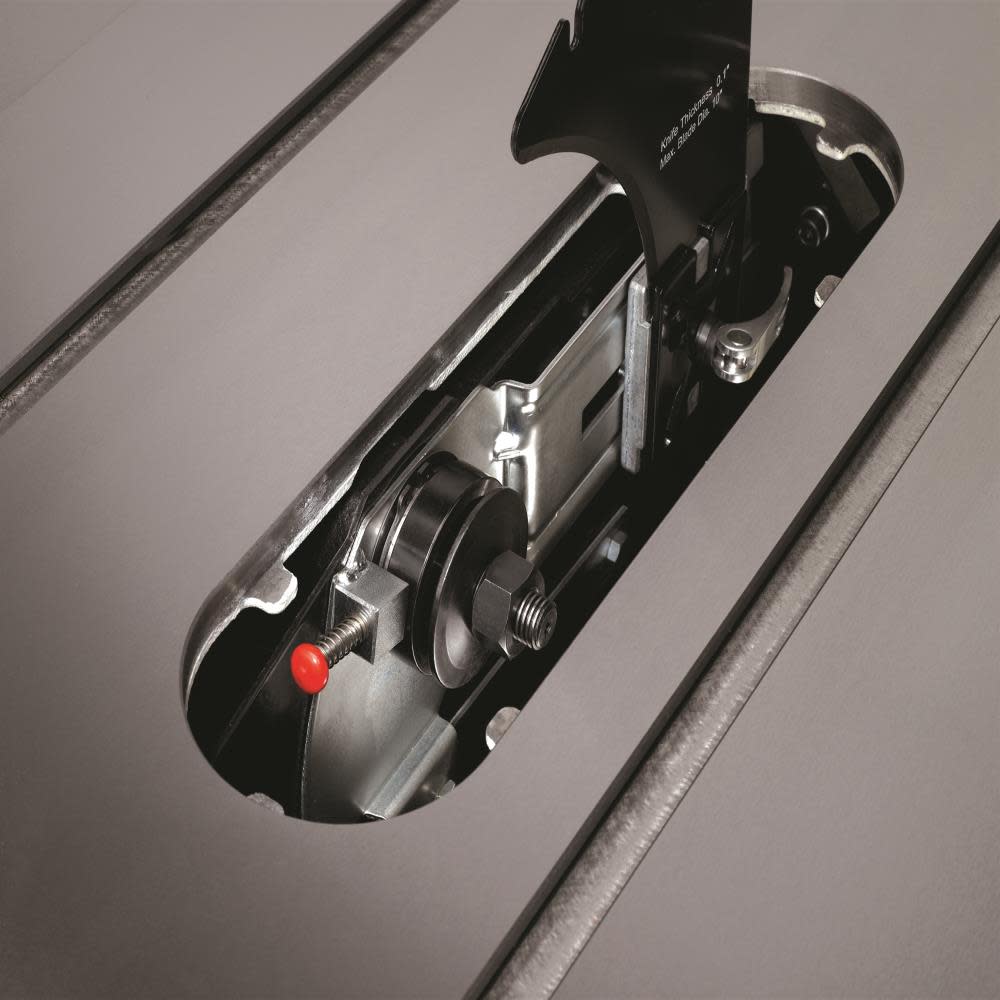

Quick-release riving knife cuts down on kickback for safety
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
708676PK
Amperage (A)
18
Arbor Size (in)
0.625
Assembled Weight (lbs)
490
Bench or Stationary
Stationary
Bevel Direction
Left Bevel
Blade Diameter (in)
10
Blade Material
Carbide
Blade Speed (rpm)
4300
California Proposition 65 Warning Required
Yes
Caster Platform Included
No
Color / Finish
See Photo
Cord Length (ft)
8
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
No
Diameter
10 in
Drive Motor System
Electric
Dust Blower
Yes
Dust Port
No
Dust Port Outside Diameter (in)
4
Electrical Cord Configuration
3 Wire
ETL Listed
No
Fence Included
Yes
Flesh Sensing System
No
Horsepower (hp)
5
Internal Supplier Part #
708676pk
Internet Product Code (IPC)
BE1F1CF3D52
Manufacturer Warranty
2 Year
Material
Cast Iron
Maximum Dado Diameter (In)
8
Maximum Dado Width (in)
0.82125
Micro Adjust Fence
No
Miter Gauge
Yes
Miter Slot Depth
0
Miter Slot Width
0
Motor Bearings
Bearing
Net Tool Weight (lbs)
0
Number of Miter Slots
2
Package Depth
65
Package Height
38
Package Weight
490
Package Weight (lbs)
520
Repetitive Cut Marking system
No
Size
0.625 in
Spindle Lock
Yes
Table Height (in)
34
Table Height From Floor (In)
34
Table Length (in)
29
Table Material
Cast Iron
Table Space in Front of Blade
10
Table Width (in)
42
UL Listed
No
Voltage
220 Volts
