Description
Delta Power Equipment Corporation-22-555

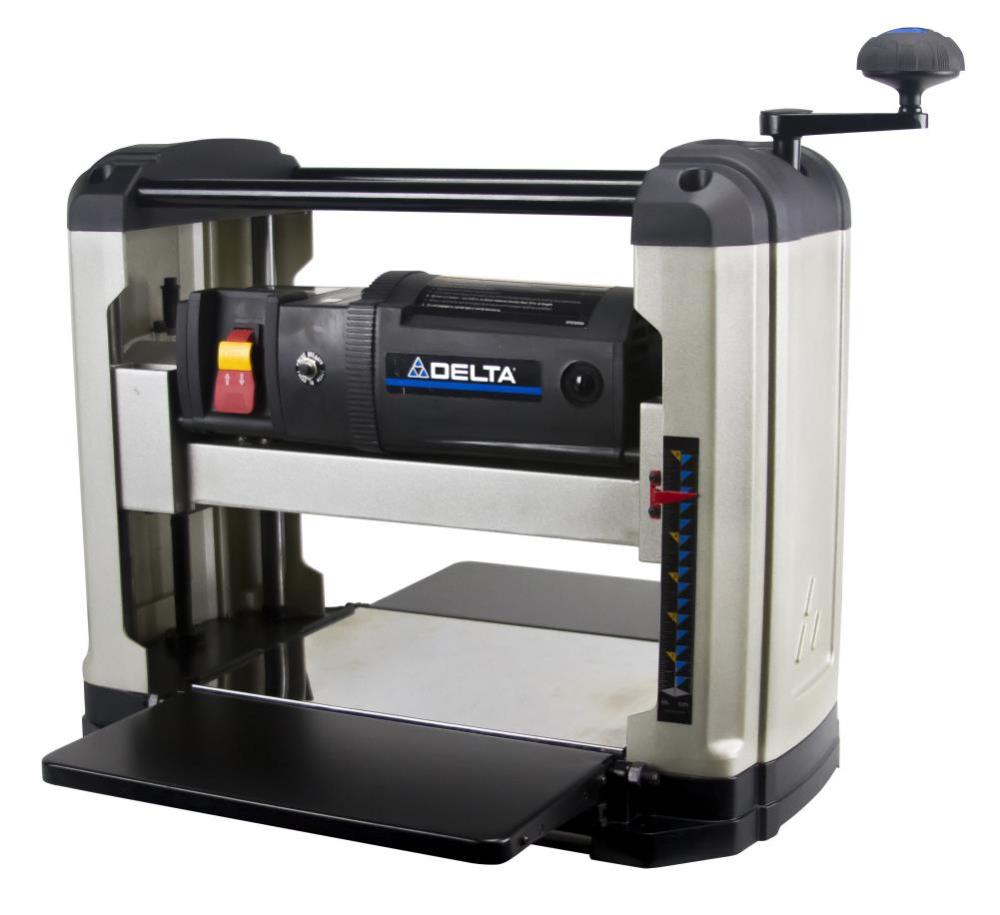

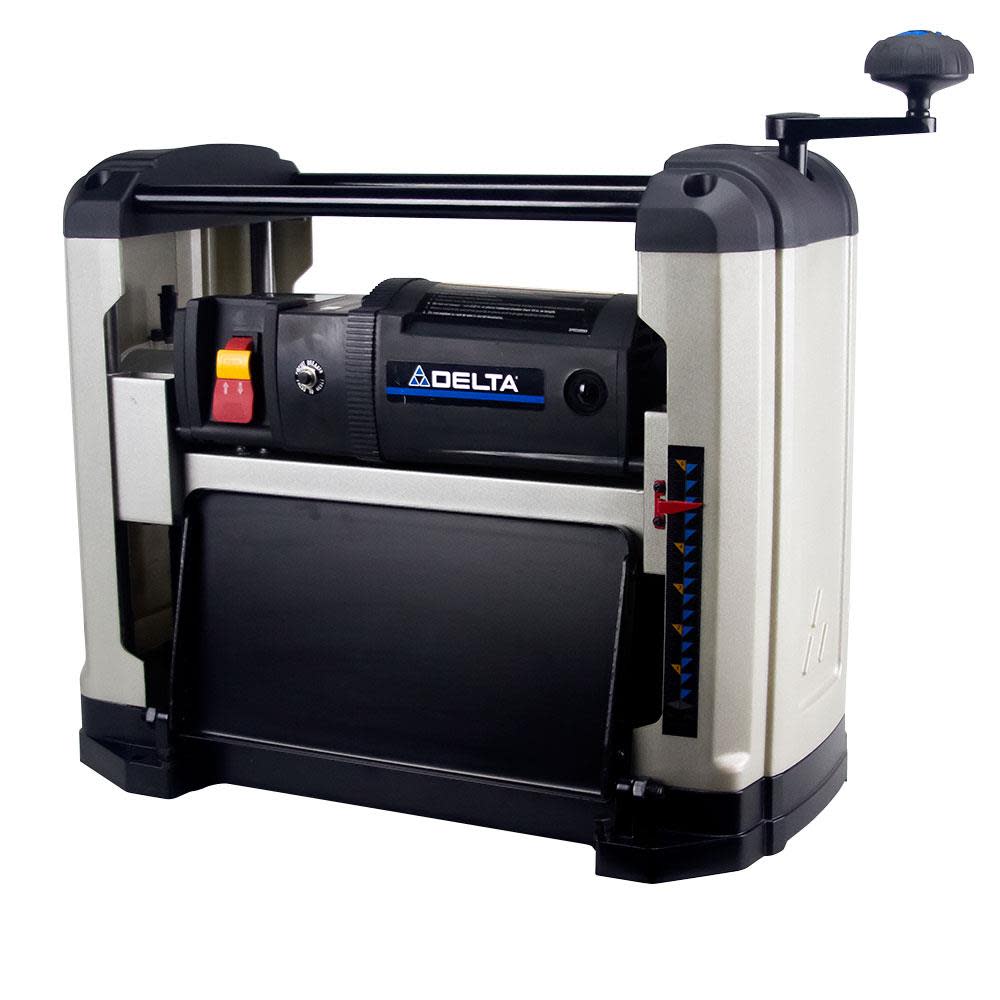

The Delta thickness planer accurately dimensions boards.
Features
4-column design for excellent stability over years of use
Adjustable outfeed and infeed tables to better support long Stock and reduce snipe

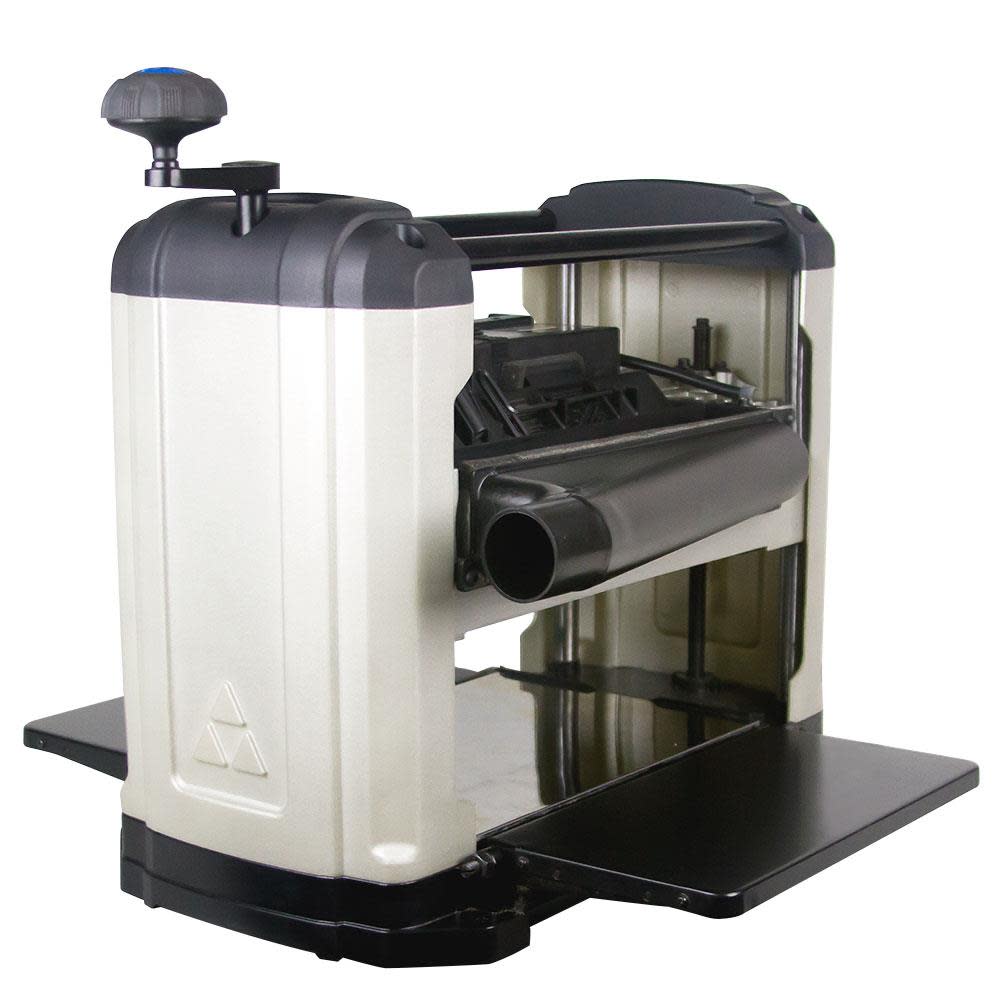

Reversible dust port allows you to collect chips from the right or left
2 polyurethane rollers positioned close to the cutter head for smooth cuts
Precision milled steel cutter head for endurance and accuracy
13-in thickness planer
Precision machined steel cutterhead to improve workpiece finish
Stainless steel bed reduces friction and improves motor efficiency
Overload button protects your motor from damage due to overheating
Specifications
Acme Tools Brand Name
DELTA
Acme Tools Part Number
22-555
Amperage (A)
15
Assembled Weight (lbs)
58
Bench or Stationary
Bench
Blade Count
2
Blade Type
high speed steel
California Proposition 65 Warning Required
Yes
Color / Finish
silver
Cord Length (ft)
6
Cordless / Corded
Corded
Country of Origin
Taiwan
Cuts Per Minute
18800
Cutter Head Type
Straight Knives

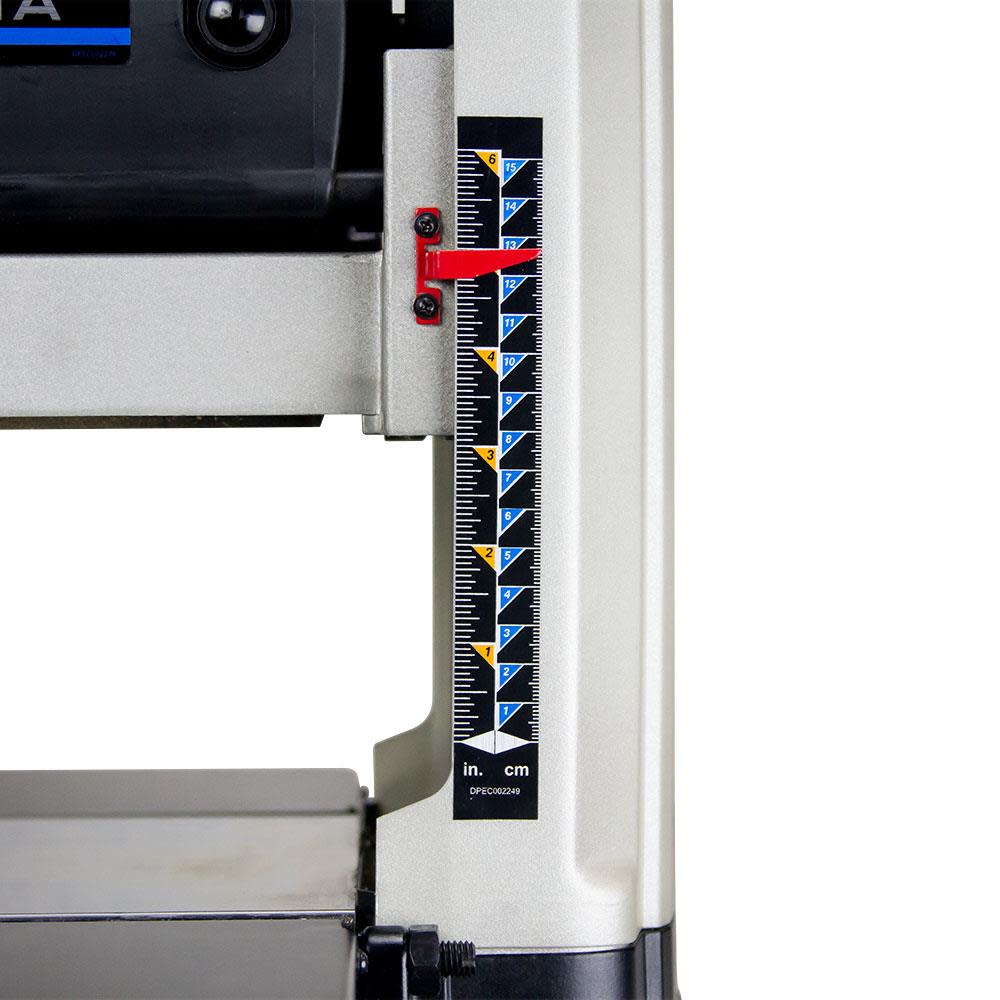

Depth Measurement System
Yes
Depth Of Cut Range
1/8 In. to 6 In.
Drive Motor System
Electric
ETL Listed
No
Feed Rate/s (Ft/Min)
28
Height (in)
20.125
Housing Material
Steel
Integrated Chip Management
Yes
Internal Supplier Part #
22-555
Internet Product Code (IPC)
61D01D2CC45
Length (in)
21.625
Lock-on Switch
Yes
Manufacturer Warranty
5 year
Maximum Board Thickness (in)
13
Maximum Cuts Per Inch
55.95
Maximum Cutting Depth (in)
0.09375
Maximum RPM
9400
Maximum Width Cutting Capacity (in)
13 in
Minimum Cuts Per Inch
55.95
Motor Horsepower (hp)
Universal Motor
Overall Weight (lbs)
58
Package Contents
Planer, planer blades, dust port, wrench, manual
Package Weight
66
Package Weight (lbs)
66
Reversible
Yes
Switch Type
Toggle
UL Listed
No
Variable Speed
No
Voltage
120 Volts
Width (in)
23.625
