Description

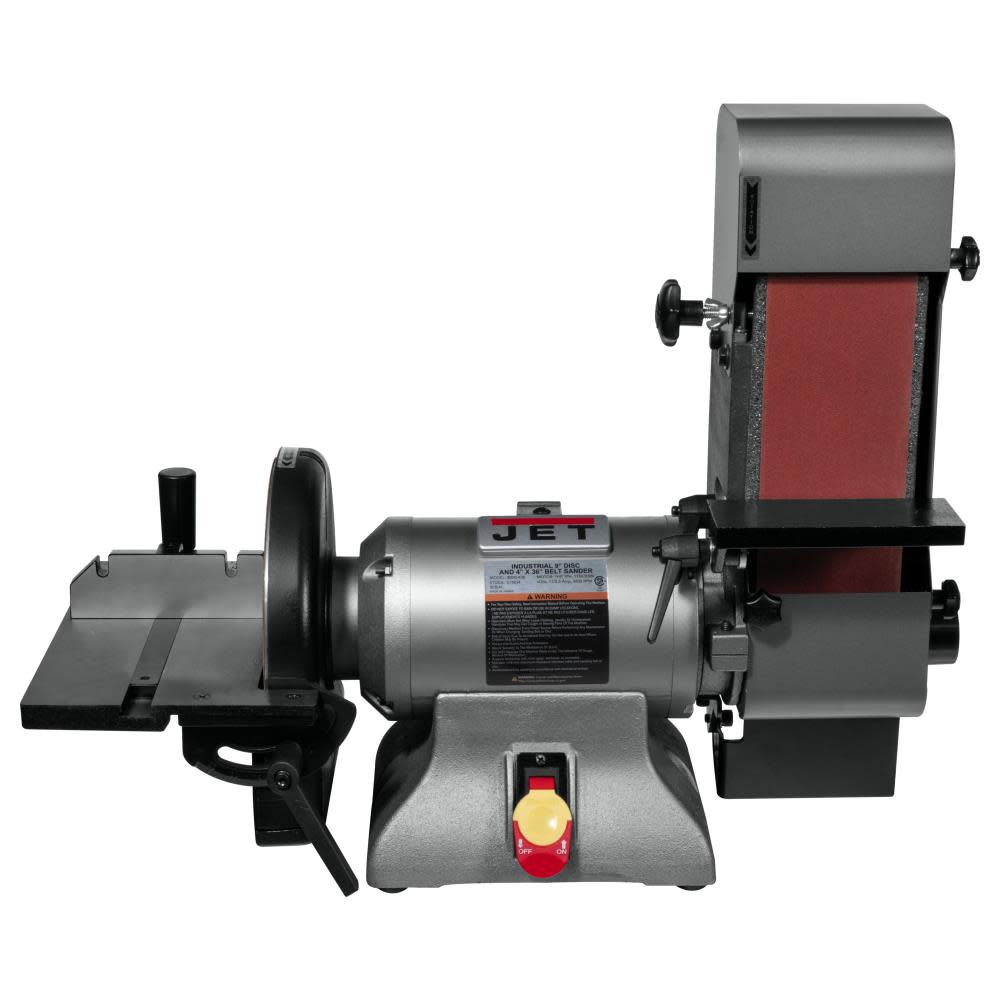

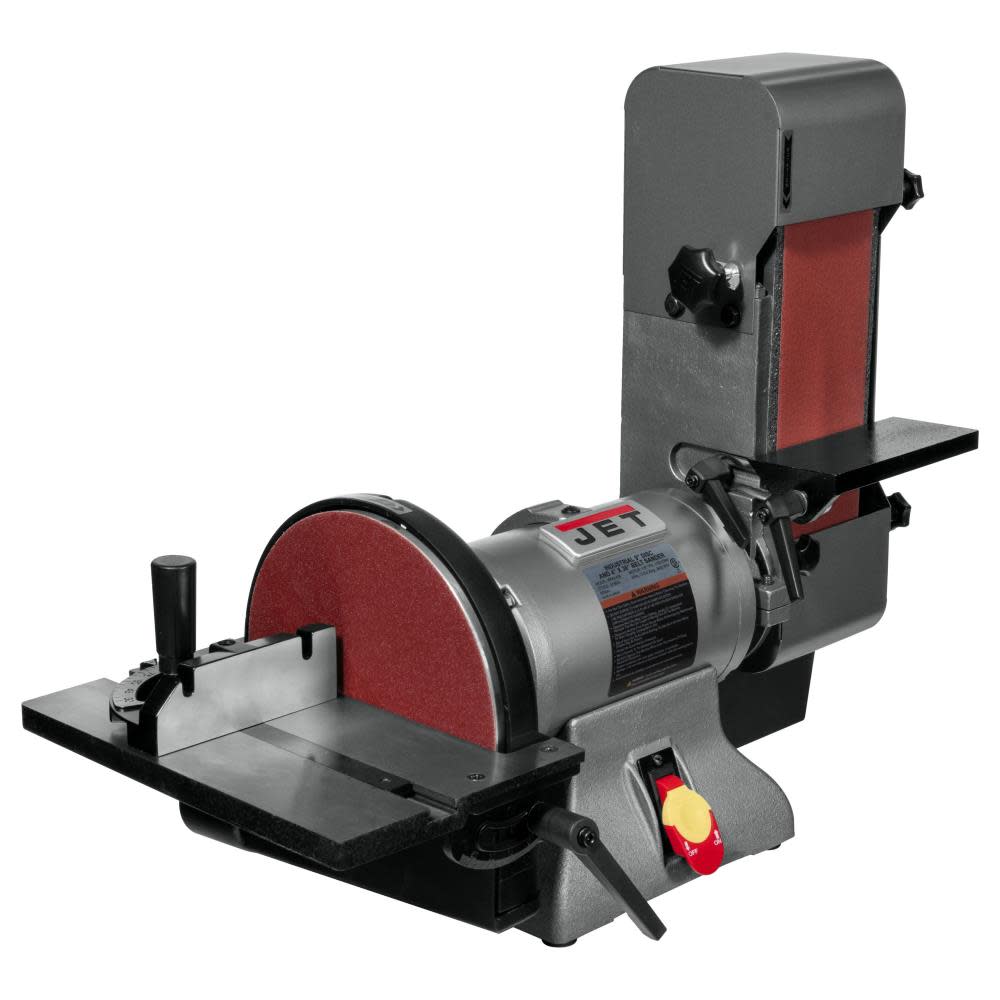

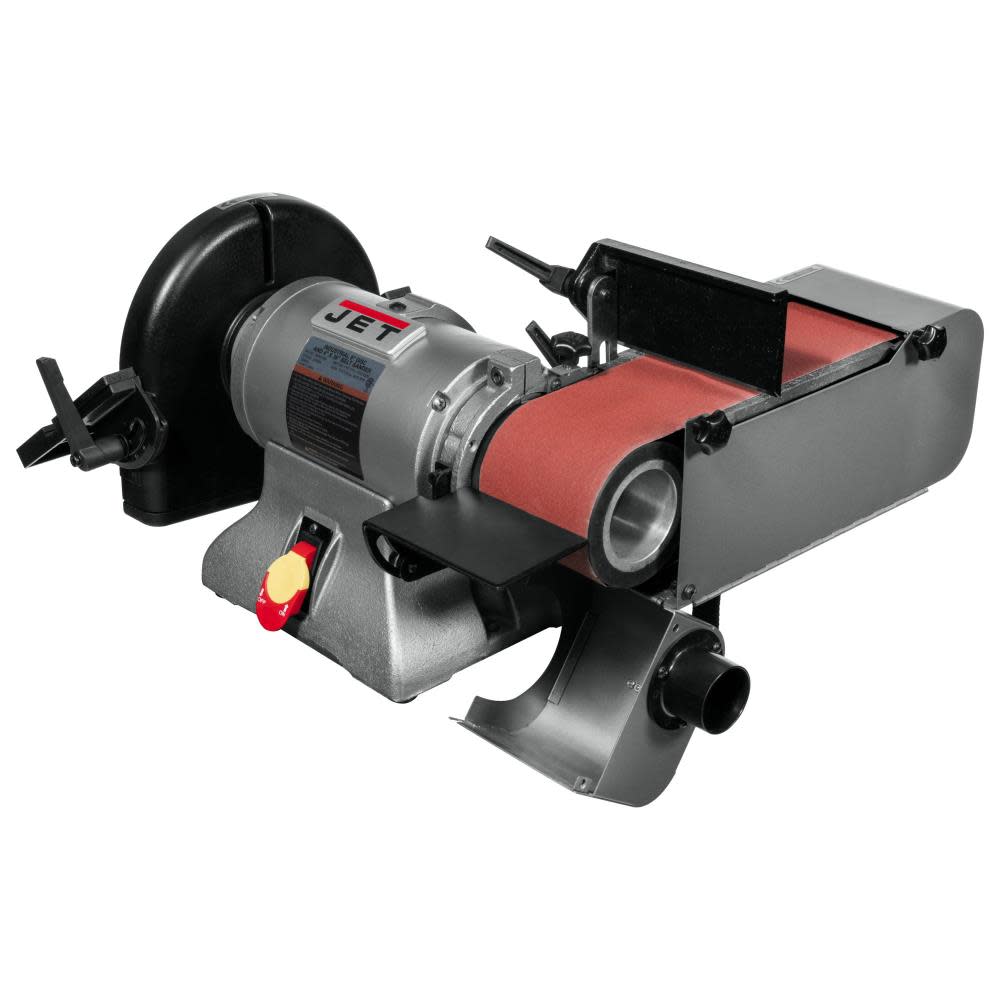

Combination Industrial 4 Inch x 36 Inch Belt and 9 Inch Disc Grinder
The combination industrial 4 in. x 36 in. belt and 9 in. disc grinder is engineered with industrial strength construction, sealed bearings, and a powerful enclosed one horsepower motor meant for heavy usage.
Features
Heavy -duty industrial motor
Sealed bearings for years of maintenance free grinding
Heavy cast iron bases reduce vibration
Cast iron work rests with tool-less adjustments
Contact wheel grinding with tool-less access
9″ aluminum disc reduces heat build up and prolongs abrasive life
Easy to use belt tracking
Solid cast iron platen offers rigid grinding surface
Two dust collection ports minimize debris build up
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
578634
Amperage (A)
11
Assembled Weight (lbs)
73
Belt Grit
80
Belt Included
Yes
Belt Length (in)
36
Belt Material
Aluminum Oxide
Belt Size
4×36
California Proposition 65 Warning Required
Yes
Color / Finish
Gray/Metal
Cord Length (ft)
6
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
Yes
Dust Collection
Yes
Grinder Type
Bench
Height (in)
20.75
Horsepower (hp)
1
Housing Material
Aluminum
Internal Supplier Part #
578634
Internet Product Code (IPC)
E1CA034BDD1
Length (in)
25.41
Manufacturer Warranty
2 Year
Motor Type
totally enclosed, induction, capacitor start
Package Contents
Combination Industrial 4 Inch x 36 Inch Belt and 9 Inch Disc Grinder, Dust Port, Miter Gauge, Disc Table, Handles for Disc Table, Sanding Disc,
Package Depth
22.88
Package Height
20.63
Package Weight
92
Package Weight (lbs)
92
Spindle Lock
No
Spindle Speed High (rpm)
3600
Switch Type
toggle
UL Listed
No
Variable Speed
No
Voltage
115/230 Volts
Weight (lbs)
74
Width (in)
21.69
