Description

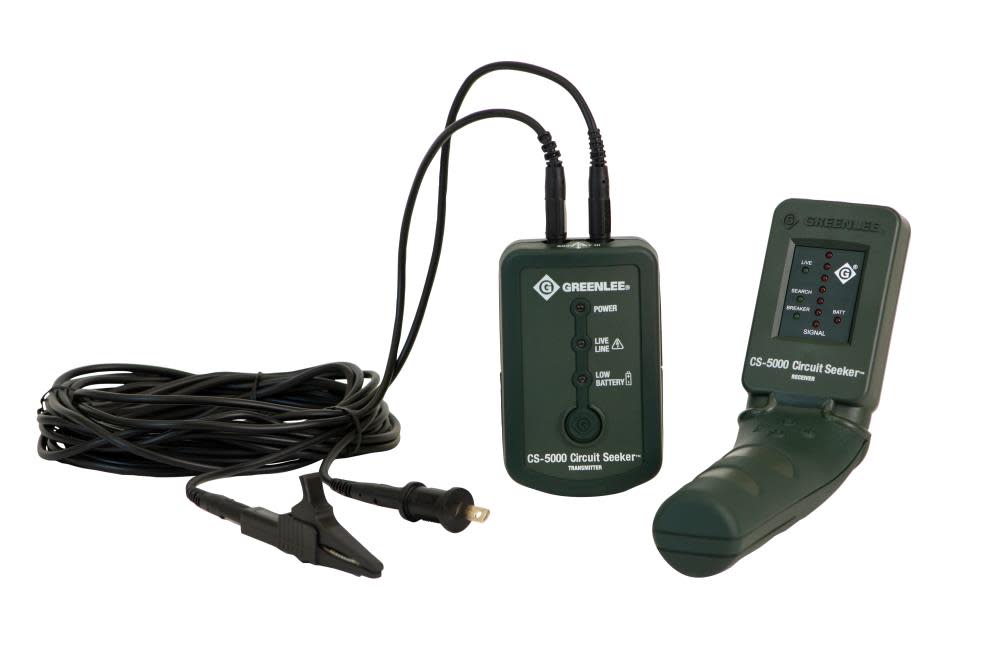

Circuit Seeker (CS-5000)
This circuit seeker has advanced bi-directional sensing technology. It also has superior sensitivity and functionality providing for accurate tracing and locating.
Features
Ergonomic receiver with information-rich full-color graphical LCD visuals and audible signal provide quick and easy to understand tracing feedback

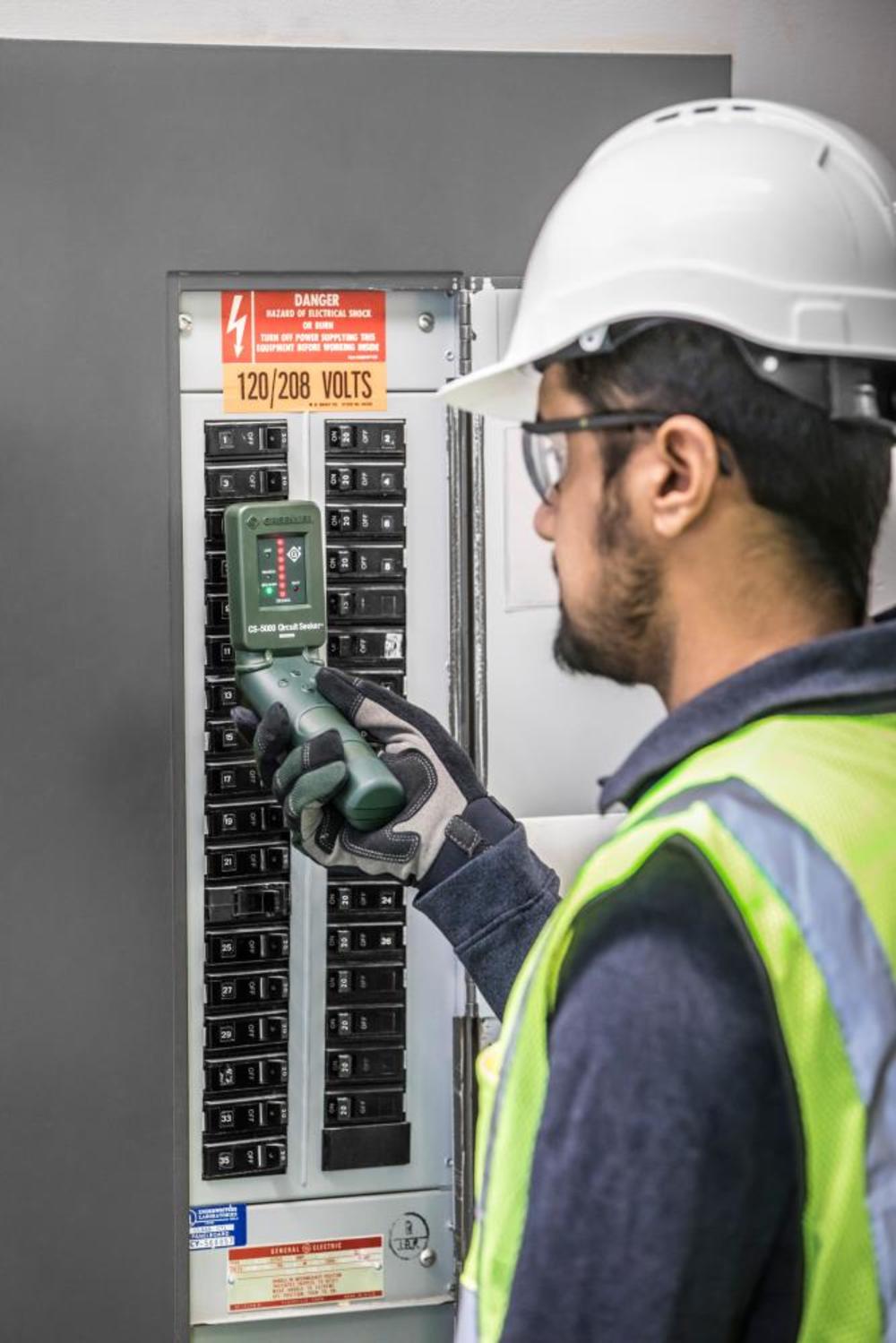

Traces concealed wiring, locates junction boxes, and finds breakers for live or open circuits
Locates and identifies blown fuses
Finds shorts and breaks in conductors
Supports transmitter-to-receiver distances up to 4 miles for closed circuit tracing
Low pitch, high volume audible indicator
User-selectable automatic or manual gain capability for fast, convenient use
Can be used on GFCI protected circuits
Display: LED linear array
Specifications
AC Voltage
600
Acme Tools Brand Name
GREENLEE
Acme Tools Part Number
08513
Application
Trace cables, Identify circuit breakers/fuses, trouble shoot circuits and locate faults in conductors
Assembled Weight (lbs)
3.8
Battery Quantity Required
4
Battery Size
AA
California Proposition 65 Warning Required
Yes
Capacitance Capable
No
Case Color
Black

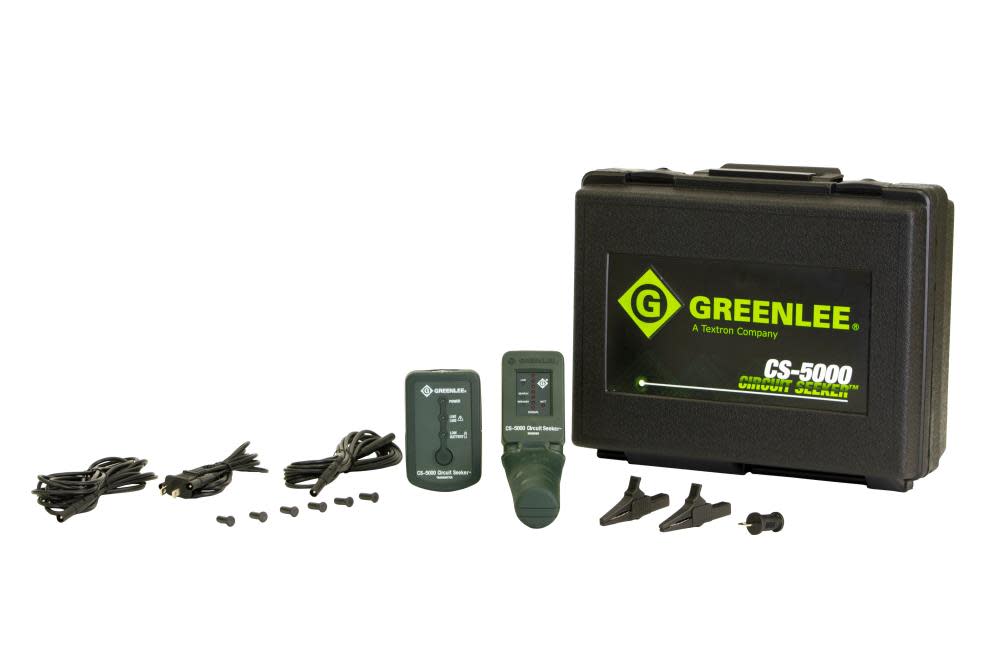

Case Included
Yes
Case Material
Hard Plastic
Color / Finish
Green/Black
Continuity Beeper
No
Country of Origin
United States
Current Clamp
Yes
DC Polarity Indicator
No
DC Voltage
600
Depth (in)
5.2
Detachable Display Screen
No
Digital / Analog
Analog
Digital Display
No
Electronic
Yes
Internet Product Code (IPC)
841F79DD406
Length (in)
13.4
Manufacturer Warranty
Lifetime Limited Warranty
Material
plastic
Measuring Range
Tracing Range: Live Line Mode: Up to 6 m (20 ft) from circuit, Open Line Mode: Up to 3 m (10 ft) with a metallic connection to ground, 0.3 to 0.9 m (1 to 3 ft) with a capacitive ground reference
Operating Temperature Range
32° to 122° F
Package Weight
5
Package Weight (lbs)
5
Relative Operating Humidity Range
(Non-condensing): 80% maximum for temperatures up to 31 ºC (88 ºF), decreasing linearly to 50% maximum at 49 ºC (120 ºF)
Temperature Range
32° to 122° F
Tester Type
Circuit
Tests Continuity
No
Visual / Audio Alert
Audio/Visual
Voltage Compatibility
Both AC & DC
Weight (lbs)
0.2375
Weight (oz)
3.8
Width (in)
10.8
