Description

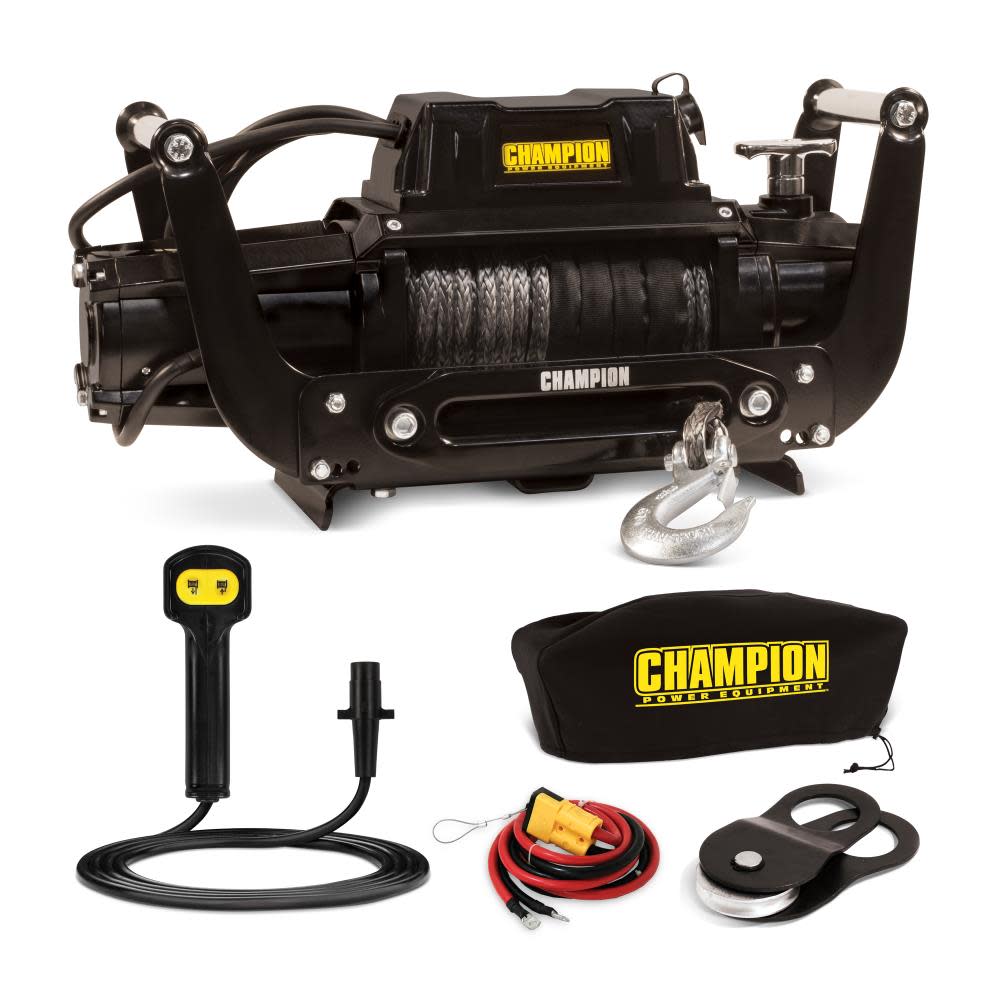

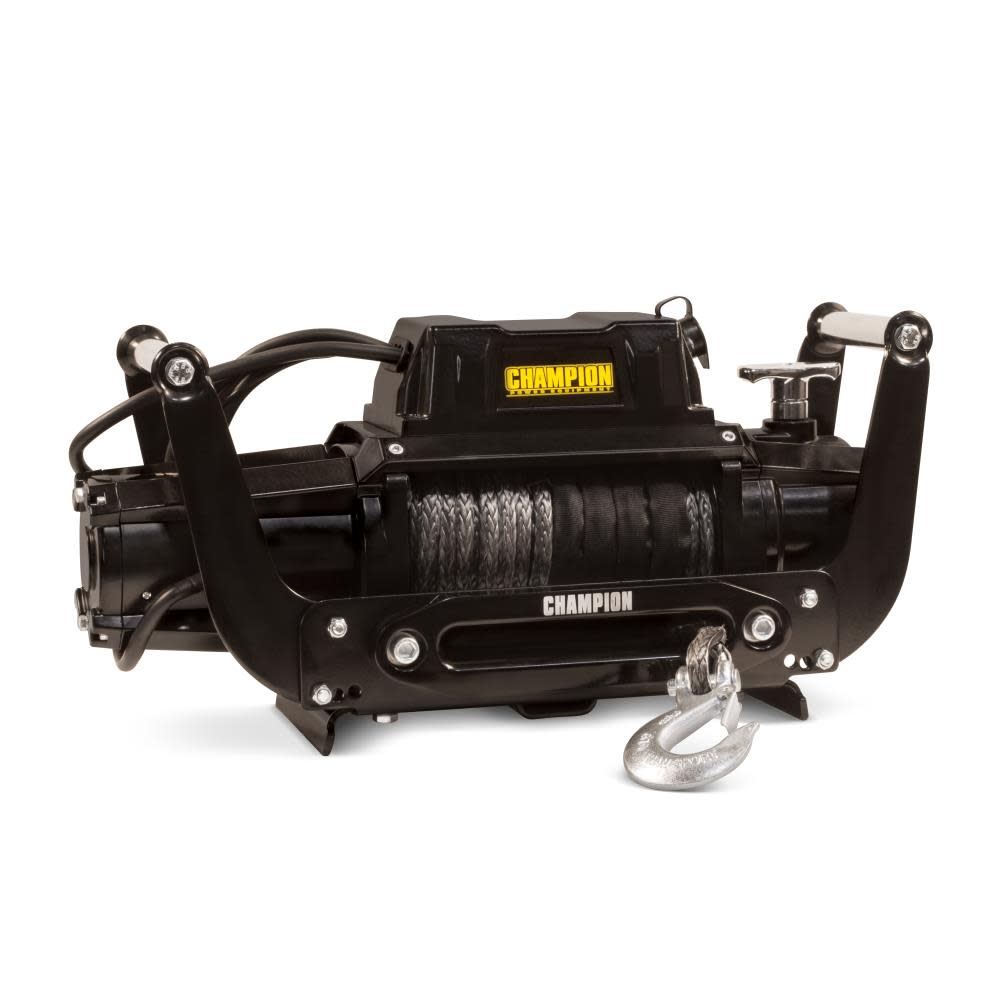

Champion 12,000-lb. Truck/SUV Synthetic Rope Winch Kit with Speed Mount

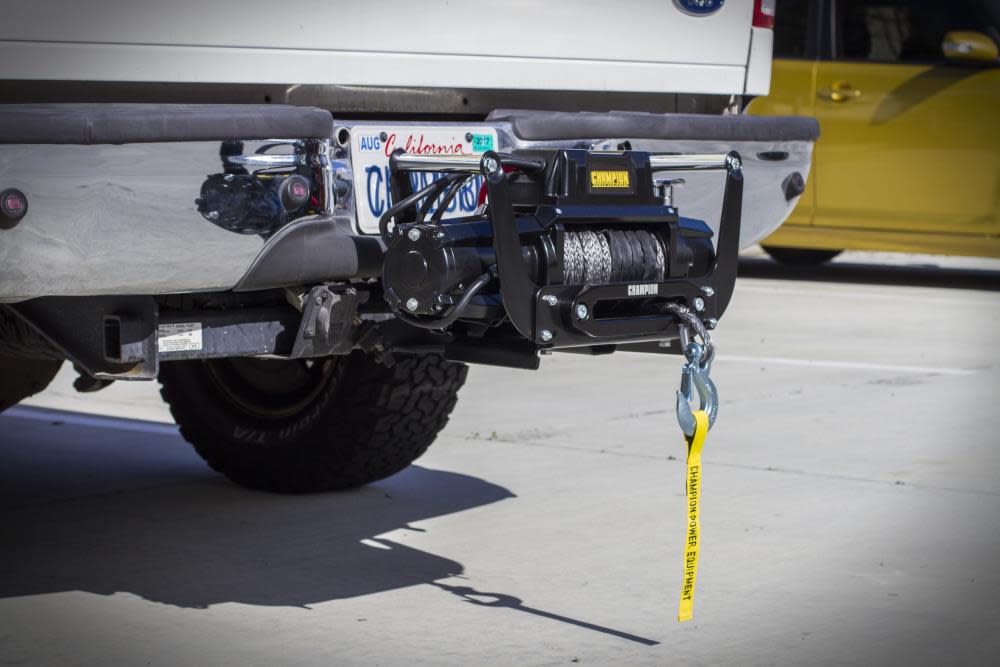

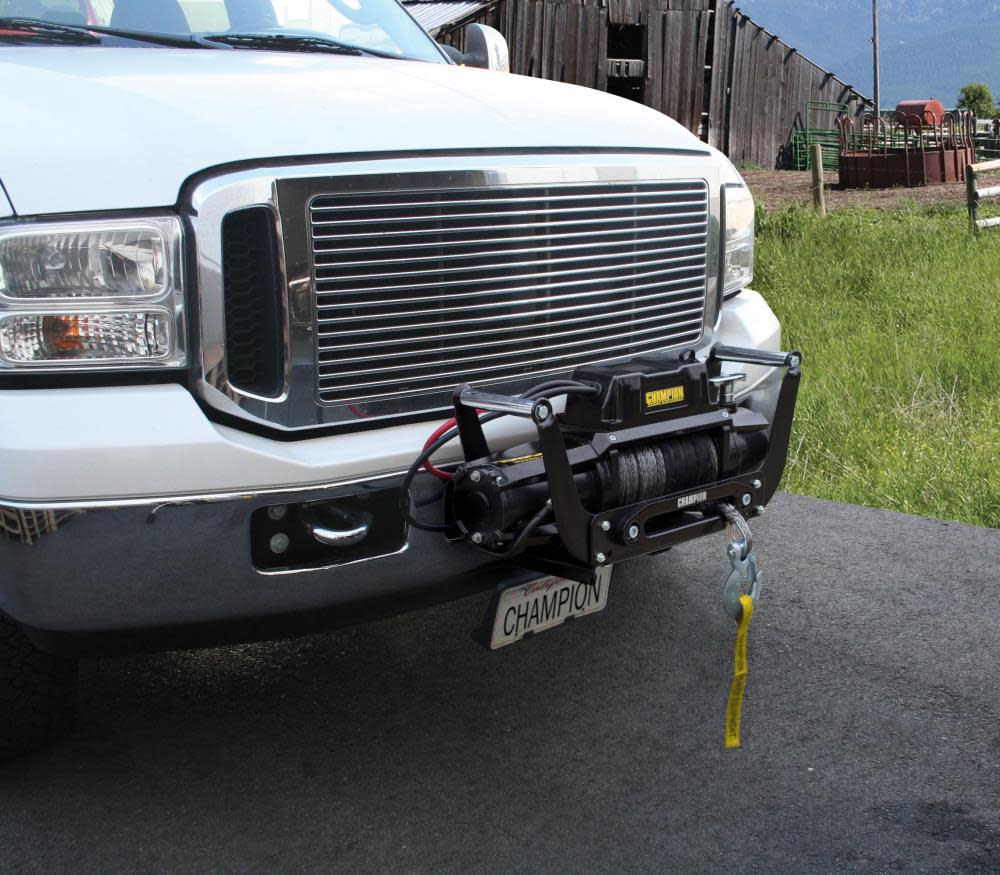

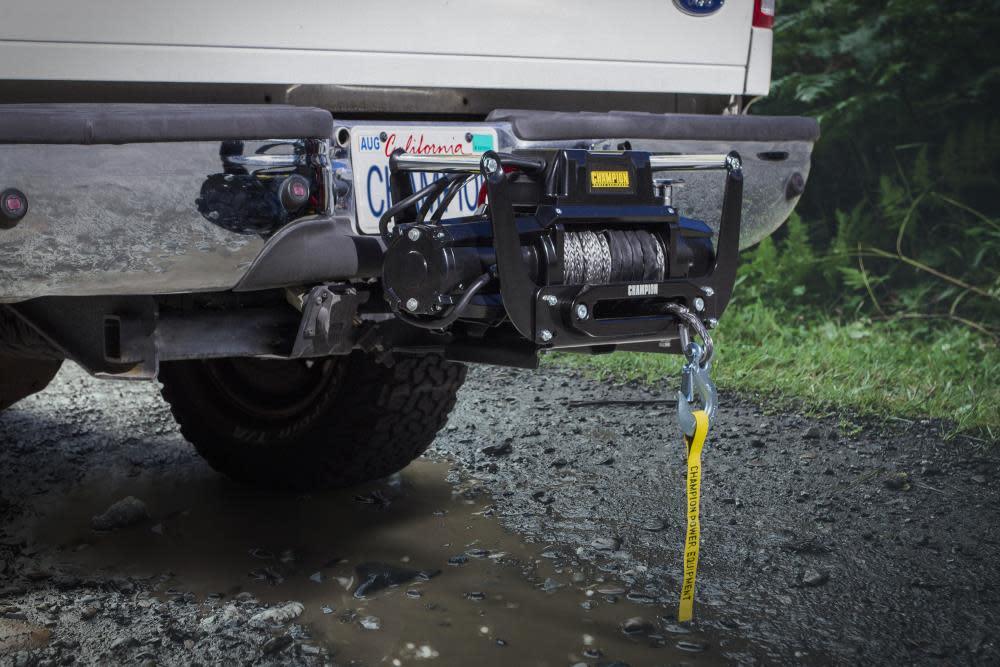

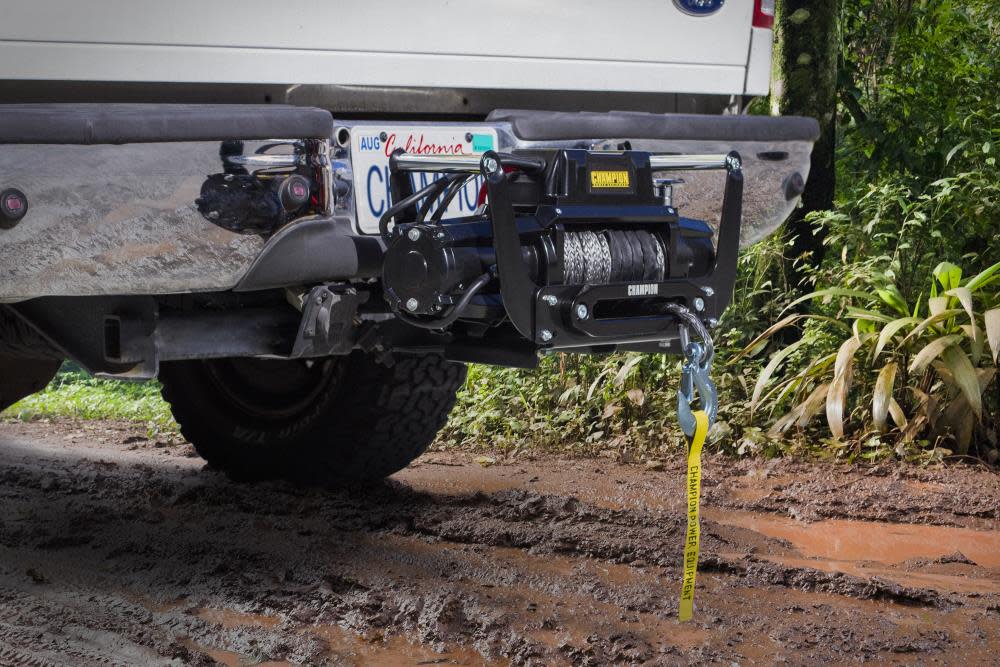

Champion Power Equipment 100427 12,000 lb. Truck/SUV synthetic rope winch kit is designed for powerful and reliable winching with your truck or SUV. Rated line pull of 12,000 Lbs., this winch installs quickly with our speed mount 2 In. hitch adapter, which is designed for quick and easy mounting, transportation and storage. Mount this winch on your truck or SUV with the included mounting adapter to quickly harness the strength of its 6.0HP (12V DC) series wound motor. The convenient handles are 3-position adjustable, plus they serve as side guards to protect your winch. With a gear reduction ratio of 216:1, the winch boasts a line speed of 2.3 Ft. per minute with a full load, and 15.7 Ft. per minute with no load. Made from hi-tech polyethylene, the high flexibility and low weight of synthetic rope prevent kinking, plus it won’t fray or curl. It also stores less kinetic energy and will not recoil with as much force as steel, and if it breaks, it can be repaired in the field, plus it floats. Since it’s Free of wire splinters or burrs, there’s less chance of injury. Designed with a stainless steel thimble and protective sleeve, the 85 Ft. x 11/32 In. synthetic winch rope has a minimum break strength of 15,000 Lbs. and is guided onto the 2.5 x 8.8 In. drum through the fair lead. Featuring a black anodized finish, the lightweight aluminum haws fair lead is precisely machined to maximize the life of the rope. The efficient three-stage planetary gear, braking system and Free spooling clutch along with the hand-held quick-connect remote control and 12 Ft. cable offer excellent control while winching. The included snatch block can be used to increase winching power or to aid in angled pulls. In the box, you’ll also receive a handy strap, 6 Ft. battery lead cables and a fitted weather-resistant neoprene cover. Champion support and nationwide network of service centers will back up your purchase with a 2-year limited warranty and Free lifetime technical support.
Features
Powerful – 12,000-lb. rated line pull powered by a 6.0-horsepower (12-volt) DC series wound motor
Efficient – line speed of 2.3 Ft. per minute with a full load, and 15.7 Ft. per minute with no load

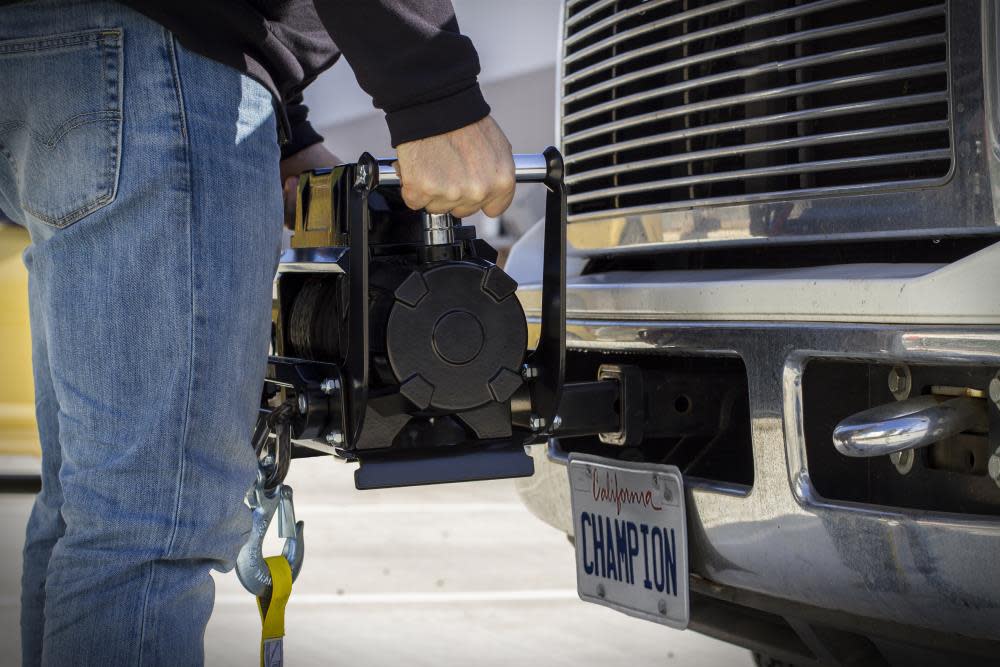

Convenient – speed mount 2 In. hitch adapter, included hand-held quick-connect remote control and free-spooling clutch create an easier than ever winching experience
Hassle-free – the haws fair lead creates a smooth pull with the safe, strong and flexible synthetic rope, which is lightweight, splinter-free, won’t kink, has less recoil than steel and floats
Reliable – Champion support includes 2-year limited warranty with Free lifetime technical support from dedicated experts
