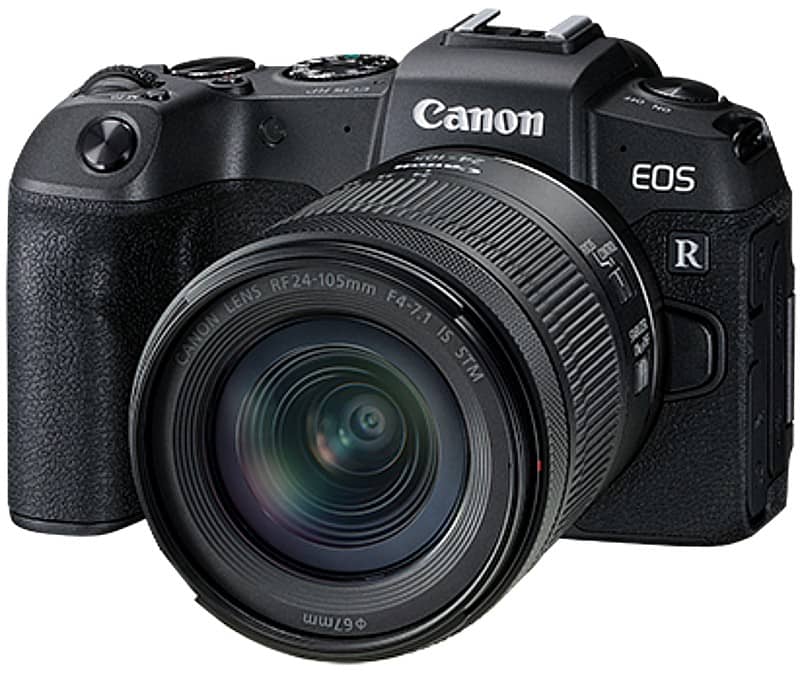

Canon EOS RP Camera With RF 24-105mm f/4-7.1 IS STM Lens

Canon EOS RP Camera With RF 24-105mm f/4-7.1 IS STM Lens – 3380C132

From stunning portraits to breathtaking landscapes, capture high-quality images with the EOS RP RF24-105mm F4-7.1 IS STM Lens Kit. Our lightest and smallest full-frame EOS camera to date, the EOS RP is packed with impressive features, including a 26.2 MP CMOS sensor, 4K video and DIGIC 8 image processor. Plus, with the RF24-105mm F4-7.1 IS STM’s compact size, versatile zoom range and optical image stabilization with up to 5 stops of shake correction, this lens kit will make the perfect match for capturing a variety of subjects.

Features

• Lightest, Smallest Full-frame EOS Camera
  For all their appealing features one of the concerns of using a full-frame camera has been its larger profile, however, the EOS RP is the lightest and smallest Canon EOS full-frame camera to date. Weighing approx. 440g (body only) while being impressively compact and comfortable to use, the EOS RP is more convenient to carry, shoot with, and store than any previous EOS full-frame camera before.
• Compatible with EF/EF-S Lenses
  Engineered to work seamlessly with RF lenses, the EOS RP also maintains complete compatibility with EF and EF-S lenses by using one of three optional Mount Adapters. When using EF-S lenses, the EOS RP even crops automatically to reflect the APS-C sized sensor the lenses are designed for.

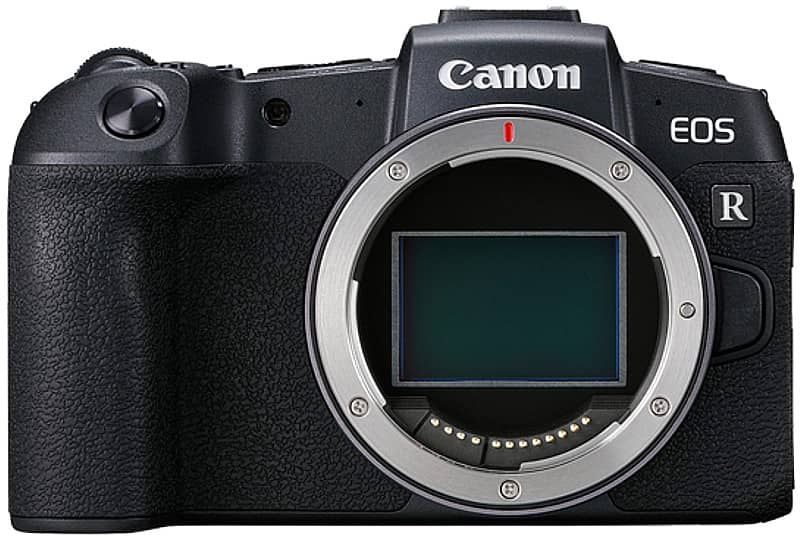

• 54mm Large Diameter and Short Back Focus
  The RF mount on the EOS RP camera has a large, 54mm internal diameter – the same as the EOS R – enabling impressive handling and providing increased flexibility for lens design. Thanks to the camera’s mirrorless design, the lens’s rear element can be much closer to the image plane. This reduced back focus distance, combined with the RF mount’s 54mm diameter, helps facilitate lenses of stellar optical quality and stunning performance while enabling innovative compact camera and lens designs.
• 20mm Flange Focal Distance for Increased Durability
  All RF lenses feature a 20mm flange focal distance, which is the distance from the lens mount to the surface of the image sensor. This flange focal distance balances the benefits of short back focus with the engineering requirements necessary for mount stability. Accordingly, the RF mount’s flange focal distance ensures excellent optical performance while maintaining the mount rigidity and camera durability necessary for real-world operation.
• 12 Pins for Quickly Communicating Large Amounts of Information
  With a robust 12 pin connection between the camera and the lens, the EOS RP camera and RF lenses are able to communicate at a high speed, transferring a large amount of data and information for incredibly fast AF, plus enhanced image stabilization and optimization.
• Variety of Mount Adapter Options for Expanded Compatibility with EF/EF-S Lenses
  Mount adapters, such as the Mount Adapter EF-EOS R, deliver seamless connections between the EOS RP camera and EF and EF-S lenses with all functions intact. Offering L series level weather and dust sealing, the Mount Adapter EF-EOS R is even compatible with EF extenders like the Extender EF 1.4x III to extend your camera’s optical reach. Beyond enabling use of EF and EF-S lenses on the EOS RP camera, the Control Ring Mount Adapter EF-EOS R and the Drop-in Filter Mount Adapter EF-EOS R add functions that open up a number of new possibilities for creative image capture.
• 26.2 Megapixel Full-frame CMOS Sensor
  The EOS RP camera features a Canon-developed and produced 35mm full-frame CMOS sensor with approx. 26.2 effective megapixels. It employs the DIGIC 8 Image Processor to enhance the speed of operations across the board. This means fast, efficient performance and phenomenal image quality for big prints.
• ISO 40000
  The EOS RP camera has a standard ISO sensitivity range of 100–40000 for stills and 100–25600 for video (100–12800 for 4K video shooting). Combined with the EOS RP camera’s remarkable low-light AF performance, still and video shooting is possible even in dark situations.
• Digital Lens Optimizer
  The EOS RP camera has an in-camera Digital Lens Optimizer that works with RF lenses (and EF/EF-S lenses with a Mount Adapter) to provide a substantial improvement in image quality. The Digital Lens Optimizer limits deterioration in image quality caused by low-pass filters or wide-aperture lens designs. It’s usable both during shooting and when developing RAW data, and does not affect continuous shooting speeds. Data from compatible EF and EF-S lenses is built into the camera, and data information from RF lenses is transferred near instantly through the EOS RP’s 12 pin communication system.
• High-speed Focusing in Approx. 0.05 sec.
  The EOS RP camera’s highly responsive Dual Pixel CMOS AF system features 4,779 manually selectable AF points and can deliver sharp focus within approximately 0.05 seconds. This means fast action can be captured and focus can be maintained with speed, accuracy and ease.
• AF Area Coverage of Approx. 88% x 100%
  The EOS RP camera features an expansive focus area of approx. 88% horizontal and 100% vertical not only with RF lenses, but also when working with select EF lenses. With older EF lenses, or with Extender types I and II, the EOS RP focuses approx. 80% horizontally and 80% vertically. This means fast and impressive focusing even if your subject is way off center.
• AF Points and AF Area
  The EOS RP camera features a sophisticated AF system with a maximum of 4,779 manually selectable AF points, which covers almost the entire image sensing area. The EOS RP can also be configured to focus on specific areas, using an extended range of selectable modes that include 1-point AF, Expand AF Area, Zone AF and Spot AF in addition to the conventional Face+ Tracking AF.
• Excellent Low-light Performance
  Amazing for nighttime photography or in very low light, the EOS RP camera’s brilliant AF can operate in light as dim as a light rating of EV -5 where other AF systems may fail or search. Phenomenal AF is achieved even when using lenses with high F numbers. This ultra-sensitive AF works in concert with the EOS RP’s EVF to clearly capture subjects even when there’s limited light.
• f/11 Compatible in All AF Areas
  The EOS RP camera’s brilliant AF system doesn’t just work with bright lenses. With the EOS RP, autofocus will operate over nearly the entire image area even when used with compatible f/11 lenses. For example, users can take ultra-telescopic 800mm shots using a compact EF 100–400mm f/4–5.6 IS II lens together with an EF 2x III extender, and AF will function properly over the entire field. When used with a III-type extender, the effective AF range is limited to an area roughly 88% x 100% of the total image frame, or 80% x 80% if combined with a I/II type extender.
• Variety of AF Modes including Eye Detection AF
  The EOS RP camera’s Face+ Tracking mode helps enhance reliability for tracking moving subjects. When the camera detects a human face, it uses the subject’s eye as the AF point, choosing the eye closest to the camera by default. Photographers can also select which eye to focus on by touching the screen or using the camera’s AF point selection button and cross keys. Eye Detection AF can also be used in conjunction with Servo AF and Movie AF modes.
• Focus Peaking
  Among the EOS RP camera’s manual focus aids, Focus Peaking helps establish the focus area quickly and clearly. With manual focus peaking, the outline of the area in focus is indicated by a colored line. Focus Peaking is usable in conjunction with the EOS RP’s Focus Guide feature, and can be customized with peaking color and detection level specifications that fit the project at hand.
• 0.39-type OLED EVF with Approx. 2.36 Million Dots
  The EOS RP camera features a high-precision 0.39-inch OLED (Organic Light-Emitting Diode) EVF with approx. 2.36 million dots and a 22mm eyepoint. The electronic viewfinder (EVF) has been created to provide a bright, sharp and colorful 100% view of the subject at hand. Equipped with an aspherical lens, the EVF shows a crisp and vivid image with minimal distortion, even when the eye moves off the center of the visual field.
  The EOS RP EVF has a bright, 22mm-high eyepoint design that creates a generous 30mm space between your nose and the rear of the viewfinder. This makes it easy to compose and view images in the viewfinder with or without glasses.
  The EVF’s 0.39-inch OLED based display features approximately 2.36 million dots for an incredibly sharp and detailed image that makes it easy to check focus and view the extensive image data that’s displayed.
• Touch and Drag AF
  Touch and Drag AF makes it fast and easy to select a focus point without taking your eye away from the viewfinder. Using the Touchscreen LCD, it’s as simple as pointing to the desired area of focus. The chosen AF point is then displayed in the camera’s EVF for quick confirmation.

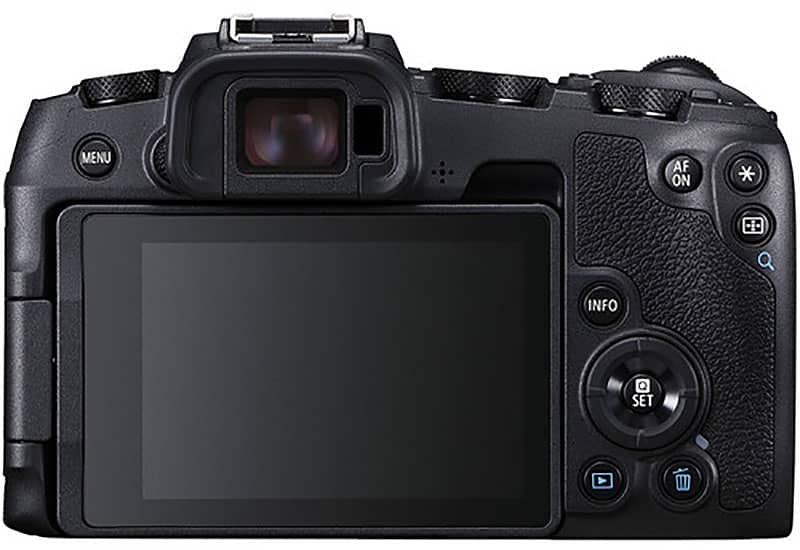

• Vari-angle Touchscreen LCD
  The EOS RP camera features a 3.0-inch, 1.04 Megapixel Clear View LCD II Vari-angle Touchscreen LCD. Brightness is adjustable in seven levels. Its extensive flexibility makes it easy to compose and shoot from virtually any angle, making selfies simple and enabling the LCD to fold away when not in use. The brightness of the EVF and the LCD monitor can even be adjusted individually – a first for an EOS camera. Touchscreen features include settings, review and even AF point selection.
• Shooting Modes
  A mode dial is featured on the top of the EOS RP camera to provide quick and easy access to a number of shooting modes and settings. For instance, the SCN option – or Special Scene Mode option – gives you the opportunity to select from a variety of settings. This includes modes such as Food, Group Photos, Kids, Panning, and even Silent Mode—perfect for situations where the shutter could be turned off. To set individual features to Auto or Manual, the user can use the Fv mode (Flexible AE) to quickly adjust functions such as shutter speed, aperture setting, and ISO sensitivity.
• Special Scene Modes
  The EOS RP features a variety of Special Scene modes –such as Food, Kids, Sports, Group Photos, Landscape, and more. Handheld Night Scene and HDR Backlight Control are two other Special Scene Modes featured. The Handheld Night Scene mode captures nightscapes with bright highlights and detailed dark areas. The HDR Backlight Control mode ensures that backlit subjects are not recorded too dark.
• Easy Operation
  The EOS RP is designed to allow users to operate almost every feature while looking through the EVF (electronic viewfinder). The camera features various operating controls, such as buttons, switches, and dials, that make them easy for the user to locate and operate. Many of the operating controls can even be customized to perform different functions to make the shooting process even easier.
• Creative Assist
  The EOS RP camera’s built-in Creative Assist feature makes it simple to change camera settings and see the results in real time, helping you find just the right look to match the emotion or tone of the image. With effects such as brightness, contrast and saturation easily found on one menu, the EOS RP is a convenient tool for getting great looks and experimenting with different styles.
• Feature Assistant
  With its Feature Assistant function, the EOS RP camera can help you take advantage of its advanced features and create impressive photos with ease. By providing simple text explanations as well as sample photos to illustrate the function, the Feature Assistant helps put you in the know so you get amazing photographs.
• USB Charge Compatible
  The EOS RP camera is compatible with the USB Power Adapter PD-E1 for in-camera charging via USB. Featuring an industry standard USB-C connector, the optional USB Power Adapter PD-E1 makes for easy charging without the necessity to remove the battery from the camera.
• Battery Pack LP-E17
  For power and the convenience of compatibility among multiple cameras, the EOS RP camera uses the Battery Pack LP-E17, a robust, long-lasting battery that helps deliver power, shot after shot, recording after recording.
• Camera Connect
  Canon’s Camera Connect app uses the EOS RP camera’s built-in Wi-Fi® and Bluetooth® compatibility to connect to a compatible mobile device. This allows a number of functions from easy image transfer to remote shooting, to adding GPS information to your photos and videos and more.
• DPP Express
  Canon’s Digital Photo Professional Express makes speedy processing of JPEGs and CR3 RAW files on a compatible handheld device a breeze. Working with Canon’s Camera Connect app to create a streamlined wireless workflow, DPP Express lets you adjust settings right on your mobile device, saving files to the cloud, a PC or your camera.
• Extension Grip Accessory
  The optional Extension Grip EG-E1 provides additional support and comfort using the EOS RP so you can feel even more confident when shooting. There’s an access panel so you can easily swap batteries and SD cards when needed, and because it comes in three colors – black, blue and red – you can choose the one that best matches your style or mood for a particular occasion, day or outfit.

Specifications

• Type: Digital single-lens non-reflex AF/AE camera
• Recording Media:
  • SD/SDHC/SDXC memory cards
  • SD card speed class-compatible.
  • UHS-I and II supported.
  • Use of UHS-II microSDHC/SDXC cards with a microSD to SD adapter is not recommended. When using UHS-II supported cards, use SDHC/SDXC cards compatible with UHS-II.
  • Eye-Fi cards not supported.
  • Multimedia cards (MMC) cannot be used.
• Image Format: Approx. 35.9 x 24.0mm
• Compatible Lenses:
  • Canon RF lens group (excluding EF, EF-S and EF-M lenses)
  • When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses)
• Lens Mount: Canon RF mount

Image Sensor

• Type: CMOS sensor (compatible with Dual Pixel CMOS AF)
• Pixels: Approx. 26.2 megapixels
• Pixel Unit: Approx. 5.76 µm square
• Total Pixels: Approx. 27.1 megapixels
• Aspect Ratio: 3:2 (Horizontal:Vertical)
• Color Filter System: RGB primary color filters
• Low Pass Filter: Installed in front of the image sensor, non-detachable
• Dust Deletion Feature:
  • Self Cleaning Sensor Unit:
    • Removes dust adhering to the low-pass filter.
    • At power off only / Enable / Disable. Performed automatically (taking about 3.3 sec. as indicated on the screen) or manually (taking about 12.2 sec. as indicated on the screen).
    • After manually activated cleaning, the camera will automatically restart (Power OFF to ON).
    • When [Multi Shot Noise Reduction], [Multiple exposures], or [HDR mode] is set, [Clean now] and [Clean manually] cannot be selected.
  • Dust Delete Data acquisition and appending:
    • The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
    • The dust coordinate data appended to the image is used by the provided software to automatically erase the dust spots.
    • Not available with EF-S lenses, in cropped shooting or when distortion correction is applied.
  • Manual cleaning (by hand)

Recording System

• Recording Format:
  • Compliant to Design rule for Camera File system 2.0 and Exif 2.3.
  • Supports time difference information in Exif 2.31.
• File Size:
  • 3:2 Aspect Ratio:
    • Large/RAW/C-RAW: 6240 x 4160
    • Medium: 4160 x 2768
    • Small 1: 3120 x 2080
    • Small 2: 2400 x 1600
  • 1.6x (Crop):
    • Large/RAW/C-RAW: 3888 x 2592
    • Small 2: 2400 x 1600
  • 4:3 Aspect Ratio:
    • Large/RAW/C-RAW: 5536 4160
    • Medium: 3680 x 2768
    • Small 1: 2768 x 2080
    • Small 2: 2112 x 1600
  • 16:9 Aspect Ratio:
    • Large/RAW/C-RAW: 6240 x 3504
    • Medium: 4160 x 2336
    • Small 1: 3120 x 1752
    • Small 2: 2400 x 1344
  • 1:1 Aspect Ratio:
    • Large/RAW/C-RAW: 4160 x 4160
    • Medium: 2768 x 2768
    • Small 1: 2080 x 2080
    • Small 2: 1600 x 1600
  • Values for Recording Pixels are rounded to the nearest 100,000 or 10,000.
  • For RAW and JPEG images, information outside the cropping area is not retained.
  • JPEG images are generated in the set aspect ratio.
  • RAW images are generated in [3:2], and the set aspect ratio is appended.
• File Numbering:
  • File Numbering Methods:
    • Continuous Numbering:
      • The numbering of captured images continues even after you replace the card.
    • Auto Reset:
      • When you replace the card, the numbering will be reset to start from 0001. If the new SD card already contains images, the numbering will continue from the last recorded image in the card.
    • Manual Reset:
      • Resets the file number to 0001, and creates a new folder automatically.
• RAW + JPEG Simultaneous Recording: Possible
• Color Space: Selectable between sRGB and Adobe RGB
• Picture Style:
  • Auto
  • Standard
  • Portrait
  • Landscape
  • Fine Detail
  • Neutral
  • Faithful
  • Monochrome
  • User Defined 1-3:
    • In Scene Intelligent Auto, [Auto] will be set automatically.
    • [Standard] is the default setting for [User Def. 1-3].

White Balance

• Settings:
  • Auto
  • Day Light
  • Shade
  • Cloudy
  • Tungsten light
  • White fluorescent light
  • Flash
  • Custom (Custom WB)
  • Color temperature
• Auto White Balance: Option between ambience priority and white priority settings.
• Color Temperature Compensation:
  • Blue/amber bias: ±9 levels
  • Magenta/green bias: ±9 levels
  • Corrected in reference to the current WB mode’s color temperature.

Viewfinder

• Type: OLED color electronic viewfinder
• Coverage: Approx. 100% vertically and horizontally relative to the shooting image area (with image quality L, at approx. 23mm eyepoint)
• Magnification: Approx. 0.70 (with 50mm lens at infinity, -1 m-1)
• Eye Point: Approx. 22mm (at -1 m-1 from the eyepiece lens end)
• Viewfinder Information:
  • Movie recording time
  • Maximum burst
  • Possible shots/Sec. until self-timer shoots
  • Focus Bracketing/ Multiple-exposure/HDR shooting/Multi Shot Noise Reduction/Bulb time/Interval timer
  • Touch Shutter
  • AF method
  • AF operation
  • Drive mode
  • Metering mode
  • Anti-flicker shooting
  • Shooting mode/Scene icon
  • AE lock
  • Flash-ready/FE lock/High-speed sync
  • Shutter speed/Multi-function lock warning
  • Aperture
  • AF point (1-point AF)
  • Exposure level indicator
  • Exposure compensation
  • Highlight tone priority
  • ISO speed
  • Create folder
  • Movie recording size
  • No. of shots left for focus bracketing/multiple exposures/interval timer
  • Temperature warning
  • Battery level
  • Exposure simulation
  • AEB/FEB
  • Magnify button
  • Still photo cropping
  • Aspect ratio
  • Auto Lighting Optimizer
  • Picture Style
  • White balance/White balance correction
  • Quick Control button
  • Image Quality
  • Bluetooth®/Wi-Fi® function
  • Wi-Fi® signal strength
  • Histogram
  • Electronic level
  • GPS acquisition status
  • Flash exposure compensation
  • Focus distance display

Autofocus

• Type: Phase-difference detection system with image sensor (Dual Pixel CMOS AF)
• AF Points:
  • Max. 4,779
  • When selected with cross keys.
• AF Working Range:
  • EV -5 to 18 (f/1.2, at 73°F/23°C, ISO 100, One-Shot AF)
• Focusing Modes:
  • One-Shot AF
  • Servo AF
  • Manual (Manual focus)
• AF Assist Beam:
  • Enable
  • Disable
  • LED AF assist beam only:
    • Focus range with the AF-assist beam is generally no more than 13.1 ft. / 4m (at f/5.6).
    • Options restricted to [Enable] / [Disable in Basic Zone modes.
    • [AF-assist beam firing] is set to [Disable] in Landscape, Panning, Kids, and Sports modes.

Exposure Control

• Metering Modes:

  • Evaluative metering (AF point-linked)
  • Partial metering (approx. 5.5% of the area at the center of the screen)
  • Spot metering (approx. 2.7% of the area at the center of the screen)
    • AF point-linked spot metering not provided.
  • Center-weighted average metering
• Metering Range: EV -3 – 20 (at 73°F/23°C, ISO 100)
• Exposure Control Systems:
  • Scene Intelligent Auto
  • Flexible-priority AE
  • Program AE (shiftable)
  • Shutter-priority AE (Safety shift possible)
  • Aperture-priority AE (Safety shift possible)
  • Manual exposure
  • Bulb
  • Custom shooting mode C1, C2, C3
• ISO Speed Range
  • Manual Setting:
    • Normal: ISO 100–40000 (in 1/3-stop or whole-stop increments)
    • Expanded:
      • L: equivalent to ISO 50
      • H1: 51200
      • H2: 102400
    • For [Highlight tone priority], the minimum ISO speed limit will be ISO 200 to 40000.
    • ISO speed safety shift possible with Custom Function.
    • All the expanded ISO speeds including those for movies are only “equivalent speeds.”
  • Auto:
    • ISO Settings:
      • No flash
      • With flash
      • Scene Intelligent Auto:
        • ISO 100–12800
        • ISO 100–1600
      • Fv/P/Tv/Av/M:
        • ISO 100–40000
        • ISO 100–1600
      • Silent Mode: ISO 100-12800
      • B: ISO 400 fixed
• Exposure Compensation:
  • Manual: ±3 stops in 1/3- or 1/2-stop increments
  • AEB: ±3 stops in 1/3- or 1/2-stop increments
• AE Lock:
  • Auto AE Lock:
    • The metering mode for AE lock after focus can be customized.
  • Manual AE Lock:
    • In the Fv, P, Tv, Av and M modes, enabled with the AE lock button. (Press again to update.)
    • Enabled in all metering modes.

Shutter

• Type:
  • Electronically controlled focal-plane shutter
  • Electronic first curtain, mechanical second curtain
  • Electronic shutter (slit rolling read out)
• Shutter Speeds:
  • 1/4000 to 30 sec., bulb (total range of all shooting modes)
  • X-sync at 1/180 sec.
• Shutter Release: Soft-touch electromagnetic release
• Self Timer:
  • 10-sec. delay
  • 2-sec. delay
  • Continuous shooting
• Shutter Lag Time:
  • Single Shooting:
    • No Flash: Approx. 55 ms
    • Flash: Approx. 147 ms
  • Silent Shutter: Approx. 55 m

External Speedlite

• Flash Metering: E-TTL II autoflash
• FE Lock: Provided
• External Flash Settings:
  • External Flash Control:
    • Flash firing, E-TTL II Flash metering, Slow synchro, Safety FE, Flash mode, Wireless function, Flash zoom, Shutter synchronization and Flash exposure compensation
  • Flash Custom Function Setting: The setting options for both (1) and (2) will differ depending on the Speedlite used.
• Flash Exposure Compensation: ±3 stops in 1/3- or 1/2-stop increments

Drive System

• Drive Modes:
  • Single shooting
  • High-speed continuous shooting:
    • Max. approx. 5.0 fps:
      • The conditions are attaining the maximum continuous shooting speed are as follows:
      • Shooting with a fully charged battery in One-Shot AF mode at a 1/500 sec. or faster shutter speed and maximum aperture (depending on the lens), at room temperature (73°F/23°C), without flicker reduction, or image stabilization (depending on the lens).
      • The continuous shooting speed for high-speed continuous shooting may be lower, depending on conditions such as these: battery level, temperature, flicker reduction, shutter speed, aperture, subject conditions, brightness, AF operation, type of lens, use of flash and shooting settings.
      • With Servo AF: Max. approx. 4.0 fps (shooting speed priority)
      • When set to reduce flicker: Max. approx. 4.0 fps
      • In flash photography: Max. approx. 2.3 fps
  • Low-speed continuous shooting (Tracking priority): Max. approx. 2.6 fps
  • Self-timer: 10 sec./remote control
  • Self-timer: 2 sec./remote control
  • Self-timer: Continuous Shooting

Live View Functions

• Shooting Modes: Still photo shooting and video shooting
• Focusing:
  • Dual Pixel CMOS AF
  • Contrast AF (when recording 4K movies)
  • Manual focus:
    • Magnified view possible by approx. 5x or 10x for manual focusing (not possible during movie shooting).
    • With Contrast AF as used when recording 4K movies, focusing may take longer than when recording Full HD or HD movies, and focusing with certain lenses may be difficult.
• Metering Modes:
  • Center-weighted average metering:
    • Metering brightness range: EV -1 – 20 (at 73°F/23°C, ISO 100)
  • AF point-linked evaluative metering: For face detection with Face detection + Tracking AF.
• Metering Range: EV -2.5 – 18 (at 73°F/23°C, ISO 100, One-Shot AF, with 29.97 fps)
• Grid Display:
  • 3×3
  • 6×4
  • 3×3+diag

Video Shooting

• File Format:
  • MP4
  • Video: MPEG-4 AVC / H.264
• Focusing:
  • Dual Pixel CMOS AF
  • Contrast AF (When recording 4K movies)
  • Manual focus:
    • Magnified view possible by approx. 5x or 10x for manual focusing (not possible during movie shooting).
    • With Contrast AF as used when recording 4K movies, focusing may take longer than when recording Full HD or HD movies, and focusing with certain lenses may be difficult.
• Range: Full range (0 to 255)
• Exposure Compensation: ±3 stops in 1/3- or 1/2-stop increments

LCD Monitor

• Type:
  • TFT color
  • Liquid-crystal monitor
• Monitor Size: 3.0-inch (screen aspect ratio of 3:2)
• Pixels: Approx. 1.04 million dots
• Coverage: Approx. 100% vertically/horizontally
• Brightness Control: Manually adjustable to one of seven brightness levels
• Coating:
  • Clear View LCD II
  • Anti-smudge coating provided.
  • Anti-reflection coating not provided.
• Interface Languages: 29 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, Japanese)

Playback

• Display Format:
  • Single image display:
    • No information display
    • Basic information display
    • Detailed shooting information display:
      • Detailed information
      • Lens/Histogram information
      • White balance information
      • Picture Style information 1
      • Picture Style information 2
      • Color space/Noise reduction information
      • Lens aberration correction information 1
      • Lens aberration correction information 2
      • Record of sent images
      • GPS information
    • Index display:
      • 4-image index
      • 9-image index
      • 36-image index
      • 100-image index
• Highlight Alert: The white areas with no image data will blink.

Image Protection And Erase

• Protection:
  • Single image (select image)
  • Select range
  • All images in folder
  • All images on card:
    • Image browsing and image search can be based on ratings.
    • Ratings-based image selections also possible with DPP.
  • All found images (only during image search)
• Erase (Except protected images):
  • Select images to erase
  • Select range
  • All images in folder
  • All images on card
  • All found images (only during image search)

Direct Printing

• Compatible Printers: Images can be sent via Wi-Fi® to a PictBridge-compatible (Wireless LAN) printer and printed.

DPOF: Digital Print Order Format

• DPOF: Compliant to DPOF Version 1.1

Customization

• Custom Controls:
  • Customizable Buttons:
    • Shutter button
    • Movie button
    • Multi-function button
    • AF-ON button
    • AE lock button
    • AF point selection button
    • Lens AF stop button
    • Up key (cross keys)
    • Left key
    • Right key
    • Down key
    • SET button
  • Customizable Dials:
    • Main dial
    • Quick control dial
    • Control ring
• My Menu Registration:
  • Up to six top-tier menu items and Custom Functions can be registered.
  • Up to five My Menu tabs can be added.
  • My Menu tab overall operations:

    • Adding a tab
    • Deleting tabs in a batch
    • Deleting all tab items
    • Setting the menu display
  • My Menu tab detailed operations:
    • Selecting a registered item
    • Sorting registered items
    • Deleting selected registered items
    • Deleting registered items in a batch
    • Deleting tabs
    • Changing a tab name (16 ASCII characters)

Interface

• USB Terminal:
  • For PC communication
  • Shared with terminal for in-camera charging with the USB Power Adapter PD-E1.
  • In-camera charging: although it is compatible with USB Type-C (5V/1.5A) equivalent, do not charge the camera other than with the USB Power Adapter PD-E1.
• Video Out Terminal:
  • Images can be displayed through the HDMI output and on screen at the same time.
  • Images will not be displayed unless [NTSC] or [PAL] is properly set according to the video system of the TV set.
• Extension System Terminal: 3.5mm diameter stereo mini jack

Power Source

• Battery: Battery Pack LP-E17 x 1
  • With the AC Adapter + DC Coupler, AC power is possible.
  • With the USB Power Adapter PD-E1, in-camera charging of LP-E6N is possible but LP-E6 cannot be charged. The USB Power Adapter PD-E1 is not compatible with powering the camera.
• Battery Check:
  • Battery level displayed on the LCD panel and in the viewfinder.
  • Remaining capacity (3 level battery capacity indicator)
  • Recharge performance
• Power Saving:
  • Power turns off after the set time of non-operation elapses.
  • Display off:
    • Available time options: 15 sec. / 30 sec. / 1 min. / 3 min. / 5 min. / 10 min. / 30 min.
  • Auto power off:
    • Available time options: 30 sec. / 1 min. / 3 min. / 5 min. / 10 min.
  • Disable:
    • Viewfinder off
    • Available time options: 1 min. / 3 min. / Disable
• At least approx. 6 min. until auto power off while the [Date/Time/Zone] screen is displayed.
• Date/Time Battery:
  • Built-in secondary battery
  • When fully-charged, the date/time can be maintained for approx. 3 months.
• Recharge time:
  • Approx. 8 hrs.
  • The recharge time required to provide the above number of months with no battery pack installed.
• Start-up Time: Approx. 0.82 sec.

Operating Environment

• Working Humidity Range: 32-104° F / 0-40° C

Working Conditions

• Working Temperature Range: 85° or less
