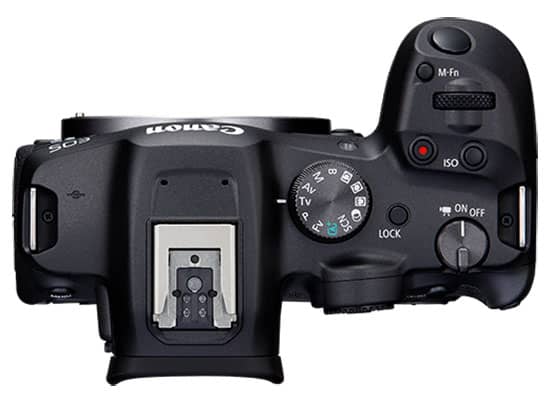

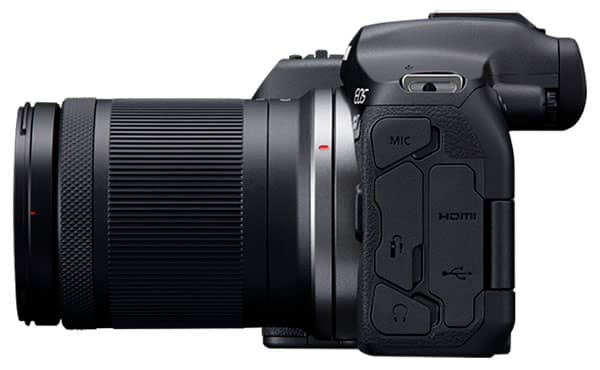

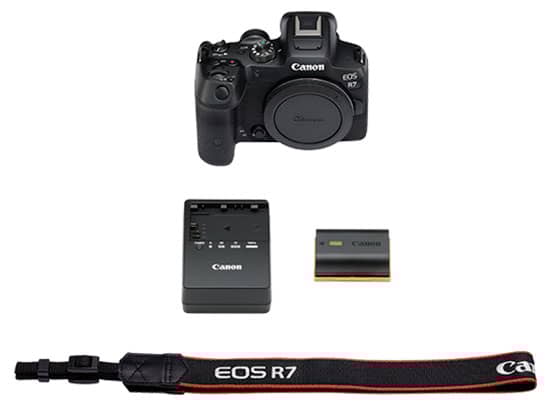

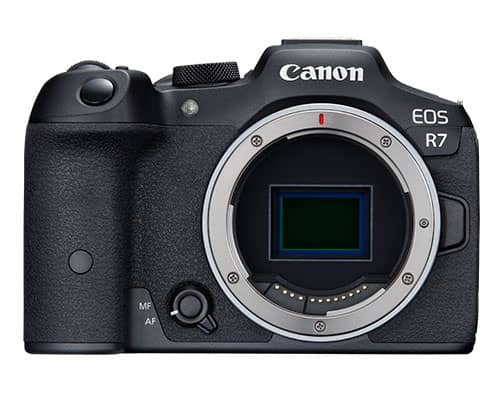

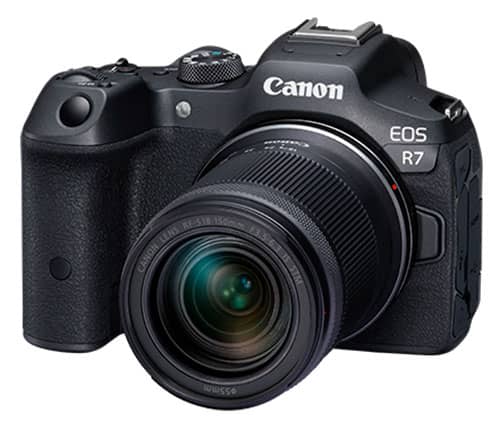

Canon EOS R7 Camera Body With RF-S18-150mm F3.5-6.3 IS STM Lens Kit

Canon 5137C009 EOS R7 Camera Body With RF-S18-150mm F3.5-6.3 IS STM Lens Kit

As Fast As Life

With a 15 FPS mechanical shutter, the high-performance EOS R7 is the most advanced APS-C camera from Canon. Featuring a high-speed shooting 32.5 MP sensor, in-body stabilization up to 7 stops with coordinated control IS¹, and 4K60p video, it offers maximum versatility for capturing photo and video of fast action, wildlife, and everything in between. The perfect all-around camera for dedicated professionals and advanced hobbyists alike.

RF-S18-150mm F3.5-6.3 IS STM

Helping to pave the way for our RF-S lens line, the RF-S18-150mm F3.5-6.3 IS STM is an all-around lens that is ideal for creative photography and movies, the RF-S18-150mm F3.5-6.3 IS STM combines legendary Canon Optics with a versatile zoom range and quiet operation for flexibility on the go. This lens was designed with smaller APS-C sensors in mind, and when attached to a full frame EOS R camera, automatically enables the 1.6x crop mode. It offers 100% x 100% Dual Pixel CMOS AF coverage for APS-C sensors, and 80% x 80% Dual Pixel CMOS AF coverage for Full Frame sensors (in crop mode). Delivering remarkable performance for everyday use, the lead screw-type stepping motor (STM) helps ensure smooth autofocus and quiet operation, letting you capture videos with great audio and minimal background noise so you won’t distract your subject in a quiet photo environment. Optical Image Stabilization provides up to 4.5 stops of correction, and up to 6.5 stops with Coordinated IS. This advanced image stabilization can result in sharper photos with minimal blur, even in low light situations. For landscapes, portraits, sports, videos and everything in between, the RF-S18-150mm F3.5-6.3 IS STM provides great versatility with its magnificent optics, comprehensive zoom range and flexible design.

Features

• High Image Quality with a 32.5 Megapixel (APS-C) CMOS Sensor
  The EOS R7 features a newly developed and high image quality 32.5 Megapixel APS-C CMOS sensor. Designed for powerful and effective telephoto reach, it empowers fast continuous shooting with high speed autofocus, so you can capture moment-by-moment images with clear and impressive detail.
• High-Speed Shooting
  Whether you’re shooting speeding cars, sports, wild animals, or just life as it happens, speed is on your side. The EOS R7 lets you shoot a fast 15 fps using mechanical shutter²,³, up to 30 fps with the electronic shutter³,⁴, and with RAW Burst Mode with ½ second pre-shooting, you can capture the perfect moment down to the split second.
• Blazing Fast Autofocus
  Capture fast moving images with accuracy and ease. Canon’s highly responsive Dual Pixel CMOS AF technology uses every pixel on the imaging sensor to detect focus, covering approximately 100% width and height⁵ with up to 651 zones.
• 5-axis In-body Image Stabilization with auto-level technology⁶
  The EOS R7 features an IBIS (In-Body Stabilization System) with up to 7 stops of shake correction with coordinated control IS¹. This can be a game changer for handheld videos and low light photography.
• Record each clip over 30 minutes
  Set up your video without worrying about it stopping after 30-minutes.⁷
• Optimized for video
  Get professional quality video with Smart Shoe integration for audio and HQ 4K (oversampled from 7K). Then record it all with Dual UHS II SD memory card slots for recording to both cards.
• Compatibility with full range of Canon RF-S, RF, EF, EF-S mounts*
  Backwards compatible, future proof. Enjoy full compatibility with Canon’s legendary line up of lenses past, present and future.

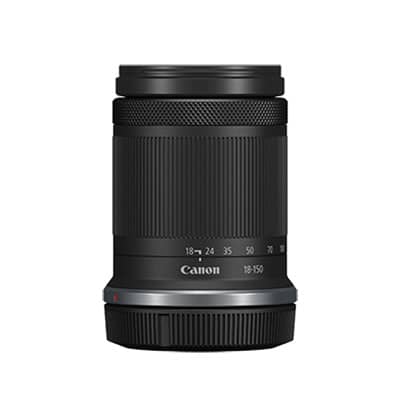

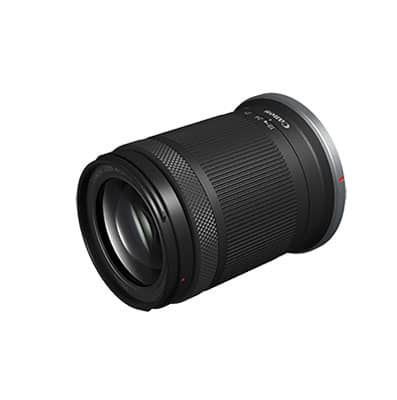

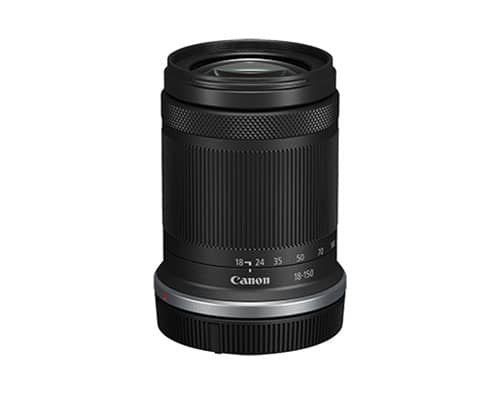

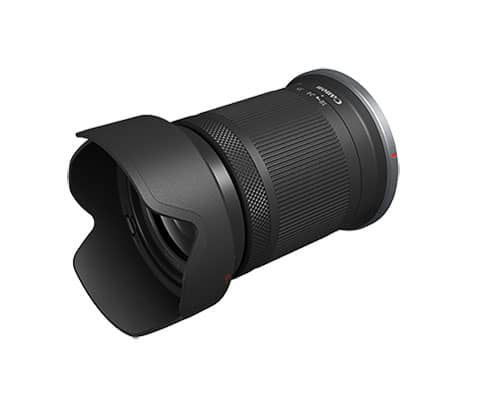

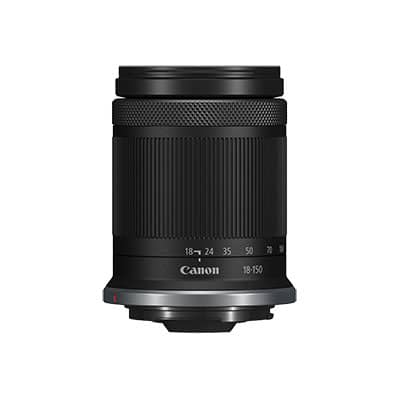

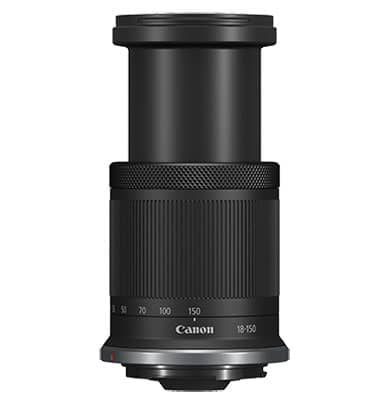

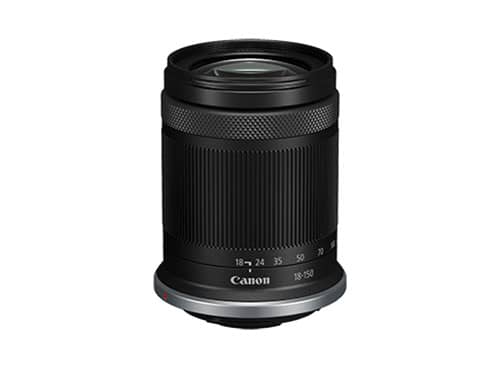

RF-S18-150mm F3.5-6.3 IS STM Lens

• Extended-range, RF-S mount Zoom Lens For APS-C Cameras.
  With high performance and high magnification, the RF-S18-150mm F3.5-6.3 IS STM puts a versatile zoom range of 18-150mm (35mm equivalent coverage 29-240mm) into a lens that gives you flexibility on the go. It was designed for Canon APS-C cameras, but is compatible with the entire EOS R-series full-frame line. When attached to a full frame EOS R camera, an automatic 1.6x sensor crop is enabled, matching the full-frame sensor to the RF-S lens’s coverage. Its optical system and simple operation ensure high image quality while keeping the lens easy to use, so it’s simply there when you need it. The extended zoom range makes this a perfect companion for travel or simply documenting life’s experiences, for both video and still images.
• Lead Screw-type STM
  Canon’s stepping motor (STM) technology is especially effective at producing smooth, quiet autofocus during video recording. This lens is a perfect choice for multi-media content creation, with its zoom range and quiet autofocus. And, STM focus drive provides responsive, quick – and exceptionally quiet – AF during still-image shooting, as well.
• Image Stabilization with up to 4.5 Stops* of Shake Correction
  For consistently sharp results, the RF-S18-150mm F3.5-6.3 IS STM features built-in optical Image Stabilization, providing enhanced shake reduction for up to 4.5 stops* of shake correction. When paired with an EOS R-series camera that has In Body Image Stabilization (IBIS), the Coordinated IS allows for up to 6.5 stops of correction. This means more reliable handheld performance and clearer detail in low-light situations, without having to increase the ISO or decrease the shutter speed. Because of its enhanced stabilization, the RF-S18-150mm F3.5-6.3 IS STM can also help minimize the need for a tripod.
• Two Aspherical Elements and Canon Super Spectra Coating
  Taking advantage of the Canon RF lens mount, the RF-S18-150mm F3.5-6.3 IS STM lens offers great optical quality. Its optical design includes two aspheric elements, one Ultra-low Dispersion (UD) glass element for high image quality from center to corner, and Canon Super Spectra Coating to minimize ghosting and flare.

Specifications

Type

• Type: Digital single-lens non-reflex AF/AE camera
• Image Processor: DIGIC X

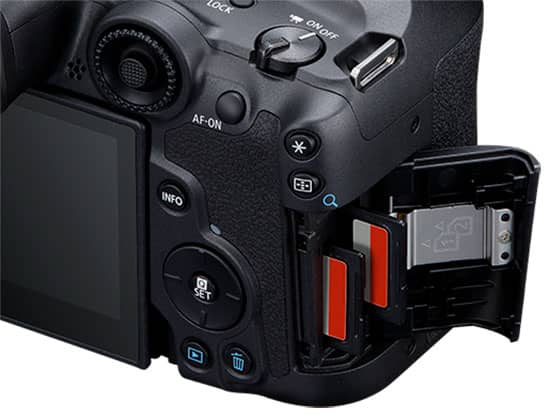

• Recording Media:
  • SD card:

    • SD card speed class-compatible
    • Compatible with UHS-II
    • Eye-Fi cards and Multimedia cards (MMC) are not supported
• Compatible Lenses:
  • Canon RF-S/RF lens group (excluding EF, EF-S and EF-M lenses)
  • When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses)
• Lens Mount: Canon RF mount

Image Sensor

• Type: CMOS sensor (compatible with Dual Pixel CMOS AF)
• Effective Pixels: Approx. 32.5 megapixels
• Sensor Size: Approx. 22.3 x 14.8 mm
• Pixel Size: Approx. 3.2 µm square
• Total Pixels: Approx. 34.4 megapixels
• Aspect Ratio: 3:2 (Horizontal: Vertical)
• Color Filter System: RGB primary color filters
• Low Pass Filter: Installed in front of the image sensor, non-detachable
• Dust Deletion Feature:
  • (1) Self Cleaning Sensor Unit
    • Removes dust adhering to the low-pass filter.
    • At power off only / Enable / Disable. Performed automatically (taking about approx. 2 sec. as indicated on the screen) or manually (taking about approx. 7 sec. as indicated on the screen).
    • After manually activated cleaning, the camera will automatically restart (Power OFF to ON).
    • When [Multi Shot Noise Reduction], [Multiple exposures], or [HDR mode] is set, [Clean now] and [Clean manually] cannot be selected.
  • (2) Dust Delete Data acquisition and appending.
    • The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
    • The dust coordinate data appended to the image is used by the EOS Canon Digital Professional Software to automatically erase the dust spots.
    • Not available in focus bracketing, RAW burst mode, or multiple-exposure shooting.
  • (3) Manual cleaning (by hand)

Recording System

• Recording Format: Compliant to Design rule for Camera File system 2.0 and Exif 2.31*.
  • *Supports time difference information.
• Image Format:
  • Still: JPEG, HEIF, RAW, Dual Pixel RAW, Raw Burst, C-RAW (CR3);
  • Movies: ALL-I* , IPB, IPB Light
    • * Time-lapse movies only
• HDR ModeContinuous Shooting:
  • (1) 1 shot only
  • (2) Every shot
• Advanced shooting operations:
  • (1) Focus Bracketing
  • (2) Interval Timer
  • (3) Bulb Timer
  • (4) Multi-Shot NR
• Image Quality:
  • 3:2 Aspect Ratio:
    • Large/HEIF/RAW: 6960 x 4640
    • Medium: 4800 x 3200
    • Small 1: 3472 x 2320*
    • Small 2: 2400 x 1600
  • 4:3 Aspect Ratio:
    • Large: 6160 x 4640*
    • Medium: 4256 x 3200*
    • Small 1: 3072 x 2320*
    • Small 2: 2112 x 1600*
    • RAW: 6960 x 4640
  • 16:9 Aspect Ratio:
  • Large: 6960 x 3904*
  • Medium: 4800 x 2688*
  • Small 1: 3472 x 1952*
  • Small 2: 2400 x 1344*
  • RAW: 6960 x 4640
  • 1:1 Aspect Ratio:
    • Large: 4640 x 4640
    • Medium: 3200 x 3200
    • Small 1: 2320 x 2320
    • Small 2: 1600 x 1600
    • RAW: 6960 x 4640
  • Values for Recording Pixels are rounded to the nearest 100,000th.
  • RAW/C-RAW images are generated at 3:2, with information added about the specified aspect ratio, and JPEG images are generated at the specified aspect ratio.
  • These aspect ratios (M / S1 / S2) and pixel counts also apply to resizing.
  • * Indicate an inexact proportion.
• File Numbering:
  • The following file numbers can be set:

    • File numbering methods
      • a. Continuous numbering
        • i. The numbering of captured images continues even after you replace the card.
      • b. Auto reset
        • i. When you replace the card, the numbering will be reset to start from 0001. If the new SD card already contains images, the numbering will continue from the last recorded image in the card.
• RAW + JPEG / HEIF Simultaneous Recording: Simultaneous recording of any combination of RAW/C-RAW and JPEG/HEIF image-recording quality is supported.
• Color Space: Selectable between sRGB and Adobe RGB
• Picture Style:
  • (1) Auto
  • (2) Standard
  • (3) Portrait
  • (4) Landscape
  • (5) Fine Detail
  • (6) Neutral
  • (7) Faithful
  • (8) Monochrome
  • (9) User Defined 1–3

White Balance

• Settings:
  • (1) Auto (Ambience priority/White priority)
  • (2) Daylight
  • (3) Shade
  • (4) Cloudy¹
  • (5) Tungsten light
  • (6) White fluorescent light
  • (7) Flash
  • (8) Custom²

    (Custom WB)
  • (9) Color temperature
  • ¹
    Effective also in twilight and sunset.
  • ²
    Setting method options include [Custom White Balance] and [Shoot to set WB].
• Auto White Balance: Option between ambience priority and white priority settings.
• White Balance Shift:
  • Blue/amber bias: ±9 levels
  • Magenta/green bias: ±9 levels
    • Corrected in reference to the current WB mode’s color temperature.
    • Blue/amber and magenta/green shift can be set at the same time.

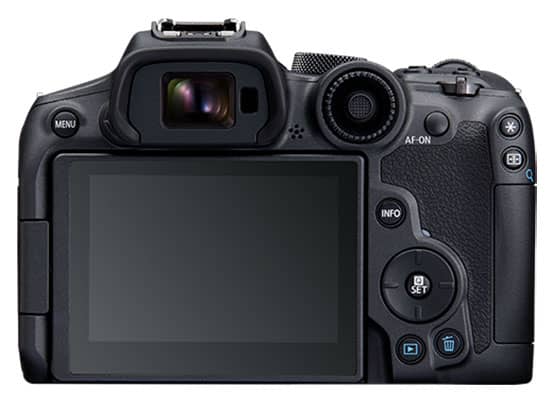

Viewfinder

• Type: OLED color electronic viewfinder; approx. 2.36 million dots resolution
• Coverage: Approx. 100% vertically and horizontally relative to the shooting image area (with image quality L, at approx. 22mm eyepoint).
• Magnification / Angle of View: Approx. 1.15x / Approx. 33 degrees (with 3:2 display, an 50mm lens at infinity, -1 m-1)
• Eye Point: Approx. 22mm (at -1 m-1 from the eyepiece lens end)
• Dioptric Adjustment Range: Approx. -4.0 to + 2.0 m-1 (dpt)

Autofocus

• Focus Method: Dual Pixel CMOS AF
• Number of AF zones available for Automatic Selection:
  • AF area: Horizontal: Approx. 100% x Vertical: Approx. 100%*
  • Stills: Max. 651 zones (31 x 21)
  • Movies: Max. 527 zones (31 x 17
• AF Working Range: EV -5 to 20 (f/1.2 lens*, center AF point, One-Shot AF, at room temperature, ISO 100)
  • * Except RF lenses with a Defocus Smoothing (DS) coating.
• Focusing brightness range (in movie recording): Full HD 29.97fps : EV -3.5 to 20 With an f/1.2 lens*, center AF point, One-Shot AF,at room temperature, ISO 100
  • * Except RF lenses with a Defocus Smoothing (DS) coating.
• AF Methods:
  • Whole area AF
  • Spot AF
  • 1-point AF
  • Expand AF Area (Above, below, left and right, around)
  • Expand AF Area: Around
  • Flexible Zone AF 1,2,3
• Subject to Detect: People, Animals, Vehicles, No Priority
  • Available with [AF Area] set to Whole area AF
• Focus mode switch: AF / MF
  • Applies when an RF or RF-S lens without a focus mode switch is attached.
  • When lenses with a focus mode switch are attached, the setting on the lens takes precedence.

Exposure Control

• Metering Modes:
  • Real-time metering with image sensor (384 zones [24×16 zone metering])
    • (1) Evaluative metering
    • (2) Partial metering (approx. 6.0% of the area at the center of the screen)
    • (3) Spot metering (approx. 3.0% of the area at the center of the screen)
    • (4) Center-weighted average metering
• Metering Range:
  • Still Photo Shooting: EV -2 to 20 (at room temperature, ISO 100)
  • Movie Recording: EV 0 to 20 (at room temperature, ISO 100)
• AE Lock:
  • (1) Auto AE lock
    • The metering mode for AE lock after one-shot focus can be customized.
  • (2) User-applied AE lock
    • In the Fv, P, Tv, Av and M modes, enabled with the AE lock button. (Press again to update.)
    • Enabled in all metering modes.

Shutter

• Type:
  • (1) Mechanical
  • (2) Electronic 1st-Curtain
  • (3) Electronic Shutter (1st and 2nd curtain – silent*)
    • * Cannot be used in conjunction with the following functions: flash photography, HDR shooting, multiple exposures, Multi Shot Noise Reduction, AEB, HDR PQ, anti-flicker shooting, Dual Pixel RAW shooting, Digital Lens Optimizer [High].
    • * A shutter release sound is not generated. However, note that the sounds other than the shutter release sound (aperture, focusing lens drive sound/electronic sound, etc.) may be generated.
    • * In electronic shutter shooting under conditions such as flash firing by other cameras or with fluorescent lighting or other flickering light sources, a strip of light or banding due to the brightness difference may be recorded in the image.
• Shutter Speeds:
  • When [Mechanical] or [Elec. 1st- curtain] is set: 1/8000-30 sec, bulb
  • When [Electronic] is set: 1/16000-30 sec.
• X-sync Speed:
  • Mechanical Shutter: 1/250 sec
  • Elec. 1st-curtain: 1/320 sec.
• Shutter Release: Soft-touch electromagnetic release
• Self Timer: 10-sec. delay, 2-sec. delay

Image Stabilization (IS mode)

• Still Photo IS: In-body IS operation can be selected when using a non-IS lens.
  • Always on
  • Only for shot

External Speedlite

• E-TTL balance: Ambience priority, standard, flash priority
• Compatible E-TTL Speedlites: Canon EX- and EL-series Speedlites
• E-TTL II Flash Metering:
  • (1) Evaluative (Face Priority)
  • (2) Evaluative
  • (3) Average
• Flash Function Menu: Provided for EX- and EL-series Speedlites
• Flash Exposure Compensation: ±3 stops in 1/3- or 1/2-stop increments
• Continuous flash control:
  • 1. E-TTL each shot
  • 2. E-TTL 1st shot

HDR Shooting and Movie Recording

• HDR PQ Shooting: Disable / Enable
  • * Can be used in conjunction with Auto Lighting Optimizer

Video Shooting

• Focusing: Dual Pixel CMOS AF II
• Exposure Compensation: ±3 stops in 1/3- or 1/2-stop increments
• Canon Log: Canon Log 3

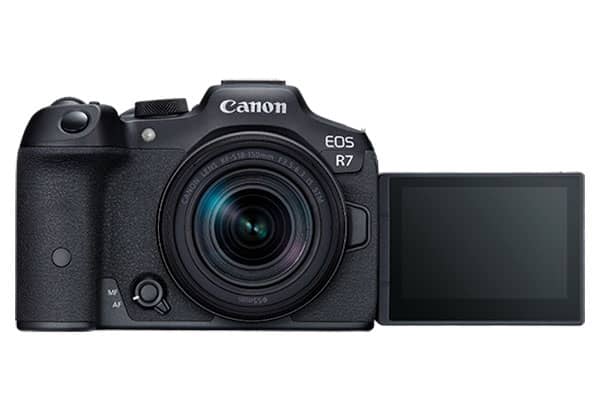

LCD Screen

• Type: TFT color, liquid-crystal monitor
• Monitor Size: 3.0-inch (screen aspect ratio of 3:2)
• Dots: Approx. 1.62 million dots
• Coverage: Approx. 100% vertically/horizontally
• Brightness Control: Manually adjustable to one of seven brightness levels
• Coating:
  • Anti-smudge coating applied.
  • Anti-reflection coating not applied.
• Interface Languages: 29 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, Japanese)

Playback

• Highlight Alert: The white areas with no image data will blink.
• Histogram: Brightness and RGB

Quick Control Function

• Function: The Quick Control screen is accessed by pressing the Quick Control button during still photo shooting.

Image Protection and Erase

• Protection:
  • (1)Single image (select image)
  • (2) Select range
  • (3) All images in a folder
  • (4) All images on card
    • Image browsing and image search can be based on ratings.
    • Ratings-based image selections also possible with DPP.
  • (5) All found images (only during image search)
• Erase:
  • Except protected images
  • (1) Select images to erase
  • (2) Select range
  • (3) All images in folder
  • (4) All images on card
  • (5) All found images (only during image search)

Direct Printing

• Compatible Printers: Not supported

DPOF: Digital Print Order Format

• DPOF: Compliant to DPOF Version 1.1

Wi-Fi®

• Standards Compliance: IEEE 802.11b/g/n
• Transmission Method:
  • DS-SS modulation (IEEE 802.11b)
  • OFDM modulation (IEEE 802.11g/n)
• Transition Frequency (Central Frequency):

  • 2.4 GHz band
  • Frequency: 2412 to 2462 MHz
  • Channels: 1 to 11 channels
• Communication with a Smartphone:
  • Images can be viewed, controlled, and received using a smartphone.
  • Remote control of the camera using a smartphone is possible depending on the Camera Connect specifications. Images can be sent to a smartphone.
  • Firmware can be downloaded and saved to a card in the camera using Camera Connect.
• Remote Operation Using EOS Utility: The camera can be controlled via Wi-Fi® using EOS Utility.
• Print from Wi-Fi® Printers: Supported
• Send Images to a Web Service:
  • Still photos (RAW, C-RAW, HEIF, and JPEG) and movies (MP4) can be uploaded to image.canon server album.
  • With the image.canon server, images can be sent to social media or a photo album link can be sent (by the image.canon specifications).

Bluetooth®

• Standards Compliance: Bluetooth Specification Version 4.2 compliant (Bluetooth low energy technology)
• Transmission Method: GFSK modulation

Interface

• USB Terminal: Equivalent to Superspeed PLus USB (USB 3.2 Gen 2)
  • For PC communication
  • Terminal type: USB Type-C
  • Shared with terminal for in-camera charging with USB Power Adapter PD-E1.
  • In-camera Charging: Equivalent to USB type-C (5 V/1.5 A), but use should be restricted to USB Power Adapter PD-E1.
• Video Out Terminal: HDMI micro OUT terminal Type D (Resolution switches automatically) / CEC not compatible
  • Images can be displayed through the HDMI output and on screen at the same time.
  • Images will not be displayed unless [NTSC] or [PAL] is properly set according to the video system of the TV set.
• Clean HDMI output: Provided
• Microphone input terminal: 3.5mm diameter stereo mini jack
• Headphone terminal: 3.5mm diameter stereo mini jack
• Remote control terminal: Remote Switch RS-60E3 type terminal supported
• Wireless remote control:
  • Compatible with the Wireless Remote Control BR-E1
  • Compatible with infrared remote controls such as Remote Controller RC-6
• Multi-function shoe: Supported

Power Source

• Battery: LP-E6NH/LP-E6N/LP-E6*
  • With the AC Adapter AC-E6N + DC Coupler DR-E6, AC power is possible.
  • With the USB Power Adapter PD-E1, in-camera charging of LP-E6NH is possible.
• Battery Check: Automatic battery check when the power switch is turned ON. Displayed in 6 levels on top LCD panel.
  • Battery level can be checked on the LCD panel and in the viewfinder. Battery Info display in Set-up Menu:
  • Type of power source used. •Remaining capacity (percentage of battery charge remaining).
  • Recharge performance: (3-level display of battery’s ability to hold a charge)
• Start-up Time: Approx. 0.4 sec.
  • Based on CIPA testing standards.

Operating Environment

• Working Temperature Range: 32 – 104°F / 0 – +40°C
• Working Humidity Range: 85% or less

Footnotes:

• * Optional Mount Adapter EF-EOS R is required when using EF/EF-S lenses with an EOS R series camera.
• ¹ When using RF lenses that support coordinated control with camera in-body IS. Testing performed at a focal length of 150mm using the RF-S18-150mm F3.5-6.3 IS STM lens and the EOS R7 camera.
• ² Continuous shooting speed may be slower due to factors such as anti-flicker shooting, aperture value, or battery life.
• ³ Not available when Dual Pixel RAW is enabled.
• ⁴ Only when using lenses supporting up to 30 shots/sec.
• ⁵ Only when a lens supporting 90% H x 100% W focusing area is attached and the camera is set to Whole-area AF, or when subjects are detected with AF area modes other than Whole-area AF. May not be possible to move AF points to the edge of the focusing area under select scene and subject conditions.
• ⁶ Auto level not available when using electronic 1st curtain shutter mode.
• ⁷ Video may stop due to battery level, card capacity, or internal temperature.
