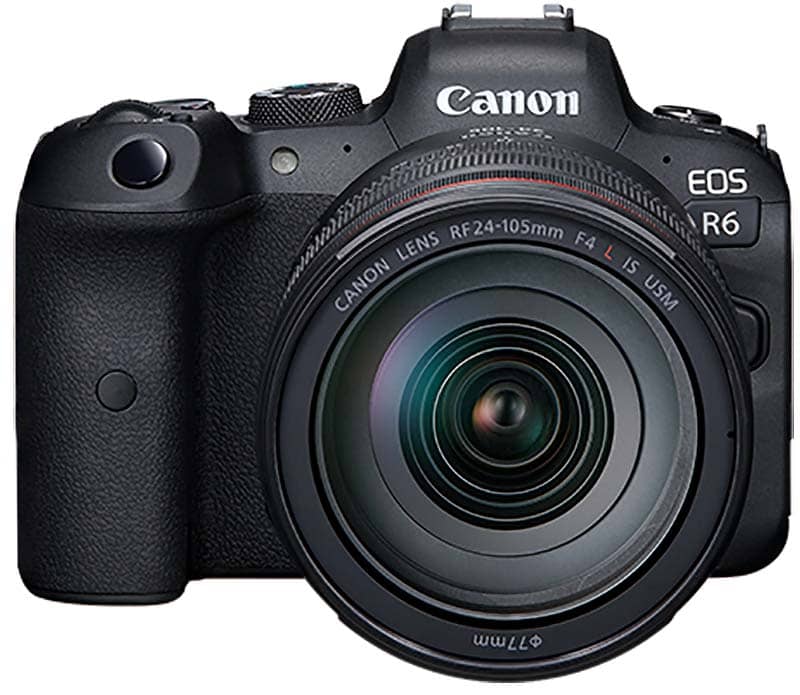

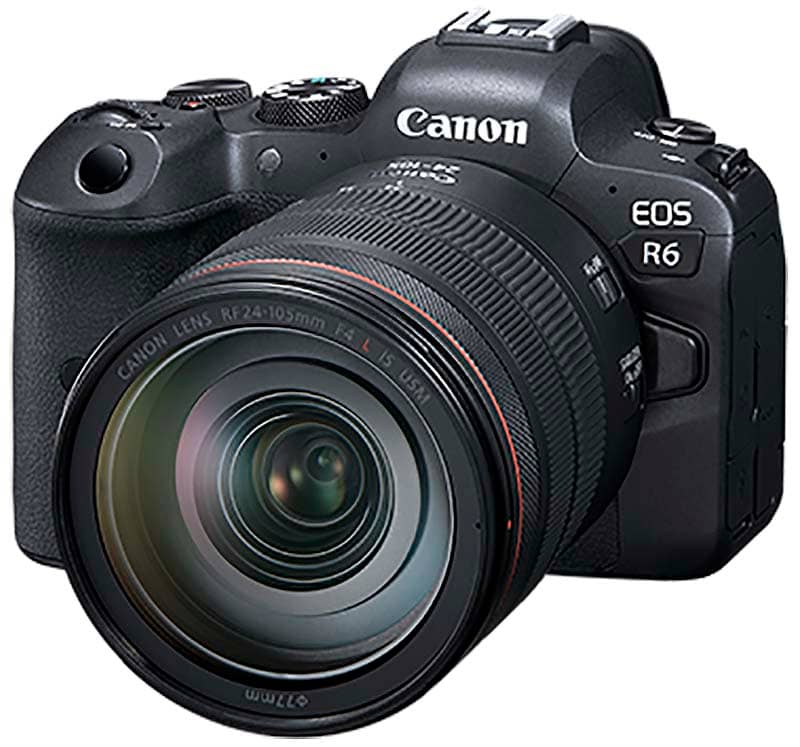

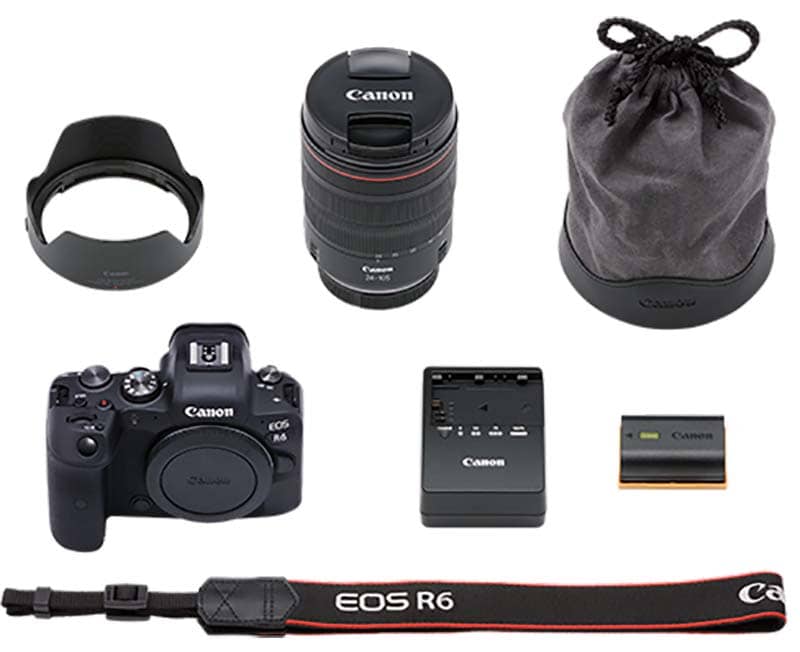

Canon EOS R6 RF 24-105mm F4 L IS USM Lens Kit

Canon EOS R6 RF 24-105mm F4 L IS USM Lens Kit – 4082C012

The EOS R6 full-frame mirrorless camera is designed to meet the demands of both photographers and video content creators who want a strong and versatile camera to keep up with their active lives. It can go from photographing high-speed action sports to filming 4K cinematic video with ease thanks to its high-performance CMOS sensor and DIGIC X image processor.

The EOS R6 features the same base image sensor and image processor as the EOS-1DX Mark III, enabling a native ISO range of 100-102, 400. With high-speed continuous shooting of up to 12 fps with the Mechanical shutter and up to 20 fps with Electronic “silent” shutter, the EOS R6 can keep up with just about any fast moving subject. Combined with the new Dual Pixel CMOSAF II system with approx. 100% coverage of the frame, and 1,053 Automatic AF Zones, the EOS R6 will confidently follow elusive subjects at 20fps for sharp images. Tracking subjects is easy and intuitive with the ability to track people using Eye, Face and Head Detection AF, or when tracking the whole body, face or eye of cats, dogs, or birds with Animal Detection AF. With the new 5-axis In-Body Image Stabilizer, up to 8-stops of shake correction is possible with both non-stabilized and optically image-stabilized lenses, opening up many more creative opportunities for incredibly stable lower light photo or video content creation. Those looking for creative cinematic video options will appreciate frame rates including 4K 60P and Full HD 120P with the option of internally recorded 4:2:2 10-bit Canon Log or HDR-PQ recording. And the inclusion of Dual SDXC UHS-II card slots combined with Wi-Fi® and Bluetooth® allows for multiple transfer and automatic backup options, making the EOS R6 ready when you are.

Features

• High Image Quality featuring a 20 Megapixel Full-frame CMOS Sensor
  Featuring a Canon-developed 35mm full-frame CMOS sensor with approx. 20 effective megapixels, the EOS R6 camera is engineered with an imaging system, designed to capture sharp and detailed images, even in low-light scenarios. Dark portions of an image even at high ISO speeds, and increased sensitivity are rendered with lower noise. While the high-speed image capture rate of EOS R6’s accelerating frame-to-frame shooting performance. The sensor also includes Dual Pixel CMOS AF II for high-speed, precise AF during Live View still and movie recording.
• DIGIC X Image Processor
  The EOS R6 camera features a powerful DIGIC X Image Processor, enabling high-performance operation and coordination or processes such as Dual Pixel CMOS AF II, Image Stabilization, image processing, and video functionality. Powerful all around, the DIGIC X Image Processor helps ensure your photos and videos look sharp and high resolution with minimal noise or grain.
• ISO range of 100-102400; Expandable to 204800*1
  Featuring an ISO range of 100-102400 (expandable to 204800), the EOS R6 camera delivers high standard and expanded ISOs (for still images), and a score of Auto ISO options to help enhance shooting in varied and fast-changing lighting situations. The EOS R6 camera has an extended ISO range that contributes to its ability to excel in nearly every situation it faces.
• Up to 12 fps with Mechanical Shutter
  Delivering incredible performance at speeds of up to 12 fps, the EOS R6 camera can capture the split-second details between a subject’s movements. This is great for dynamic action photos such as athletes, animals or vehicles in motion.
• Up to 20 fps Electronic (Silent) Shutter
  Especially helpful for wildlife photography, journalism and situations where photographers need to remain discrete, the EOS R6 camera features a selectable electronic (silent) shutter mode, and can capture images at up to 20 fps. With a fast AF/AE system, DIGIC X image Processor and high-speed recording with new Dual card slots, the EOS R6 helps ensure that camera operations are performed quickly and precisely.
• High-speed Focusing with Dual Pixel CMOS AF II
  The EOS R6 camera’s highly responsive Dual Pixel CMOS AF II system features an incredible 1,053 Automatic AF zones that can be designated as auto-focus focal points (when Face + Tracking priority AF is selected). This ensures higher-precision than has been seen in previous EOS cameras and enables the camera to execute consistent and impressive autofocus tracking of the subject. Fast action can be captured and focus can be maintained with speed, accuracy and ease.
• AF Area Coverage of Approx. 100% x 100%^2
  The EOS R6 camera features an expansive focus area of approx. 100% horizontal and 100% vertical^2 when working with compatible RF and EF lenses. This means fast and impressive focusing even when composing your subject far from the center of the frame.
• EV -6.5^3 Low-light Autofocus
  Amazing for night time photography or in very low-light indoor settings, the EOS R6 camera’s brilliant AF can operate in light as dim as a light rating of EV -6.5^3 a first in an EOS mirrorless camera – where other AF systems may fail or search. Phenomenal AF is achieved even when using lenses with high F numbers. This ultra-sensitive AF works together with the EOS R6’s EVF to clearly capture subjects even when light is limited. Combined with the EOS R6 camera’s remarkable low-light AF performance, still and video shooting is possible even in dark situations in a variety of places and occasions.
• Head and Eye Detection
  The EOS R6 brings head and eye detection to a new level. Even in situations where a camera may struggle to detect a subject, the EOS R6 can locate and a person’s head, face or eye when people detection is set, allowing ease and accuracy when capturing videos or still images, or while in Live View mode.
• Animal Detection*
  Animal detection is possible with the EOS R6 camera. Developed using Deep Learning Technology, the EOS R6 can effectively track the whole body, face, or eye of cats, dogs, or birds for speed and precision – regardless of the animal’s size, posture, or orientation of the face.
• 4K up 60fps, 1080p up to 120fps 10-bit 4:2:2 with Canon Log or HDR PQ, Internal Recording in all Formats, with Auto Focus
  Powered by the DIGIC X image processor, the EOS R6 is designed with the video content creator in mind. With oversampled UHD 4K recording at up to 60fps, Full-HD 1080p recording at up to 60fps and Full-HD High-frame rate recording at up to 120fps, the EOS R6 is a versatile camera with options for a variety of different shooting scenarios. Featuring internally recorded 4:2:2 10-bit H.265 Canon Log recording, and 4:2:2 10-bit H.265 HDR PQ recording, regardless what your timeline for delivery may be, advanced users will find EOS R6 capable of capturing confidently even during challenging high-contrast exposure situations. Moreover, over sampled UHD 4K 4:2:2 10-bit video signal at up to 60fps can be output from the HDMI port with a choice of either Picture Style, Canon Log or HDR PQ format, the output can be recorded to another device externally, or the footage can be viewed on an HDR PQ compatible TV. Additionally high-end features such as Interval Timer, 4K Time-Lapse mode, Mic and Headphone jacks, and Zebras are available to provide advanced-level control and versatility to the video content creator.
• In-body Image Stabilizer can provide up to 8 stops of Shake Correction*
  The EOS R6 camera features Canon’s new 5-axis IBIS (In-Body Image Stabilizer). This will not only help enhance the ability to hand-hold still images at slower shutter speeds but it will also help to reduce camera shake when recording movies. Additionally, the EOS R6 camera’s In-Body Image Stabilizer will work in combination with Lens-based Optical Image Stabilizers found in many Canon RF and EF lenses.
• 0.5-type OLED EVF with Approx. 3.69 Million Dots
  The EOS R6 camera features a high-precision 0.5-inch OLED (Organic Light-Emitting Diode) EVF with approx. 3.69 million dots and a 23mm eyepoint. The EOS R6’s EVF supports a 120 fps refresh rate^1 and has been created to provide a bright, sharp and colorful 100% view of the subject at hand. Displaying a bright image and extensive shooting information that rotates with the camera’s orientation when changing from Landscape to Portrait composition.

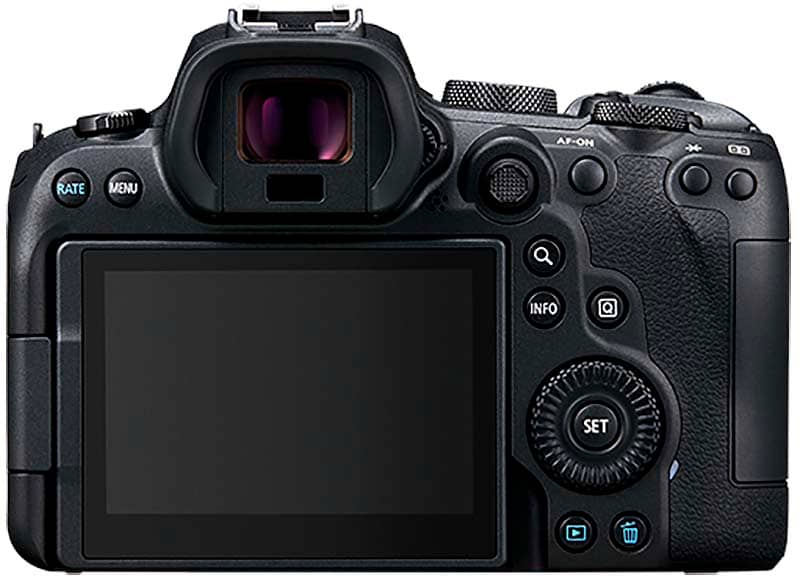

• Vari-angle Touchscreen LCD
  The EOS R6 camera features a 3.0-inch, Clear View LCD II Vari-angle Touchscreen LCD. Its extensive flexibility makes it easy to compose and shoot from virtually any angle, making selfies simple and enabling the LCD to fold away when not in use. The brightness of both the EVF and the LCD monitor can even be adjusted separately. Touchscreen features include settings, review and even AF point selection.

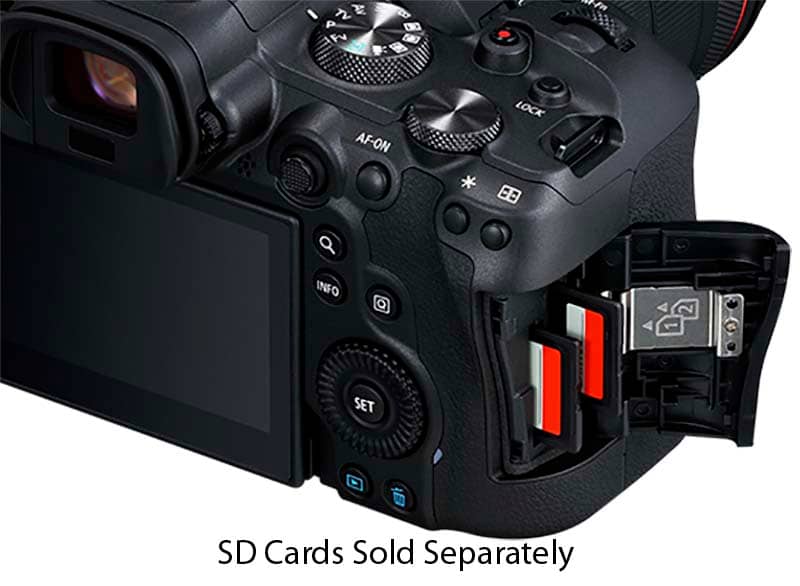

• Dual UHS-II SD Memory Card Slots
  Taking advantage of its compact body, the EOS R6 camera has dual card slots for UHS-II SD memory cards. Both slots are capable of burst shooting of approx. 20MP still images, at speeds of up to 20 fps, as well as internal recording of 4K 60p movies.
• Built-in Wi-Fi®^Capability
  The EOS R6 camera is designed to make using Wi-Fi®^ connectivity fast and easy. It can transfer files directly to a compatible smart device using the free Canon Camera Connect app. Simply connect to the Camera Connect app where you can browse, or download images to your smart device, then share and upload from the device directly to various social media sites and web services.
• Bluetooth®^^ Capability
  Bluetooth®^^ connectivity offers continuous connection, and allows the EOS R6 camera to automatically connect to a compatible smart device that is paired with the Canon Camera Connect app. This allows a number of functions from easy image transfer to remote shooting, to adding GPS*1 information to your photos and videos and more.
• Image.Canon Service
  image.canon is a cloud service designed to ease your imaging workflow, whether you are a professional, enthusiast, or casual user. Connecting the EOS R6 camera to the image.canon service will allow photographers to seamlessly upload all images and movies in their original format and quality, and access them from the dedicated app or through a web browser and automatically forward them to a computer, mobile device, and third party services.
• Multi-controller Customization
  Designed to allow users to operate customizable camera functions while looking through the electronic view finder, the EOS R6 camera features a joystick button located on the back of the camera that makes it easy for the user to adjust autofocus point location, navigate menus, and toggle settings.

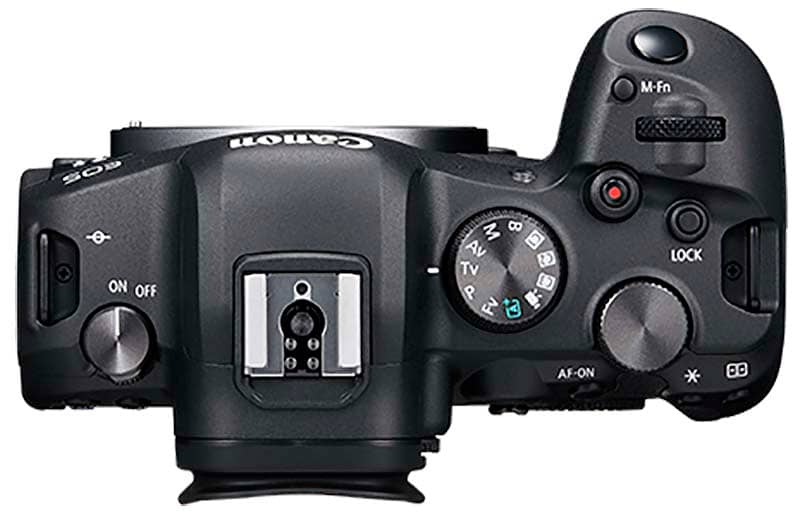

• Main Dial and Quick Main Dials 1 & 2
  With its compact body size, the EOS R6 camera features a three dial User Interface in the main dial, quick control dial 1 and quick control dial 2 which provide direct control over the traditional exposure controls such as Shutter Speed, Aperture, and ISO and are fully customizable to the users’ preference.
• Battery Grip
  The EOS R6 camera’s optional dedicated Battery Grip BG-R10 holds 2LP-E6NH Battery Packs, while enabling virtually seamless vertical and horizontal operation and additional functions with buttons similarly configured in a comfortable and ergonomic grip. The Battery Grip BG-R10 also has a useful battery charging function (with optional USB power delivery adapter attached) that’s particularly helpful for power-hungry operations like video recording or shooting over an extended period of time.
• High-Capacity Battery Pack LP-E6NH
  For increased power and the convenience of compatibility among multiple cameras, the EOS R6 camera uses Battery Packs LP-E6NH, and has backwards compatibility with previous LP-E6-series batteries that have been equipped with cameras such as EOS 5D Mark IV,and EOS R (may lose some functionality, cannot charge via USB). Especially helpful for photographers with multiple EOS cameras, the Battery Pack LP-E6NH is a robust, long-lasting battery that helps deliver power, shot after shot.
• Polycarbonate Exterior Body
  Comfortable and solid in the hand, the EOS R6’s exterior is made of lightweight and rigid polycarbonate resin, while the internal structure is mainly made of magnesium alloy that enhances body durability while shielding the camera from electromagnetic radiation and heat. It also has a tempered front panel for internal rigidity.
• Shutter Durability
  The EOS R6 camera has a durability rated at approx. 300,000 cycles and a full-frame focal-plane shutter that offers approx. 12 shots/sec.
• Dust-& Water-resistant Sealing
  The EOS R6 camera is designed for use in a variety of weather conditions. Sealing materials are used in critical areas like the buttons, terminal covers, the battery compartment and the card slot cover. Precise design and construction help to minimize accidental penetration of dust and moisture in the rest of the camera body.
• Compact and Lightweight
  A dramatically compact 24–105mm f/4 lens, the RF 24–105mm F4 L IS USM packs a broad zoom range and a bright maximum aperture into a well-balanced, refined design that balances comfortably on the EOS R camera’s body.
• 54mm Large Diameter and Short Back Focus
  The RF mount on the EOS R camera enables large diameter elements throughout the lens, including the rearmost element. This large diameter, coupled with the camera’s short back focus (the distance from the back edge of the lens to the surface of the image sensor), helps increase the flexibility of optical design, resulting in incredible brightness and image quality and contributing to the RF 24–105mm F4 L IS USM’s conveniently compact size without compromising performance.
• Ideal Zoom Range for All-day Photography
  With a zoom range encompassing wide angle, normal and telephoto, the RF 24–105mm F4 L IS USM excels in a variety of shooting situations, offering amazing versatility with the turn of a zoom ring. For example, with the RF 24–105mm F4 L IS USM, the EOS R camera can go from shooting landscapes to interiors and portraits without a single lens change. In countless situations where the light and subject are constantly changing, the RF 24–105mm F4 L IS USM lens is ready to go.
• Bright, Constant f/4 Zoom Lens
  The RF 24–105mm F4 L IS USM lens features 3 aspheric and 1 UD lens element to help correct aberrations, distortion and astigmatism, delivering sharp and dynamic images with excellent detail and contrast across the image frame and throughout the zoom range. Plus, it has a 9-blade circular aperture for beautiful, soft backgrounds.
• High-speed Autofocus with NANO USM for Still Shooting
  The RF 24-105mm F4 L IS USM uses Canon’s NANO USM system for the first time in an L series lens. NANO USM combines conventional ring USM and STM (lead-screw type) AF, and features a diminutive chip-shaped ultrasonic motor that’s engineered to help deliver high-speed, smooth, precise and near-silent operation, plus full time manual focus (when using One-shot AF).
• Smooth and Quiet Autofocus for Video Recording
  Another benefit of NANO USM is that it’s nearly silent. This means smooth and silent AF transitions that are ideal for video recording.
• Control Ring for Direct Setting Changes
  The RF 24–105mm F4 L IS USM lens incorporates a control ring on the lens barrel that can directly adjust numerous settings including shutter speed, aperture, exposure compensation and more. Located towards the front of the lens and effectively adding a third dial to the EOS R camera’s main dial and quick control dial, the control ring has a tactile, easily distinguished surface and features a clicking mechanism that provides tangible feedback for confident use while looking through the viewfinder. For photographers and moviemakers who would prefer a silent control ring, the clicking mechanism can be removed by a Canon service provider for a fee.
• Optical Image Stabilization at up to 5 Stops* of Shake Correction
  The RF 24–105mm F4 L IS USM lens is designed to work in conjunction with the EOS R camera, with both the camera and the lens sharing data to dramatically reduce camera-shake blur, regardless of the situation, whether shooting video or stills. With up to 5 stops* of stabilization, it delivers impressively clear results.
  • * Based on CIPA (Camera & Imaging Products Association) standards. Testing performed at a focal length of 105mm using the EOS R camera.
• High-speed Communication with the EOS R Camera
  Designed to quickly process data, the RF 24–105mm F4 L IS USM features a 12 pin communication system that is the fastest yet for a Canon lens/camera combination. This accelerates AF, Image Stabilization, the Digital Lens Optimizer and more, helping to simplify complex operations and provide a quick and reliable user experience.
• Lens Information Display
  Another helpful feature, the EOS R camera can display lens information right in the viewfinder, making it easy to confirm the lens’s focal length without looking away from the subject at hand.
• In-camera Digital Lens Optimizer
  The EOS R system’s 12 pin communication system enables the Digital Lens Optimizer, which works in-camera to combat aberrations and image deterioration, especially in the edges of the image frame when shooting at a large aperture. Data from the RF 24–105mm F4 L IS USM lens is transferred automatically to the camera body, facilitating near immediate correction for clear, detailed images.
• High Reliability and Durability for Professional Use
  Like all L series lenses, the RF 24–105mm F4 L IS USM lens is built to endure the rigors of professional use. Constructed to be rugged, refined and precise, it can be operated intuitively so concentration can remain on the subject at hand.
• Vibration Shock Resistance
  Engineered to accommodate its optical system, the RF 24–105mm F4 L IS USM lens features L series level vibration shock resistance in the lens barrel, helping to maintain focus and settings even in turbulent situations.
• Dust- and Water-resistant
  For reliable performance even when weather conditions get difficult, the RF 24–105mm F4 L IS USM lens features dust- and water-resistant construction in the lens mount, switch panel and all rings.
• Fluorine Coating
  The RF 24–105mm F4 L IS USM lens features fluorine coatings on the front and rearmost surfaces to help prevent dirt and dust from sticking to the lens, making it easy to clean smudges and fingerprints off.
• Air Sphere Coating (ASC) Minimizes Lens Flare and Ghosting
  The RF 24–105mm F4 L IS USM lens features Canon’s Air Sphere Coating (ASC), which significantly reduces the occurrence of lens flare and ghosting regardless of focal length or the angle of light. This helps provide clean results with minimal distractions and aberrations.

Specifications

Type

• Type: Digital interchangeable lens, mirrorless camera
• Image Processor: DIGIC X
• Recording Media: (Two) SD card slots
  • Compatible with UHS-II
  • Eye-Fi cards and Multimedia cards (MMC) are not supported.
• Compatible Lenses:
  • Canon RF lens group (excluding EF, EF-S and EF-M lenses)
  • When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses)

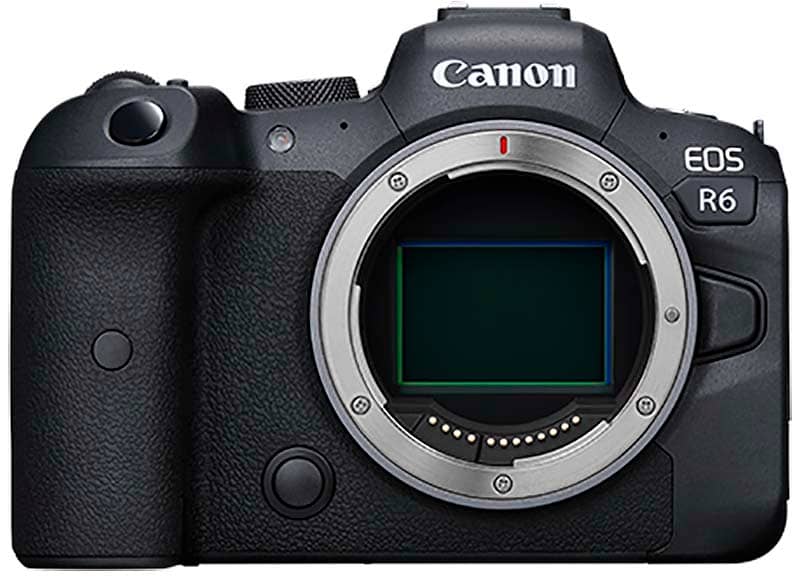

• Lens Mount: Canon RF mount

Image Sensor

• Type: CMOS sensor (compatible with Dual Pixel CMOS AF)
• Effective Pixels: Approx. 20.1 megapixels
• Screen Size: Approx. 36.0 x 24.0 mm
• Pixel Unit: Approx. 6.56 µm square
• Total Pixels: Approx. 21.4 megapixels
• Aspect Ratio: 3:2 (Horizontal: Vertical)
• Color Filter System: RGB primary color filters
• Low Pass Filter: Installed in front of the image sensor, non-detachable
• Dust Deletion Feature:
  • (1) Self Cleaning Sensor Unit:
    • Removes dust adhering to the low-pass filter.
    • At power off only / Enable / Disable. Performed automatically (taking about approx. 2 sec. as indicated on the screen) or manually (taking about approx. 8 sec. as indicated on the screen).
    • After manually activated cleaning, the camera will automatically restart (Power OFF to ON).
    • When [Multi Shot Noise Reduction], [Multiple exposures], or [HDR mode] is set, [Clean now] and [Clean manually] cannot be selected.
  • (2) Dust Delete Data Acquisition and Appending:
    • The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
    • The dust coordinate data appended to the image is used by the EOS software to automatically erase the dust spots.
    • Not available with EF-S lenses, in cropped shooting or multi-exposure shooting.
  • (3) Manual Cleaning (By hand)

Recording System

• Recording Format: Compliant to Design rule for Camera File system 2.0 and Exif 2.31*
  • *Supports time difference information in Exif 2.31.
• Image Format: JPEG, HEIF, RAW / C-RAW (CR3), C-RAW (Canon original) ; Movies: ALL-I (Time-lapse video only), IPB, MP4
• File Numbering:
  • The following file numbers can be set:
  • (1) File Numbering Methods:
    • Continuous numbering
      • The numbering of captured images continues even after you replace the card.
    • Auto reset
      • When you replace the card, the numbering will be reset to start from 0001. If the new SD card already contains images, the numbering will continue from the last recorded image in the card.
  • (2) Manual Reset:
    • Resets the file number to 0001, and creates a new folder automatically.
      • When manually resetting the file number, folders can also be renamed.
• RAW + JPEG / HEIF Simultaneous Recording: Simultaneous recording of any combination of RAW/C-RAW and JPEG/HEIF image-recording quality is supported.
• Color Space: Selectable between sRGB and Adobe RGB
• Picture Style:
  • (1) Auto
  • (2) Standard
  • (3) Portrait
  • (4) Landscape
  • (5) Fine Detail
  • (6) Neutral
  • (7) Faithful
  • (8) Monochrome
  • (9) User Defined 1-3
    • In Scene Intelligent Auto, [Auto] will be set automatically.
    • [Standard] is the default setting for [User Def. 1-3].

White Balance

• Settings:
  • (1) Auto (Ambience priority/White priority)
  • (2) Daylight
  • (3) Shade
  • (4) Cloudy*
  • (5) Tungsten light
  • (6) White fluorescent light
  • (7) Flash
  • (8) Custom (Custom WB)
  • (9) Color temperature
    • * Effective also in twilight and sunset.
• Auto White Balance: Option between ambience priority and white priority settings, using SET button
• White Balance Shift:
  • Blue/Amber Bias: ±9 levels
  • Magenta/Green Bias: ±9 levels
  • Corrected in reference to the current WB mode’s color temperature.

Viewfinder

• Type: OLED color electronic viewfinder
• Coverage: Approx. 100% vertically and horizontally relative to the shooting image area (with image quality L, at approx. 23mm eyepoint).
• Magnification / Angle of View: Approx. 0.76x / Approx. 35.2 degrees (with 50mm lens at infinity, -1 m-1)
• Eye Point: Approx. 23mm (at -1 m-1 from the eyepiece lens end)
• Dioptric Adjustment Range: Approx. -4.0 to + 2.0 m-1 (dpt)
• Viewfinder Information:
  • (1) Maximum burst
  • (2) Possible shots/Sec. until self-timer shoots
  • (3) Focus Bracketing/ Multiple-exposure/HDR shooting/Multi Shot Noise Reduction/Bulb time/Interval timer
  • (4) Shooting mode
  • (5) AF method
  • (6) AF operation
  • (7) Image quality
  • (8) Card
  • (9) Drive mode
  • (10) Metering mode
  • (11) No. of remaining shots for focus braketing, multiple exposures, or interval timer
  • (12) Electronic level
  • (13) Movie recording time available
  • (14) Battery level
  • (15) Image Stabilizer (IS mode)
  • (16) Histogram (Brightness/RGB)
  • (17) Quick Control button
  • (18) Anti-flicker shooting
  • (19) White balance/White balance correction
  • (20) Picture style
  • (21) Auto Lighting Optimizer
  • (22) Still photo cropping / Aspect ratio
  • (23) AF point (1-point AF)
  • (24) AEB/FEB
  • (25) View Assist
  • (26) HDR PQ
  • (27) Flash ready / FE lock / High-speed sync
  • (28) Electronic shutter
  • (29) Touch shutter / Create folder
  • (30) AE lock
  • (31) Shutter speed / Multi-function lock warning
  • (32) Aperture value
  • (33) Wi-Fi function
  • (34) Wi-Fi signal strength
  • (35) Bluetooth function
  • (36) Exposure simulation
  • (37) Magnify button
  • (38) ISO speed
  • (39) Highlight tone priority
  • (40) Exposure compensation
  • (41) Exposure level indicator

Autofocus

• Focus Method: Dual Pixel CMOS AF
• Number of AF Zones Available for Automatic Selection:
  • AF Area:
    • Horizontal: Approx. 100%
    • Vertical: Approx. 100%
  • (100% x 100% AF coverage in Face Detect + Tracking AF; coverage can vary, depending upon lens being used)
  • Stills: Max. 1053 zones (39 x 27)
  • Movies: Max. 819 zones (39 x21)
• Selectable Positions for AF Point:
  • AF Area:
    • Horizontal: Approx. 90%
    • Vertical: Approx. 100%
  • Stills: Max. 6072 positions (92 x 66)
  • Movies: Max 4968 positions (92 x 54)
• AF Working Range: EV -6.5 to 20 (f/1.2 lens*, center AF point, One-Shot AF,at 73°F/23°C, ISO 100
  • * Except RF lenses with a Defocus Smoothing (DS) coating.
• Focusing Brightness Range (In movie recording): EV -5 to 20 (f/1.2 lens*, center AF point, One-Shot AF,at 73°F/23°C, ISO 100
  • * Except RF lenses with a Defocus Smoothing (DS) coating.
• Available AF Methods:
  • Face+Tracking AF
  • Spot AF
  • 1-point AF
    • Must be selected for “Limit AF methods.”
  • Expand AF Area
    • 4-point expansion
    • Around expansion (8-points)
  • Zone AF
  • Large Zone AF: Vertical, Horizontal
• Available AF Detection Zones:
  • Zone AF: 9 x 9
  • Large Zone AF:
    • Vertical: Max. 9 x 21
    • Horizontal: Max. 31 x 9
  • Face+Tracking (Auto selection with nothing detected): Max. 39 x 27

• Eye Detection:
  • Auto:
    • (1) Selects the eye closer to the camera (as detected from the angle of the face).
    • (2) At the same distance from the camera, selects the eye closer to the center of the image.
  • Manual:
    • (1) Can be selected by touch.
    • (2) Can be selected with the Multi-controller.

Exposure Control

• Metering Modes:
  • Real-time metering with image sensor (384 [24×16] metering zones)
    • (1) Evaluative metering (AF point-linked)
    • (2) Partial metering (approx. 5.8% of the area at the center of the screen)
    • (3) Spot metering (approx. 2.9% of the area at the center of the screen)
    • (4) Center-weighted average metering
• Metering Range: EV -3 – 20 (at 73°F/23°C, ISO 100)(Still Photo Shooting)
• Exposure Modes:
  • (1) Scene Intelligent Auto
  • (2) Flexible-priority AE (Fv)
  • (3) Program AE (P)
  • (4) Shutter-priority AE (Safety shift possible) (Tv)
  • (5) Aperture-priority AE (Safety shift possible) (Av)
  • (6) Manual exposure (M)
  • (7) Bulb
  • (8) Custom shooting mode C1, C2, C3
• Exposure Compensation:
  • User-Set: ±3 stops in 1/3- or 1/2-stop increments
  • AEB: ±3 stops in 1/3- or 1/2-stop increments
• AE Lock:
  • (1) Auto AE lock
    • The metering mode for AE lock after focus can be customized.
  • (2) User-set AE lock
    • In the Fv, P, Tv, Av and M modes, enabled with the AE lock button. (Press again to update.)
    • Enabled in all metering modes.

Shutter

• Type:
  • Electronically controlled focal-plane shutter
    • (1) Electronic first curtain
    • (2) Mechanical shutter
    • (3) Electronic shutter*
      • * Cannot be used in conjunction with the following functions: flash photography, HDR shooting, multiple exposures, Multi Shot Noise Reduction, AEB, HDR PQ, anti-flicker shooting, Dual Pixel RAW shooting, Digital Lens Optimizer [High].
      • * A shutter release sound is not generated. However, note that the sounds other than the shutter release sound (aperture, focusing lens drive sound/electronic sound, etc.) may be generated.
      • * In electronic shutter shooting under conditions such as flash firing by other cameras or with fluorescent lighting or other flickering light sources, a strip of light or banding due to the brightness difference may be recorded in the image.
• Shutter Speeds:
  • When [Mechanical] or [Elec. 1st- Curtain] is Set: 1/8000-30 sec, bulb
  • When [Electronic] is Set: 1/8000-0.5 sec.
• X-Sync Speed:
  • Mechanical Shutter: 1/200 sec.
  • Elec. 1st-Curtain: 1/250 sec.
• Shutter Release: Soft-touch electromagnetic release
• Self Timer: 10-sec. delay, 2-sec. delay

Image Stabilization (IS mode)

• Still Photo IS:
  • In-body IS operation can be selected when using a non-IS lens.
    • Always on
    • Only for shot (no stabilization in viewfinder/LCD screen between shots)

External Speedlite

• E-TTL Balance: Ambience priority, standard, flash priority
• Flash Exposure Compensation: ±3 stops in 1/3- or 1/2-stop increments
• Continuous Flash Control:
  • (1) E-TTL each shot
  • (2) E-TTL locked after first shot in sequence

HDR Shooting

• HDR Shooting (HDR PQ): Disable / Enable
• Still Photo HDR PQ:
  • Recording Format: HEIF
  • Bit Depth: 10 bit
  • Color Sampling Method: YCbCr 4:2:2
  • HDR Specification: ITU-R BT.2100 (PQ)
• Movie HDR PQ:
  • Recording Format: mp4
  • Bit Depth: 10 bit
  • Color Sampling Method: YCbCr 4:2:2
  • HDR Specification: ITU-R BT.2100 (PQ)
• Continuous HDR Shooting (Still images):
  • (1) 1 shot only (3 shots taken, one finished HDR image produced in-camera — camera then reverts to normal shooting)
  • (2) Continuously (HDR mode remains active, after first finished HDR image is produced in-camera)

LCD Screen

• Type: TFT color, liquid-crystal monitor
• Monitor Size:
  • 3.0-inch (screen aspect ratio of 3:2)
  • 2.95 in./7.5cm diagonal (2.44 in./6.2cm width, 1.65 in./4.2cm height)
• Dots: Approx. 1.62 million dots
• Coverage: Approx. 100% vertically/horizontally
• Brightness Control: Manually adjustable to one of seven brightness levels
• Touch-Screen Operation:
  • Supported For:
    • AF Point selection
    • Touch AF
    • Touch Shutter
    • Menu selection
    • Quick Control Menu
    • Magnified view
• Coating:
  • Clear View LCD II
    • Anti-smudge coating applied.
    • Anti-reflection coating not applied.
• Interface Languages: 29 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, Japanese)

Playback

• Highlight Alert: The white areas with no image data will blink.
• Histogram: Brightness and RGB

Quick Control Function

• Function: The Quick Control screen is accessed by pressing the Quick Control button during still photo shooting.

Image Protection And Erase

• Protection:
  • (1) Single image (select image)
  • (2) Select range
  • (3) All images in folder
  • (4) All images on card
    • Image browsing and image search can be based on ratings.
    • Ratings-based image selections also possible with DPP.
  • (5) All found images (only during image search)
• Erase:
  • Except protected images
    • (1) Select images to erase
    • (2) Select range
    • (3) All images in folder
    • (4) All images on card
    • (5) All found images (only during image search)

Direct Printing

• Compatible Printers: Not supported

DPOF: Digital Print Order Format

• DPOF: Compliant to DPOF Version 1.1

Customization

• Available Functions:
  • Dial direction during Tv/Av
  • Control ring rotation direction
  • Customize buttons
  • Customize dials
• Custom Controls:
  • Customizable Buttons:
    • Shutter button
    • Movie button
    • MODE button
    • AF-ON button
    • AE lock button
    • AF point button
    • Depth of field preview button
    • Lens AF stop button
    • Multi-function button
    • LCD panel illumination button
    • Set button
    • Multi-controller
• Customizable Dials:
  • Main dial
  • Quick control dial 1 & 2
  • Control ring
• My Menu Registration:
  • Up to six top-tier menu options and Custom Function settings can be registered.
  • Up to five My Menu tabs can be added.
    • My Menu Tab Overall Operations:
      • Adding a tab
      • Deleting tabs in a batch
      • Deleting all tab items
      • Setting the menu display
    • My Menu Tab Detailed Operations:
      • Selecting a registered item
      • Sorting registered items
      • Deleting selected registered items
      • Deleting registered items in a batch
      • Deleting tabs
      • Changing a tab name (16 ASCII characters)

Interface

• USB Terminal:
  • Equivalent to SuperSpeed USB (USB 3.1 Gen 1)
    • For PC communication
    • Terminal type: USB Type-C
    • Shared with terminal for in-camera charging with the USB Power Adapter PD-E1.
    • In-camera Charging: Equivalent to USB type-C (5 V/1.5 A), but use should be restricted to USB Power Adapter PD-E1.
• HDMI Out Terminal:
  • HDMI micro OUT terminal Type D (Resolution switches automatically) / CEC not compatible
    • Images can be displayed through the HDMI output and on screen at the same time.
    • Images will not be displayed unless [NTSC] or [PAL] is properly set according to the video system of the TV set.
• Microphone Terminal: 3.5mm diameter stereo mini jack
• Headphone Terminal: Compatible with 3.5mm diameter stereo mini-plug

Power Source

• Battery:
  • Canon LP-E6NH battery pack (also compatible with LP-E6N and LP-E6 battery packs)
    • With the AC Adapter AC-E6N + DC Coupler DR-E6, AC power is possible.
    • With the USB Power Adapter PD-E1, in-camera charging of LP-E6NH is possible. The USB Power Adapter PD-E1 is not compatible with powering the camera.
• Optional Battery Grip:
  • Compatible with Canon Battery Grip BG-R10
  • (Accepts one or two LP-E6NH, LP-E6N, or LP-E6 battery packs)
• Battery Check:
  • Automatic battery check when the power switch is turned ON.
  • Displayed in 5 levels in viewfinder, and on LCD screen.
  • Battery Info Display in Set-up Menu:
    • Remaining capacity percentage
    • Shutter count, on current battery charge
    • Recharge performance (battery’s ability to hold charge; displayed in 3 levels)
• Start-Up Time:
  • Approx. 0.4 sec.
    • Based on CIPA testing standards.

Operating Environment

• Working Temperature Range: 32-104° F / 0-+40° C

Working Conditions

• Working Humidity: 85° or less

Lens

• Focal Length & Maximum Aperture: 24-105mm f/4
• Lens Construction: 18 elements in 14 groups
• Diagonal Angle of View: 84°00′-23°20′
• Focus Adjustment: AF with full-time manual
• Closest Focusing Distance: 1.48 ft. / 0.45m
• Filter Size: 77mm

Footnotes:

• *Effectiveness varies depending on the subject. In some cases, dogs, cats or birds may not be detected, while some animals other than dogs, cats or birds may be detected.
• ** When combined with certain IS lenses such as the RF24-105mm F4 IS L USM, or when used with certain non-IS lenses as well.
• *1In certain countries and regions, the use of GPS may be restricted. Therefore, be sure to use GPS in accordance with the laws and regulations of your country or region. Be particularly careful when traveling outside your home country. As a signal is received from GPS satellites, take sufficient measures when using in locations where the use of electronics is regulated.
• * When combined with certain IS lenses such as the RF24-105mm F4 IS L USM, or when used with certain non-IS lenses as well.
• ^1 Display may be grainier.
• ^2 When taking still photos. Actual coverage varies depending on the lens in use. Focus area will not be covered with the following RF lenses: RF600mm F11 IS STM, RF800mm F11 IS STM.
• ^3 When using f/1.2 lens under the following conditions: center focus point, room temperature, One-shot AF, ISO 100. This does not apply to RF lenses with DS (Defocus Smoothing) coating.
• ^ Compatible with iOS® versions 9.3/10.3/11.2-11.4/12.4/13.2, Android™ smartphone and tablet versions 5.0/5.1/6.0/7.0/7.1/8.0/8.1/9.0/10. Data charges may apply with the download of the free Canon Camera Connect app. This app helps enable you to upload images to social media services. Please note that image files may contain personally identifiable information that may implicate privacy laws. Canon disclaims and has no responsibility for your use of such images. Canon does not obtain, collect or use such images or any information included in such images through this app.
• ^^ Compatible with select smartphone and tablet devices (Android™ version 5.0 or later and the following iOS® devices: iPhone 4s or later, iPad 3rd gen. or later, iPod Touch 5th gen. or later) equipped with Bluetooth® version 4.1 or later and the Camera Connect App Ver. 2.5.10. This application is not guaranteed to operate on all listed devices, even if minimum requirements are met.
