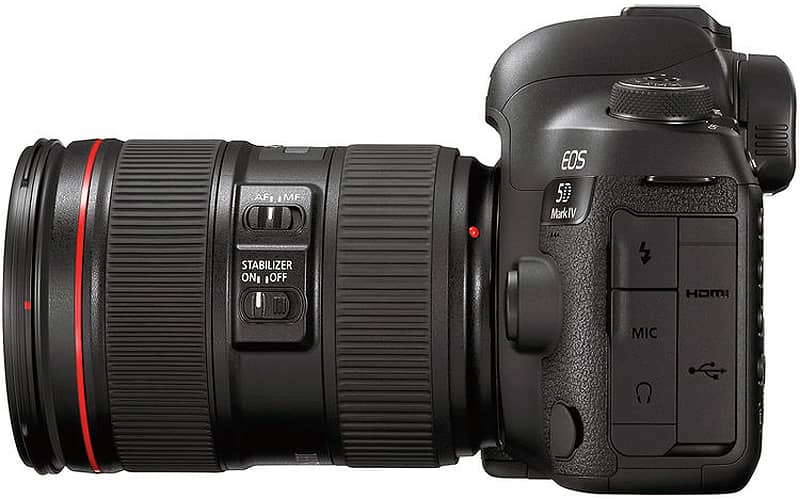

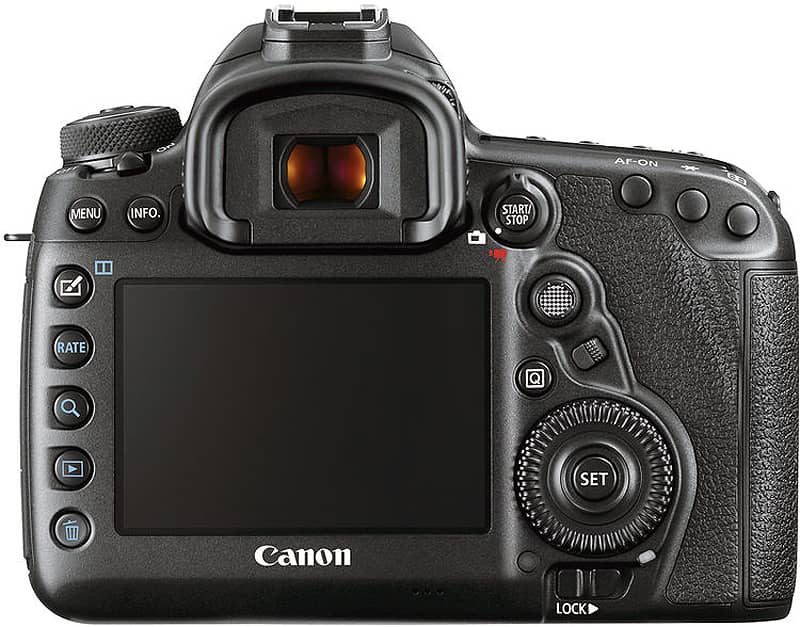

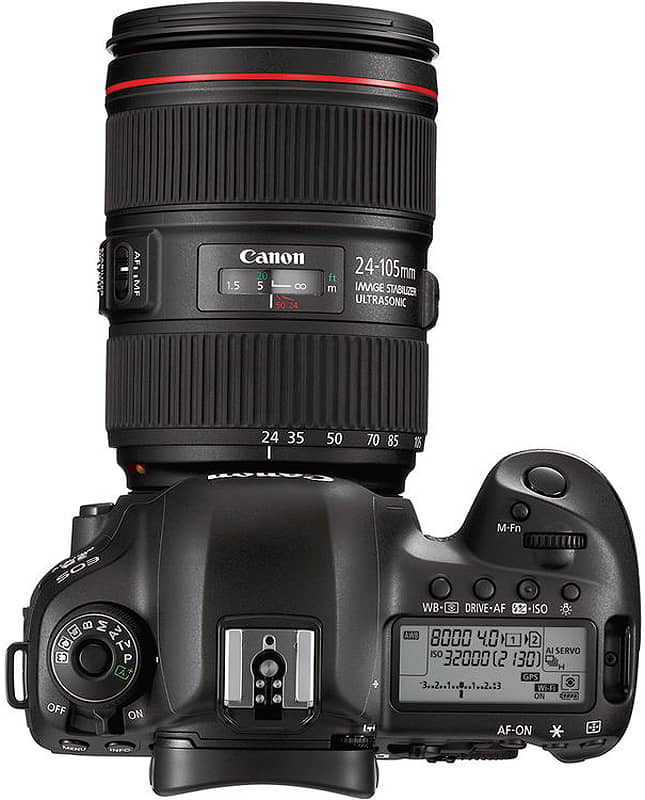

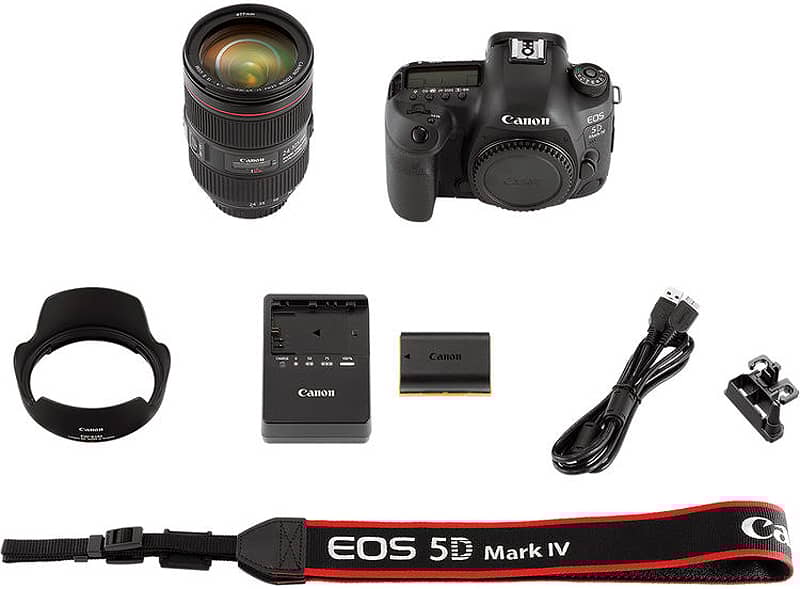

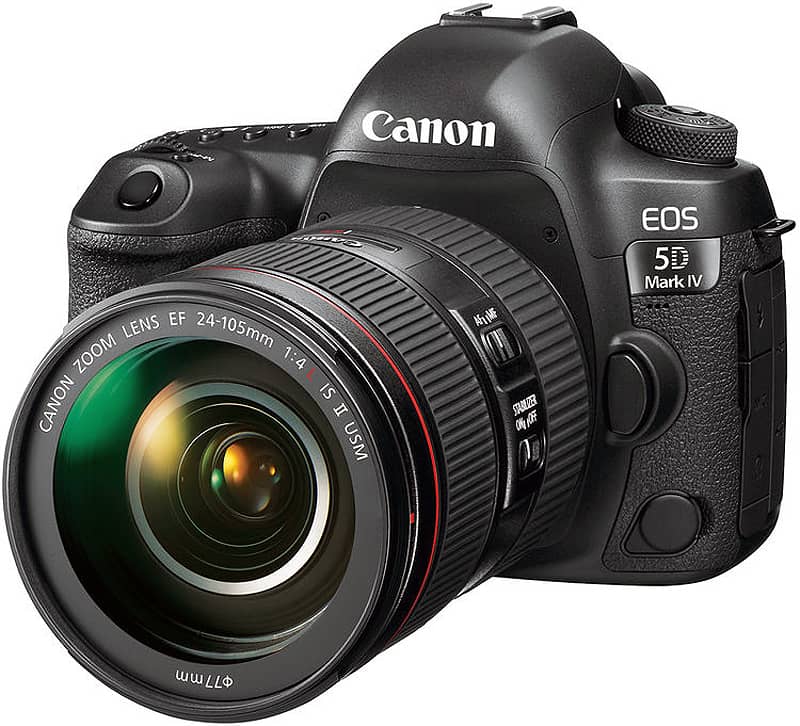

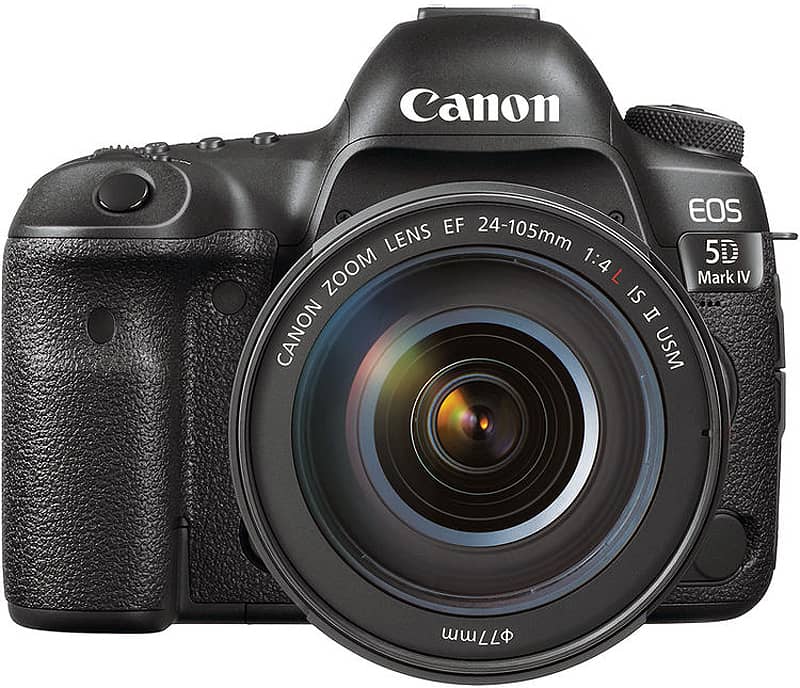

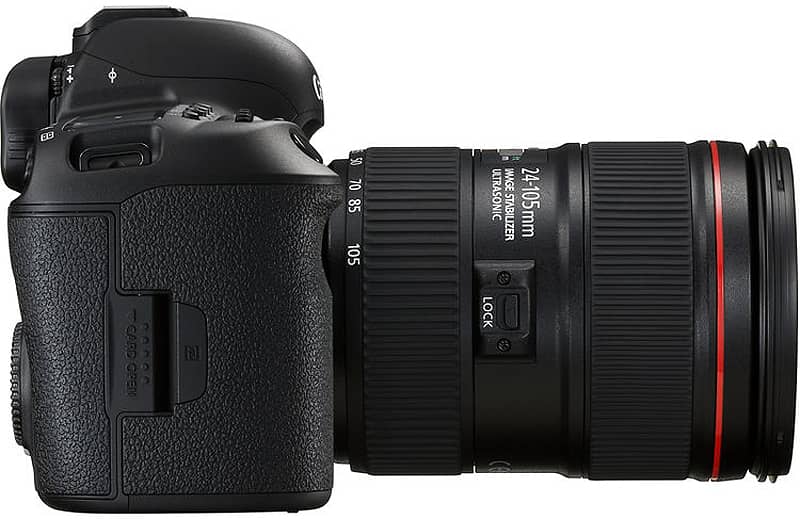

Canon EOS 5D Mark IV DSLR With EF 24-105mm f/4L IS II USM Kit

Canon 1483C010 EOS 5D Mark IV DSLR With EF 24-105mm f/4L IS II USM Kit

The EOS 5D Mark IV camera builds on the powerful legacy of the 5D series, offering amazing refinements in image quality, performance and versatility. Canon’s commitment to imaging excellence is the soul of the EOS 5D Mark IV. Wedding and portrait photographers, nature and landscape shooters, as well as creative videographers will appreciate the brilliance and power that the EOS 5D Mark IV delivers. Superb image quality is achieved with Canon’s all-new 30.4 Megapixel full-frame sensor, and highly-detailed 4K video is captured with ease. Focus accuracy has been improved with a refined 61-point AF system and Canon’s revolutionary Dual Pixel CMOS AF for quick, smooth AF for both video and Live View shooting. Fast operation is enhanced with Canon’s DIGIC 6+ Image Processor, which provides continuous shooting at up to 7.0 fps. Built-in Wi-Fi®, GPS and an easy-to-navigate touch-panel LCD allow the camera to become an extension of you. When quality matters, the EOS 5D Mark IV helps deliver results to inspire even the most discerning imagemaker.

Features

• New 30.4 Megapixel full-frame CMOS sensor for versatile shooting in nearly any light, with ISO range 100-32000; expandable up to 50-102400 (equivalent ISO)
  The EOS 5D Mark IV camera boasts a full-frame, high-speed CMOS sensor that’s ideal for a broad range of applications with its remarkable high-resolution abilities. Measuring approximately 36.0mm x 24.0mm, the same size and ratio as a 35mm film frame, it records 30.4 effective Megapixels at normal ISOs of up to 32000. It also captures incredible still and 4K video clips suitable for significant post-processing, retouching and cropping
• ISO 100-32000 (expandable to 50-102400)
  Featuring an ISO range of 100-32000 (expandable to 50-102400), the EOS 5D Mark IV camera is incredibly well-suited for low-light photography. Its sensor has an improved S/N ratio plus an improved noise-processing algorithm to help deliver high-level light sensitivity along with its high resolution, with virtually no compromise in image quality. Whether working in a dimly lit auditorium, trying to capture the action at night, photographing at the fastest possible shutter speed or simply suppressing camera shake blur, the EOS 5D Mark IV has an extended ISO range that contributes to its ability to excel in nearly every situation it faces
• 4K Motion JPEG video (DCI cinema-type 4096 x 2160) at 30p or 24p; in-camera still frame grab of 4K 8.8-Megapixel images; multiple video options include Full HD up to 60p, and HD up to 120p
  The EOS 5D Mark IV is a remarkably capable video camera. Thanks to its impressive CMOS sensor and its high-speed DIGIC 6+ Image Processor, it can transition from taking still photographs to shooting videos in a near instant, capturing Digital Cinema (DCI) standard 4K (Motion JPEG) videos of 4096 x 2160 pixels at up to 30 or 24 fps. Adding to its versatility, it also supports the 4K broadcasting standard of 3840 x 2160 pixels with slight trimming on the left and right sides
• Superb Dual Pixel CMOS AF for responsive and smooth AF during video or Live View shooting; LCD monitor has full touch-screen interface, including selection of AF area
  Adding to its powerful and portable design, the EOS 5D Mark IV camera utilizes Canon’s smooth, fast and intelligent Dual Pixel CMOS AF. Featuring two photodiodes per pixel and each pixel capable of phase-difference detection autofocus, the CMOS sensor can deliver fast and accurate AF throughout approximately 80% of the image plane. Able to detect shifts in movement at the pixel level, Dual Pixel CMOS AF enables continuous automatic AF and AF tracking that enhances overall camera operation for sharp still images and smooth, accurate focus transitions in movies

Specifications

General

• Type: Digital, AF/AE single-lens reflex, camera
• Compatible Lenses: Canon EF Lenses (excluding EF-S and EF-M lenses)

Image Sensor

• Pixel Unit: Approx. 5.36 µm square
• Aspect Ratio: 3:2 (Horizontal: Vertical)
• Color Filter System: RGB primary color filters
• Low Pass Filter: Installed in front of the image sensor, non-detachable
• Dust Deletion Feature:
  • Self Cleaning Sensor Unit
  • Removes dust adhering to the low-pass filter
  • Self-cleaning can be done automatically when the power is turned on/ off
  • After the cleaning is performed, the camera will automatically restart (Power OFF to ON)
  • When you use Multi Shot Noise Reduction, “Clean now” cannot be selected
  • Dust Delete Data acquisition and appending
  • The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images
  • The dust coordinate data appended to the image is used by the EOS software DPP to automatically erase the dust spots
  • Manual cleaning

Recording System

• Recording Format: Complies with Design rule for Camera File System 2.0 and EXIF 2.3
• File Size:
  • 3:2 Aspect Ratio:
    • Large/RAW: Approx. 30.1 Megapixels (6720 x 4480)
    • mRAW: Approx. 16.9 Megapixels (5040 x 3360)
    • Medium: Approx. 13.3 Megapixels (4464 x 2976)
    • Small 1/sRAW: Approx. 7.5 Megapixels (3360 x 2240)
    • Small 2: Approx. 2.5 Megapixels (1920 x 1280)
    • Small 3: Approx. 0.35 Megapixels (720 x 480)
  • 4:3 Aspect Ratio:
    • Large/RAW: Approx. 26.7 Megapixels (5952 x 4480)*
    • mRAW: Approx. 15.1 Megapixels (4480 x 3360)
    • Medium: Approx. 11.8 Megapixels (3968 x 2976)
    • Small 1/sRAW: Approx. 6.7 Megapixels (2976 x 2240)*
    • Small 2: Approx. 2.2 Megapixels (1696 x 1280)*
    • Small 3: Approx. 0.31 Megapixels (640 x 480)
  • 16:9 Aspect Ratio:
    • Large/RAW: Approx. 25.4 Megapixels (6720 x 3776)*
    • mRAW: Approx. 14.3 Megapixels (5040 x 2836)*
    • Medium: Approx. 11.2 Megapixels (4464 x 2512)*
    • Small 1/sRAW: Approx. 6.3 Megapixels (3360 x 1888)*
    • Small 2: Approx. 2.1 Megapixels (1920 x 1080)
    • Small 3: Approx. 0.29 Megapixels (720 x 408)*
  • 1:1 Aspect Ratio:
    • Large/RAW: Approx. 20.1 Megapixels (4480 x 4480)
    • mRAW: Approx. 11.3 Megapixels (3360 x 3360)
    • Medium: Approx. 8.9 Megapixels (2976 x 2976)
    • Small 1/sRAW: Approx. 5.0 Megapixels (2240 x 2240)
    • Small 2: Approx. 1.6 Megapixels (1280 x 1280)
    • Small 3: Approx. 0.23 Megapixels (480 x 480)
  • Values for Recording Pixels are rounded off to the nearest 10,000th or 1,000th
  • JPEG images are generated in the set aspect ratio
  • RAW images are generated in [3:2], and the set aspect ratio is appended
    • * Inexact proportion.
• Recording Functions
  • Standard: Select manually to record on either the CF card or SD card
  • Auto Switch Card: When the current card becomes full, the camera switches to the other card automatically
  • Record Separately: The CF card and SD card record the same image at a different image recording quality (Large/Fine, Large/Normal, Medium/Fine, Medium/Normal, Small 1/Fine, Small 1/Normal, Small 2, Small 3, RAW, mRAW, sRAW)
  • Record To Multiple: Both the CF card and SD card record the same image at the same image recording quality (Also applies to RAW+JPEG, mRAW+JPEG, and sRAW+JPEG)
• File Numbering
  The following three types of file numbers can be set
  • Continuous Numbering: The numbering of captured images continues even after you replace the card
  • Auto Reset: When you replace the card, the numbering will be reset to start from 0001. If the new card already contains images, the numbering will continue from the last recorded image in the card
  • Manual Reset: Resets the file number to 0001, and creates a new folder automatically
• RAW + JPEG Simultaneous Recording: Possible
• Color Space: sRGB, Adobe RGB

White Balance

• Auto White Balance: Option between ambience priority and white priority settings
• Color Temperature Compensation:
  • Blue/Amber Bias: ±9 Levels
  • Magenta/Green Bias: ±9 Levels
  • Corrected in reference to the current WB mode’s color temperature
• Color Temperature Information Transmission: Provided

Viewfinder

• Magnification: Approx. 0.71
• Eye Point: Approx. 21mm (at -1m-1 from the eyepiece lens center)
• Dioptric Adjustment Correction: Adjustable from approx. -3.0 to +1.0 m-1 (dpt)
• Focusing Screen: Fixed
• Mirror: Quick-return half mirror
• Viewfinder Information: Displayed with transparent liquid crystal
  • AF point information
  • AF operation*
  • Area AF frame
  • Metering mode*
  • Spot metering circle
  • Image quality*
  • Electronic level (dedicated indicator)*
  • Digital Lens Optimizer*
  • Battery (remaining capacity)*
  • Dual Pixel RAW setting (shooting)*
  • Shooting mode*
  • Flicker detection*
  • White balance*
  • Warning symbol
  • Drive mode*
  • AF status indicator
  • You can select whether or not to display the asterisked items [Show/hide in viewfinder]
• Depth Of Field Preview: Enabled with depth of field preview button

Autofocus

• AF Points: AF Points (Max. 61 points)
  • AF Points and AF Patterns: AF Points (Max.)
  • Dual Cross-Type AF Points at f/2.8 and f/5.6: 5
  • Cross-Type AF Points at f/4.0 and f/5.6: 20
  • Cross-Type AF Points at f/5.6 and f/8: 21
  • Horizontal-Line Sensitive AF Points at f/5.6: 20
  • Horizontal-Line Sensitive AF Points at f/8: 61
  • The number of AF points, cross-type AF points and dual cross-type AF points vary depending on the lens used
• AF Working Range:
  • Conditions: One-Shot AF, at 73°F/23°C, ISO 100
  • AF Point: Brightness
  • One Center AF Point Focusing at f/2.8: EV -3 to 18
  • Four AF Points at the Top/Bottom Center Focusing at f/2.8: EV -2 to 18
  • One Center AF Point Focusing at f/5.6 and f/8: EV -1.5 to 18
  • Peripheral AF Points Focusing at f/5.6 and f/8: EV -0.5 to 18
• AF Point Selection:
  • Single-point Spot AF (Manual selection)
  • Single-point AF (Manual selection)
  • The checkmark cannot be removed from this option
  • AF point expansion (Manual selection, 4 points: Up, down, left and right)
  • AF point expansion (Manual selection, surrounding 8 points)
  • Zone AF (Manual zone selection)
  • All AF points divided into nine focusing zones
  • Large Zone AF (Manual zone selection)
  • All AF points divided into three focusing zones
  • AF point Auto selection AF
• Selected AF Point Display: Selected AF Point Display
• Active AF Point Indicator: Displayed in viewfinder with transparent LCD and on LCD panel
• AF Assist Beam:
  • Enable
  • Disable
  • IR AF assist beam only

Exposure Control

• Metering Modes:
  • 150,000-Pixel RGB+IR metering sensor
  • 153,600 Effective pixels (480 x 320)
  • EOS iSA System with 252 zone (18 x 14) metering
  • Evaluative metering (linked to all AF points)
  • Partial metering (center, approx. 6.1% of viewfinder)
  • Spot metering (center, approx. 1.3% of viewfinder)
  • AF point-linked spot metering not provided
  • Center-weighted average metering
• Metering Range: EV 0-20 (at 73°F / 23°C , ISO 100)
• Exposure Control Systems:
  • (1) Scene Intelligent Auto
  • (2) Program AE (shiftable)
  • (3) Shutter-priority AE (Safety shift possible)
  • (4) Aperture-priority AE (Safety shift possible)
  • (5) Manual exposure
  • (6) Bulb
  • (7) Custom shooting mode C1, C2, C3
• Exposure Compensation:
  • Manual: ±5 Stops in 1/3 or 1/2-stop increments
  • AEB: ±3 Stops in 1/3 or 1/2-stop increments
    • * Indicated up to ±3 stops on the LCD panel and in the viewfinder. To set exposure compensation exceeding ±3 stops, you can use Quick Control
    • * Live View shooting, exposure compensation can be set up to ±3 stops

Shutter

• Shutter Release: Soft-touch electromagnetic release

External Speedlite

• EOS Dedicated Speedlite: E-TTL II autoflash with all EX Series Speedlites
• Zooming to Match Focal Length: Provided
• Flash Exposure Compensation: ±3 Stops in 1/3- or 1/2-stop increments
• FE Lock: Provided
• External Flash Settings:
  • External flash control
  • Flash firing
  • E-TTL II Flash metering
  • Flash sync. speed in Av mode
  • Flash mode
  • Radio transmission wireless flash shooting
  • Optical transmission wireless flash shooting
  • Flash ratio control
  • Zoom
  • Sync setting
  • Flash exposure compensation
  • FEB
  • Clear settings
  • Flash Custom Function setting
• PC Terminal: Provided (no polarity)

Drive System

• Drive Modes:
  • Single shooting
  • High-speed continuous shooting
  • Low-speed continuous shooting
  • Silent single shooting
  • Silent continuous shooting
  • 10-sec. self-timer/remote control
  • 2-sec. self-timer/remote control
• Continuous Shooting Speed
  • High-Speed Continuous Shooting: Max. approx. 7.0 fps
  • With 1/500 sec. or faster shutter speed, maximum aperture (varies depending on the lens), with a fully-charged Battery Pack LP-E6N, and at room temperature (73°F/23°C)
  • The maximum continuous shooting speed will decrease under the following shooting conditions:
    • [Anti-flicker shoot.: Enable] results in maximum approx. 6.6 fps
    • [Dual Pixel RAW: Enable] and RAW or RAW+JPEG image quality
    • [Digital Lens Optimizer: Enable] will greatly decrease the continuous shooting speed
  • The continuous shooting speed may become slower depending on the shutter speed, aperture, subject conditions, brightness, lens, flash use, temperature, battery type, remaining battery level, etc
  • With the AF mode set to One-Shot AF and the Image Stabilizer turned off when using the following lenses: EF 300mm f/4 L IS USM, EF 28-135mm f/3.5-5.6 IS USM, EF 75-300mm f/4-5.6 IS USM, EF 100-400mm f/4.5-5.6L IS USM
  • In AI Servo AF operation, the continuous shooting speed may become slower depending on the subject and the lens used
  • If you use Battery Pack LP-E6 and shoot in low temperatures (battery temperature is low), the high-speed continuous shooting speed may become slower
  • The continuous shooting speed may become slower if the remaining battery level is low or if you shoot under low-light conditions
  • Low-Speed Continuous Shooting: Max. approx. 3.0 fps
  • Silent Continuous Shooting: Max. approx. 3.0 fps

Live View Functions

• Focusing:
  • Dual Pixel CMOS AF
  • Dual Pixel CMOS AF is possible with all EF lenses
  • Manual focus
  • Magnify the image by 5x or 10x and focus manually
• Metering Modes:
  • Evaluative metering 315-zone (21 x 15)
  • Partial metering (approx. 6.3% of Live View screen)
  • Spot metering (approx. 2.7% of Live View screen)
  • Center-weighted average metering
  • AE lock possible. The active metering timer can be changed
• Metering Range: EV 0-20 (at 73°F/23°C, ISO 100)
• Grid Display:
  • 3×3
  • 6×4
  • 3×3 + diagonals
• Exposure Simulation: Possible
• Silent Shooting: Provided (Mode 1 and Mode 2)

Video Shooting

• File Size:
  • Recording Sizes: 4096 x 2160 (4K), 1920 x 1080 (Full HD), 1280 x 720 (HD)
• Frame Rates:
  • MOV Format:
    • 4096 x 2160 (4K):
      • 30 fps (29.97 fps)
      • 24 fps
      • 23.98 fps
    • 1920 x 1080 (Full HD):
      • 60 fps (59.94 fps)
      • 30 fps (29.97 fps)
      • 24 fps
      • 23.98 fps
    • 1280 x 720 (HD): 120 fps (119.9 fps)
  • MP4:
    • 1920 x 1080 (Full HD):
      • 60 fps (59.94 fps)
      • 30 fps (29.97 fps)
      • 24 fps
      • 23.98 fps

Focusing

• Dual Pixel CMOS AF
• Manual focus
• Magnify the image by approx. 5x or 10x and focus manually (not possible during movie shooting).
• Exposure Compensation: Up to ±3 stops in 1/3-stop increments

LCD Monitor

• Brightness Control:
  • Automatic
  • Manually adjustable to one of seven brightness level
• Coating: Clear View LCD II
  • Anti-smudge coating
  • Anti-reflection coating
• Interface Languages: 25 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukraine, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Japanese)

Tilt Display

• On LCD Monitor: Electronic level indicates up to 360° roll and ±10° pitch in 1° increments
  • Precision has a margin of error of up to 1° for ±10°, and up to 3° for ±45°
• In Viewfinder: Electronic level indicates up to 7.5° roll left/right and ±4° pitch in 1° increments
  • Precision has a margin of error of up to 1° for ±10°, and up to 3° for ±45°

Playback

• Display Format:
  • Single Image Display:
    • No information display
    • Basic information display
    • Detailed Shooting Information Display:
      • Basic shooting information
      • Lens/histogram information
      • White balance information
      • Picture Style information 1
      • Picture Style information 2
      • Color space/noise reduction information
      • Lens aberration correction information 1
      • Lens aberration correction information 2
      • GPS information IPTC information (First for EOS)
• Index Display:
  • 4-Image index
  • 9-Image index
  • 36-Image index
  • 100-Image index
• Highlight Alert: With single-image display (Info.) and single-image display, the white areas with no image data will blink

Quick Control Function

• Items: Pressing the Quick Control button displays the Quick Control screen during viewfinder shooting, Live View shooting, movie shooting and playback

Image Protection and Erase

• Protection: Erase protection can be applied or canceled for a single image (select image), all images in a folder or all images in the card
• Erase: Erase a single image (playback and erase image), selected images, all images in a folder or all images in a card

Direct Printing

• Compatible Printers: Images can be sent via Wi-Fi® to a PictBridge-compatible (Wireless LAN) printer and printed
• Printable Images:
  • Individual images
  • Specify images by folder
  • Specify all images in card
  • RAW images and movies cannot be specified for printing

DPOF: Digital Print Order Format

• DPOF: Compliant to DPOF Version 1.1

Customization

• Custom Functions: 17 Custom Functions settable with the camera
• Custom Controls:
  • Functions can be assigned to the following:
    • Shutter button halfway pressing
    • AF-ON button
    • AE lock button
    • Depth-of-field preview button
    • Lens AF stop button
    • Multi-function button
    • SET button
    • Main Dial
    • Quick Control Dial
    • Multi controller
    • AF area selection lever
• Camera User Settings: Current camera settings can be registered to C1, C2 and C3 on the Mode Dial
• My Menu Registration:
  • Up to six top-tier menu options and Custom Functions can be registered
  • Up to five My Menu tabs can be added
  • My Menu tab overall operations
  • Adding a tab
  • Deleting tabs in a batch
  • Deleting all tab items
  • Setting the menu display
  • My Menu tab detailed operations
  • Selecting a registered item
  • Sorting registered items
  • Deleting selected registered items
  • Deleting registered items in a batch
  • Deleting tabs
  • Changing a tab name (16 ASCII characters)

Power Source

• Battery Check: Automatic battery check when the power switch is turned ON. Displayed in 6 levels.
  • * Battery level displayed on LCD panel and in viewfinder
  • * Displayed in four levels with the battery grip using size-AA/LR6 batteries
• Power Saving: Power turns off after the set time (1, 2, 4, 8, 15 or 30 min.) of non-operation elapses
  • Even when you set the date, time or zone and 1, 2 or 4 min. is set, it will take 6 min. for auto power off to take effect
• Date/Time Battery:
  • Built-in secondary battery
  • When fully-charged, the date/time can be maintained for approx. 3 months
  • Recharge Time: Approx. 8 hr
  • The recharge time required to provide the above number of months with no battery pack installed
• Start-Up Time:
  • Approx. 0.96 sec
  • Based on CIPA testing standards
