Description

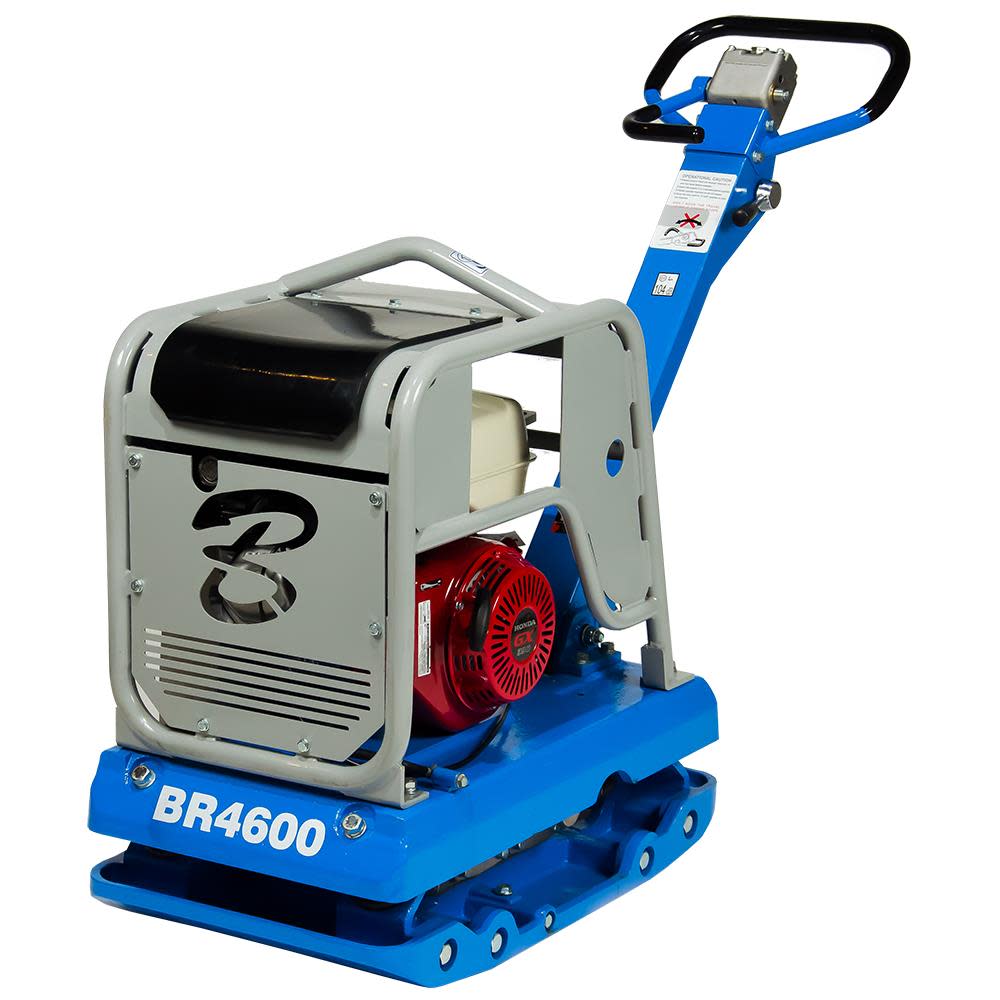

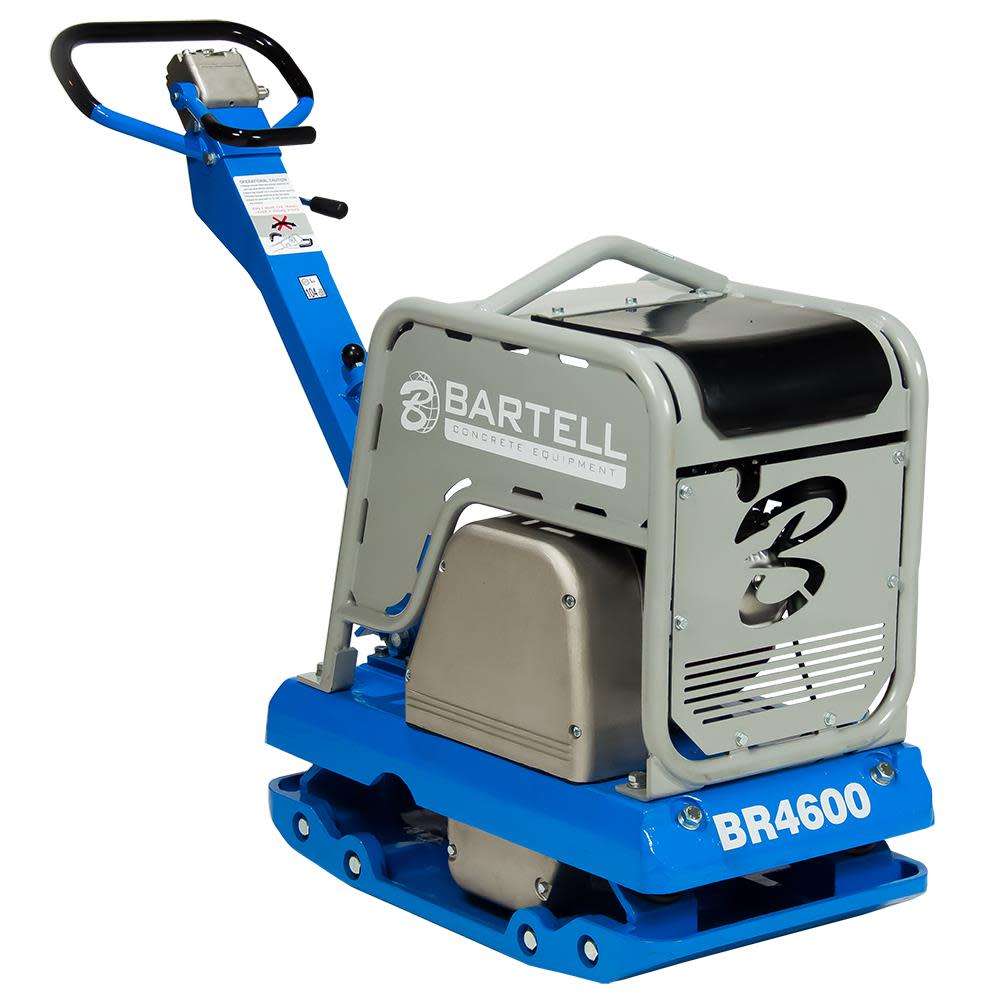

BR4600 Reversible Compactor, Honda GX390
With high-quality construction, Bartell compaction can stand up to whatever your job requires. The BR4600 Reversible Compactor provides 10,000 lbs of compaction force for medium – large applications. Equipped with a Honda GX390, it has the power and force to effectively compact deep base material properly.
Features
Over 10,000 lbs of reliable compaction force
Honda powered – 11.7hp Honda GX390 engine
Hydraulic reversing mechanism with flexible maneuverability allows the machine to move forward, backward, and in-place for spot-on compaction
Power button, throttle control and direction control positioned on the handle for convenience and safety
Specifications
Acme Tools Brand Name
BARTELL MORRISON
Acme Tools Part Number
BR4600H
Anti-Vibration Handle
Yes
Application
BASE MATERIAL, STONE, DIRT
Assembled Weight (lbs)
772
California Proposition 65 Warning Required
Yes
CARB Compliant
Yes
Color / Finish
Grey and Blue – painted
Compacting Plate Length (in)
34
Compacting Plate Width (in)
19
Compaction Equipment Type
Vibratory Plate Compactor
Country of Origin
China
Engine
Honda GX390
Engine Starting Method
Recoil
Engine Type
Gasoline 2 cycle
Extension Plates Included
No
Internal Supplier Part #
BR4600H
Internet Product Code (IPC)
62758697555
Lifting Bail Included
Yes
Manufacturer Warranty
1 year
Material
BASE MATERIAL, STONE, DIRT
Maximum Engine Output (hp)
12
Maximum Travel Speed (ft/min)
72
Overall Height (in)
37
Overall Length (in)
62
Overall Weight (lbs)
772
Overall Width (in)
19
Package Depth
39
Package Height
59
Package Weight
702
Package Weight (lbs)
702
Surface Capability
BASE MATERIAL, STONE, DIRT
