Description

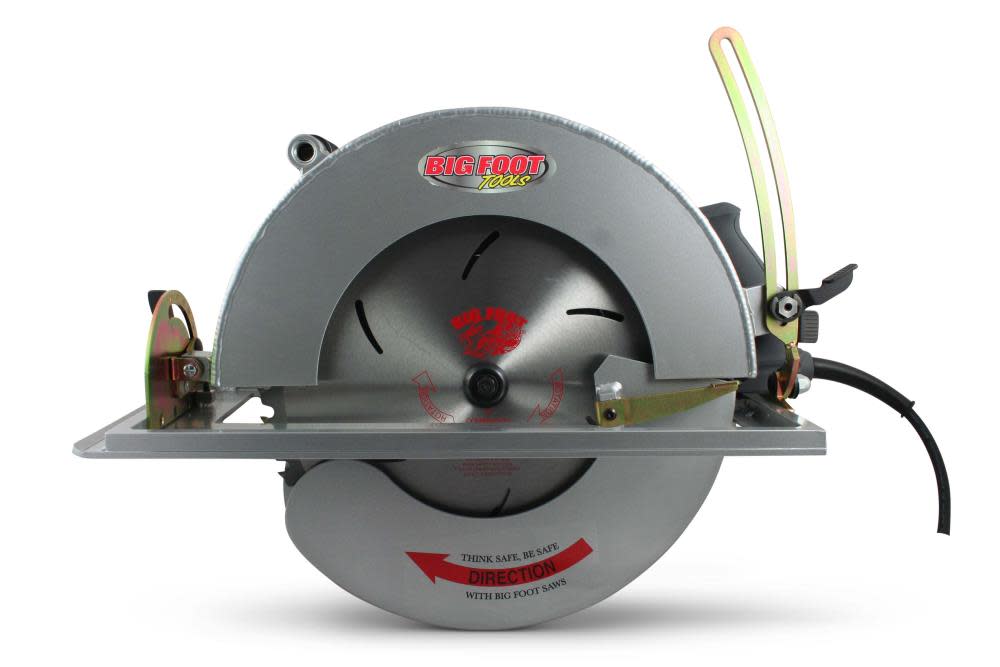

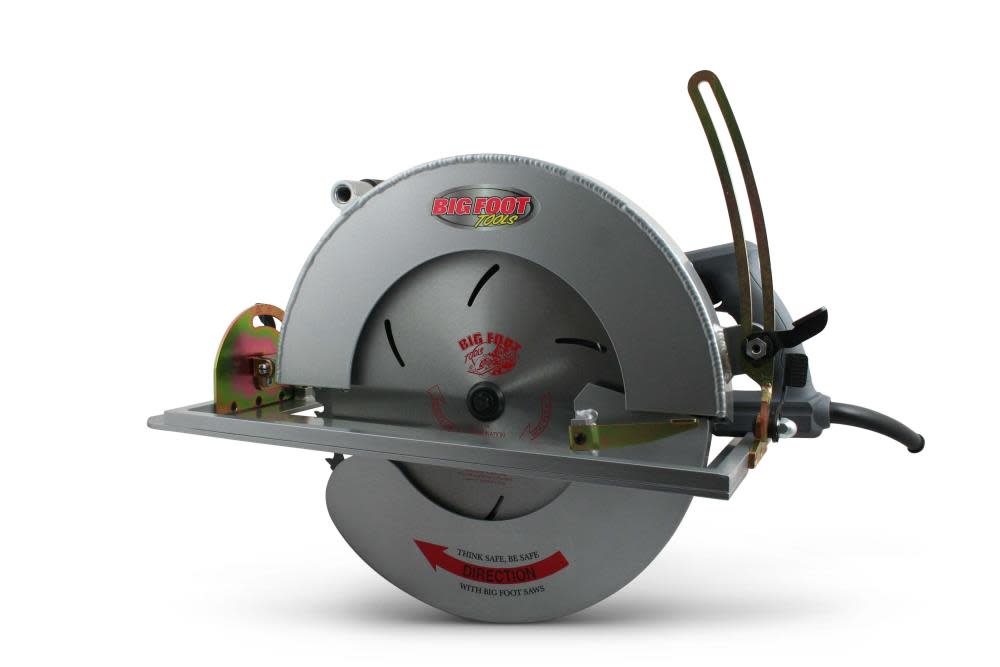

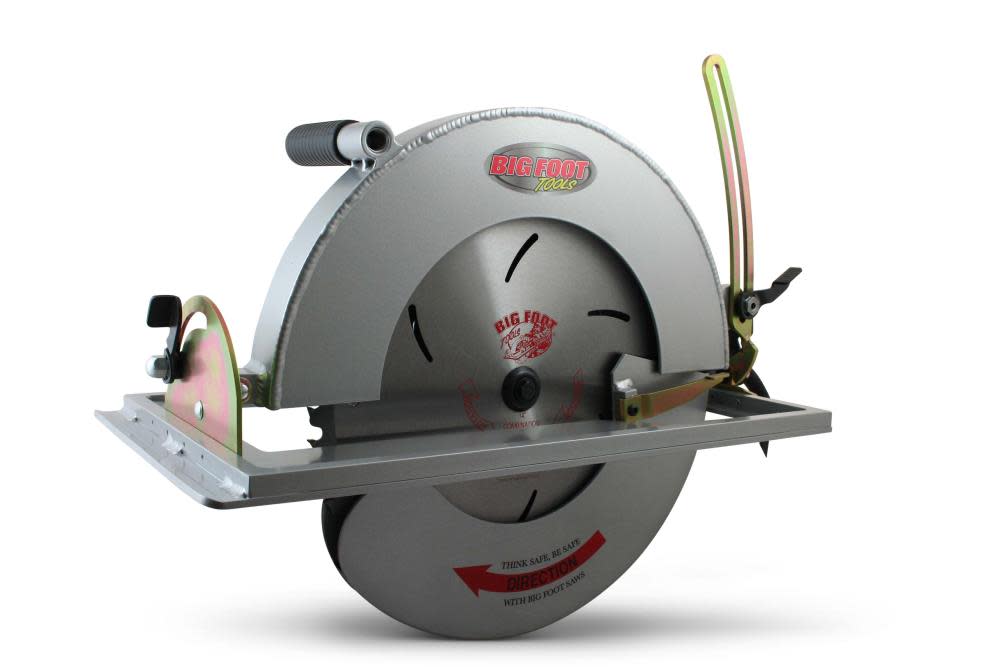

BIG FOOT TOOLS 14In Big Boy Saw – SC-14BU
The Big Foot 14 in. Big Boy Worm Drive Circular Saw is the best option for cutting 6x material in a single pass. It’s lighter and more versitle than other saws and has a built in 75 degree swing table. This saw will help you knoxk out the toughest of projects with its 14 in. thin kerf carbide blade. Big Boy parts are Made in USA. Powered with a SKILSAW motor. Cuts all 6x materials and 5/8 in. glu-lams in just one pass.
Features
Depth of cut at 90 degrees is 5-3/4 in.
The Big Boy will cut 5-3/8 in. for the seat of a bird’s mouth
Built in 75 degree swing table
Light weight Aluminum Guard and Foot plade Made in USA
Specifications
Acme Tools Brand Name
BIG FOOT TOOLS
Acme Tools Part Number
SC-14BU
Amperage (A)
15
Arbor Size (in)
1
Assembled Weight (lbs)
22
Bevel Stop
Yes
Blade Location
Left
Blade Wrench Included
Yes – Loose
Blades Included
1
California Proposition 65 Warning Required
Yes
Color / Finish
Silver
Cord Length (in)
96
Cordless / Corded
Corded
Country of Origin
China
Depth Adjustment
Yes
Diameter
14 in
Dust Blower
No
Dust Collection
No
Dust Port
No
Electric Motor Brake
No
ETL Listed
No
External Motor Brush Access
Yes
Fence Included
No
Height (in)
12
Horsepower (hp)
Universal Motor
Housing Material
Aluminum
Integrated Laser Guide
No
Integrated Rafter Hook
Yes
Integrated Work Light
Not Featured
Internet Product Code (IPC)
7E2EA4CB36F
Keyless / Keyed Blade Change
Keyed
Length (in)
22
Manufacturer Warranty
1 year warranty on parts 30 day warranty on motor
Material
Aluminum
Net Tool Weight (lbs)
22
Package Contents
Big Boy Saw, Blade, wrench, instructions
Package Weight
32
Package Weight (lbs)
32
Powered Tool Power Source
Electric – Corded
Product Storage Included
No Case Included
Saw Blade Diameter (in)
14 in
Saw Drive
Worm Drive Geared
Shoe Material
Aluminum
Tool-Less Blade Changing
No
UL Listed
Yes
Variable Speed
No
Voltage
120
Voltage (V)
120
Width (in)
11
