Description

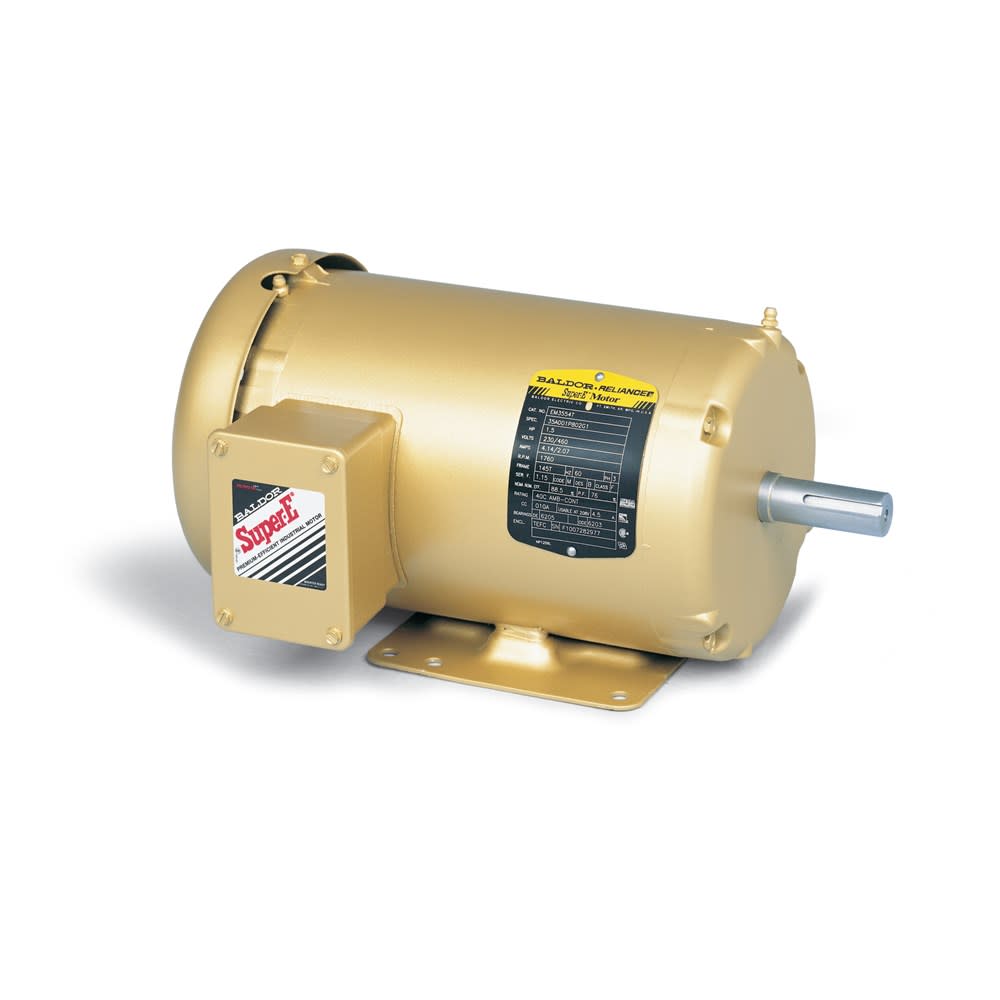

Baldor General Purpose Three Phase AC Motor, 5HP, 1750RPM, 3PH, 60HZ, 184T Frame, 3642M, TEFC, F1
General Purpose three phase motors are designed for both direct on line (DOL) and variable-speed operation. Designed to work over a wide variable
torque speed range, these motors have an insulation system that meets the requirements of NEMA MG1 Part 31.4.4.2 for VFD use and are considered inverter ready.
Features
To protect your critical asset from shaft induced currents that can be harmful to the motor, we offer an off-the-shelf solution.
We offer an extensive line of brake motors for these demanding applications.
Baldor-Reliance pump motors provide exceptional value by increasing reliability and reducing maintenance costs.
Mounting and configuring the sensors takes only a few minutes.
Specifications
Acme Tools Brand Name
BALDOR-RELIANCE
Acme Tools Part Number
EM3615T
Assembled Weight (lbs)
93
California Proposition 65 Warning Required
Yes
Country of Origin
United States
Full Load Efficiency
89.5%
Horsepower (hp)
5.000
Input Frequency (Hz)
60.000
Input Voltage
230 V
460 V
460 V
Motor Enclosure
Totally Enclosed, Fan Cooled (TEFC)
NEMA Frame Size
184T
Package Contents
Baldor 5HP 1750RPM 3PH 60HZ 184T 3642M TEFC F1 Motor
Package Depth
24
Package Height
24
Package Weight
94
Package Weight (lbs)
94
RPM
1750
Shaft Diameter (in)
1.125
Shaft Rotation
Reversible
Voltage
230/460
