Description

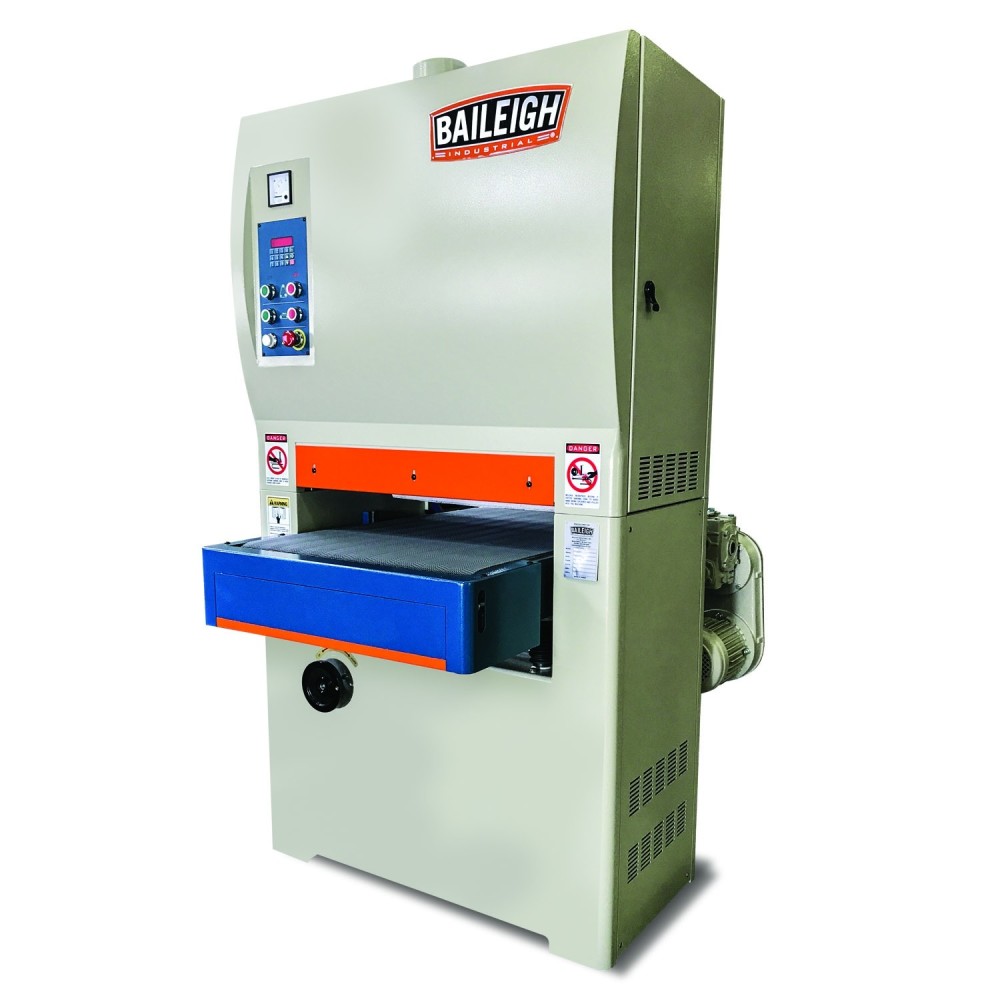

Baileigh WSB-2575 Wide Belt Sander 220V 3 Phase 10HP 25″
With its 25 In. width and 10HP motor, this wide belt sander for sale is ideal for conference tables, signs, and large doors. It can reliably run 8 to 12 hours a day and offers a thickness DRO.
Features

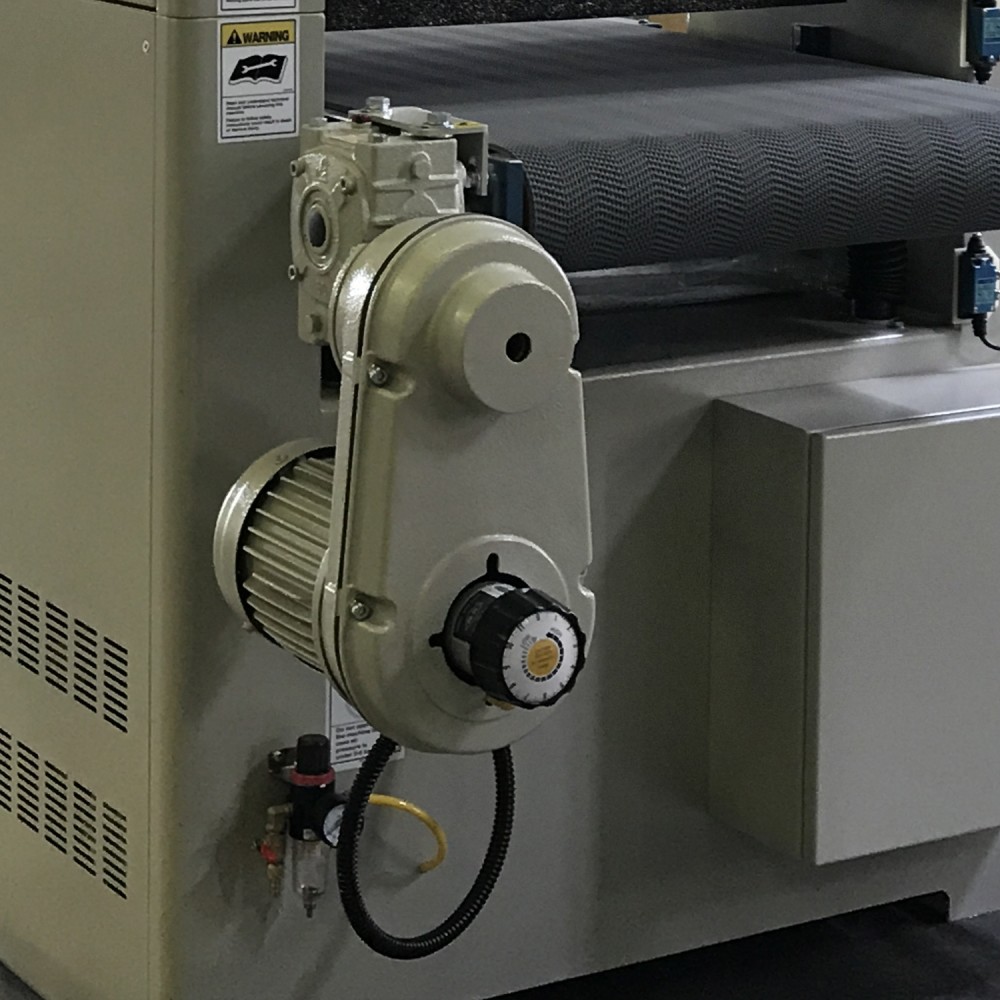

Variable-speed feed can adjust to suit your material
2625 fpm belt speed gives your projects a smooth finish, Robust 10 hp main motor can pull heavy pieces of wood all day
3 independent motors control sanding, feeding, and table height
Runs on 220V 3 Phase power
Digital readout for thickness makes it easy to dial in your specs and produce a repeatable finish
Cast iron table will stay level and true over many years of use, motorized lift for the table saves you effort and strain during long shifts

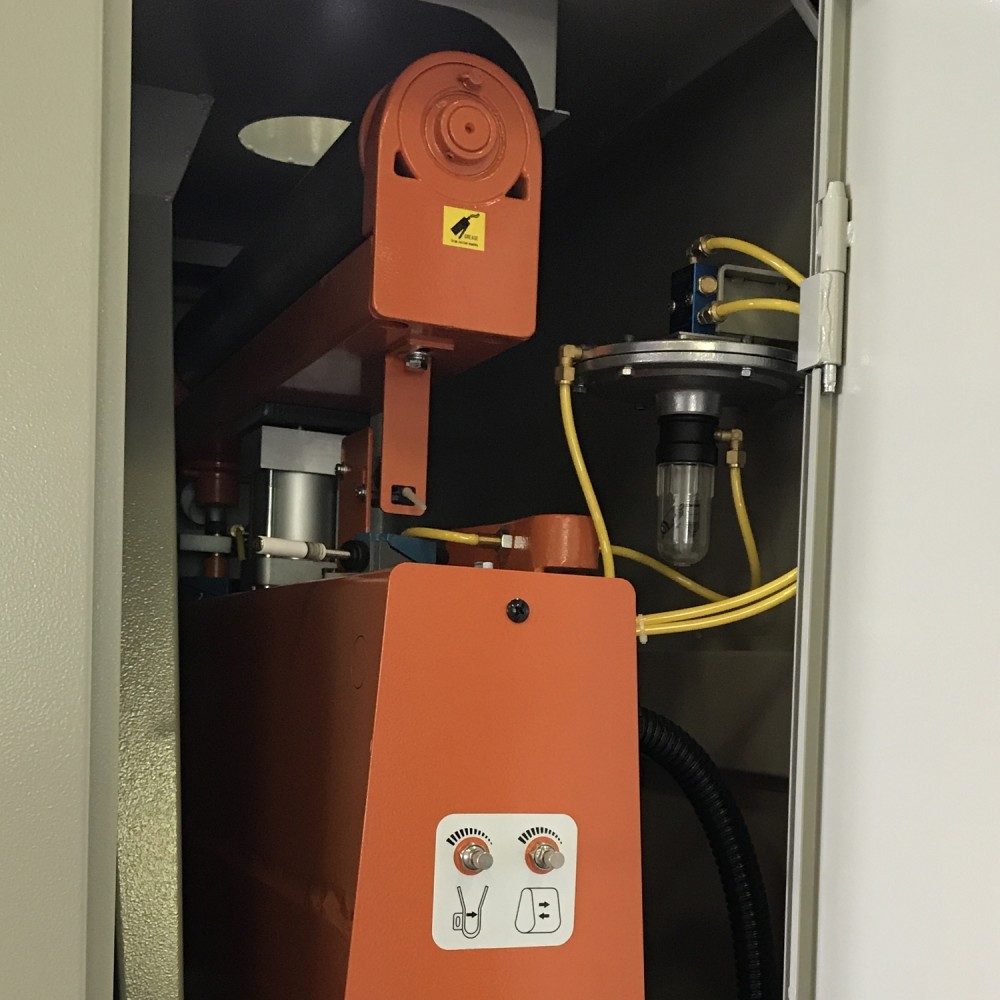

Pneumatic belt tracking can adjust for the type of wood and the amount you need to take off it
Pneumatic belt tension controls are accessible from both sides of the machine
Accepts standard belt sizes that are easy to replace, Disc brake for emergency stops helps prevent accidents in your shop
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1018227
Amperage (A)
0.0
Assembled Weight (lbs)
1700
Belt Sanding Speed-Maximum (Ft/Min)
2625
Belt Size
25×75
Belt Tension Type
Pneumatic
Belt Tracking Type
Pneumatic
Cordless / Corded
Corded
Country of Origin
Taiwan
Drive Motor Power (hp)
10
Horsepower (hp)
10
Material
Cast Iron
Maximum Feed Rate (fpm)
49
Minimum Feed Rate (fpm)
15
Package Contents
Belt Sander
Package Depth
78
Package Height
50
Package Weight
1700
Sander Style
Belt
Table Material
Cast Iron
Variable Speed
Yes
