Description

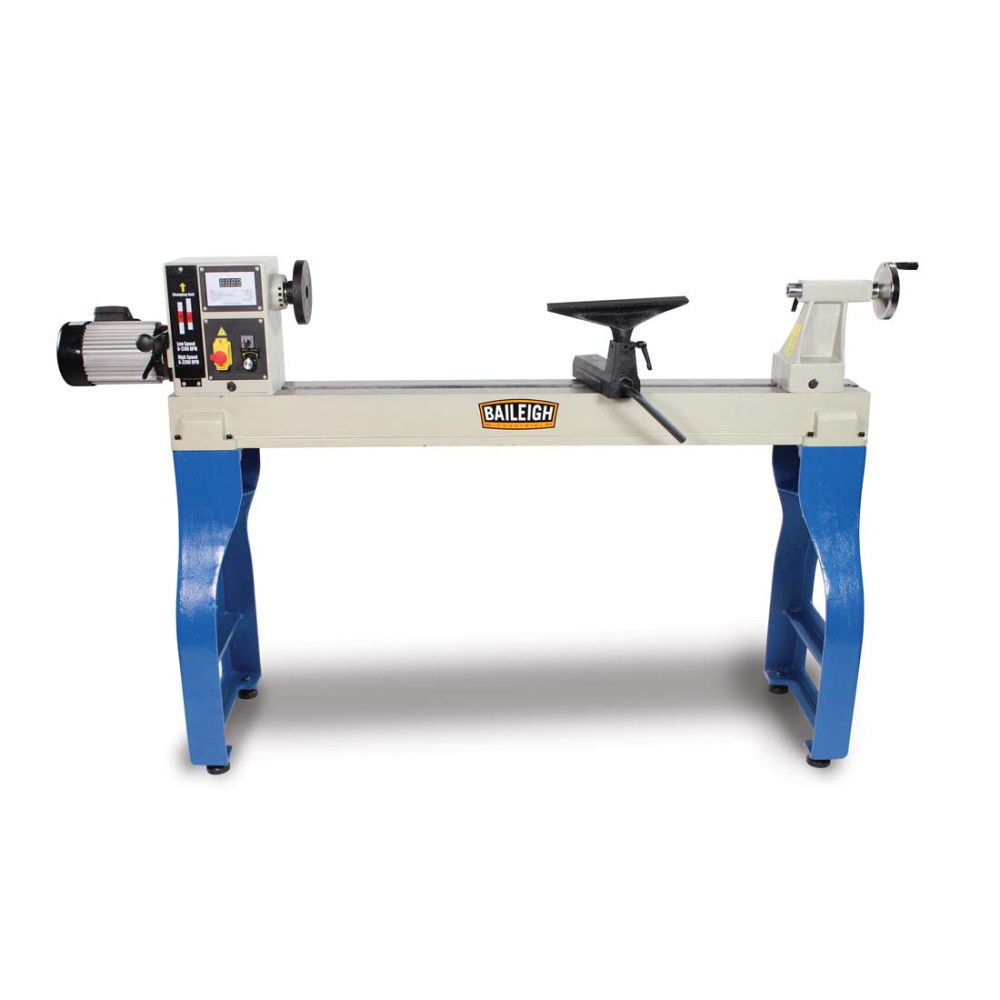

Baileigh WL-1847VS Variable Speed Wood Turning Lathe 220V 1 Phase
Built with an all cast iron base, this variable-speed wood lathe offers many features not found on similarly priced lathes. It’s perfect for schools, garages, and small shops.
Features
Runs on 220V 1 Phase power, so it will work in almost any shop
18 In. swing
47 In. between centers
Variable speed from 0 to 3200 Rpm

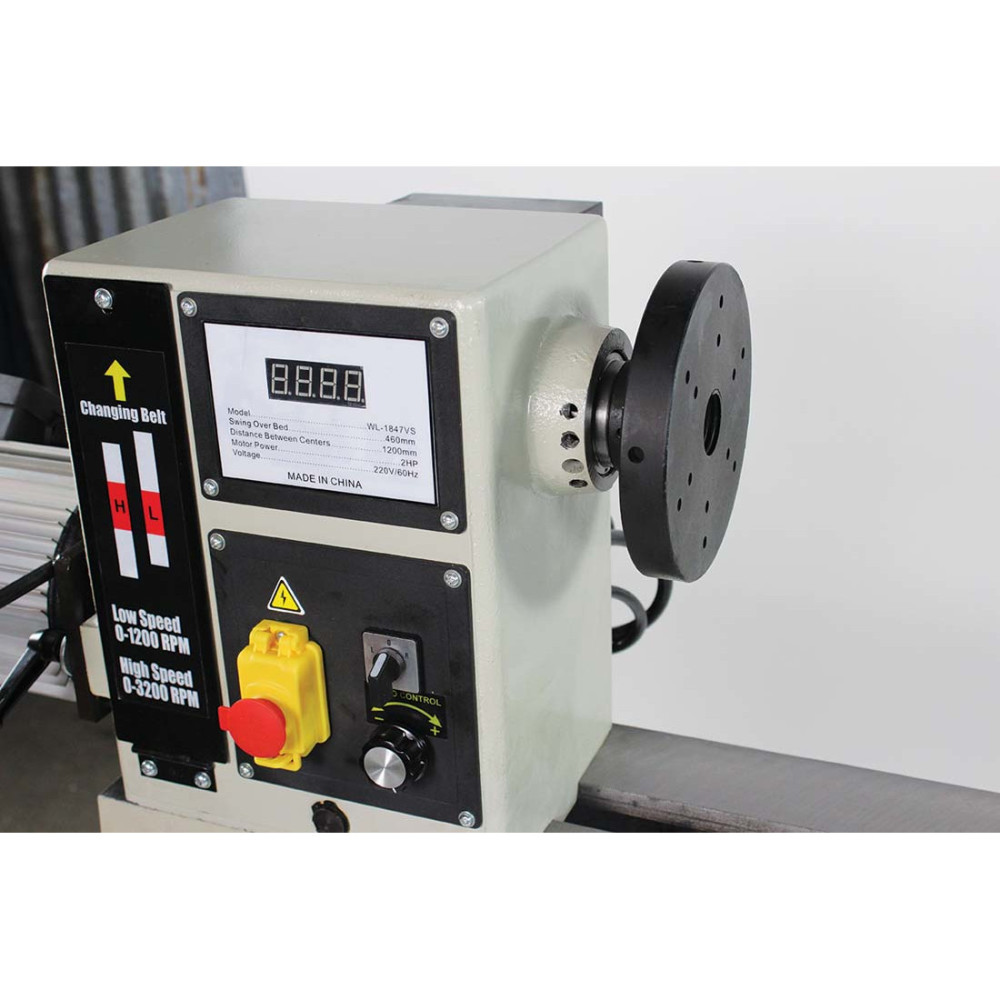

Delta® inverter allows you to increase decrease that spindle speed or rotation in real time

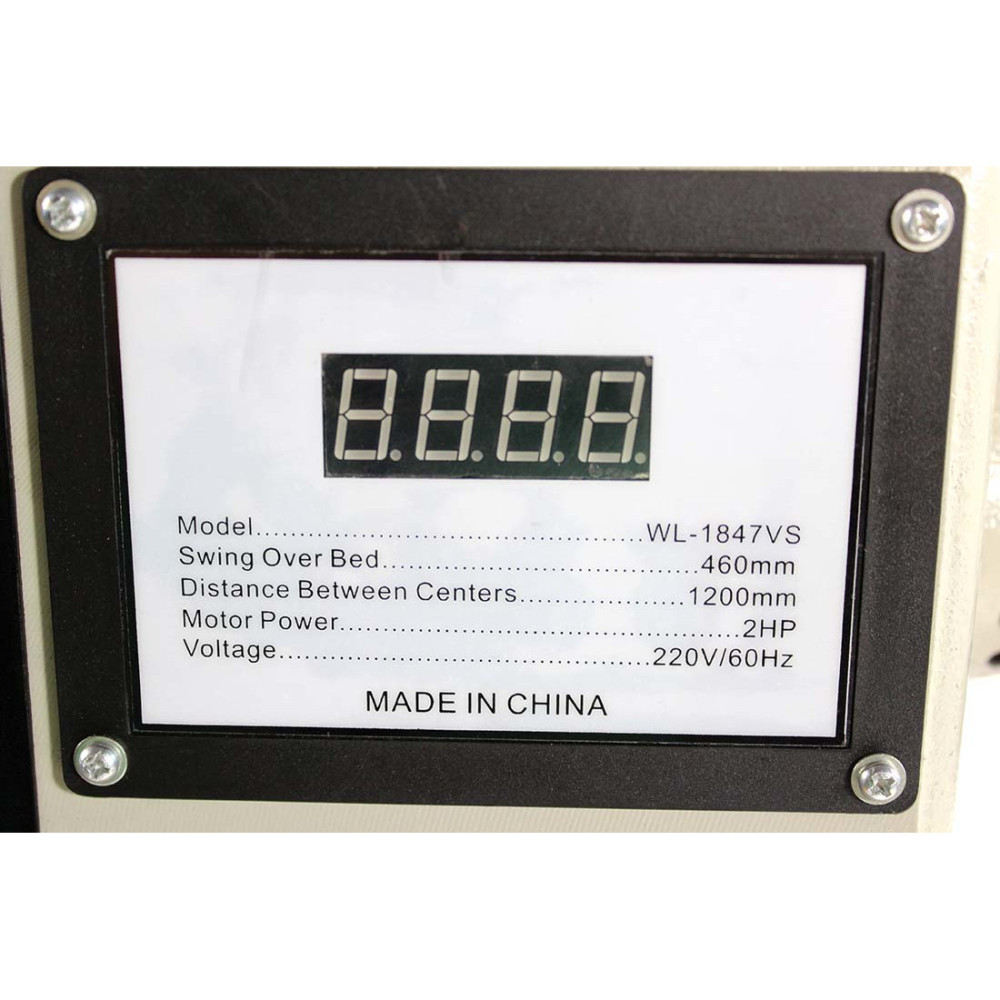

Digital readout for accurate speed measurement

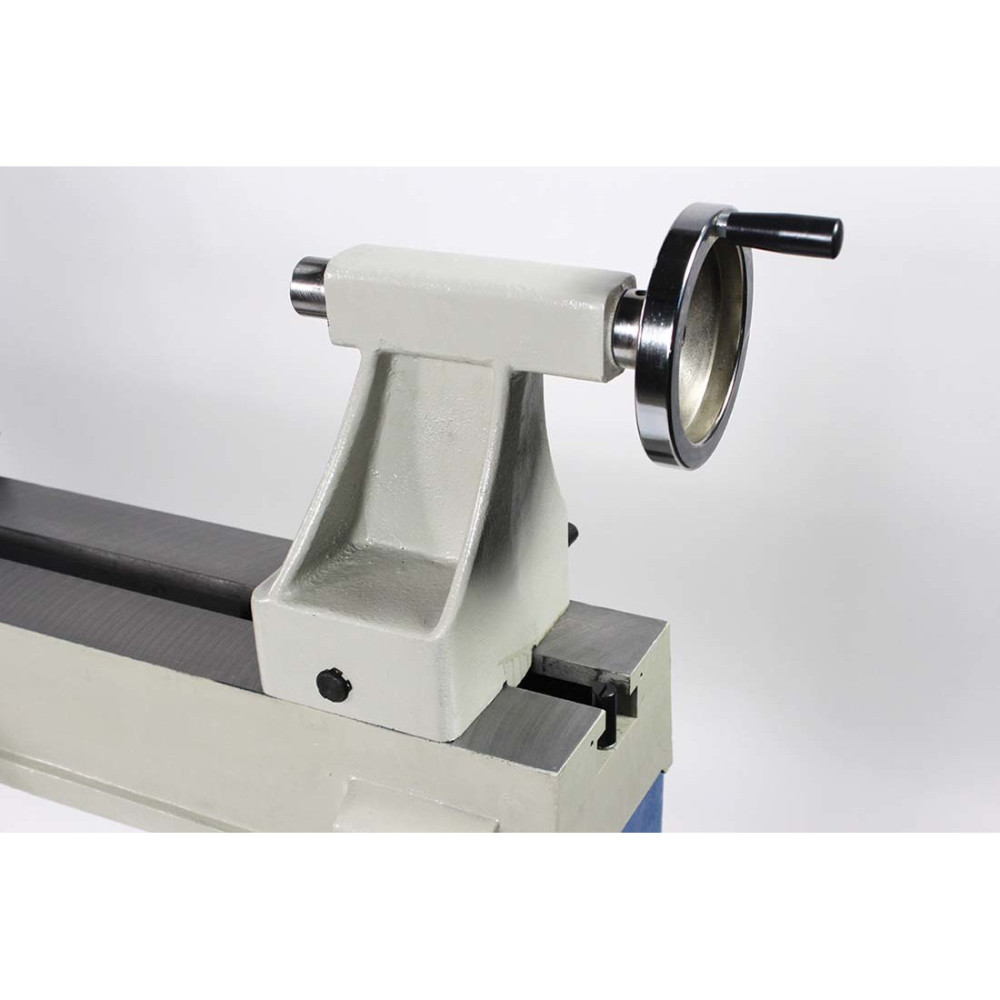

MT2 spindle and tailstock

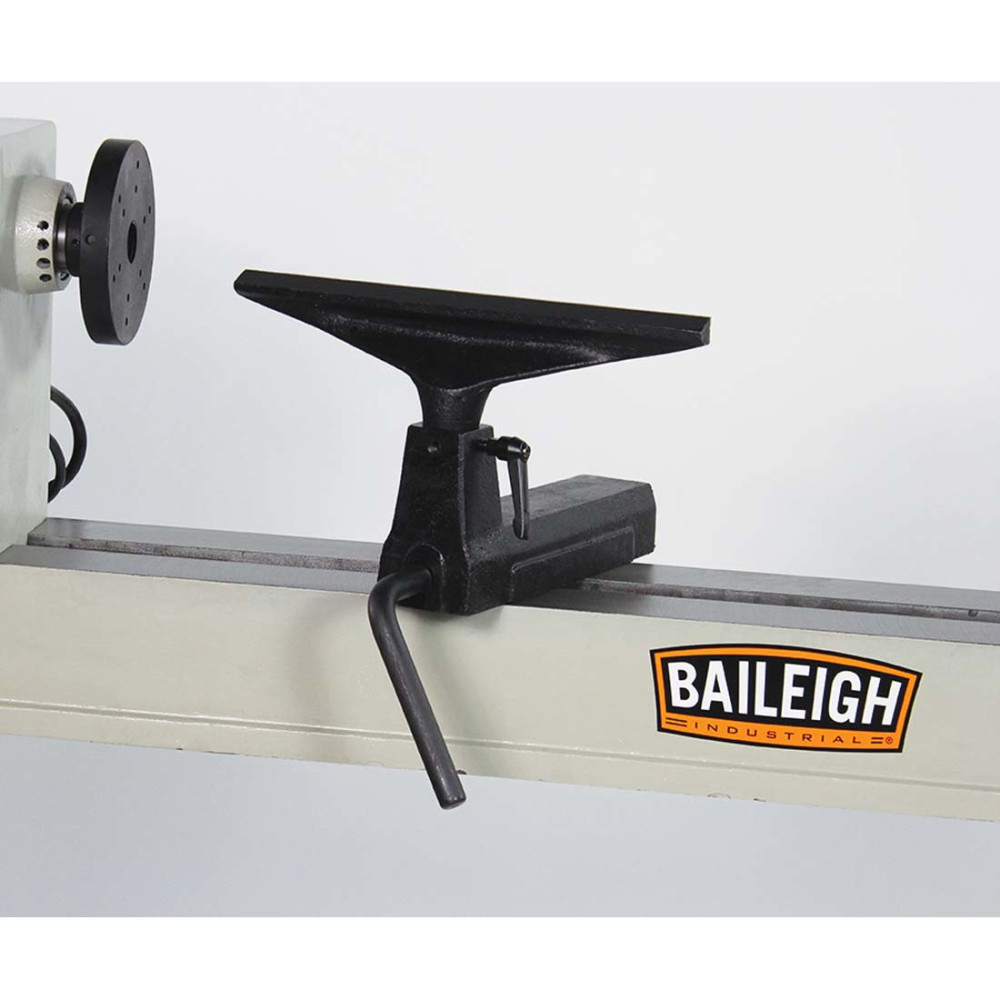

Comes with a 6 In. face plate and massive 14 In. tool rest
All cast iron construction eliminates vibration and maintains stability for accurate results
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1008389
Assembled Weight (lbs)
600
Center To Center (in)
47
Compound Rest Travel (in)
14
Country of Origin
Taiwan
CSA Certified
No
ETL Listed
No
Horsepower (hp)
2
Housing Material
Cast Iron
Lowest Operational Speed (rpm)
0
Maximum Speed (rpm)
3200
Metal Lathe Type
Other
Package Contents
Lathe
Package Depth
27
Package Height
69
Package Weight
600
Phase
1
Swing Over Bed
18 In.
Swing Over Cross Slide
47 In.
UL Listed
No
Variable Speed
Yes
