Description

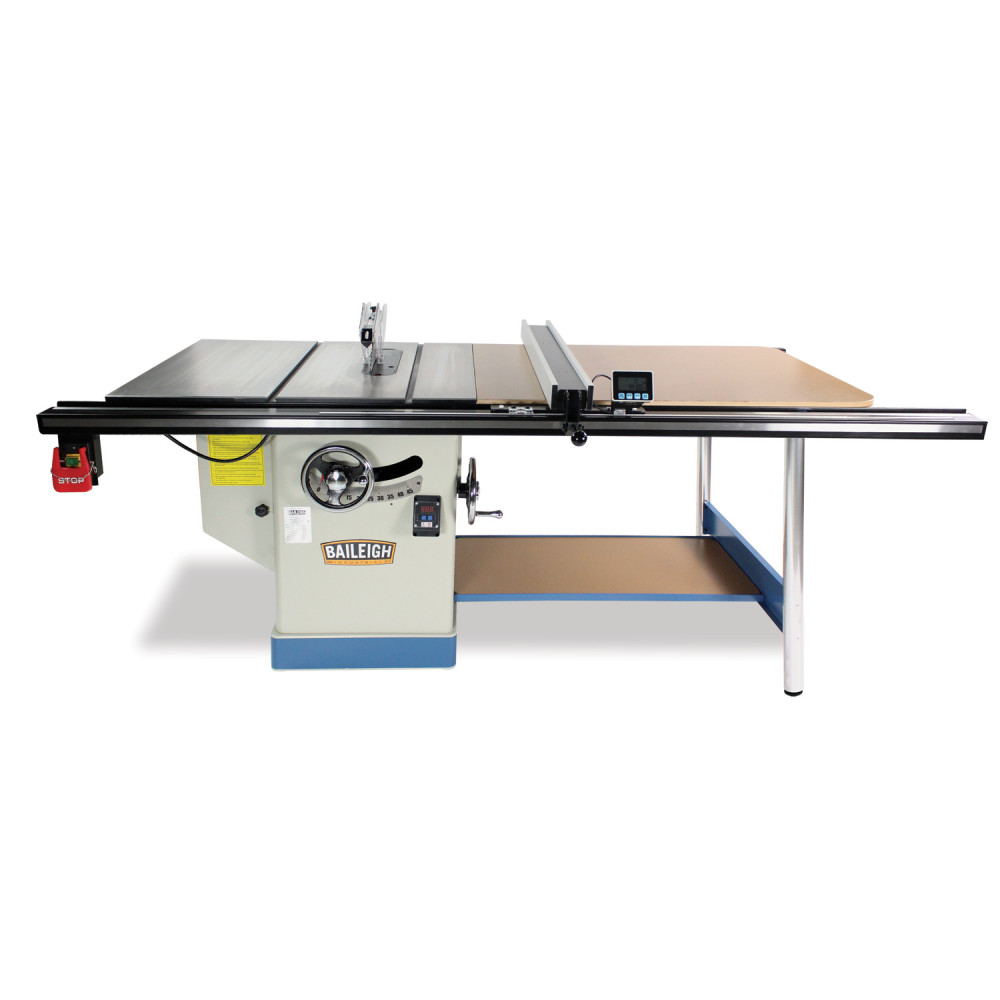

Baileigh TS-1248P-52 Table Saw Professional Cabinet Style
With an all-steel base attached to a massive, vibration-reducing trunnion, this industrial cabinet table saw can cut thousands of feet of board per day.
Features

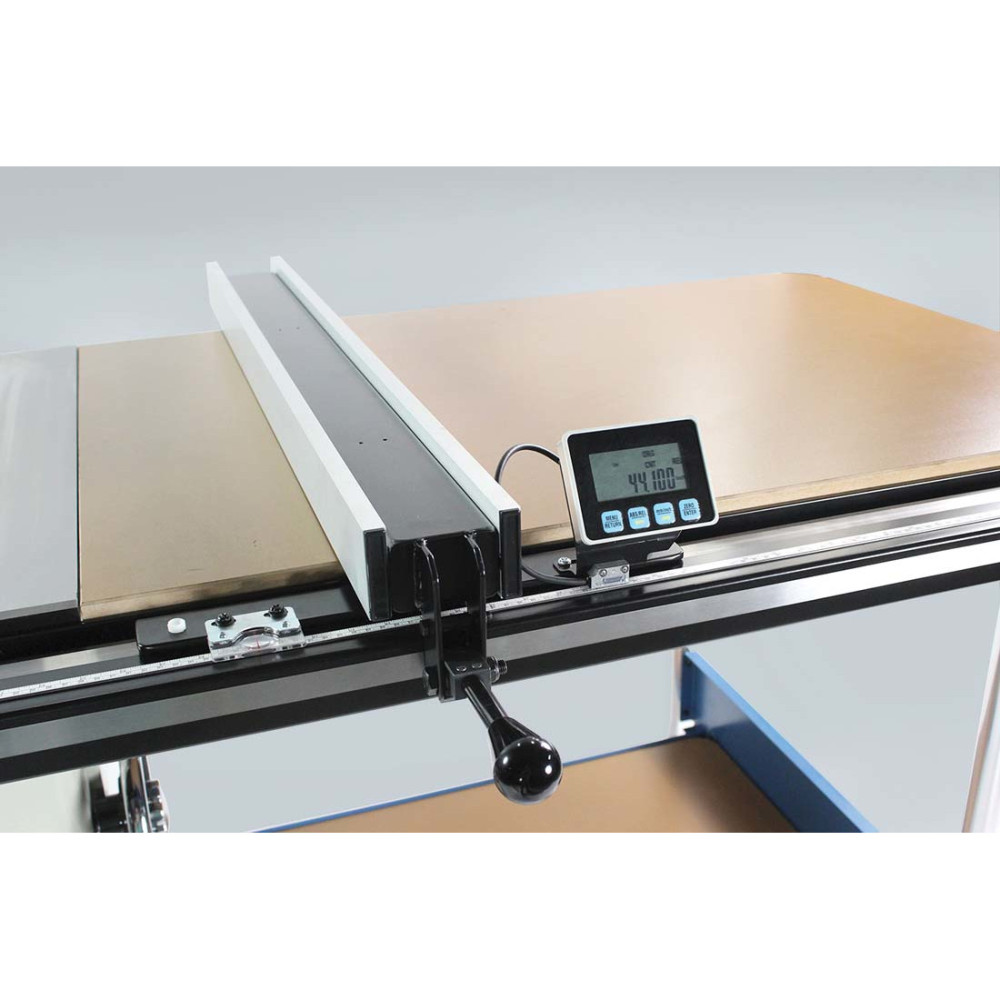

52 In. Right-side rip capacity lets you tackle long pieces of material
5HP motor turns at 3600 Rpm

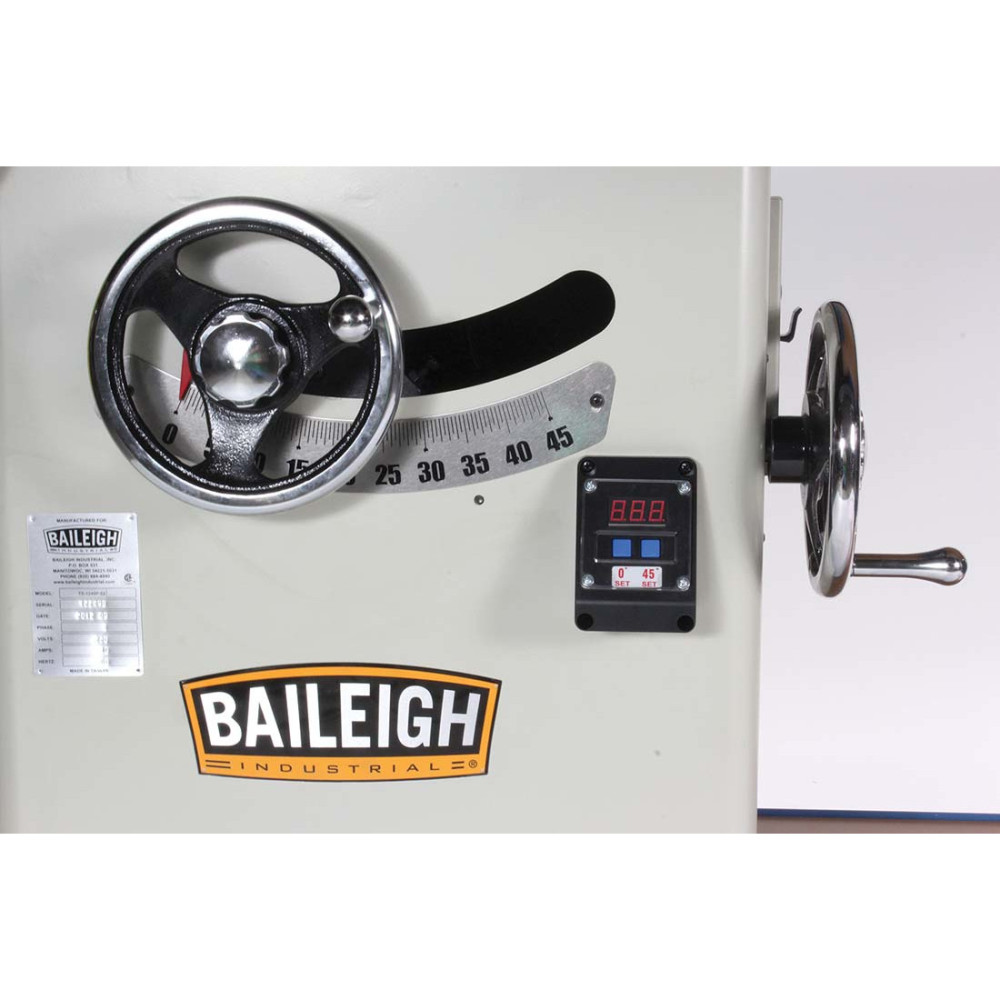

Accepts standard 12 In. blades with a 1 In. arbor that can tilt 45 Deg to the left
Run on 220V 1 Phase power, so it’ll work almost anywhere
48 In. x 30 In. work table with 52 In. extensions
Both the industrial cabinet table saw and its extensions are made from precision-ground cast iron
Table surface will stay square because of webbed or criss-cross design on the bottom that meshes into the base
The tabletop won’t warp in spite of heat and moisture
Smoothly finished table allows wood to slide without resistance
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1008084
Amperage (A)
NA
Assembled Weight (lbs)
700
Bench or Stationary
Bench
Bevel Direction
Right Bevel
Blade Speed (rpm)
3600
Cordless / Corded
Corded
Country of Origin
Taiwan
Drive Motor System
Electric
Dust Port
Yes
Fence Included
Yes
Horsepower (hp)
5
Material
Cast Iron

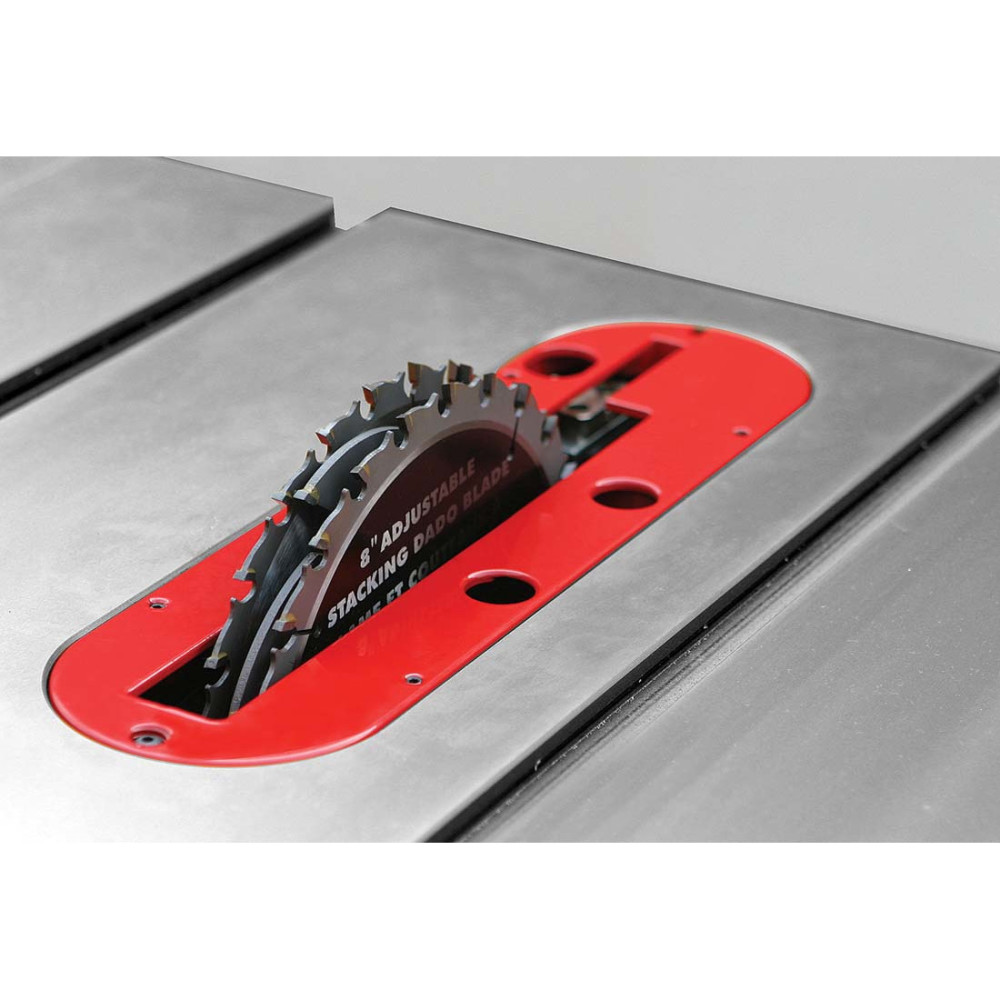

Maximum Dado Diameter (In)
8
Maximum Dado Width (in)
0.8125
Miter Gauge
Yes
Package Contents
Cabinet Table Saw
Package Depth
54
Package Height
60
Package Weight
700
Phase
1
Table Length (in)
24.4
Table Material
Cast Iron
Table Width (in)
30.7
