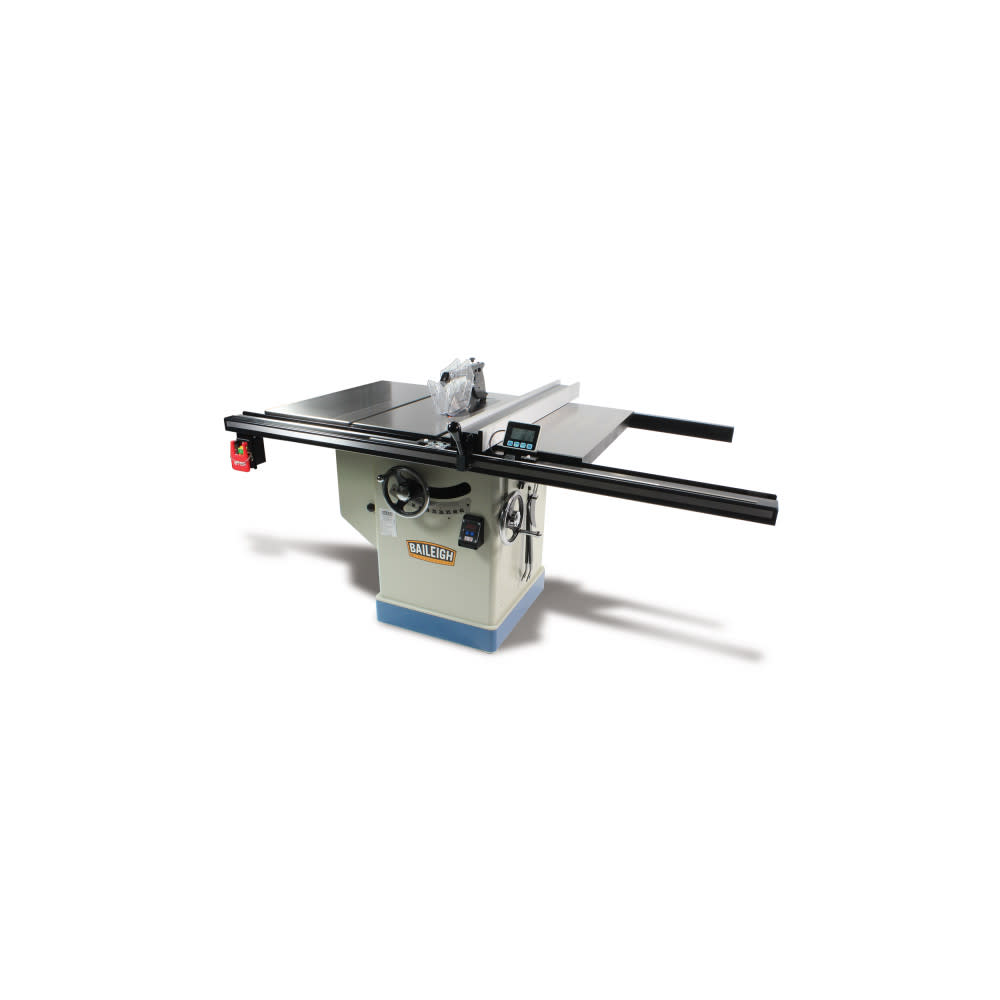

Baileigh TS-1248P-36 Professional Cabinet Table Saw 220V 12″
This 680 lbs industrial table saw can cut thousands of board feet per day and make angles that fit perfectly. The steel base, massive trunnion and cast iron table maintain accuracy.
Features
36 In. right-side rip capacity, also available with a 52 In. rip capacity, 5HP motor turns at 3600 Rpm, accepts standard 12 In. blades with a 1 In. arbor that can tilt 45 Deg to the left, Runs on 220V 1 Phase power, so it’ll work almost anywhere
48 In. x 30 In. work table with 36 In. extensions, both the table and its extensions are made from precision-ground cast iron, table surface will stay square because of webbed or criss-cross design on the bottom that meshes into the base, the tabletop won’t warp in spite of heat and moisture

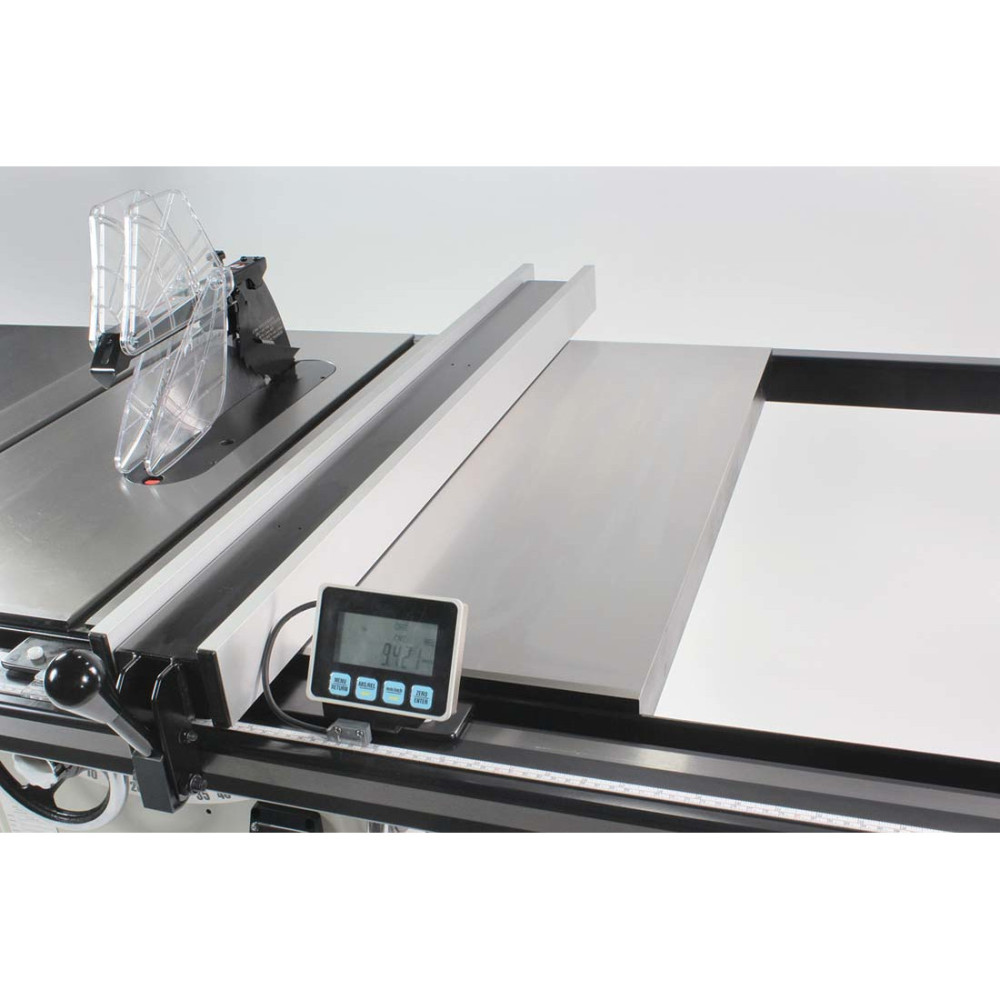

Smoothly finished table allows wood to slide without resistance, there’s no unevenness to compromise the accuracy of your cut, you can polish the cast-iron table up and restore the original shine even after years of hard use, rip fence incorporates a digital readout (DRO) for rip capacity, just zero In. the DRO at the blade to get a perfect, repeatable length every time

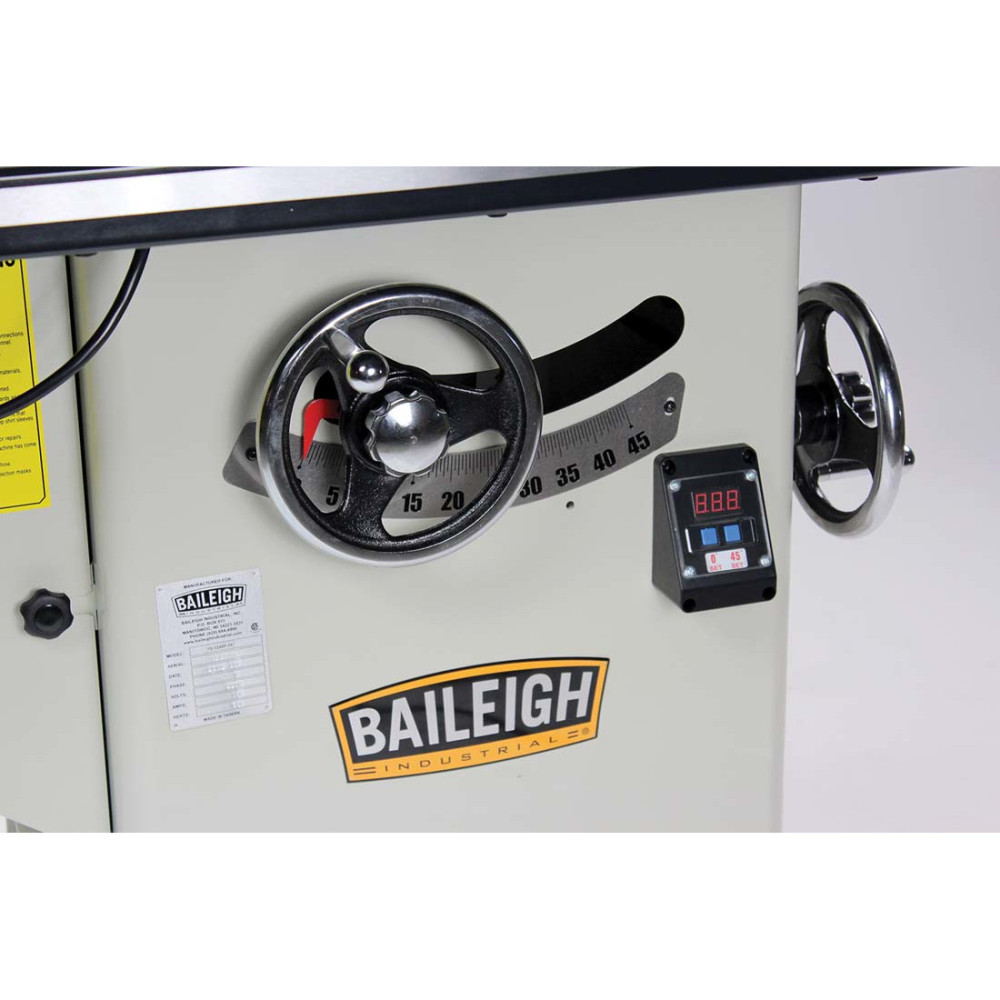

Steel handwheels, for adjusting blade height and miter angle, are located on the base, rack and pinion mechanism makes it easy to move the blade up and down, comes with a simple miter gauge on the tabletop and DRO for the bevel angle on the base to help with repeatability, massive steel trunnion is attached to the base, so the machine won’t wobble or exceed safe noise levels

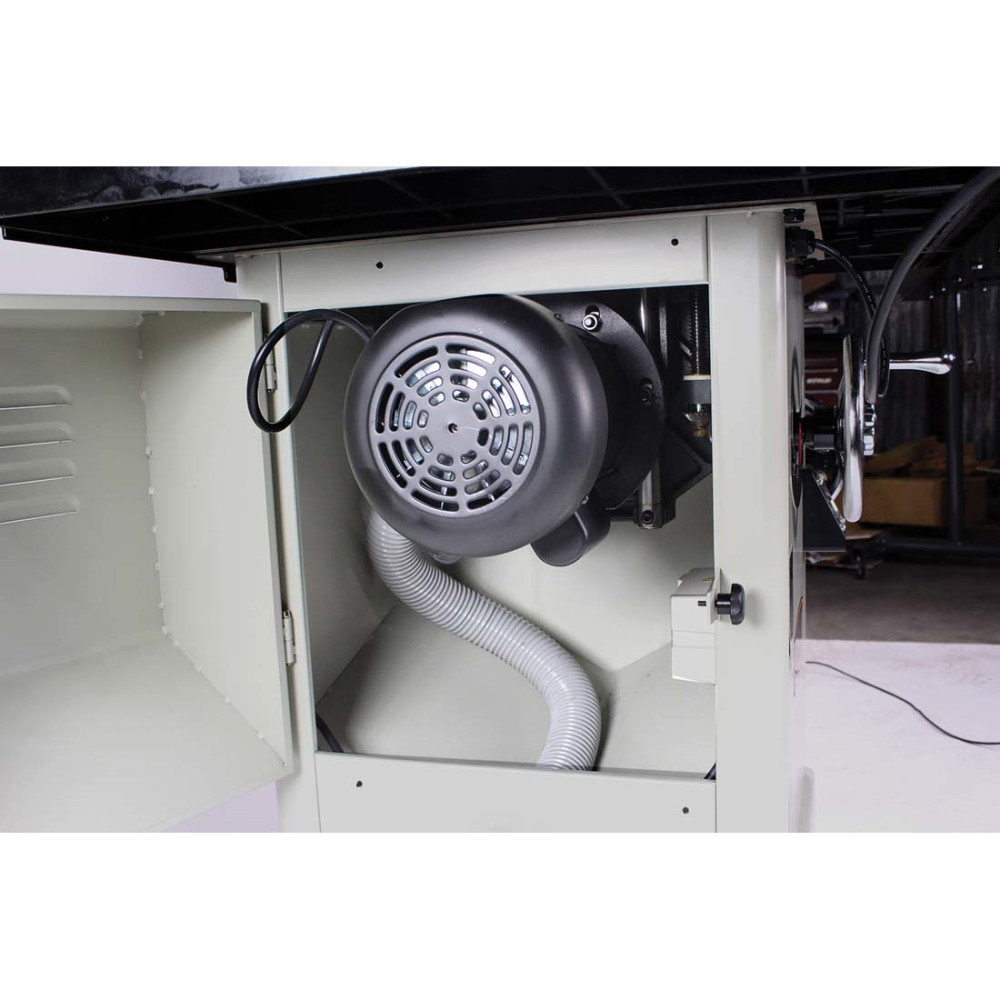

Rigid all-steel base maintains accurate alignment and keeps vibrations down to a minimum, dust shroud inside the machine collects sawdust from under the blade and funnels it to the 4 In. port, just hook up an extraction system
CSA-approved

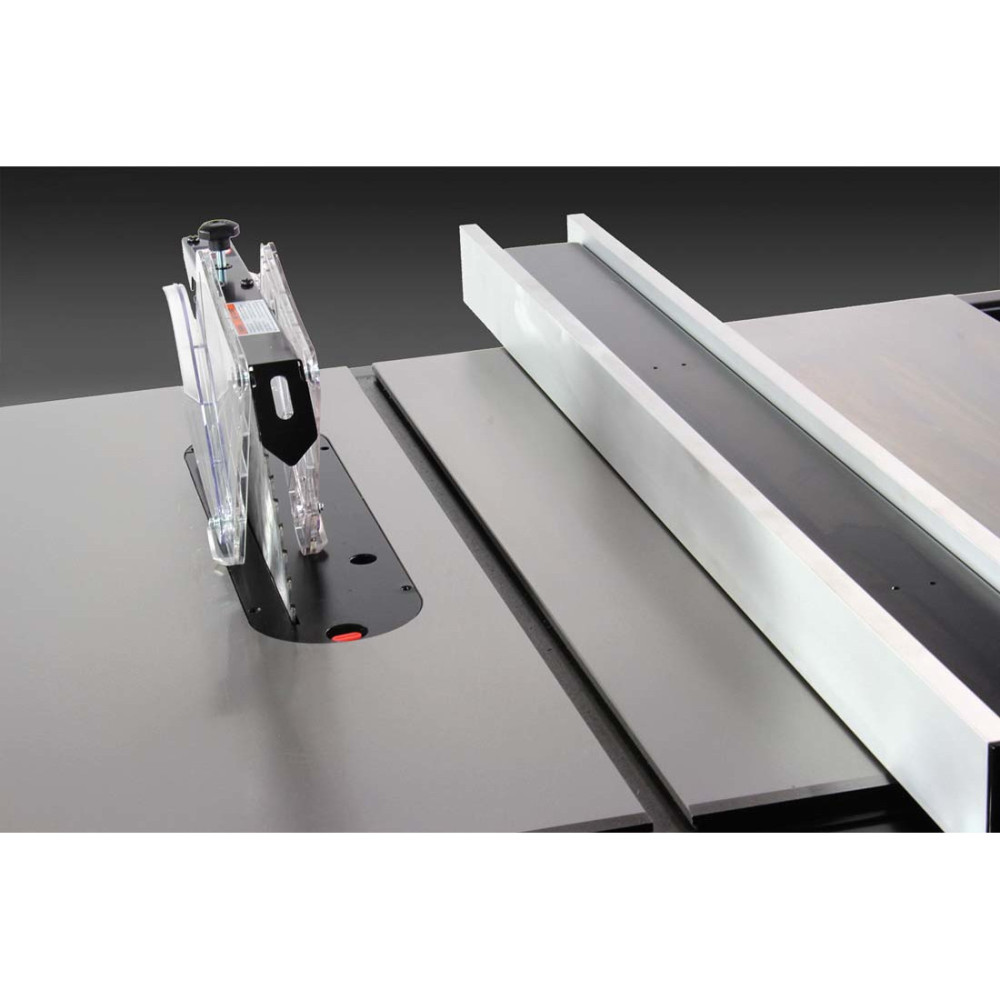

4-piece safety blade guard with anti-kickback reverse teeth
Includes both a splitter and riving knife to help spread the wood and prevent pinching or twisting
Covered by a 1-year parts warranty, as well as lifetime technical support by phone
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1008082
Amperage (A)
0.0
Assembled Weight (lbs)
680
Blade Speed (rpm)
3600
Caster Platform Included
No
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
Yes
Dust Blower
No
Dust Port
Yes
Dust Port Outside Diameter (in)
4
ETL Listed
No
Fence Included
No
Flesh Sensing System
No
Horsepower (hp)
5
Material
Cast Iron
Maximum Dado Diameter (In)
8
Maximum Dado Width (in)
0.8125
Miter Gauge
Yes
Package Contents
Table Saw, Splitter and Riving Knife
Package Depth
48
Package Height
60
Package Weight
680
Phase
1
Repetitive Cut Marking system
No
Spindle Lock
No
Table Length (in)
24.4
Table Material
Cast Iron
Table Width (in)
30.7
UL Listed
No
