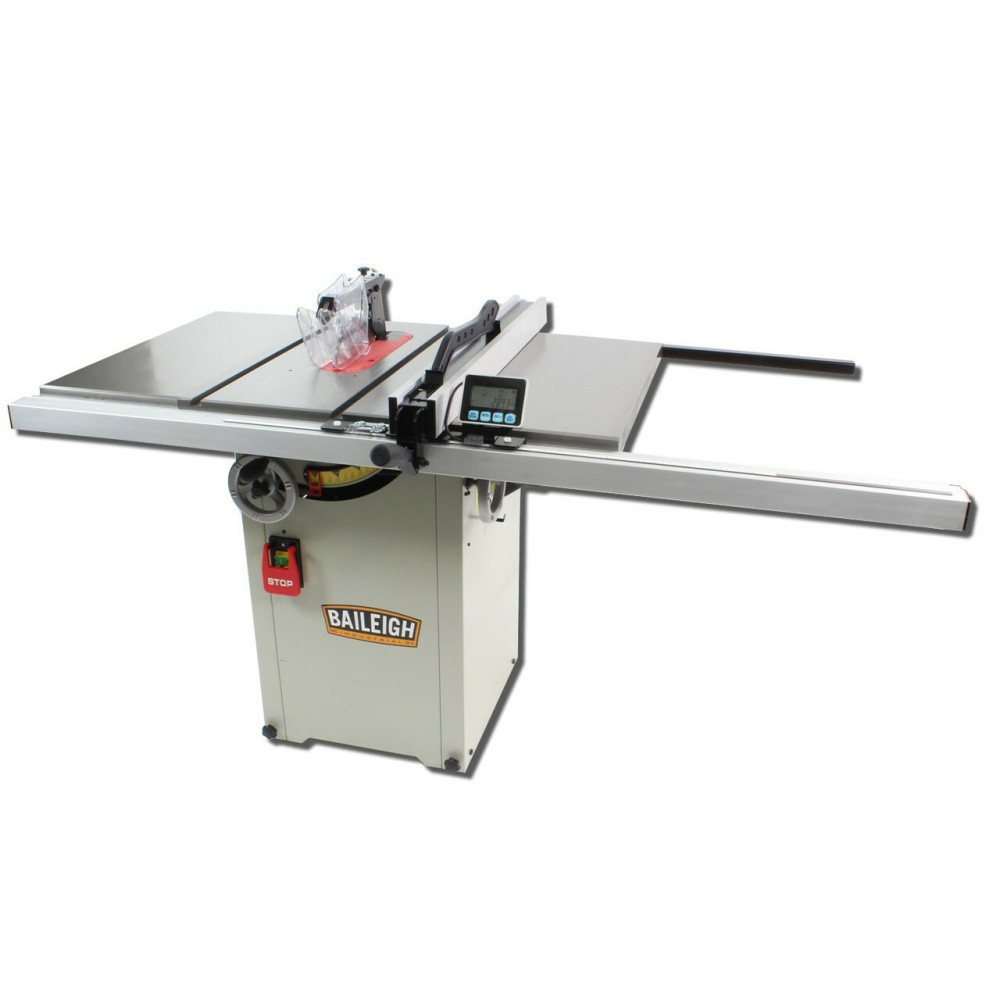

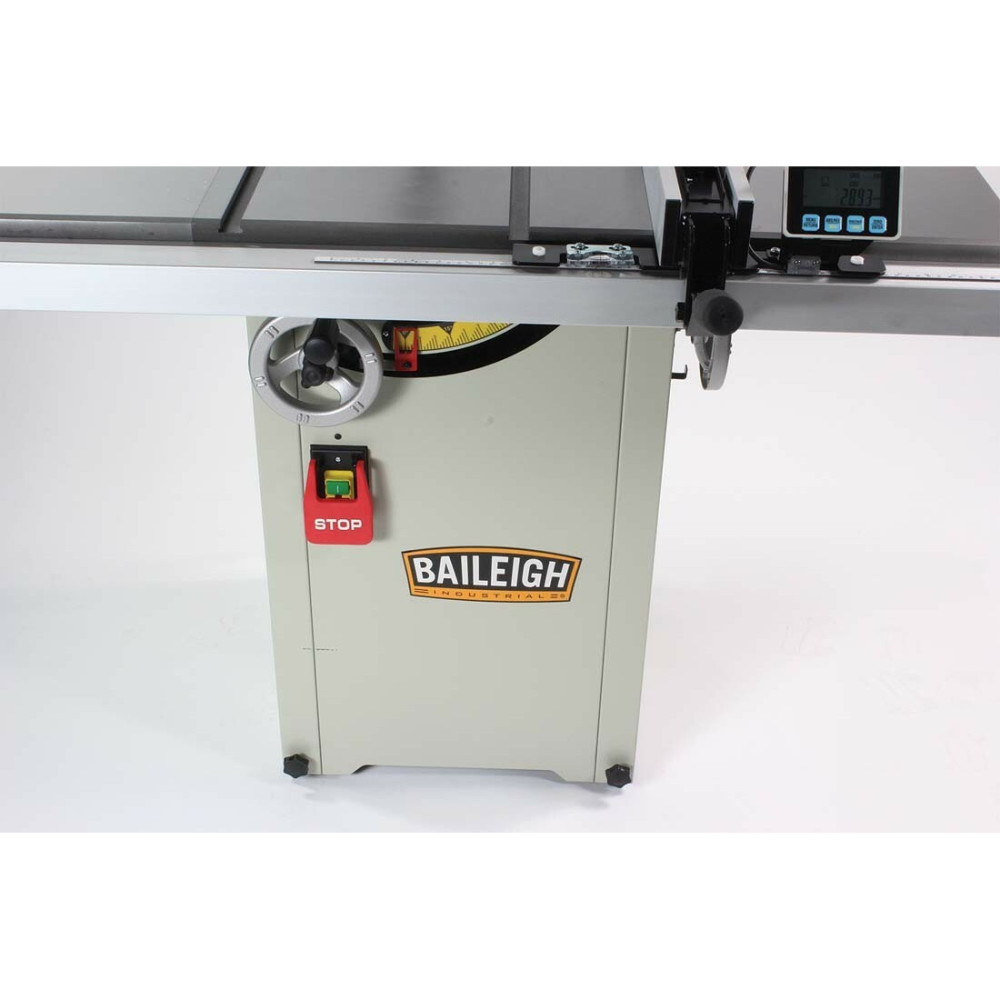

Baileigh TS-1044H Hybrid Table Saw 110V 1 Phase 1.75HP 10″
The TS-1044H hybrid table saw combines the low voltage and wheels of a contractor saw with the power and accuracy of a cabinet saw. The trunnion attached to the base reduces vibrations.
Features

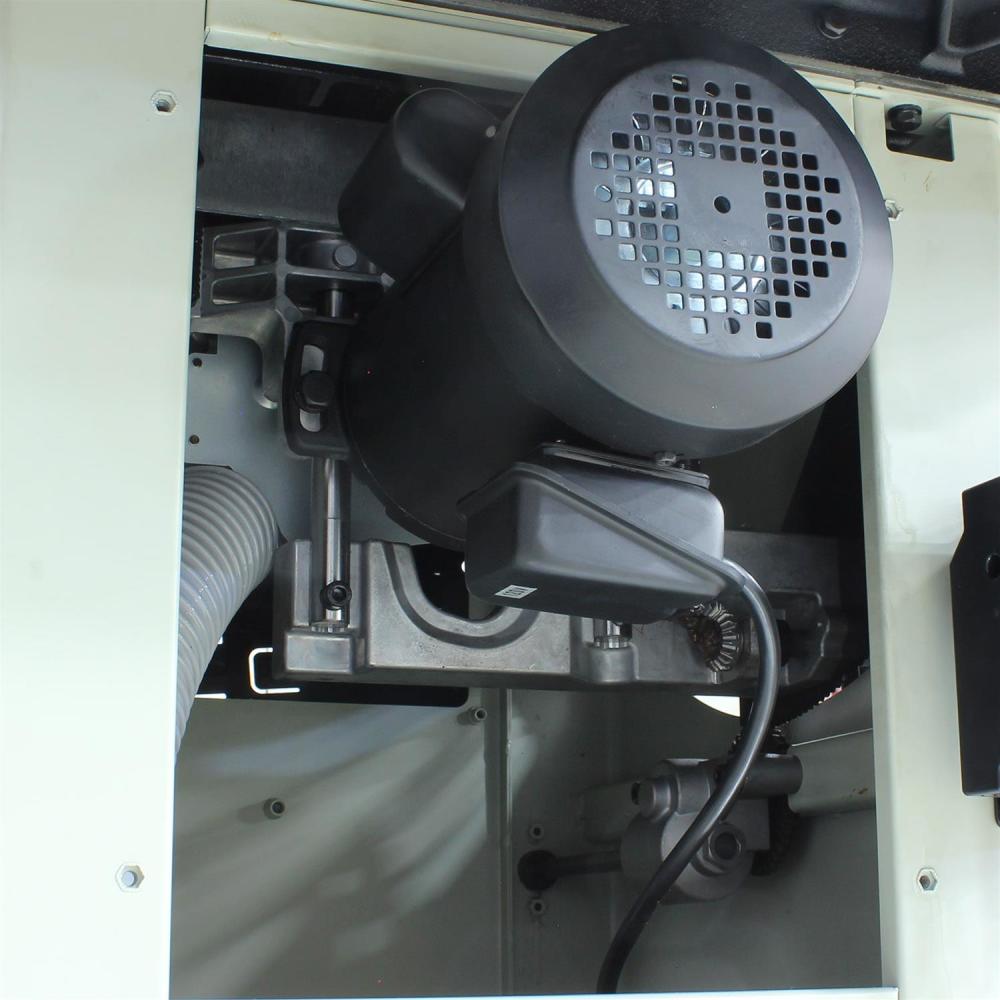

1.75HP motor turns the blade at 4000 Rpm, accepts standard 10 In. blades with a 5/8 In. arbor, runs on either 110 or 220V 1 Phase power, selectable voltage allows the hybrid saw to work in just about any home or professional shop
This hybrid model is both a contractor- and a cabinet-style machine, large, all-machined 44 In. x 27 In. cast iron table, cast tabletop is webbed into the base, so it’ll stay square and true over the years, no twisting, shrinking, or expanding, zero-clearance table inserts prevent small pieces from falling into the gap and minimize chips on the back side of the cut

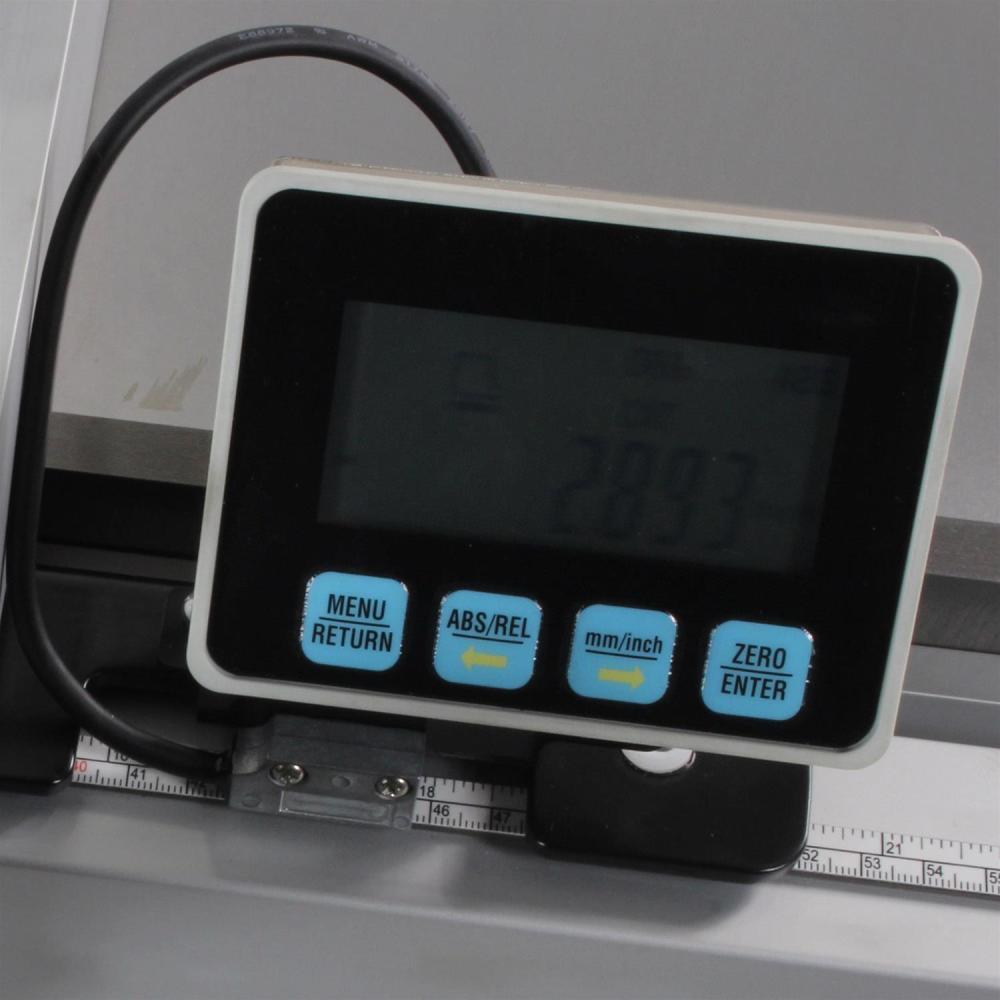

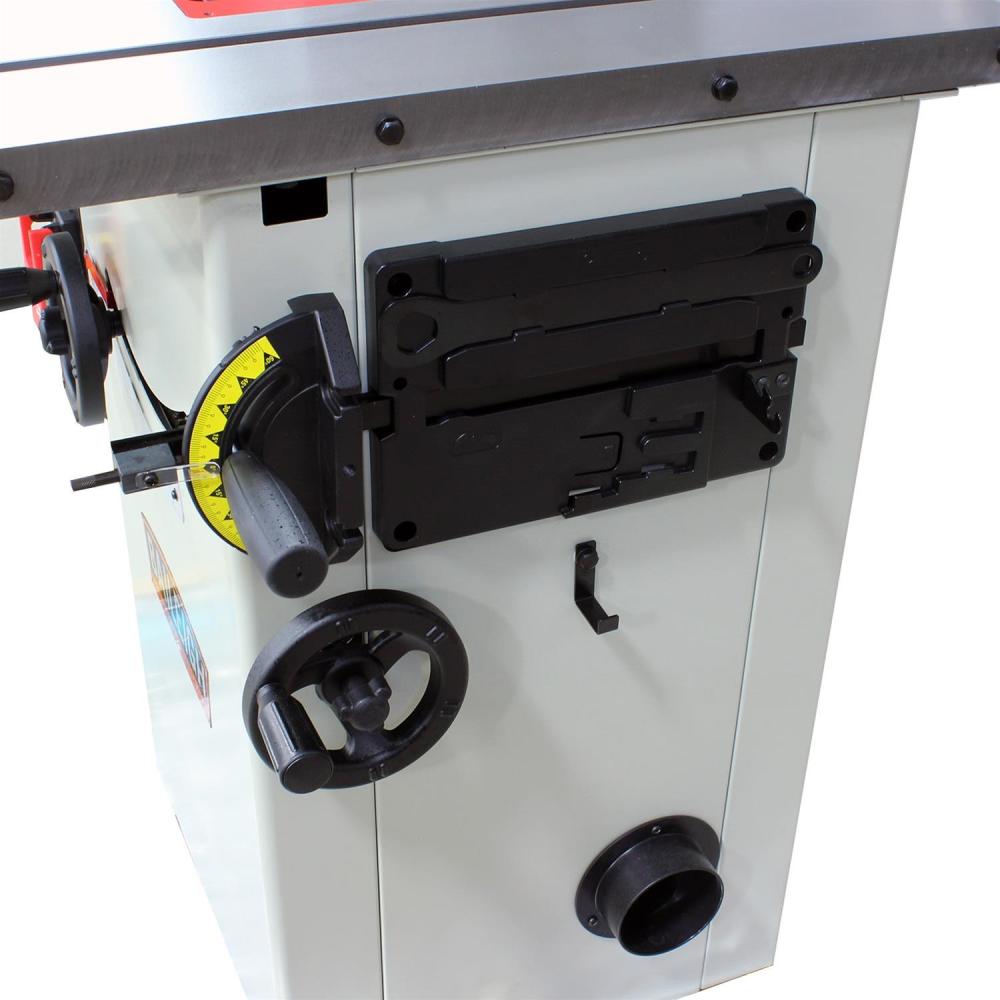

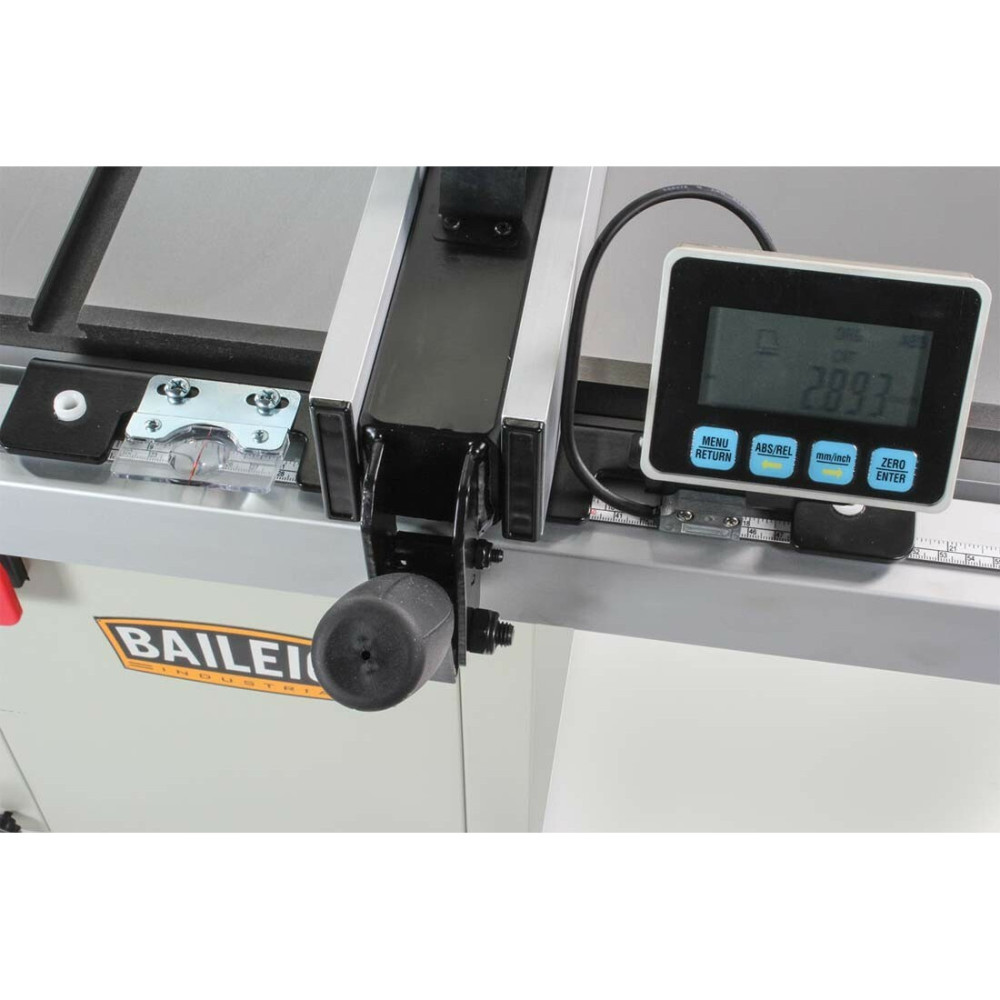

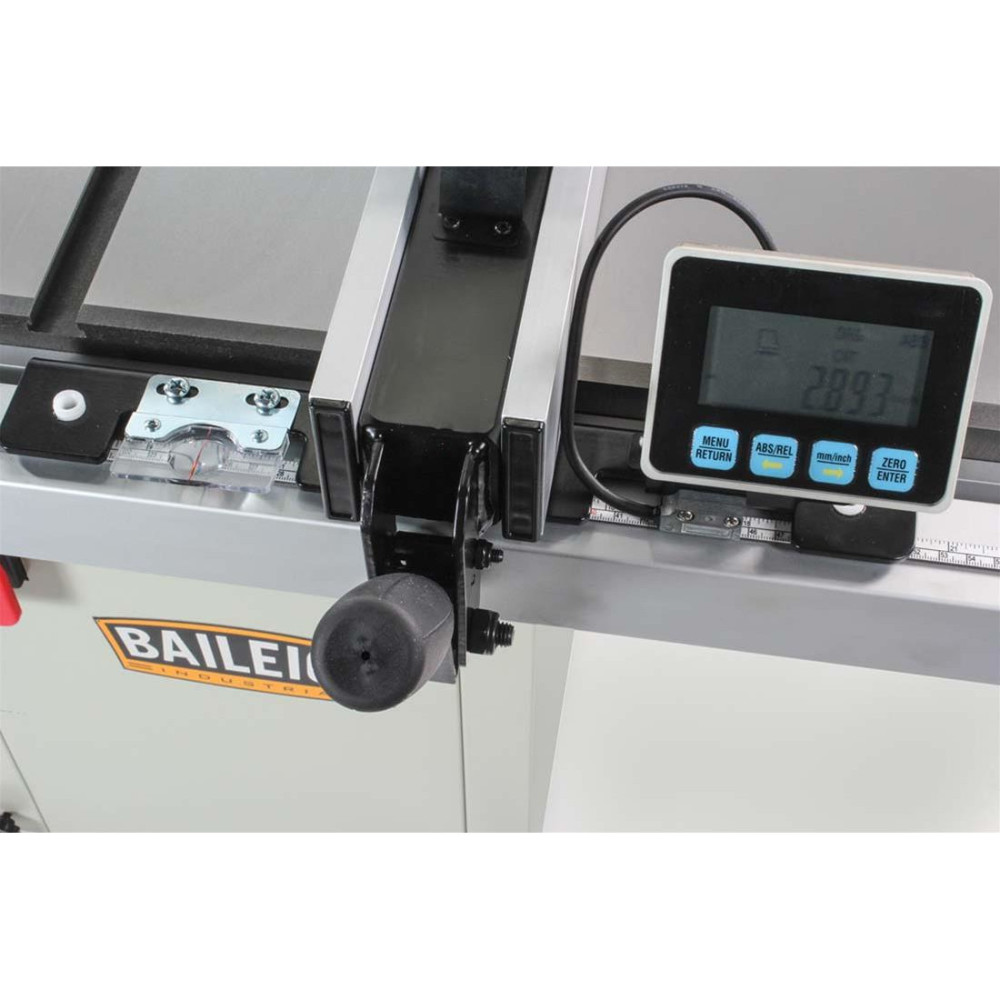

Durable rip fence incorporates a digital readout (DRO) for rip capacity, Just zero In. the DRO at the blade for convenient repeatability, save time and stress without second-guessing the length of a cut, plastic handwheels on the base for controlling the blade height and miter angle

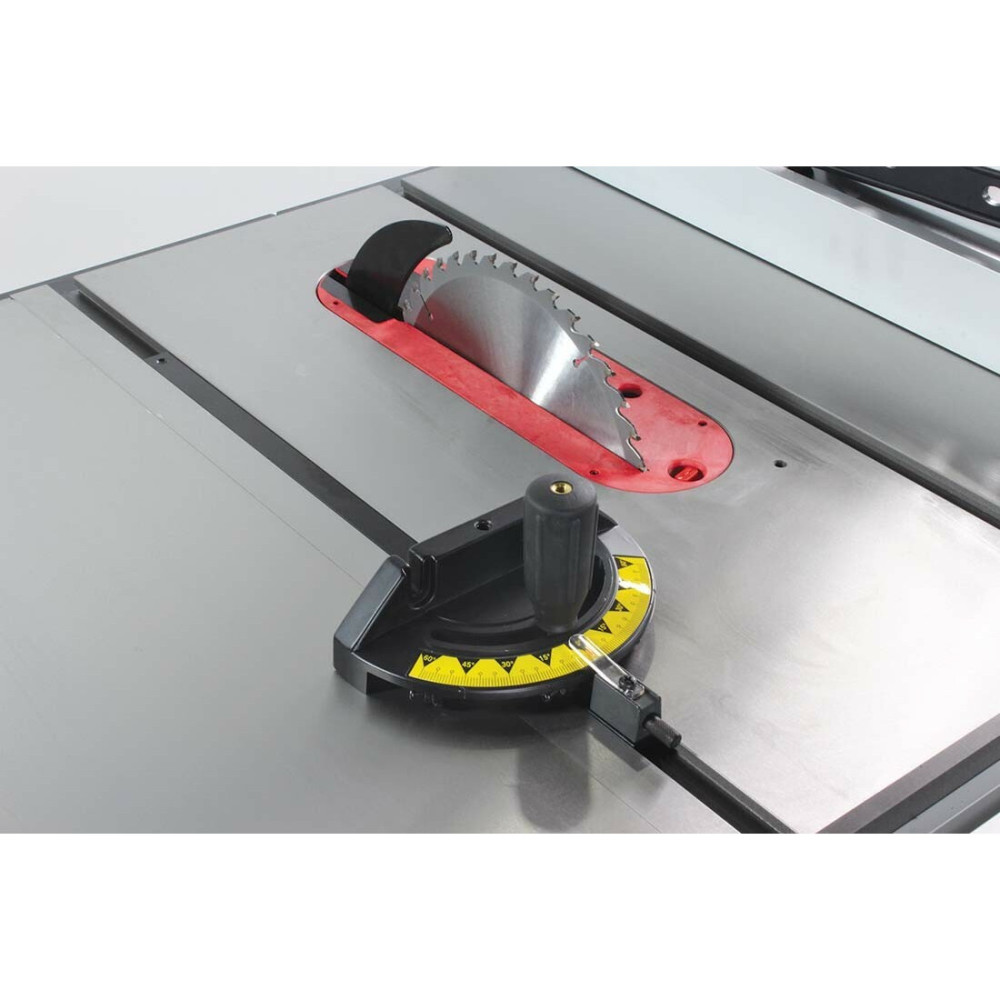

Includes miter gauge on the cabinet, trunnion fastened to the base minimizes vibrations and keeps machine noise within a safe decibel level, welded steel plate framework prevents wobbling and ensures accuracy, 4 In. dust collection port lets you hook up an extraction system

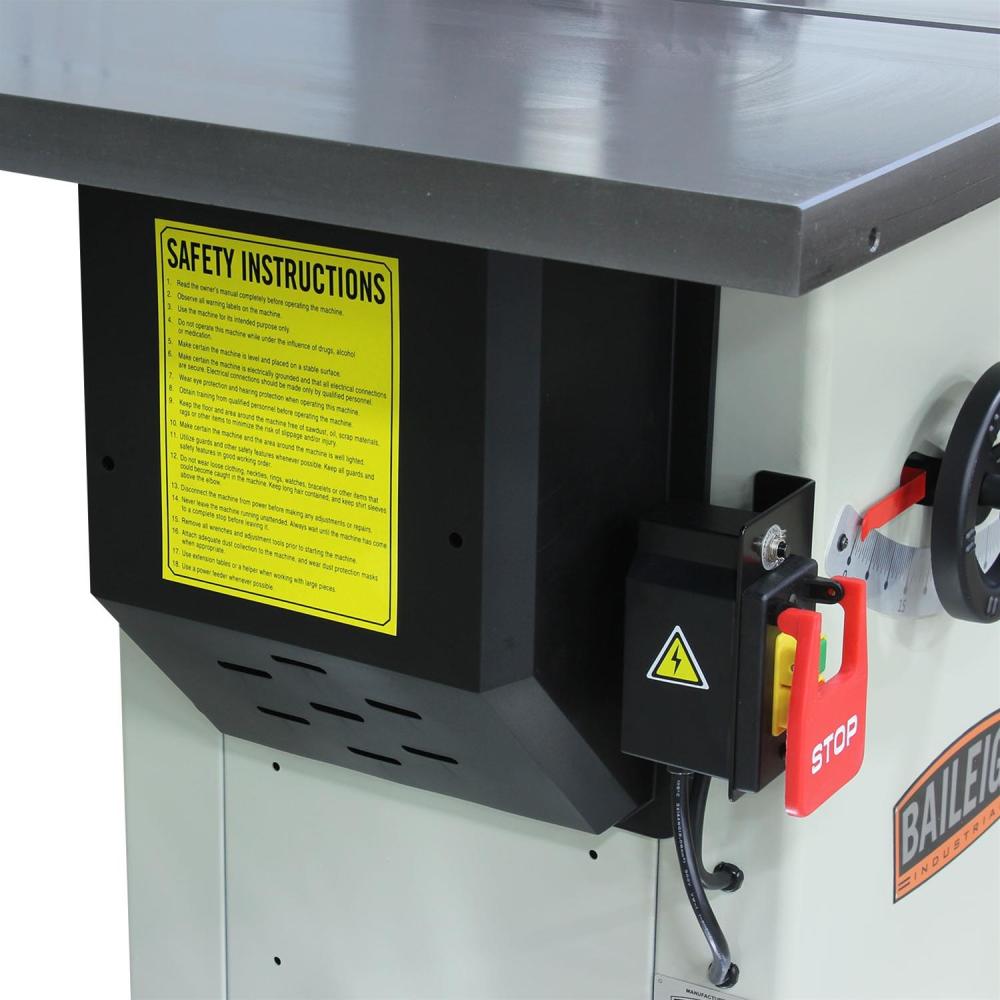

Caster wheels on the base allow for easy storage, just roll the table back against the wall of your shop whenever you’re not using it, CSA-approved safety features
Safety blade guard keeps wood fragments from flying and also helps to avoid kickback
Riving knife spreads wood as you cut
takes 2 people just a few hours to assemble the table and get it up and running
Recommended for: hobbyists, home shops, and weekend warrior In. woodworkers
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1020029
Amperage (A)
0.0
Assembled Weight (lbs)
260
Blade Speed (rpm)
4000
Caster Platform Included
Yes
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
Yes
Dust Blower
No
Dust Port
Yes
Dust Port Outside Diameter (in)
4
ETL Listed
No
Fence Included
No
Flesh Sensing System
No
Horsepower (hp)
1.75
Material
Cast Iron
Maximum Dado Diameter (In)
8
Maximum Dado Width (in)
0.8125
Miter Gauge
Yes
Package Contents
Table Saw, Miter Gauge
Package Depth
36
Package Height
98
Package Weight
260
Phase
1
Repetitive Cut Marking system
No
Spindle Lock
No
Table Length (in)
20
Table Material
Cast Iron
Table Width (in)
27
UL Listed
No
