Description

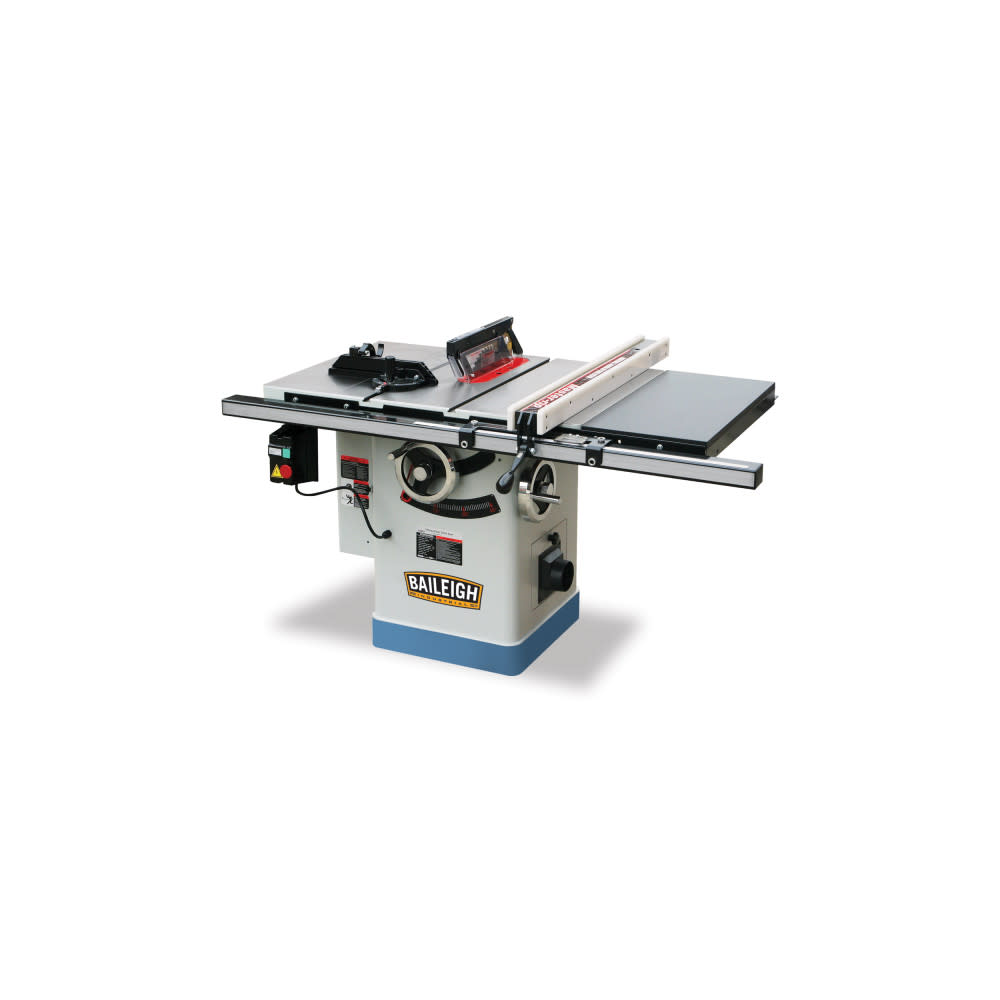

Baileigh TS-1040P-30 Professional Cabinet Table Saw 220V 10″
We designed this 550-pound cabinet saw for professional accuracy. The steel base and cast-iron table reduce vibrations and keep correct alignment, so you can make perfect joints.
Features
30 In. right-side rip capacity, (also available in a 50 In. rip model.), 3HP motor turns at 4300 Rpm, Runs on 220V 1 Phase power, so it will work in almost any shop, uses standard 10 In. blades with 5/8 In. arbor
Includes standard and dado inserts, 40 In. x 27 In. table, made of cast iron, with 30 In. extension boards, made of impregnated poly, help you handle large, awkward pieces, tabletop is webbed into the base to stay square and true, heat and moisture in your shop won’t warp it, wood glides across the ground and polished cast iron table surface, you can bring back the original smooth shine even after years of use

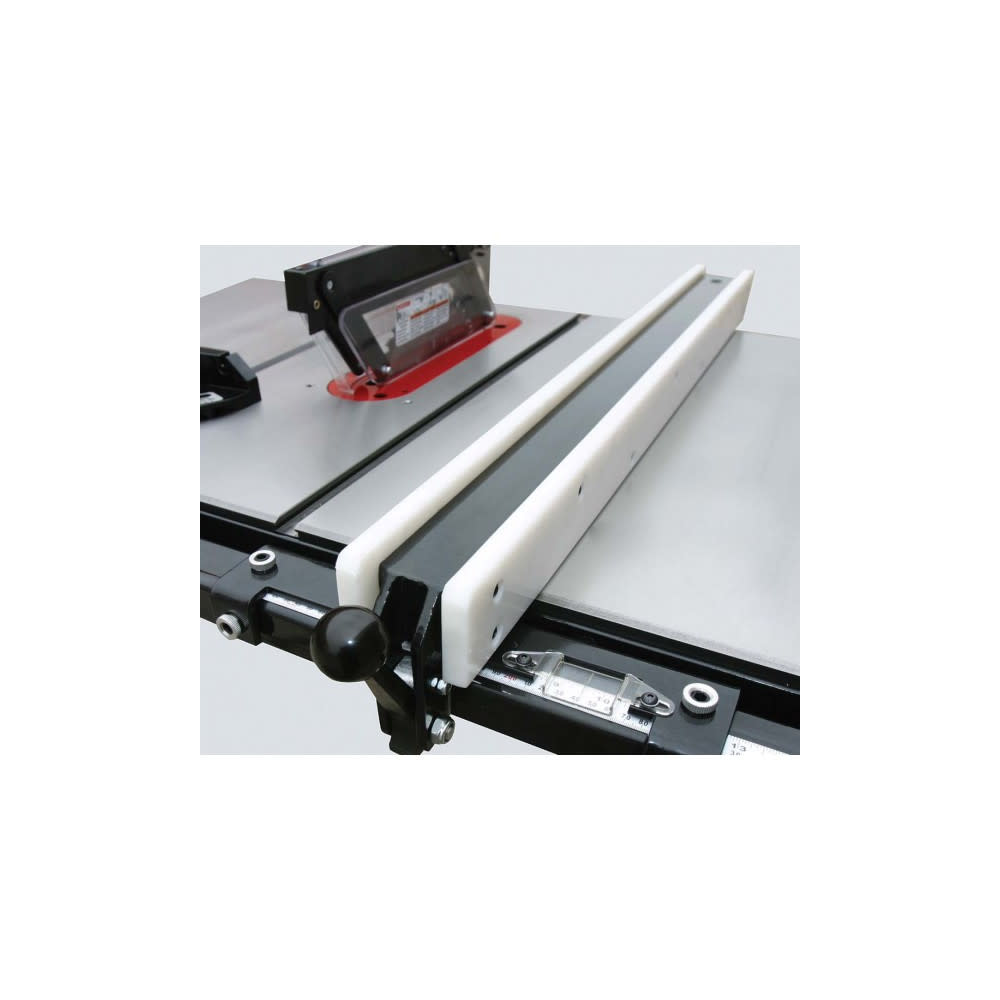

Rip fence made of heavy UHMW plastic makes it easy for you to slide wood, you can inexpensively replace the rip fence plastic-convenient if you drill into it while using a unusually-shaped jig, steel handwheels with locks on the base let you adjust the blade height and miter angle

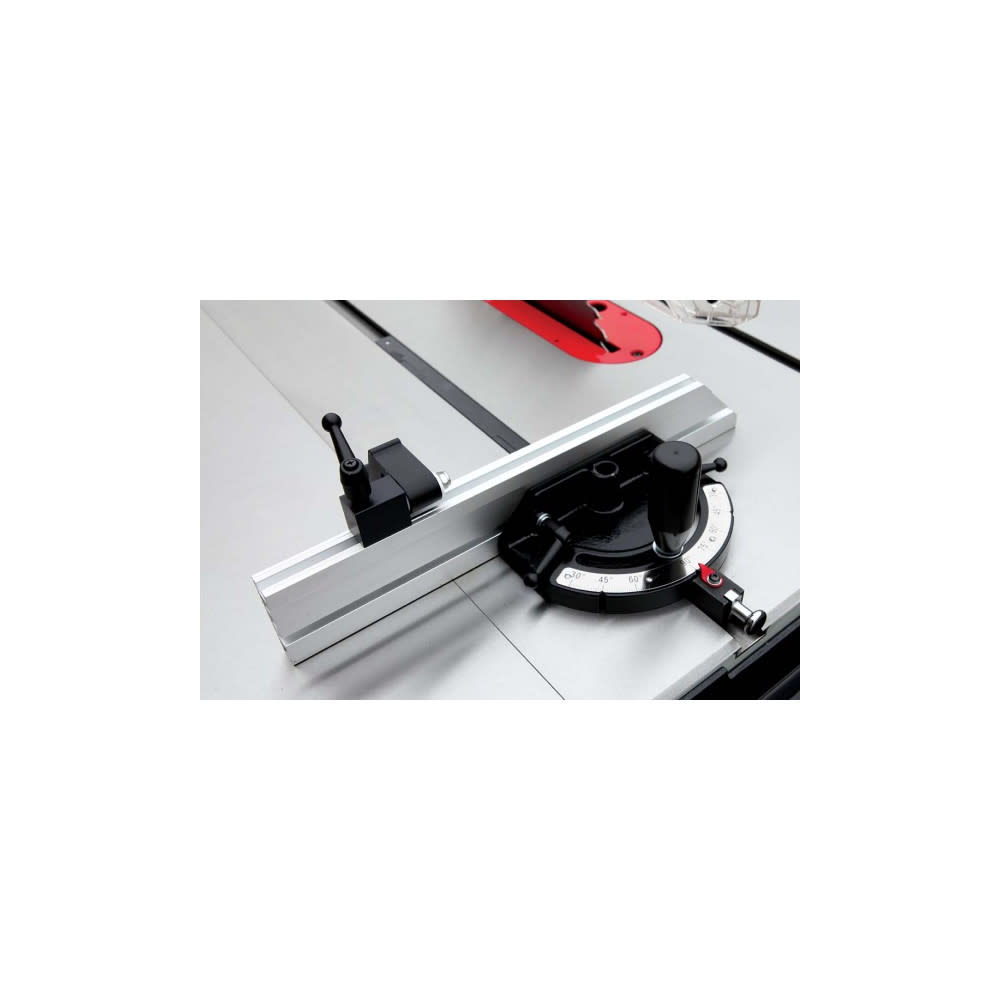

Comes standard with a miter gauge for repeatability
Trunnion attached to the base prevents the machine from wobbling and keeps noise within a safe decibel range
Rigid all-steel base keeps the saw stable and aligned, so the blade will cut correctly (without unintended movement or mitering)
4 In. dust collection port to hook up an extraction system and suck out sawdust

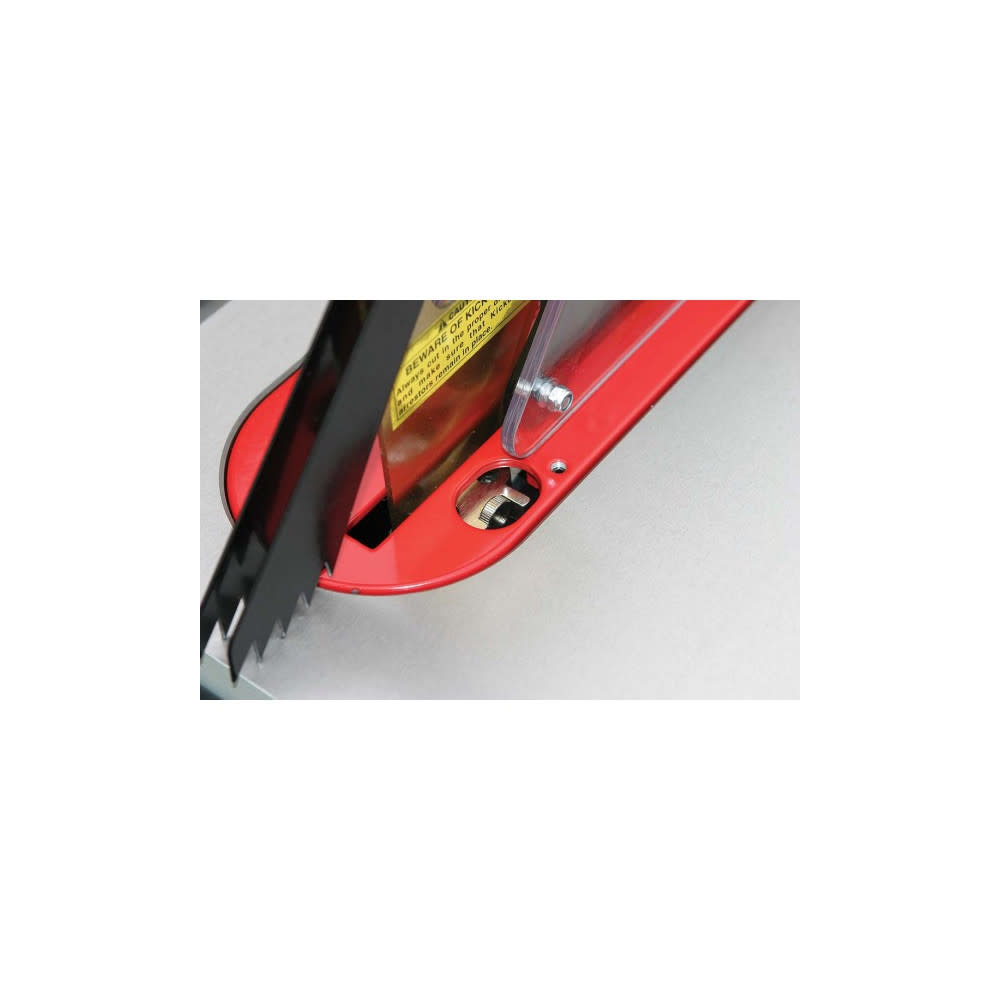

CSA approved, with safety features like an anti-kickback blade guard and a quick-release riving knife
Recommended for: Cabinetry, kitchen build-ins and shelving, furniture, live edge, or reclaimed lumber
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1229614
Amperage (A)
0.0
Assembled Weight (lbs)
550
Blade Speed (rpm)
4300
Caster Platform Included
No
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
Yes
Dust Blower
No
Dust Port
Yes
Dust Port Outside Diameter (in)
4
ETL Listed
No
Fence Included
No
Flesh Sensing System
No
Horsepower (hp)
3
Material
Cast Iron
Maximum Dado Diameter (In)
8
Maximum Dado Width (in)
0.8125
Miter Gauge
Yes
Package Contents
Table Saw, Standard and Dado Inserts
Package Depth
36
Package Height
98
Package Weight
550
Phase
1
Repetitive Cut Marking system
No
Spindle Lock
No
Table Length (in)
20
Table Material
Cast Iron
Table Width (in)
27
UL Listed
No
