Description

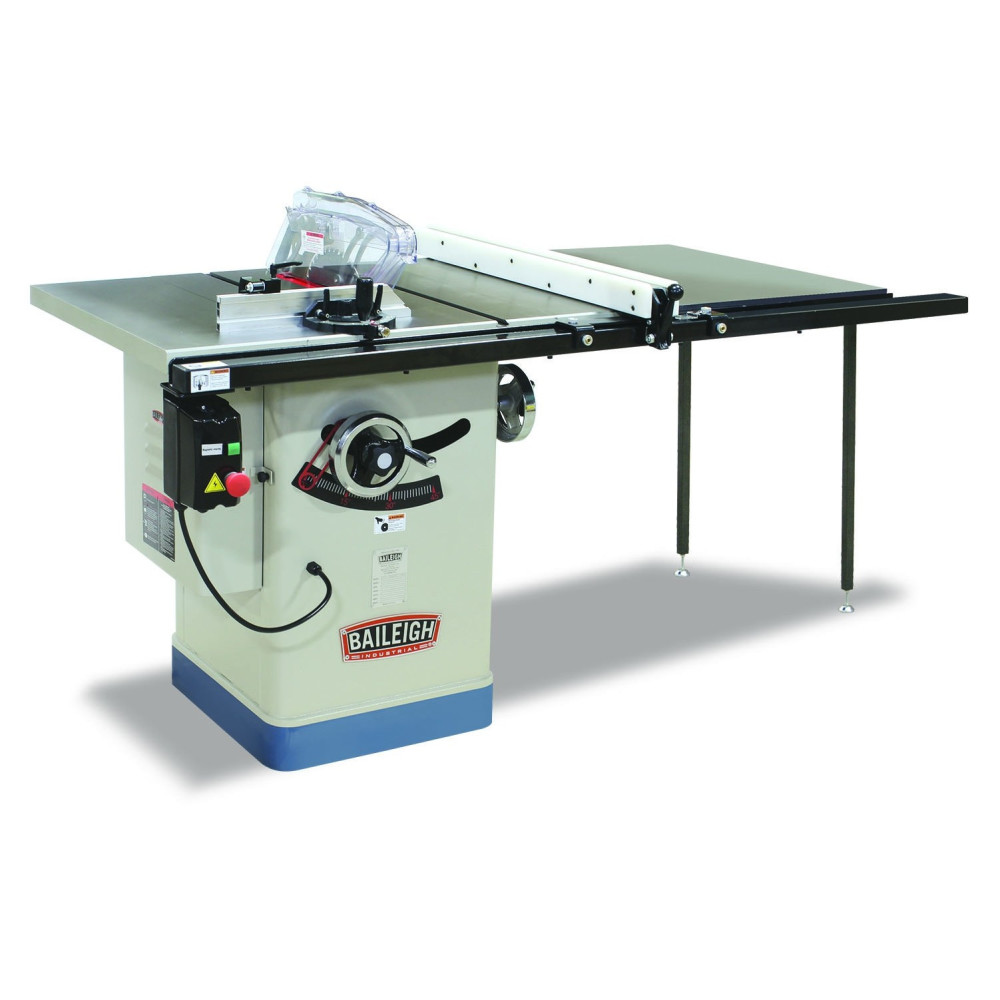

Baileigh TS-1040E-50 Entry Level Cabinet Table Saw 220V 10″
Cut with accuracy for an economical price with this entry level cabinet saw. The cast iron table and the steel base, fastened to the trunnion, keep vibrations down to a minimum.
Features

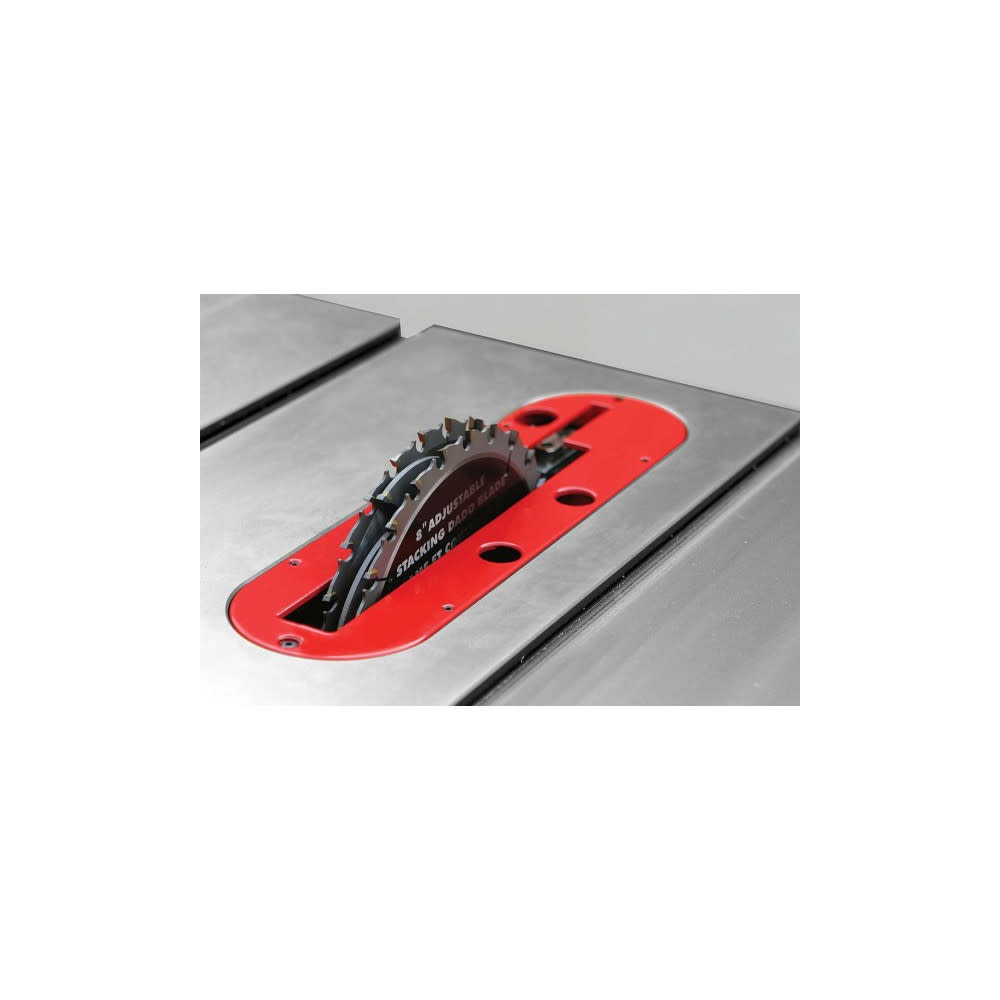

50 In. right-side rip capacity, entry level cabinet saw also available in a 30 In. rip capacity model, 2.5HP leeson motor turns the blade at 3850 Rpm, Runs on 220V 1 Phase power, uses standard 10 In. blades with 5/8 In. arbor, comes with both standard and dado inserts

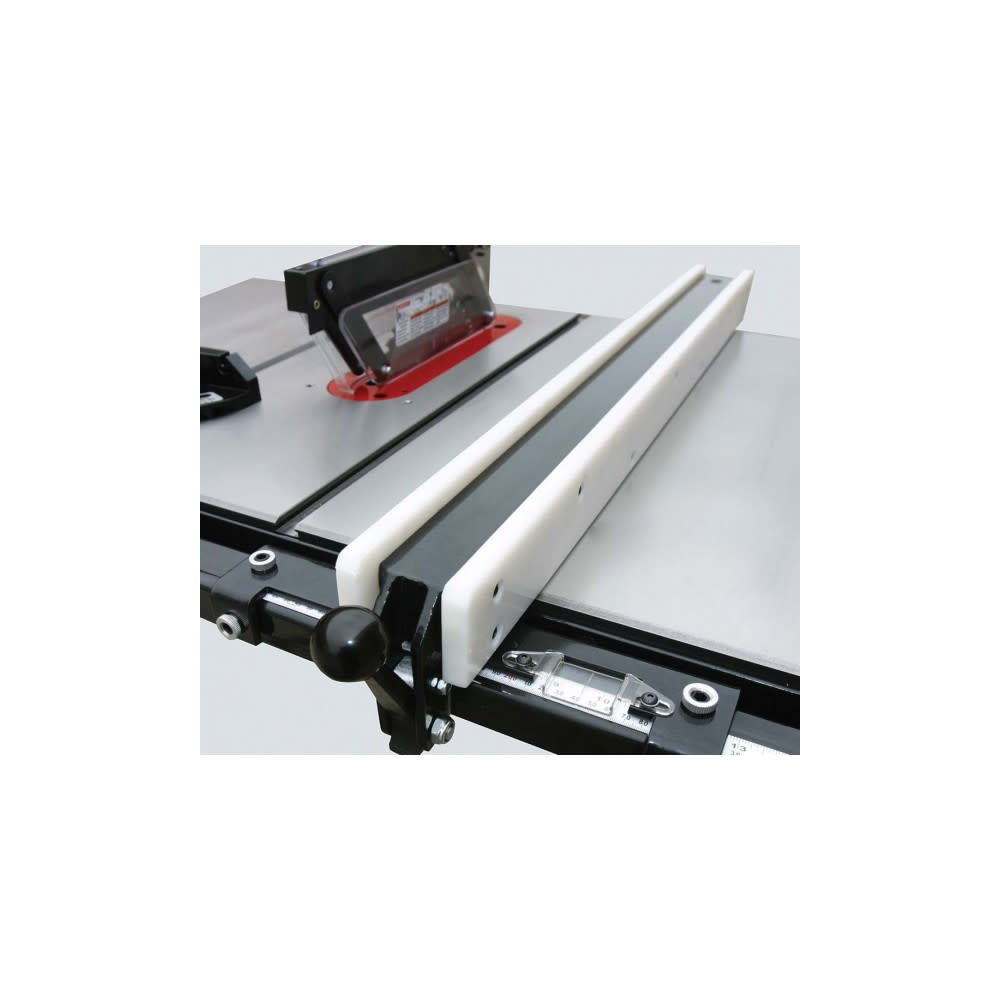

40 In. x 27 In. table and extensions made from precision-ground cast iron, table is webbed into the base with a crisscross pattern that prevents warping or shrinkage, the cast iron surface will remain true, extension boards help you cut materials that are big and tough to handle, heavy-duty hardened UHMW plastic rip fence makes it easy to slide material towards the blade
You can cheaply replace the rip fence if you drill into it (convenient if you use unusually-shaped jigs), designed with the trunnion attached to the base, so the machine won’t wobble or exceed a safe decibel noise range, attached trunnion also dampens noise to a safe decibel range, robust welded steel framework minimizes vibrations, so you don’t have to worry about the blade shifting back and forth with the table

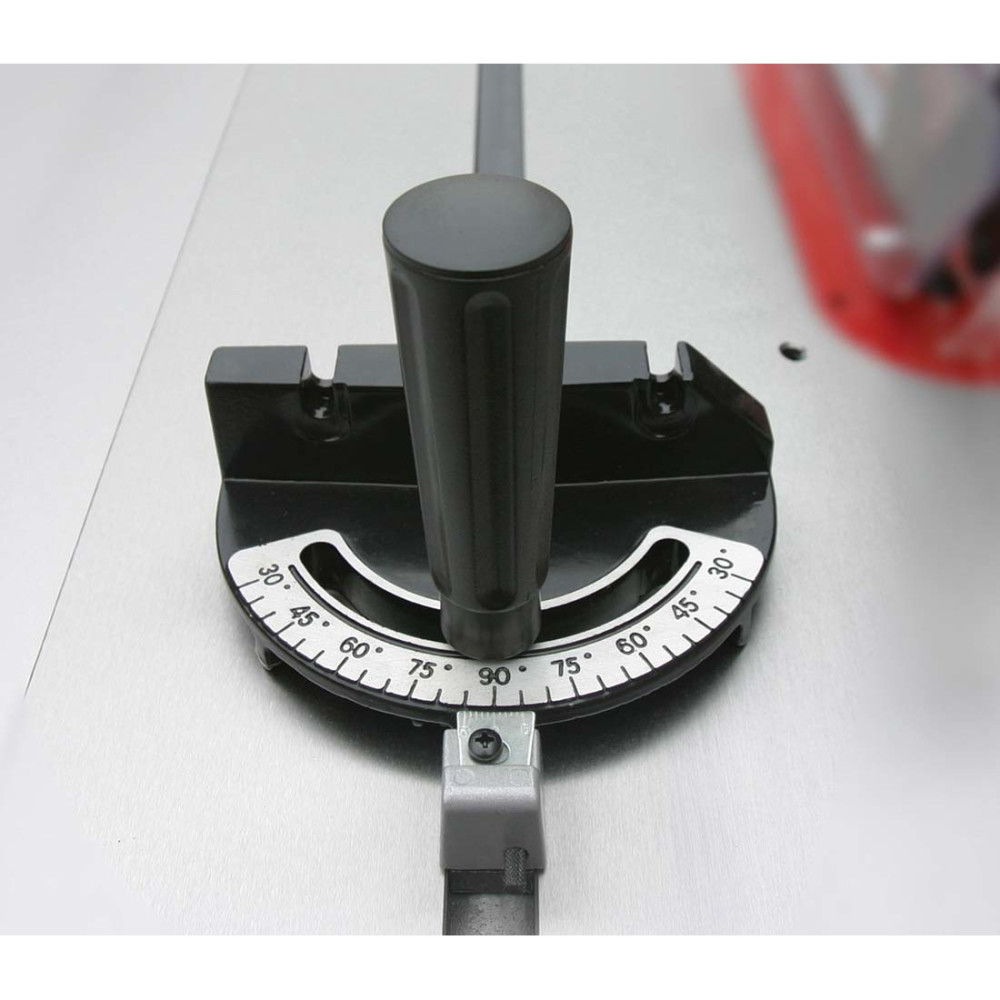

2 steel handwheels on the cabinet allow you to change the blade height and the miter angle, miter gauge located on base
4 In. dust collection port lets you hook up an extraction system
Slanted surface inside cabinet directs sawdust towards the port to eliminate build-up, CSA approved

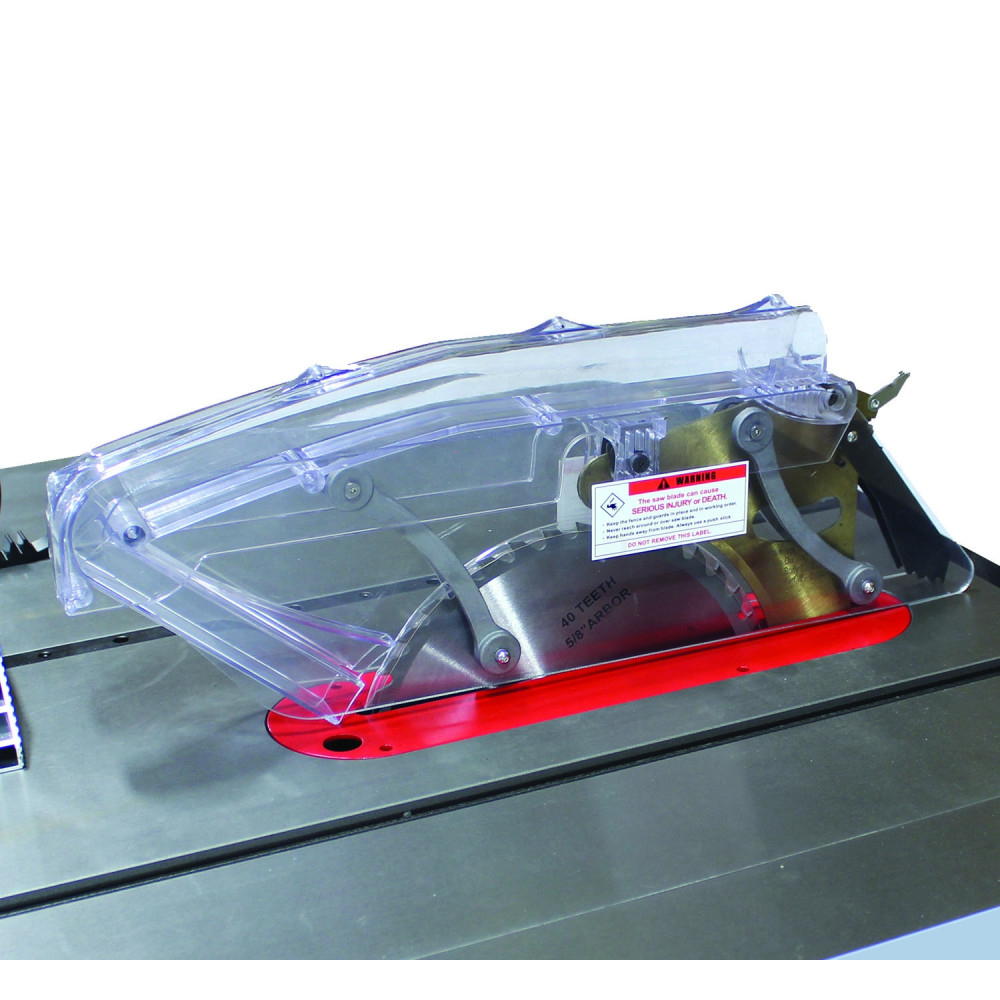

Safety guard on the blade has reverse teeth to prevent kickback
Riving knife spreads the wood as you’re cutting to avoid twisting or pinching
Recommended for: Small woodworking businesses that need a high-quality saw to use for a few hours a day
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1229613
Amperage (A)
1-30
Assembled Weight (lbs)
390
Blade Speed (rpm)
3850
Caster Platform Included
No
Cord Length (ft)
25/50/100
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
Yes
Dust Blower
No
Dust Port
Yes
Dust Port Outside Diameter (in)
4
ETL Listed
No
Fence Included
No
Flesh Sensing System
No
Horsepower (hp)
2.5
Material
Cast Iron
Maximum Dado Diameter (In)
8
Maximum Dado Width (in)
0.8125
Miter Gauge
Yes
Package Contents
Cabinet Saw, Standard and Dado Inserts
Package Depth
36
Package Height
98
Package Weight
390
Phase
1
Repetitive Cut Marking system
No
Spindle Lock
No
Table Length (in)
20
Table Material
Cast Iron
Table Width (in)
27
UL Listed
No
