Description

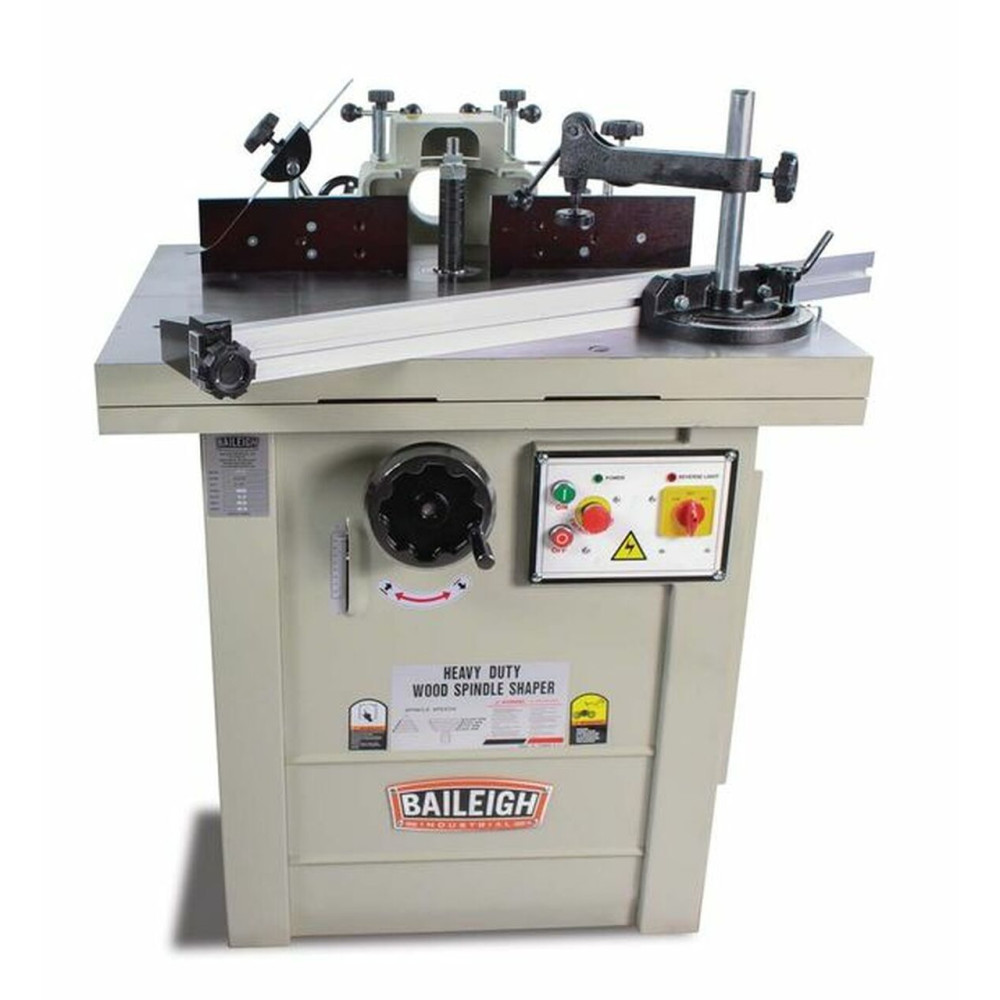

Baileigh SS-3528-S Spindle Shape with Sliding Table 220V 1 Phase
The SS-3528-S sliding table spindle shaper from Baileigh Industrial is based on the SS-3528 and a great addition to any shop. This is the first in the 3528 series that offers a sliding table to reduce material marring from pushing through the spindle. The SS-3528-S spindle shaper is powered by a 5HP 220V 1 Phase motor that offers four spindle speeds. Speeds are changed by selecting the appropriate belt for the speed desired. Speeds offered are 3600, 5100, 8000, and 10000 Rpm. The SS-3528 includes 3 spindles, 3/4 In., 1 In. and 1-1/4 In. all with corresponding inserts.
Features
The precision machined 28 In. x 35 In. sliding table has a working height of 35 In., making it very comfortable to work on

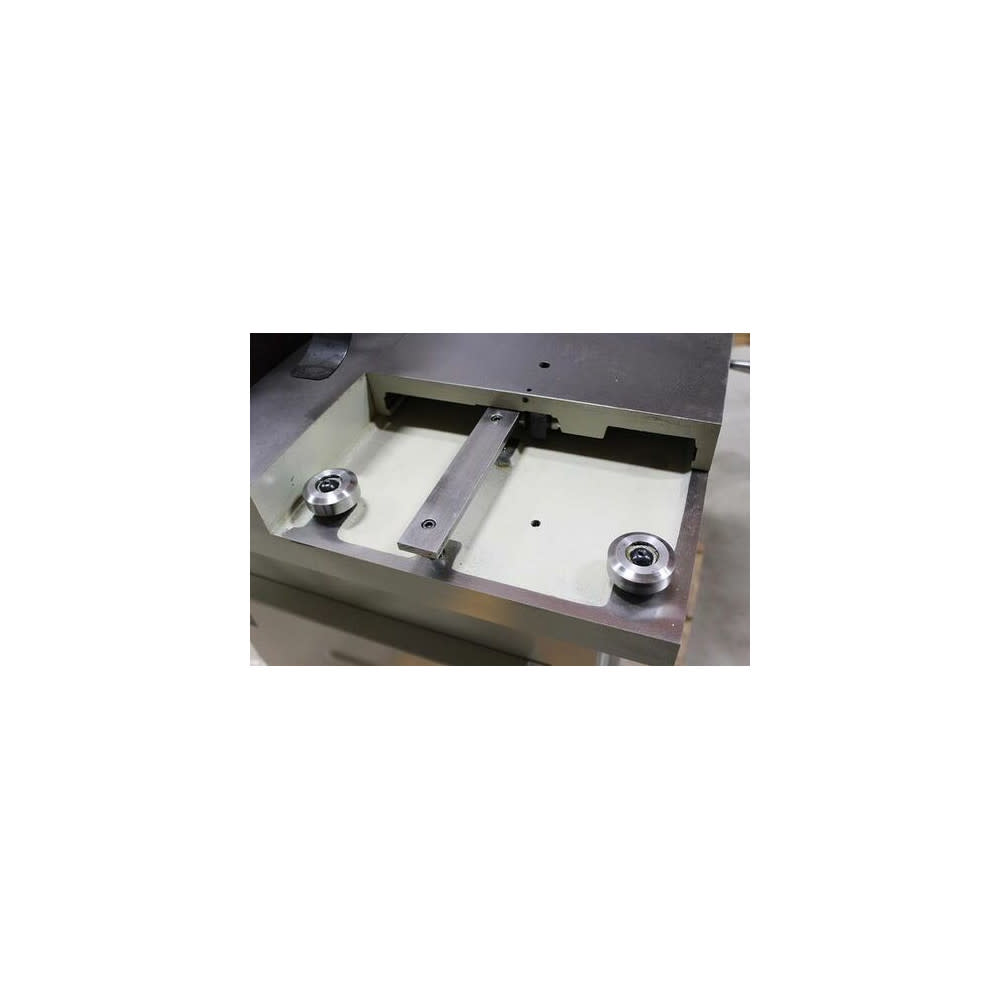

The sliding function is handled by heavy duty roller bearings for smooth action

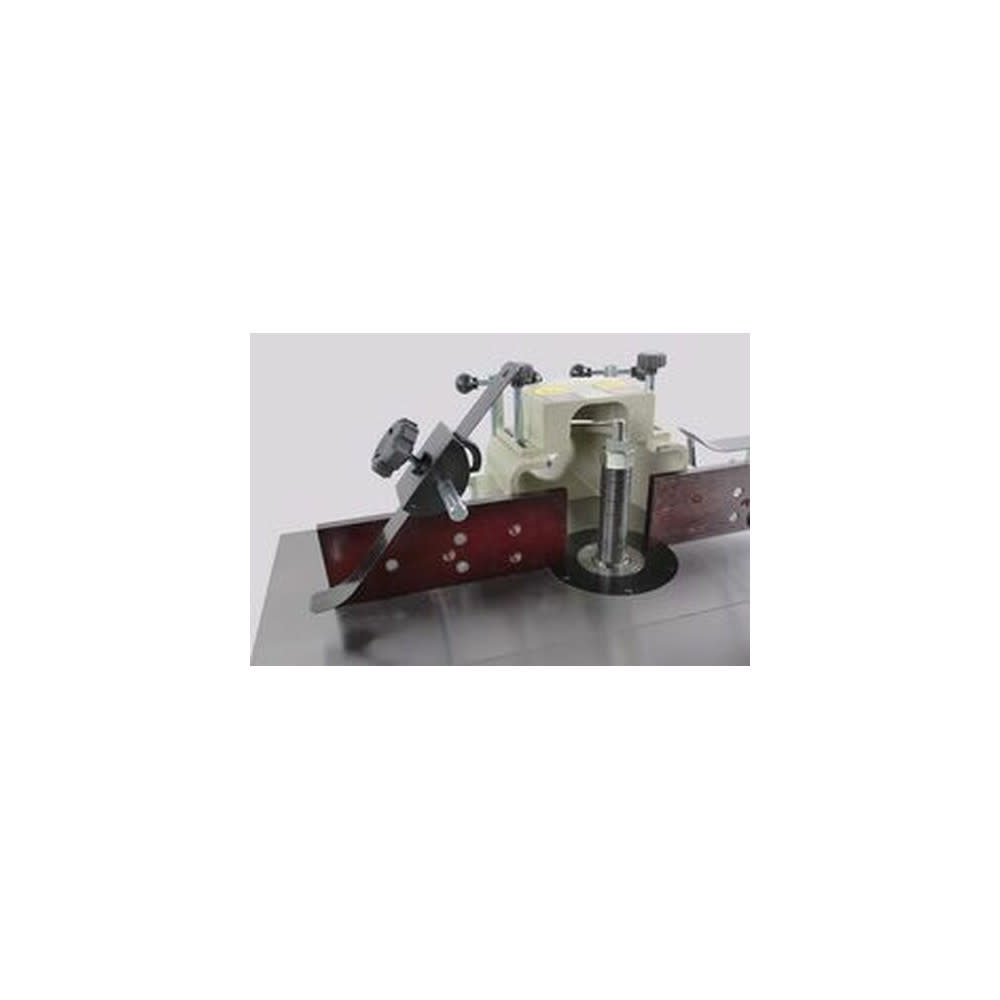

Its also comes with all table hardware and fences for accurate placement of material and even an angel miter gauge
A 4 In. dust port is also standard
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1007610
Amperage (A)
0.0
Assembled Weight (lbs)
850
Country of Origin
Taiwan
Dust Collection
Yes
Dust Port
Yes
Dust Port Outside Diameter (in)
4
Horsepower (hp)
5
Micro Adjust Fence
Yes
Package Contents
Spindle Shape with Sliding Table, (3) Spindles, 3/4 In., 1 In. and 1-1/4 In. All with Corresponding Inserts
Package Depth
12.34
Package Height
12.34
Package Weight
850
Phase
1
Spindle Speed High (rpm)
10000
Spindle Speed Low (rpm)
3600
Table Length (in)
35.5
Table Width (in)
28
Variable Speed
Yes
