Description

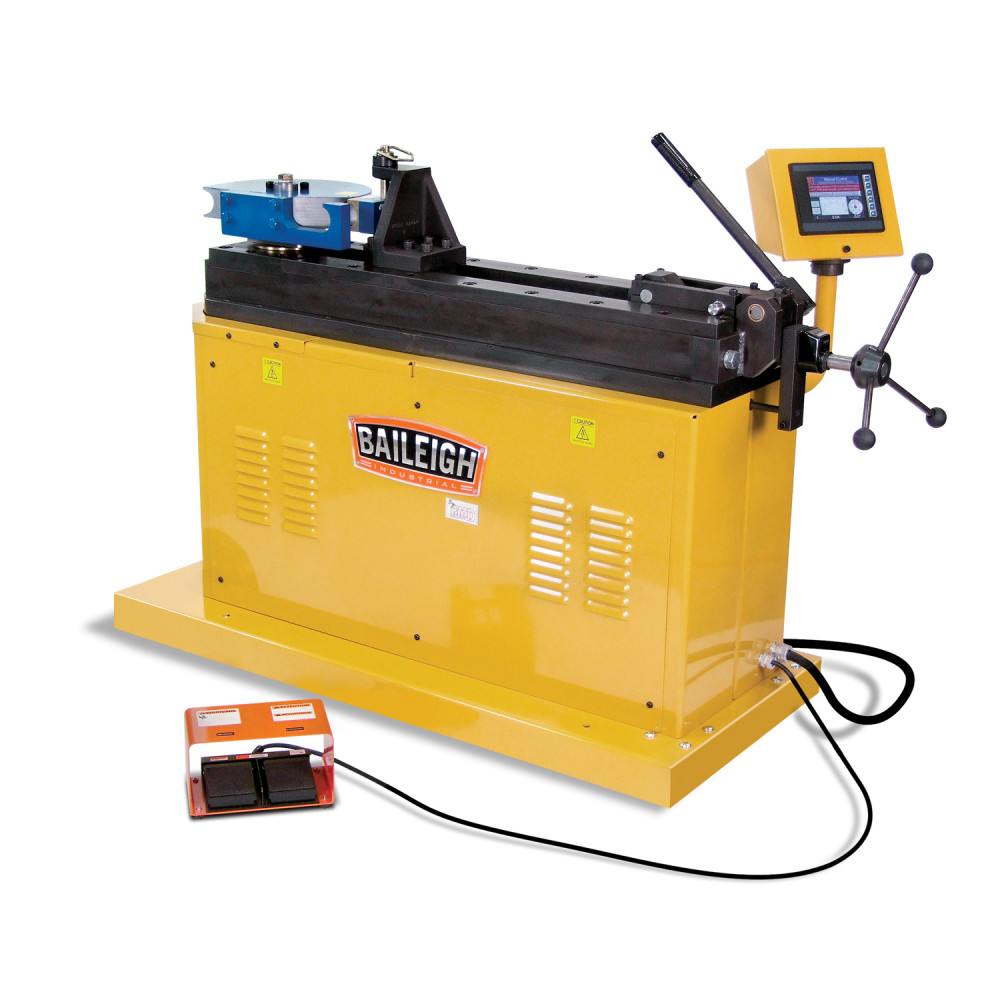

Baileigh RDB-350-TS Rotary Draw Tube and Pipe Bender Programmable

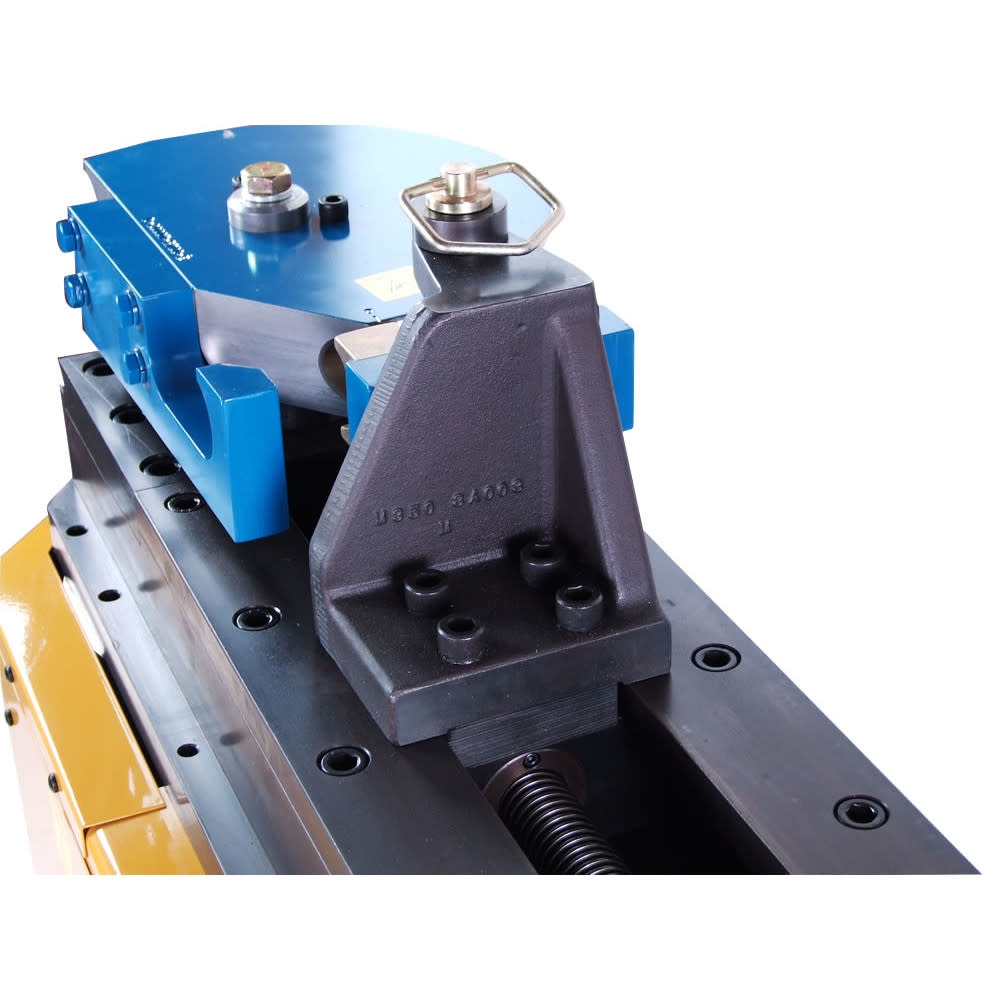

This tubing bender for sale will stand up to the rigors of any shop and save you time. The RDB-350-TS industrial tubing bender bends 180 Deg in 16 Sec and its quick-release die system speeds up production.
Features
Capacity of 2.5 In. schedule 40 pipe and 3 In. tube with 0.187 In. thickness wall
24 In. centerline radius maximum
Bends to 360 Deg in one shot, both left and right
You can program the desired angle, material spring back, and bend speed for easy repeatability
Programmer can also keep track of rotational orientation

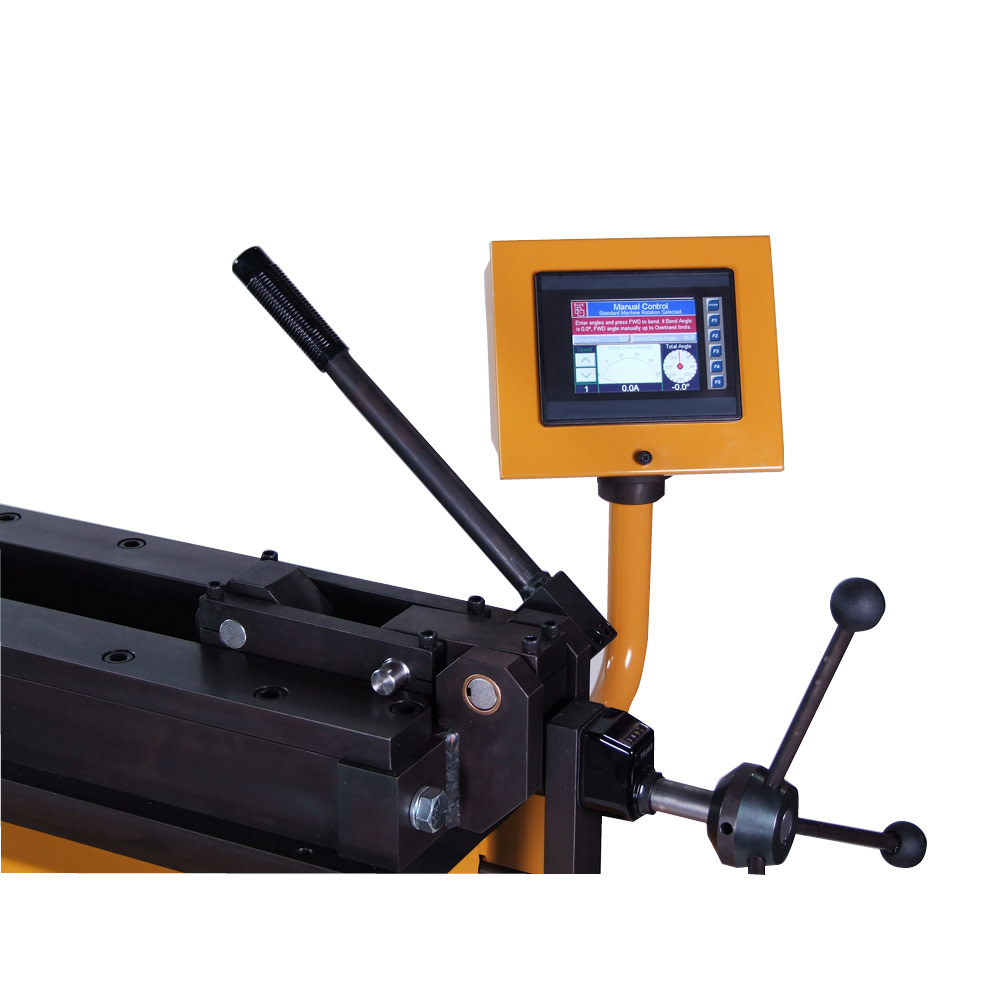

Touchscreen controller designed for user-friendly programming
320 Deg rotation of the controller lets you operate RDB-350-TS from any side of the machine
Internal memory can store up to 170 programs of 10 bends per program
Unlimited program storage/backup via the micro SD port (standard 2CB SD card)
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1006817
Assembled Weight (lbs)
1435
Country of Origin
United States
Maximum Pipe / Tube Diameter (in)
2.5 Pipe/3 Tube
Minimum Pipe / Tube Diameter (in)
0.24
Package Contents
Rotary Draw Bender
Package Depth
80
Package Height
78
Package Weight
1435
