Description

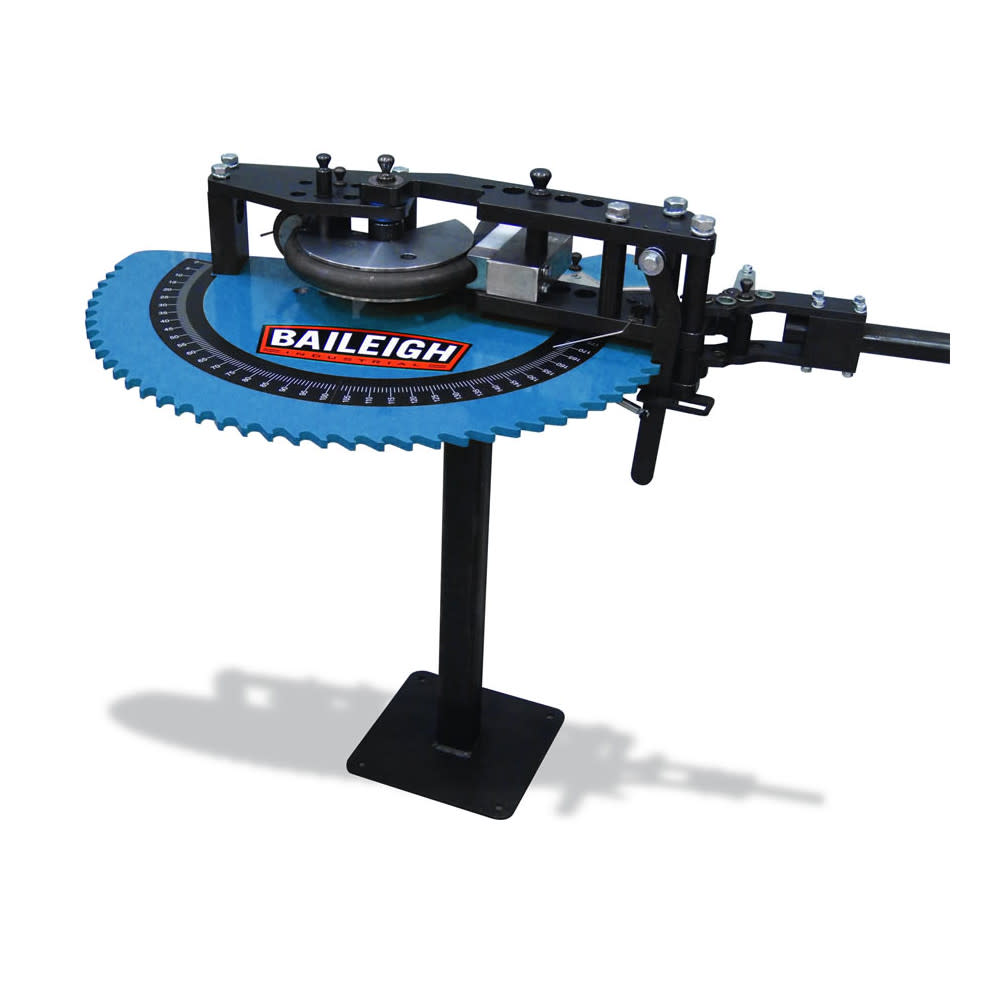

Baileigh RDB-050 Rotary Draw Bender Manual

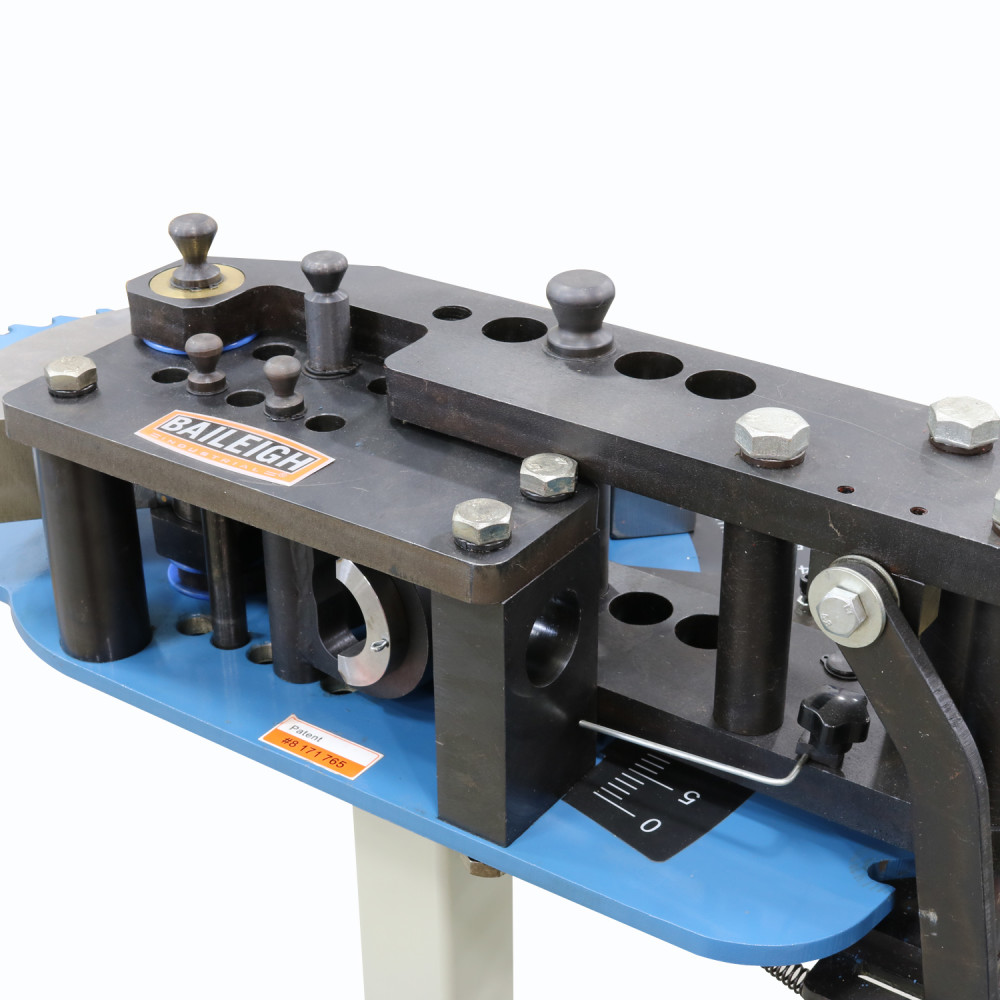

Need an affordable but powerful bender with enough capacity for almost about any chassis fabrication shop? Baileigh’s patented RDB-050 manual tube bender is revolutionary in function, capacity, and efficiency.
Features
Tackles up to 2.5 In. OD mild steel with a wall thickness of 0.12 In. and 2 In. OD chrome moly with a wall thickness of 0.12 In.
Speed 1 produces 4 Deg per pull, This speed has the most torque, suitable for bending 2 In. OD chrome moly or 2.5 In. OD mild steel
Speed 2 produces 8 Deg per pull for intermediate materials
Speed 3 produces 12 Deg per pull for lighter gauge materials
Bends up to 200 Deg in one shot without you needing to stop and reset the machine

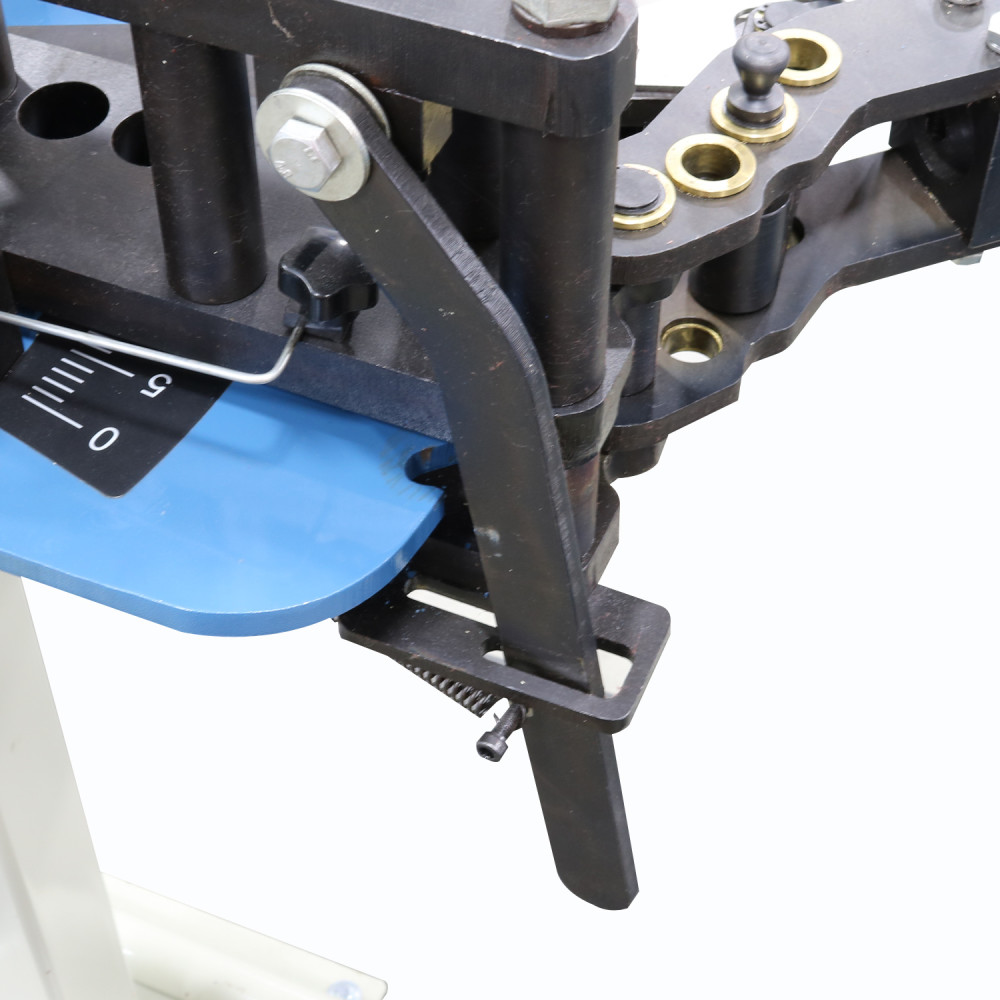

Anti-spring back mechanism holds each bend in place as the operator ratchets forward
No assembly or disassembly needed to produce a bend

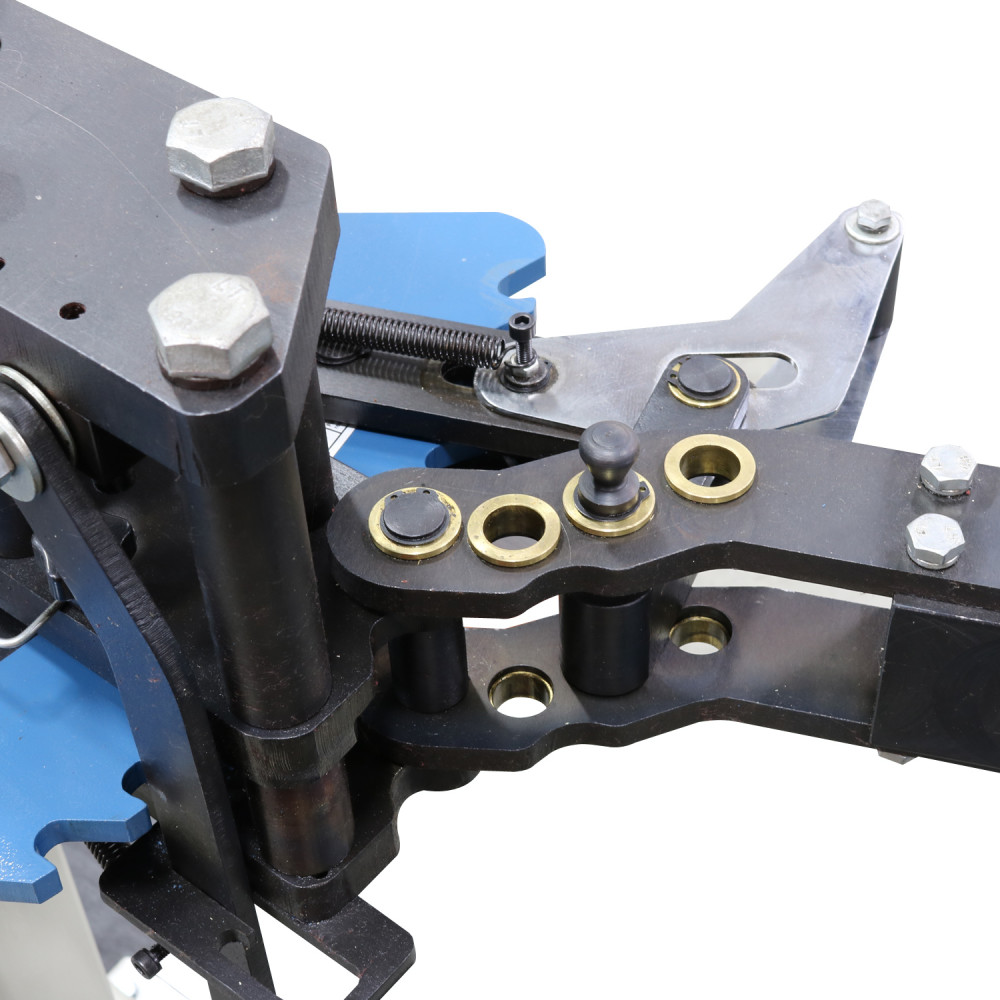

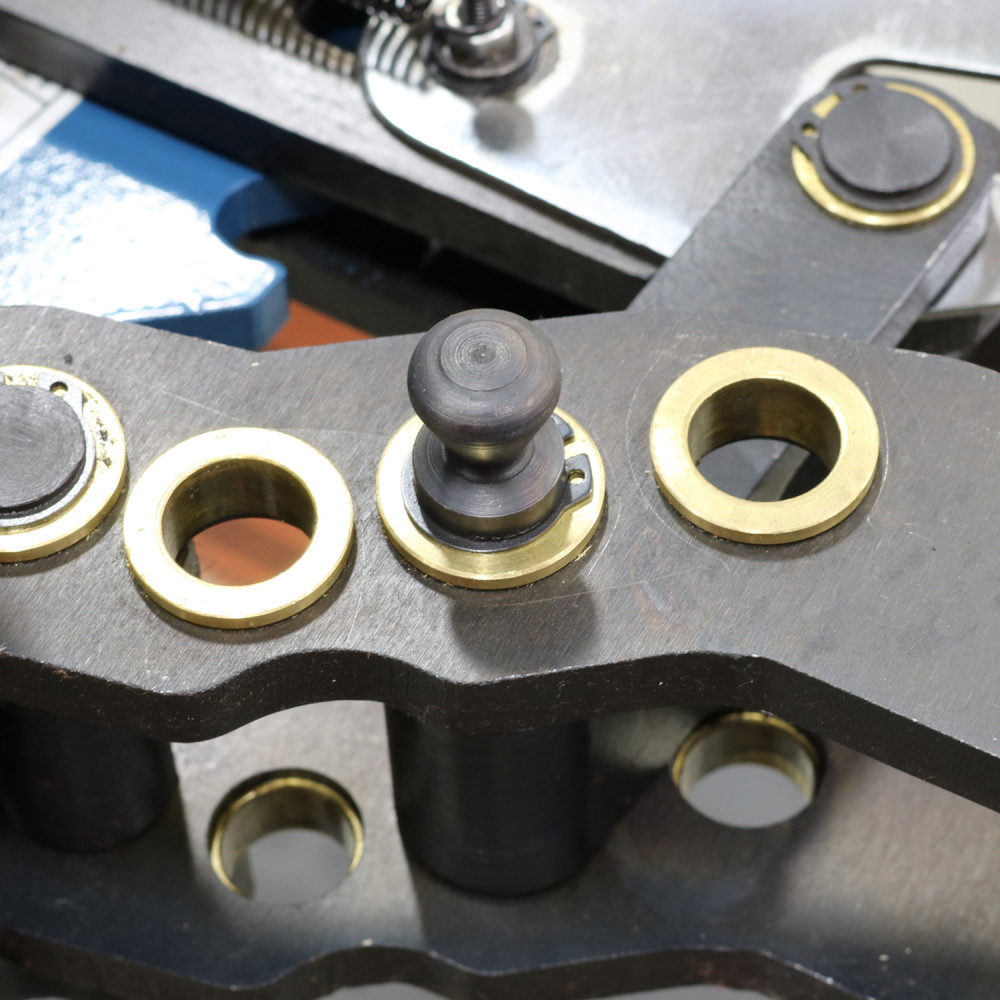

All pivot points use aluminum bronze bushings and thrust washers for long machine life

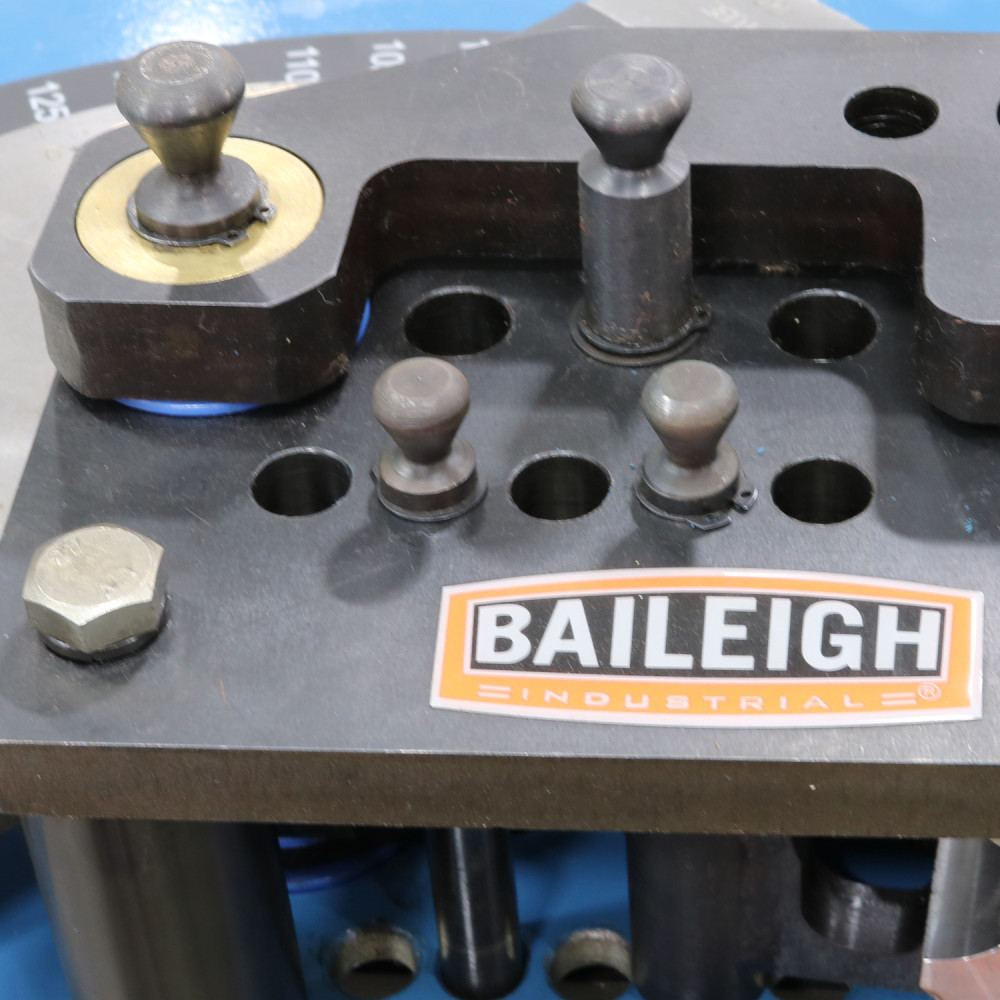

Quick-release hook arm inserts assist when you’re changing over the machine to a different size of tubing, You can do a complete changeover in 1 minute or less
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1006768
Assembled Weight (lbs)
290
Country of Origin
China
Maximum Pipe / Tube Diameter (in)
2.5
Minimum Pipe / Tube Diameter (in)
0.75
Package Contents
Tube Bender, Stand, Bend Handle and Degree Dial
Package Depth
18
Package Height
36
Package Weight
290
