Description

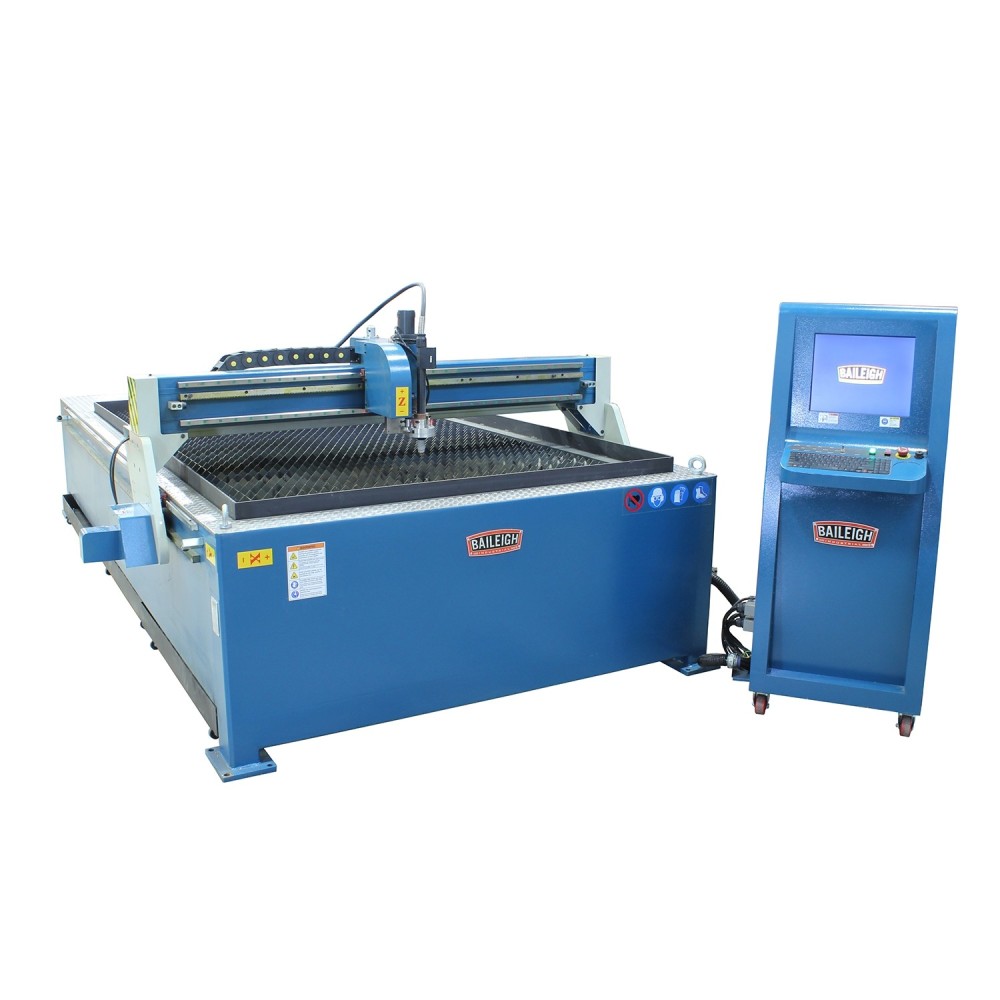

Baileigh PT-105HD-W Industrial CNC Plasma Cutting Table
Our PT-105HD-W includes a water bath and has the structural strength to handle 5 In. x 10 In. sheets. Automatic height detection is ideal for production runs. It arrives nearly fully assembled and comes with software.
Features
Includes integrated water bath for cooler cutting and less airborn mess

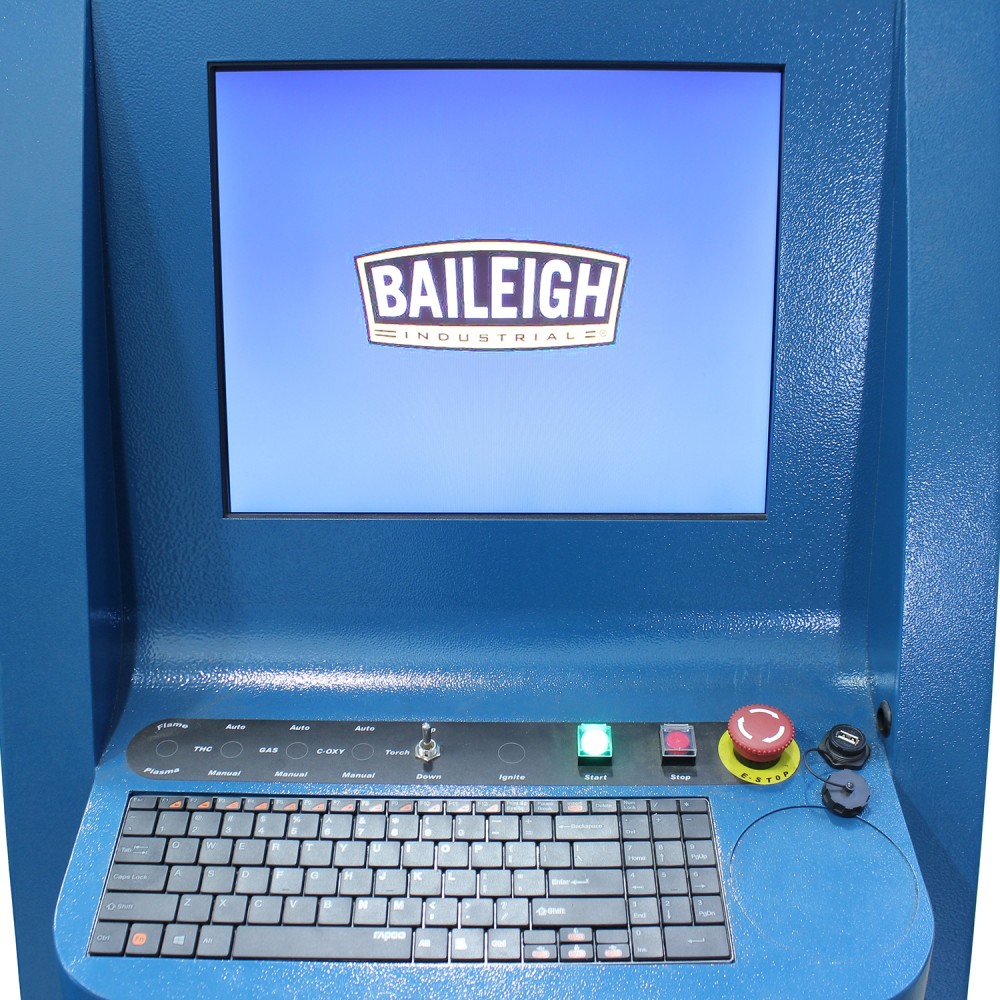

Control the X, Y, and Z axis movement from the sturdy podium with large console screen and keypad
Includes easy-to-learn design software that you can load into any basic PC
Console offers a pre-loaded library of shapes that you can resize and alter at the table – without a computer
Automatic height detection on the Z-axis makes perfect cuts in corrugated or uneven materials
Panasonic® brushless servo motors, controlled by Panasonic® servo motion controllers, drive the gantry
Industrial-grade gantry travel system for the X, Y & Z axis made from extremely rigid structural steel
Gantry can move out of the way for a full 10 Ft. sheet during loading, minimizing the chance of machine damage
High gantry (one of the highest in the industry) lets you clearly see its movement for better adjustment and control
Baileigh PT-105HD-W 220V 8A 1 Phase 60HZ 60 In. x 140 In. Cutting Area 1 In. Mild Steel Capacity Industrial CNC Plasma Cutting Table
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1020720
Assembled Weight (lbs)
4620
Country of Origin
China
Dust Collection
Yes
Package Contents
(1) Plasma Cutting Table, (1) Bobcad-Cam Express Design Software
Package Depth
75
Package Height
180
Package Weight
4620
Table Length (in)
140
Table Width (in)
60
Welder / Cutter Type
Plasma Cutter CNC
