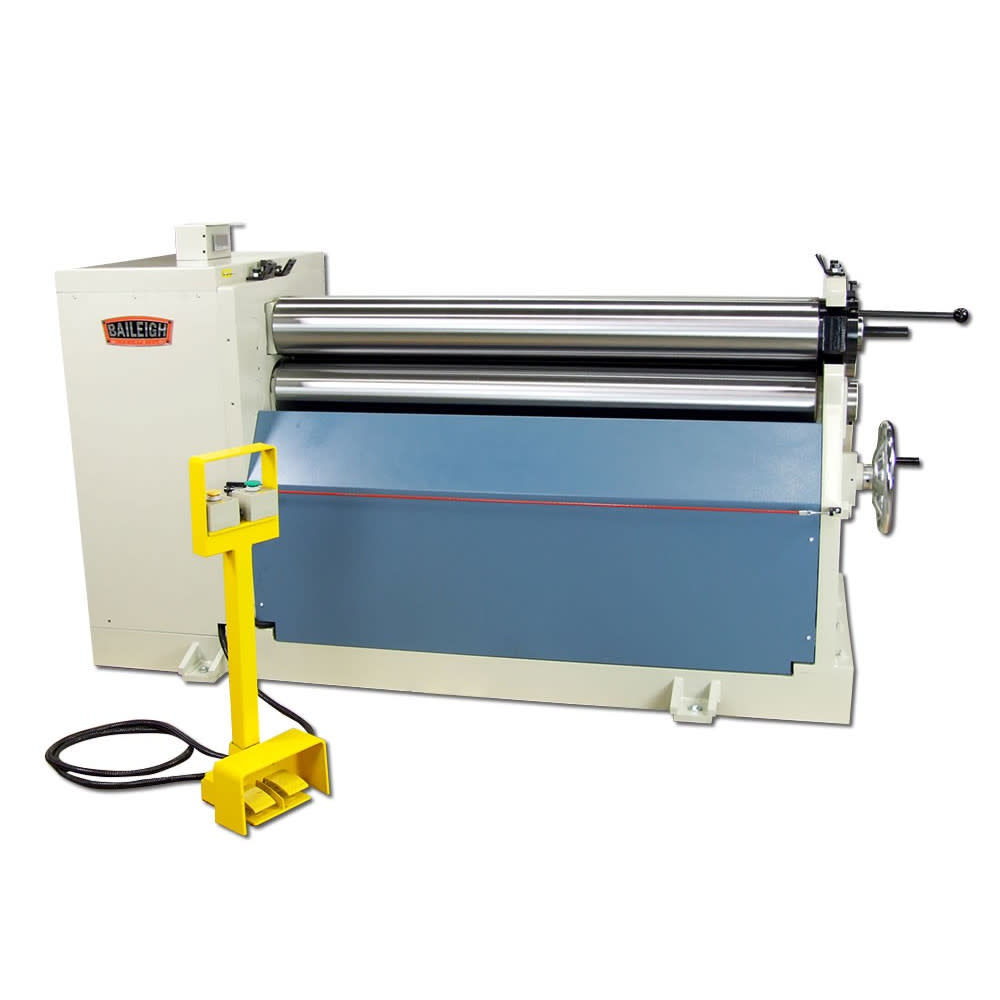

Baileigh PR-503 Electric Hydraulic Plate Roll Machine
A true workhorse and a staple of Baileigh’s plate roll line, the PR-503 was built for small to medium fabrication shops. Its welded steel frame maintains accuracy.
Features
Maximum 61 In. forming width
Rolls up to 3 gauge (1/4 In.) mild steel sheet metal across its full width
5HP motor runs on 220V 3 Phase power
3 driven rolls let you shape more material faster and increase productivity

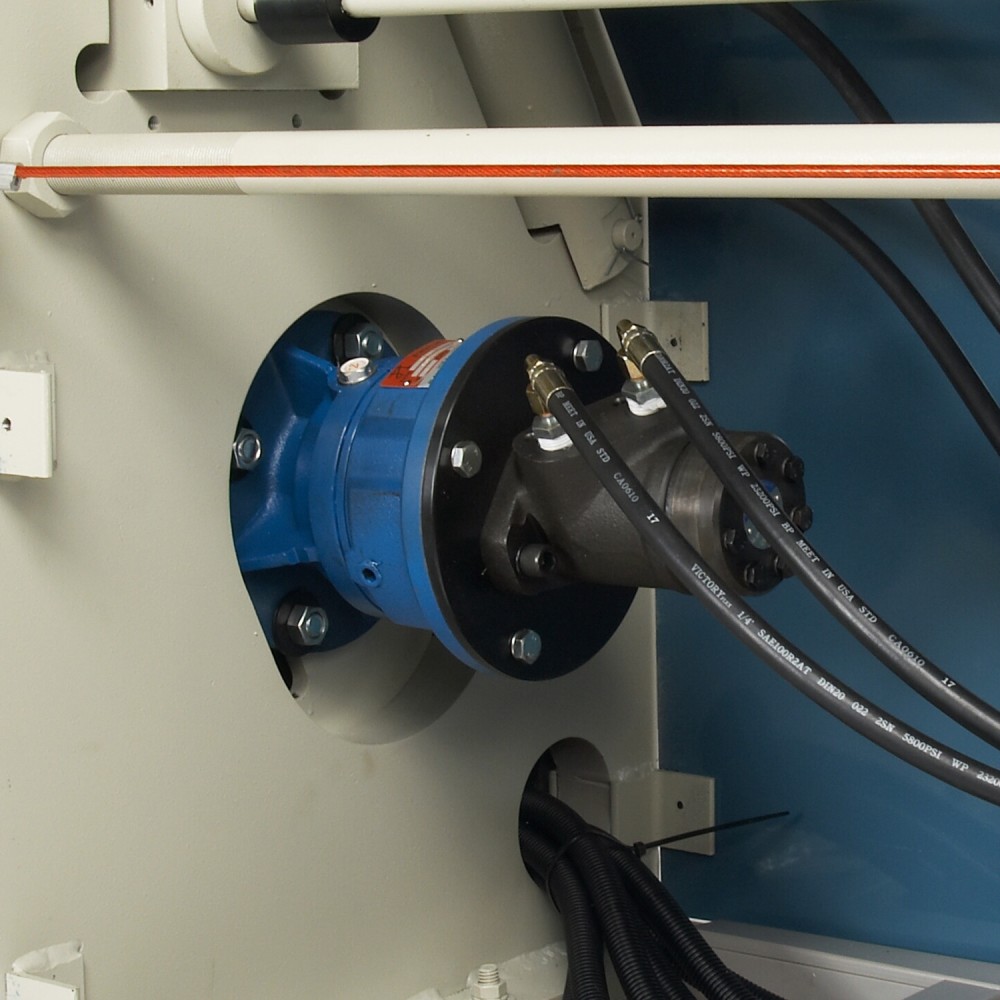

Completely hydraulically driven for durability and reliability

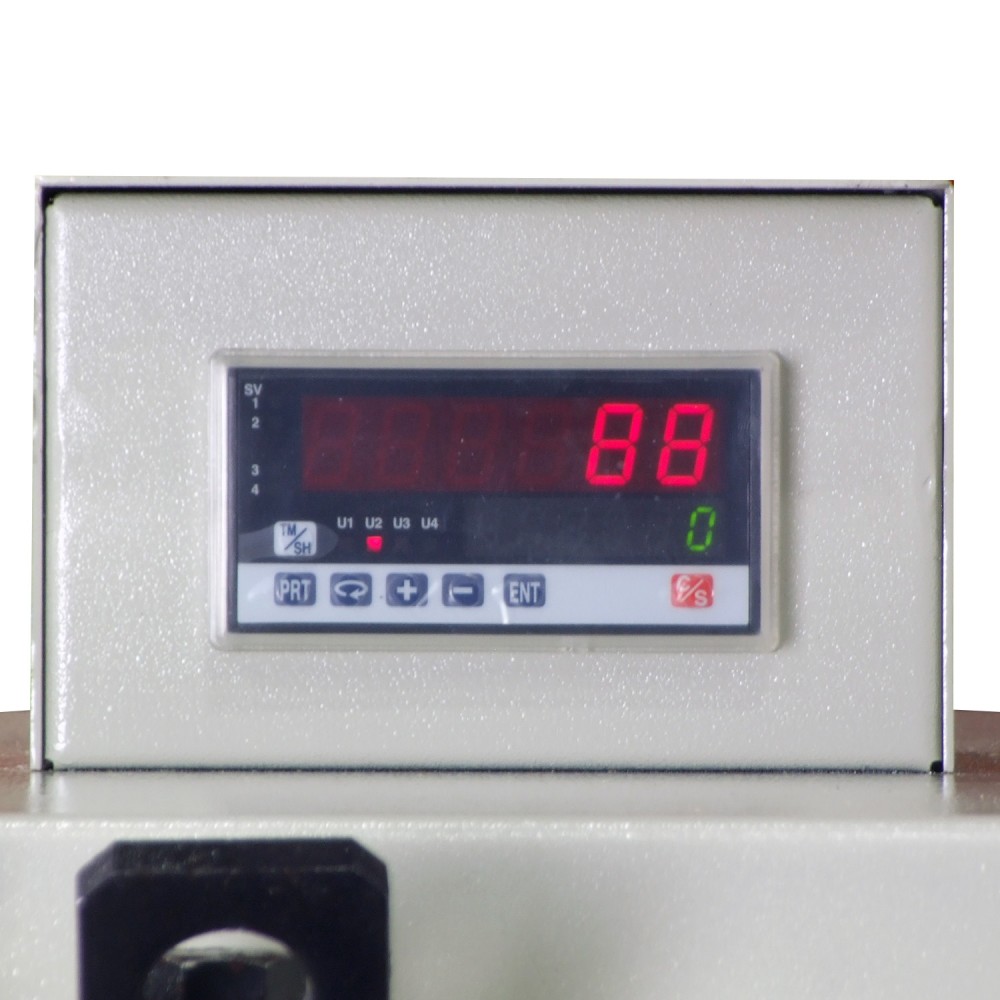

Digital readout comes standard, so you can track the position of the back roll for increased accuracy and less waste

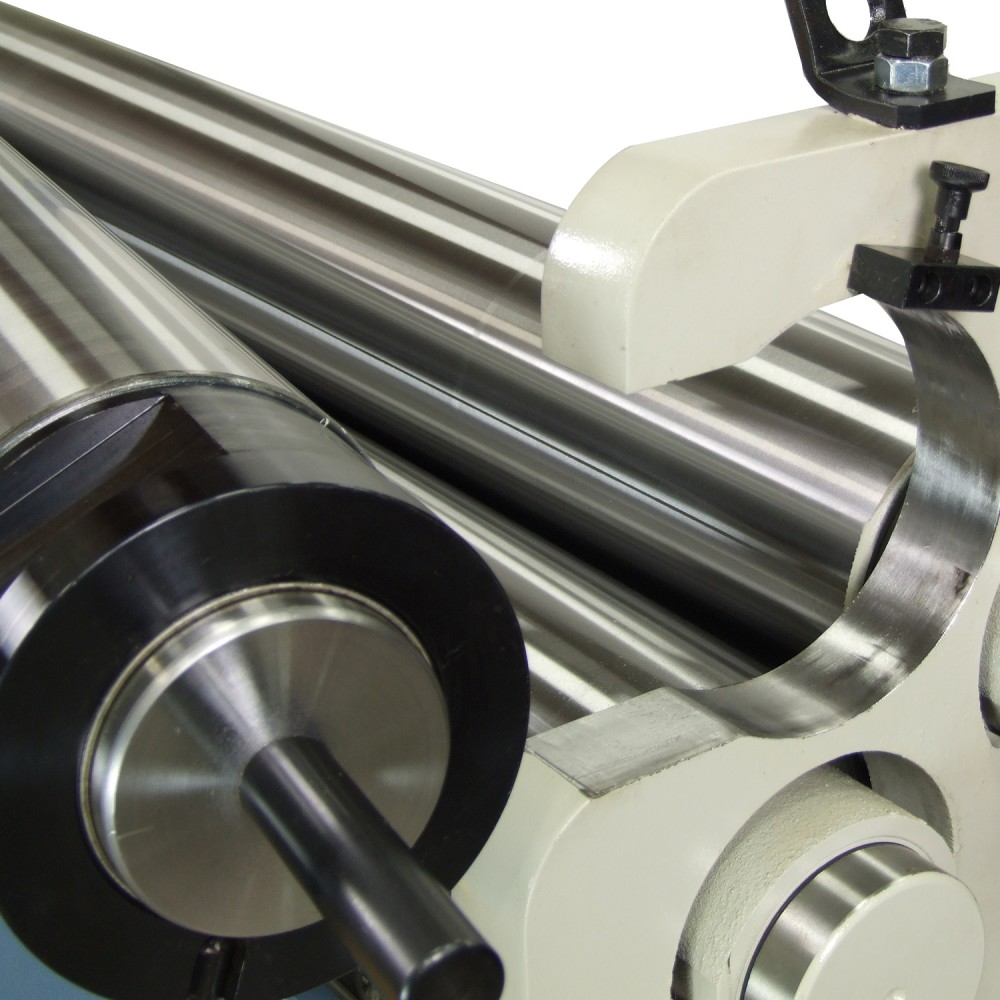

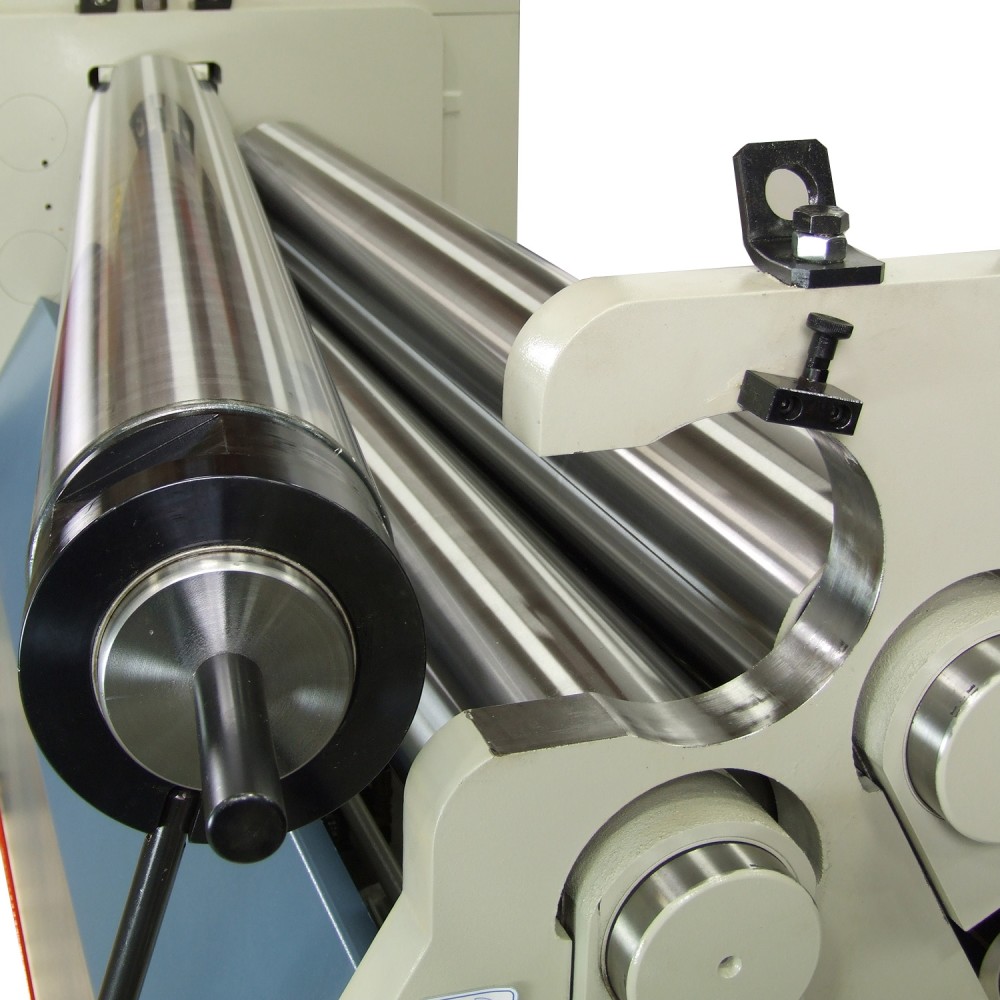

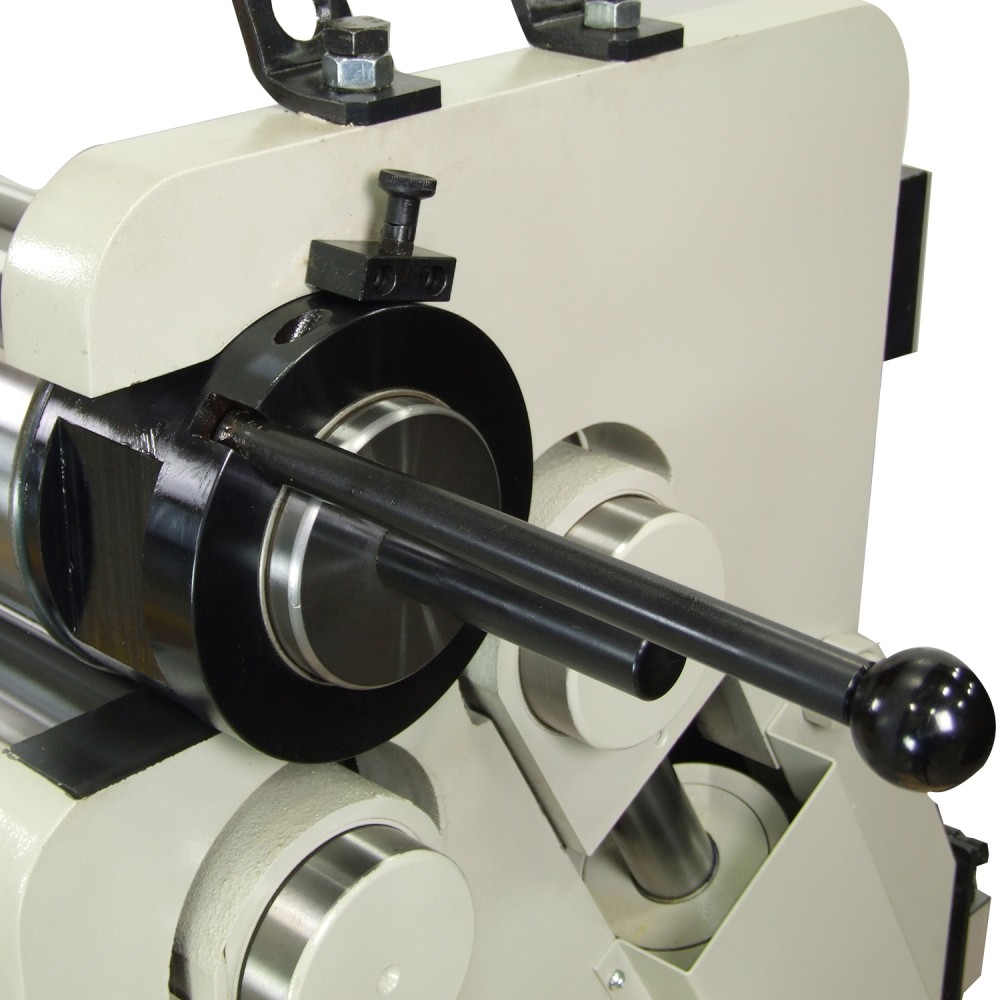

Quick-release mechanism on the top roll makes it simple to remove work that’s wrapped around roll

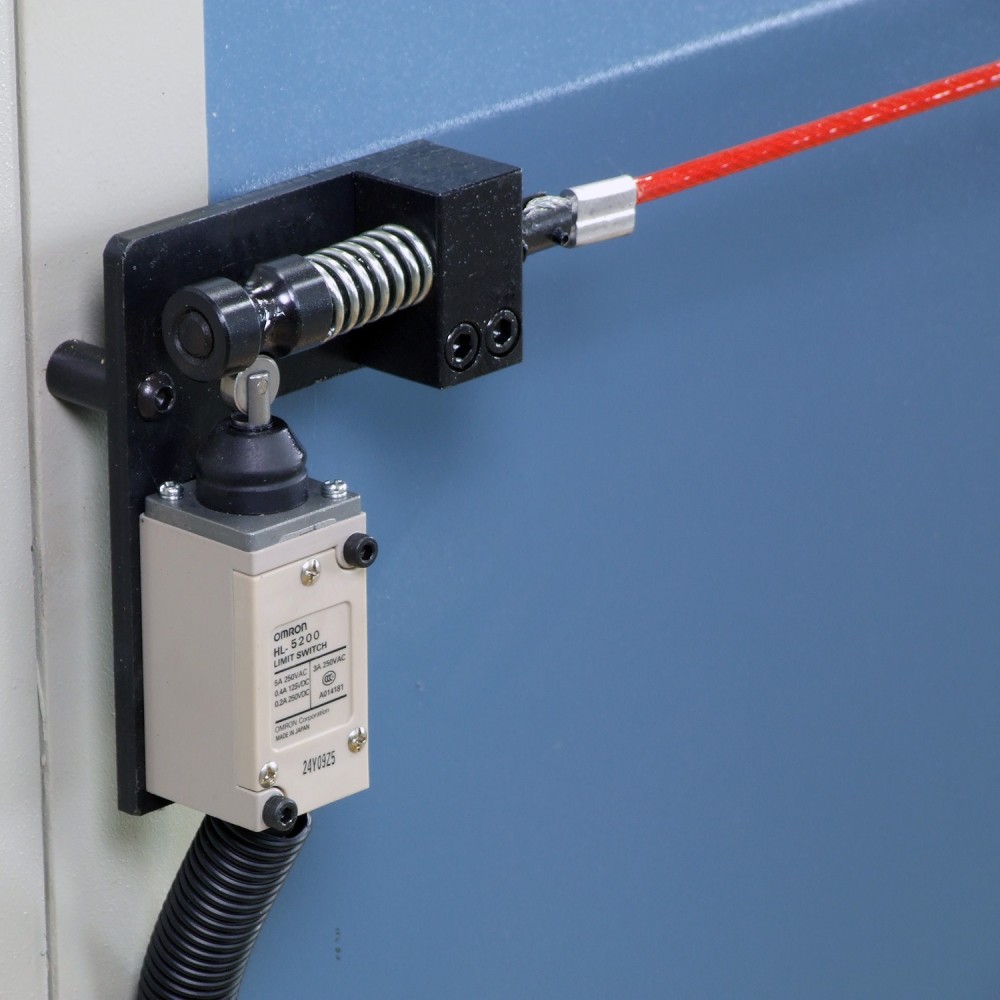

Dual emergency stop cables that are located on both the front and back of the machine
Heavy steel frame helps prevent flex for longer machine life
Baileigh PR-503 220V 3 Phase 60HZ 61 In. Width Forming 3 Gauge Mild Steel Capacity Electric Powered Hydraulic Plate Roll Machine
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1006531
Assembled Weight (lbs)
6380
Country of Origin
Taiwan
Gauge Capacity (ga)
3
Material
Welded Steel Frame
Maximum Width Capacity (in)
61
Number of Rollers
3
Package Contents
Plate Roll Machine
Package Depth
62
Package Height
108
Package Weight
6380
Power Source
Electric
Swivel Wheel
No
