Description

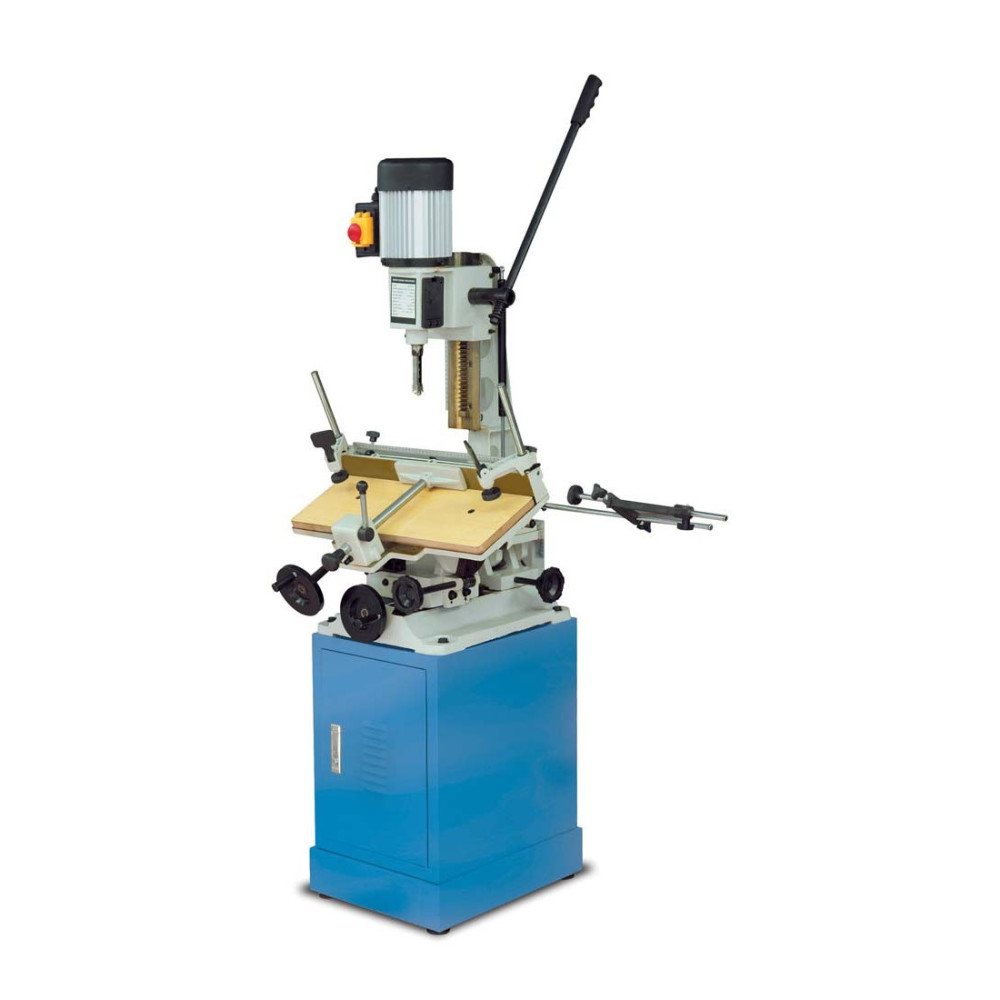

Baileigh MC-1000TT Heavy Duty Tilting Square Chisel Mortiser 110V
The mortiser adds a tilting table and column to our popular MC-1000. Perfect for complex projects and reclaimed materials, the MC-1000TT helps with hard-to-reach areas and angles.
Features
Needs just 110V power, so it will work in any shop
1/4 In. to 1 In. chisel capacity

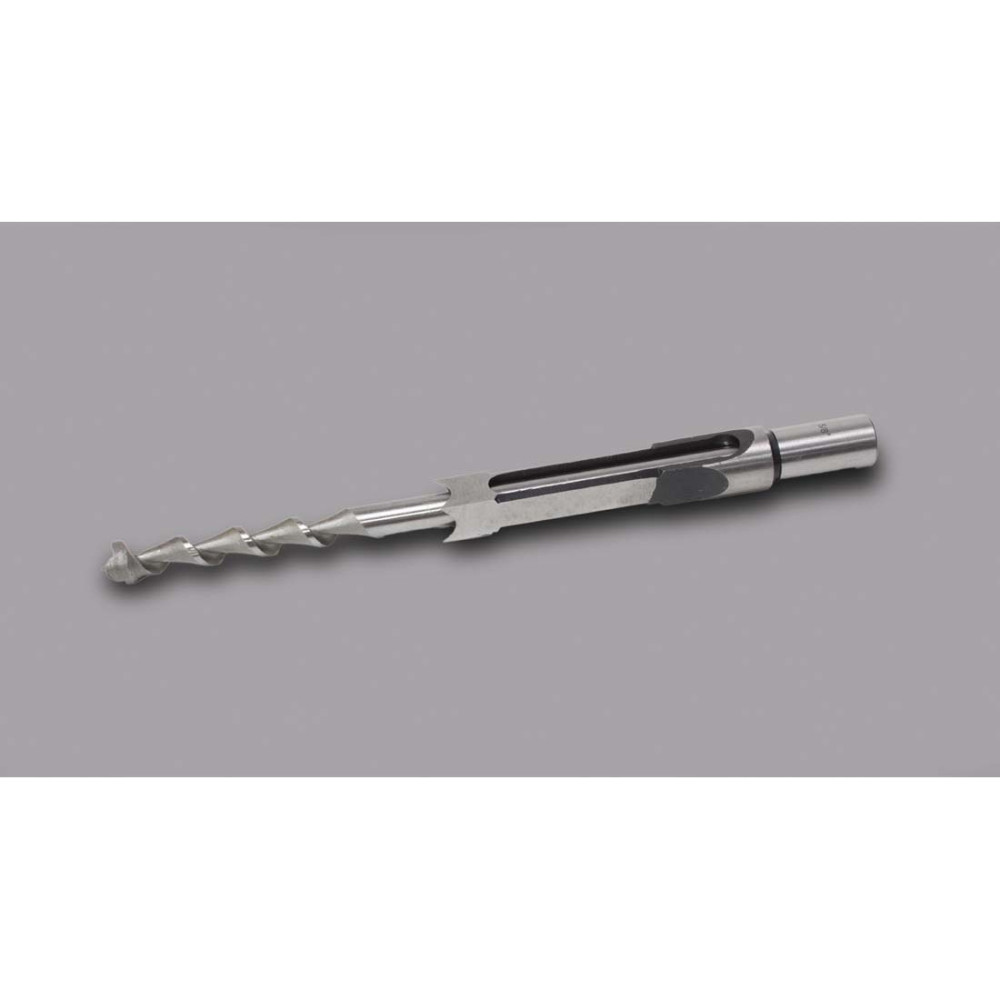

Chisel comes standard with the machine
1HP motor moves spindle at 1750 Rpm for 3 In. maximum depth

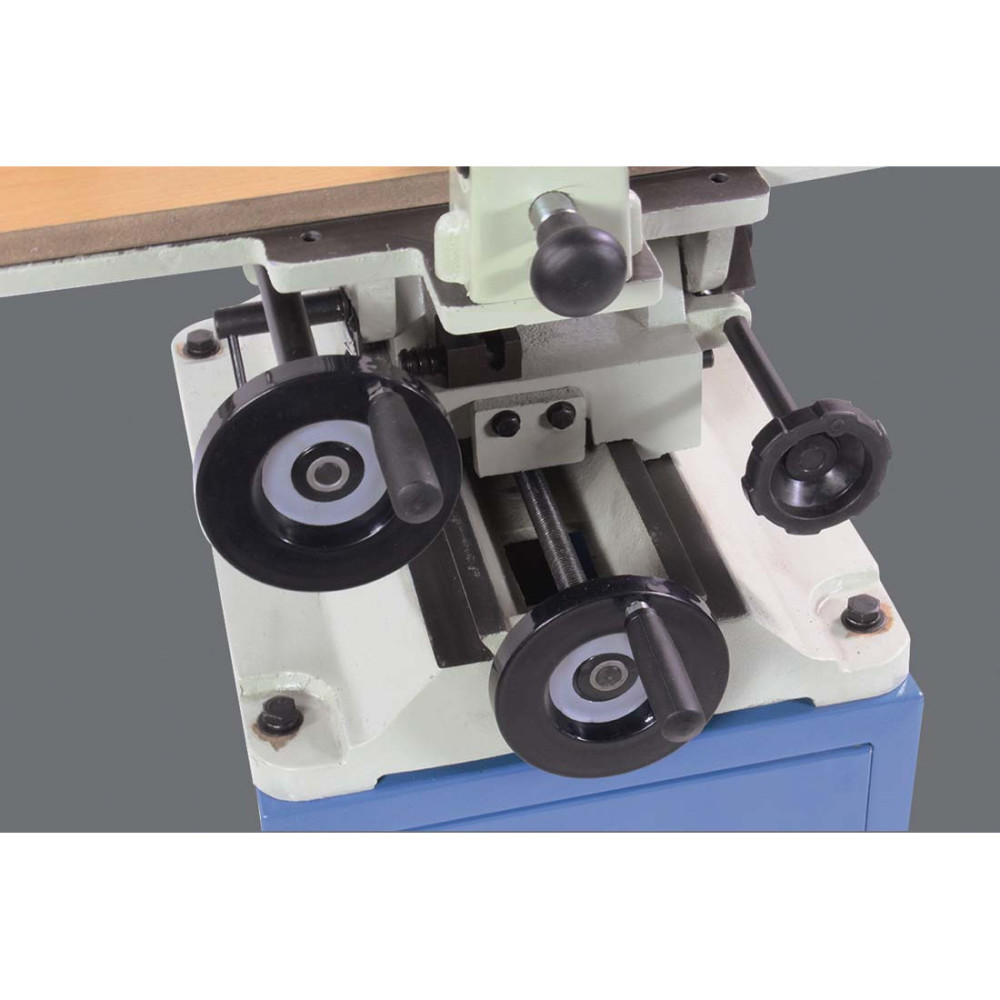

Large 22-1/4 In. x 9 In. table tilts +- 20 Deg and comes with many fixtures to hold the material in place for accurate chiseling

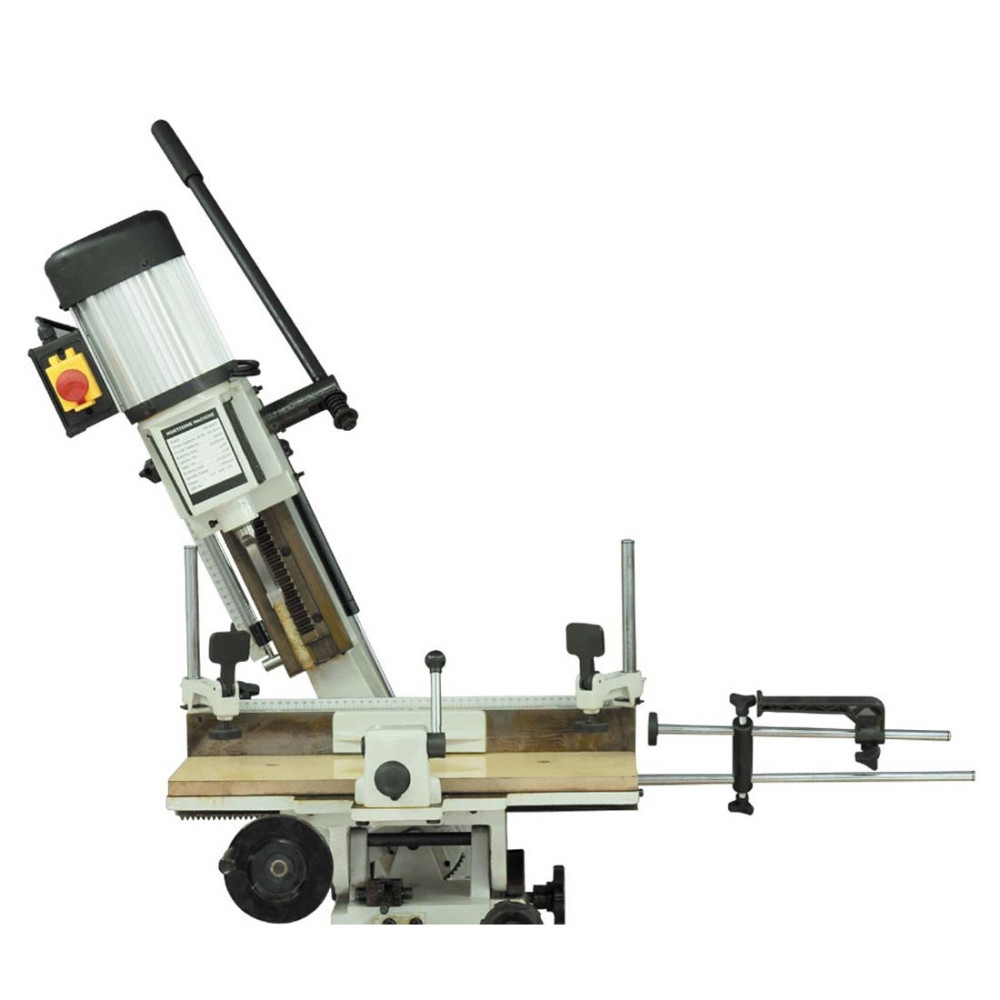

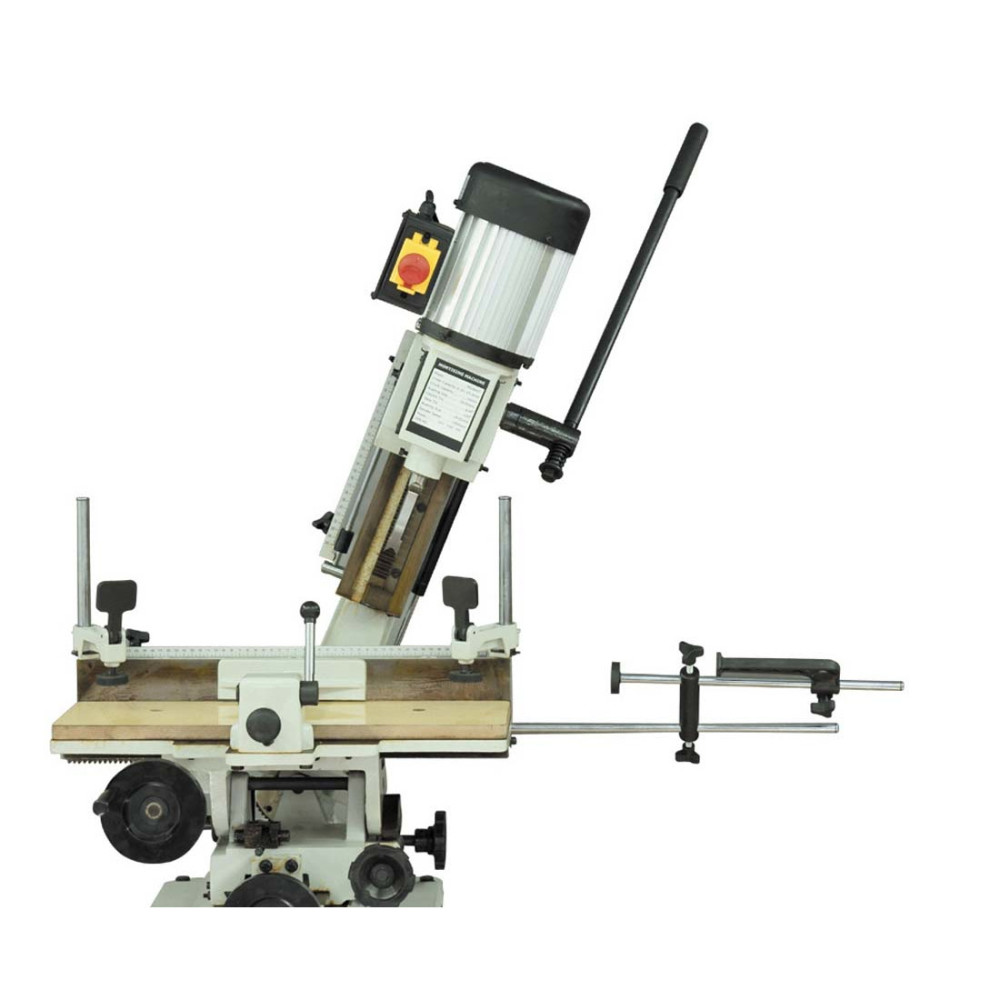

Column also tilts +- 20 Deg left and right
Includes depth stop for easily repeatable runs
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1005421
Amperage (A)
0-30
Assembled Weight (lbs)
273
Chuck Design
Keyed
Chuck Size
5/8 In
Chuck Style
Key
Country of Origin
Taiwan
Drive Motor System
Electric
Horsepower (hp)
1
Number of Spindle Speeds
1
Package Contents
Mortiser, Depth stop
Package Depth
31
Package Height
48
Package Weight
273
Speed Range High (rpm)
1750
Speed Range Low (rpm)
1750
Spindle Travel (in)
8.25
Table Tilt Range (Deg)
20
Tilting and Swiveling Table
Yes
UPC
731325408720
