Description
Baileigh IP-2209-HD Thickness Planer 220V 3 Phase 10HP 22″
With a 22 In. width and a segmented infeed roll, this industrial wood planer lets you smooth multiple boards with different heights at once. A cast iron table and columns help a wood thickness planer last for years.
Features

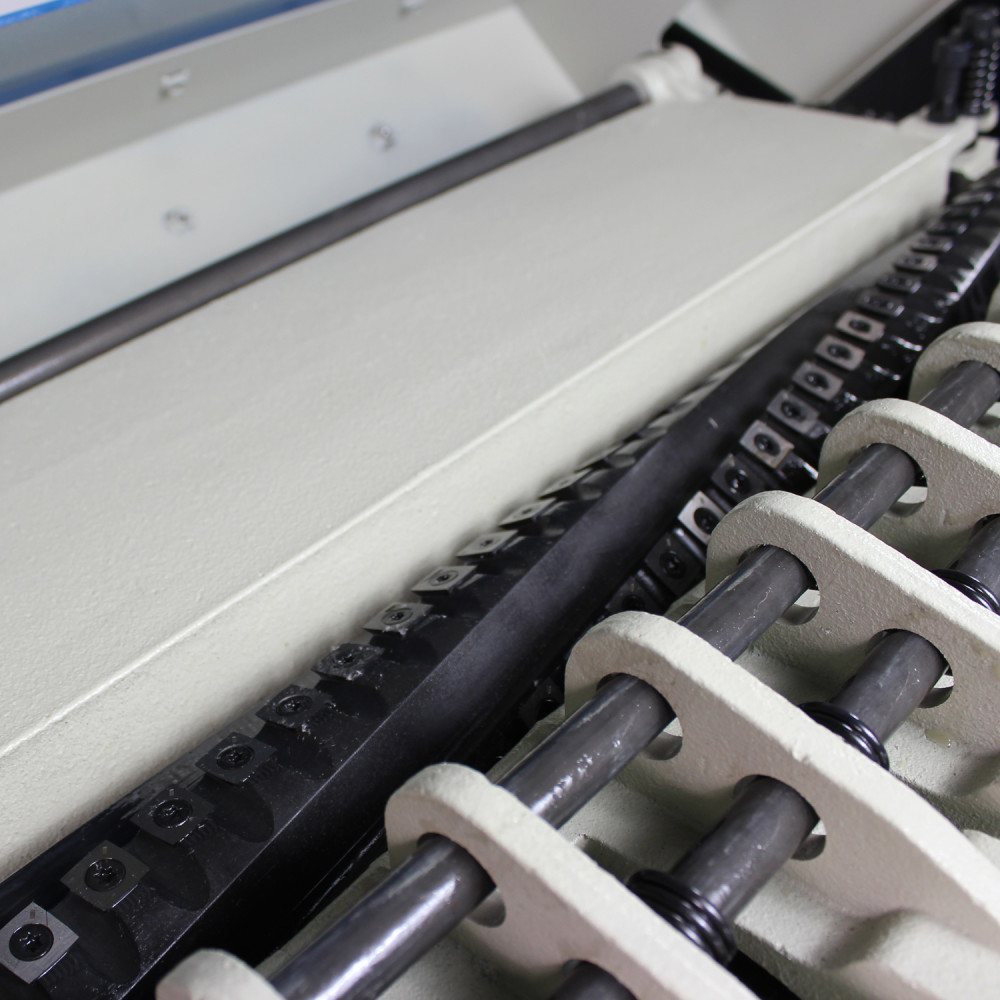

Massive 10HP motor spins the cutter at 5000 Rpm, comes standard with a 5-row spiral cutter head with rotatable carbide blades that last much longer than a straight-knife blade

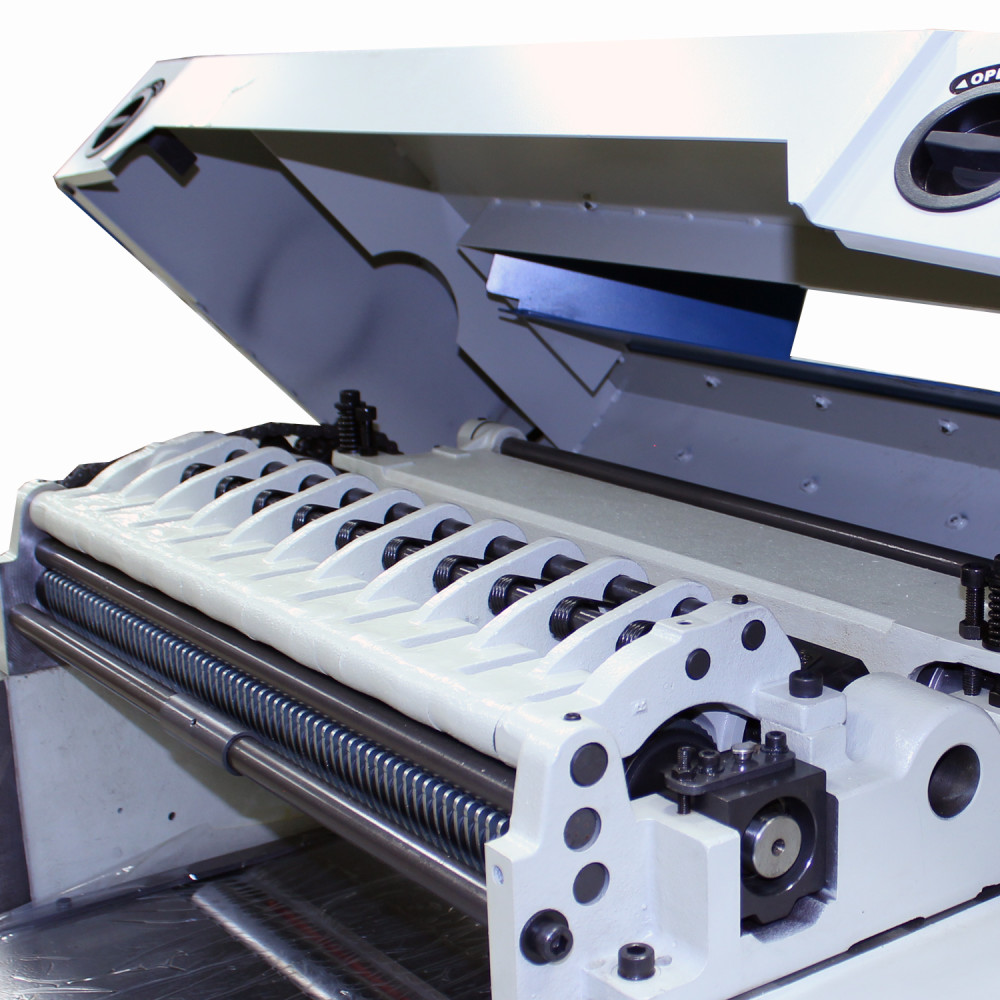

0.25 In. maximum depth of cut, Runs on 220V 3 Phase power, spring-loaded segmented steel infeed roll automatically adjusts to different board heights side by side

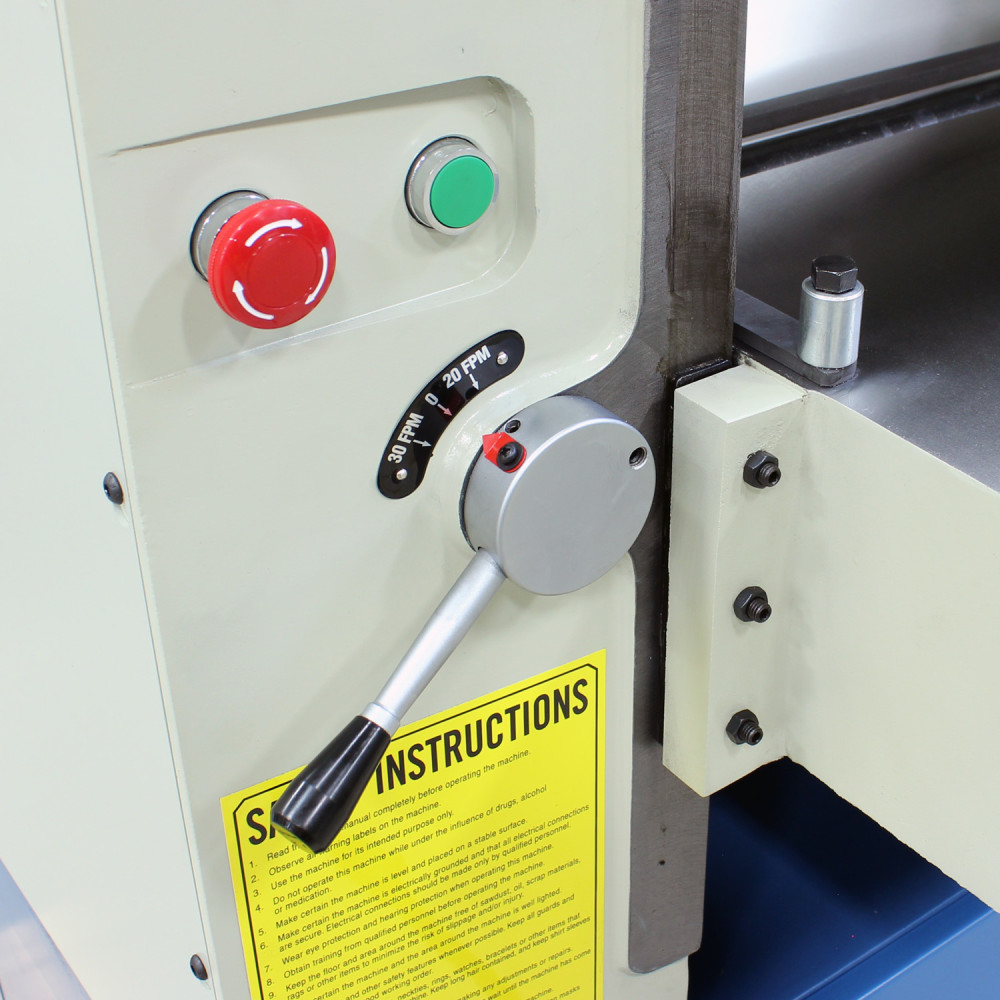

Switch between 2 feeding speeds for better results on different types of wood: 30 fpm for softer materials (or jobs where a refined surface is less important), 20 fpm for hardwoods or materials prone to chipping, this speed gives you a smoother finish
32 In. x 22 In. cast iron table supports the material, reduces vibrations, and ensures accuracy, 2 heavy columns raise or lower the table and stabilize the machine

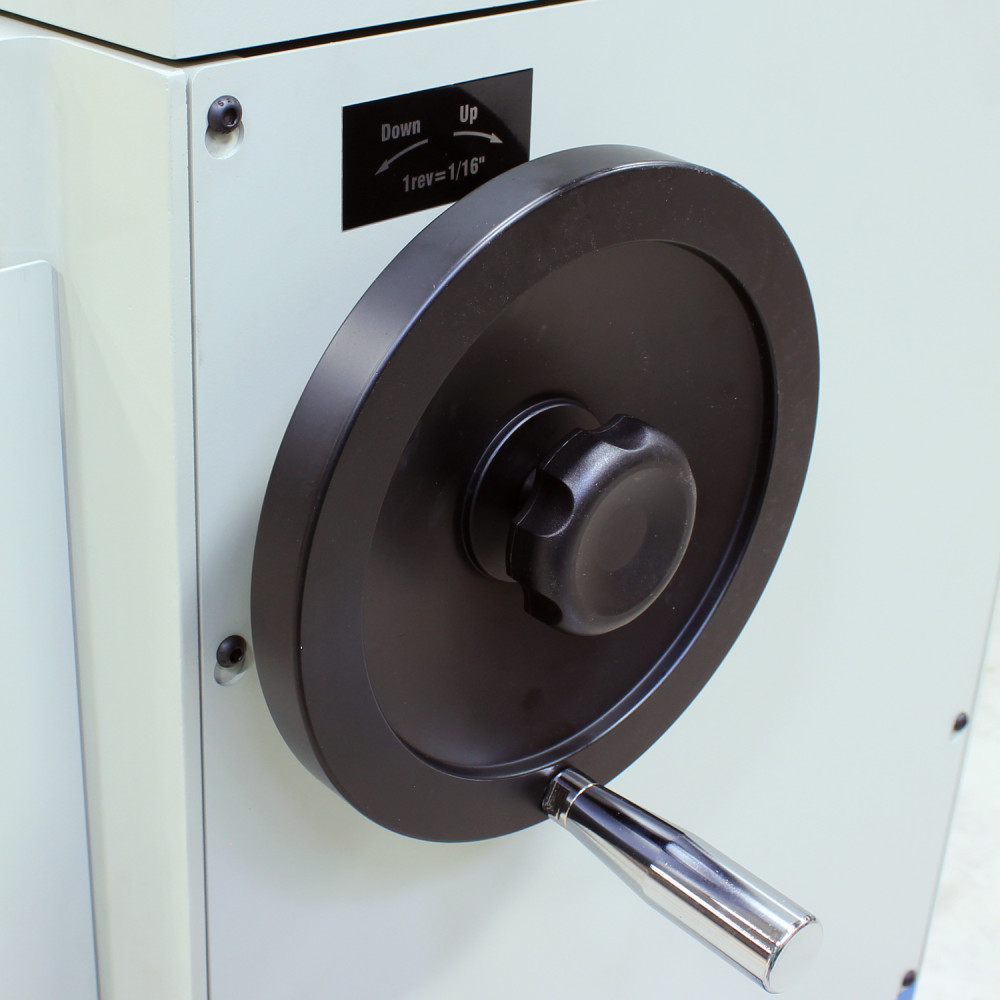

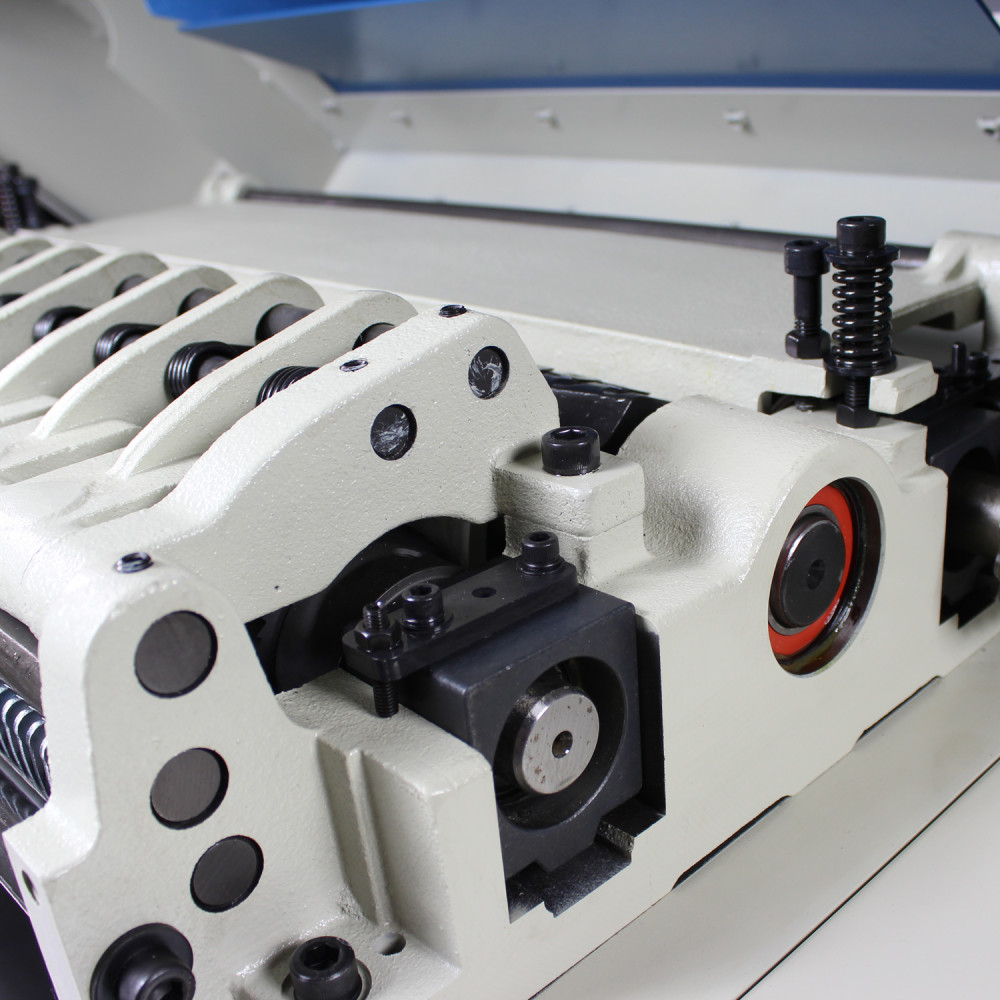

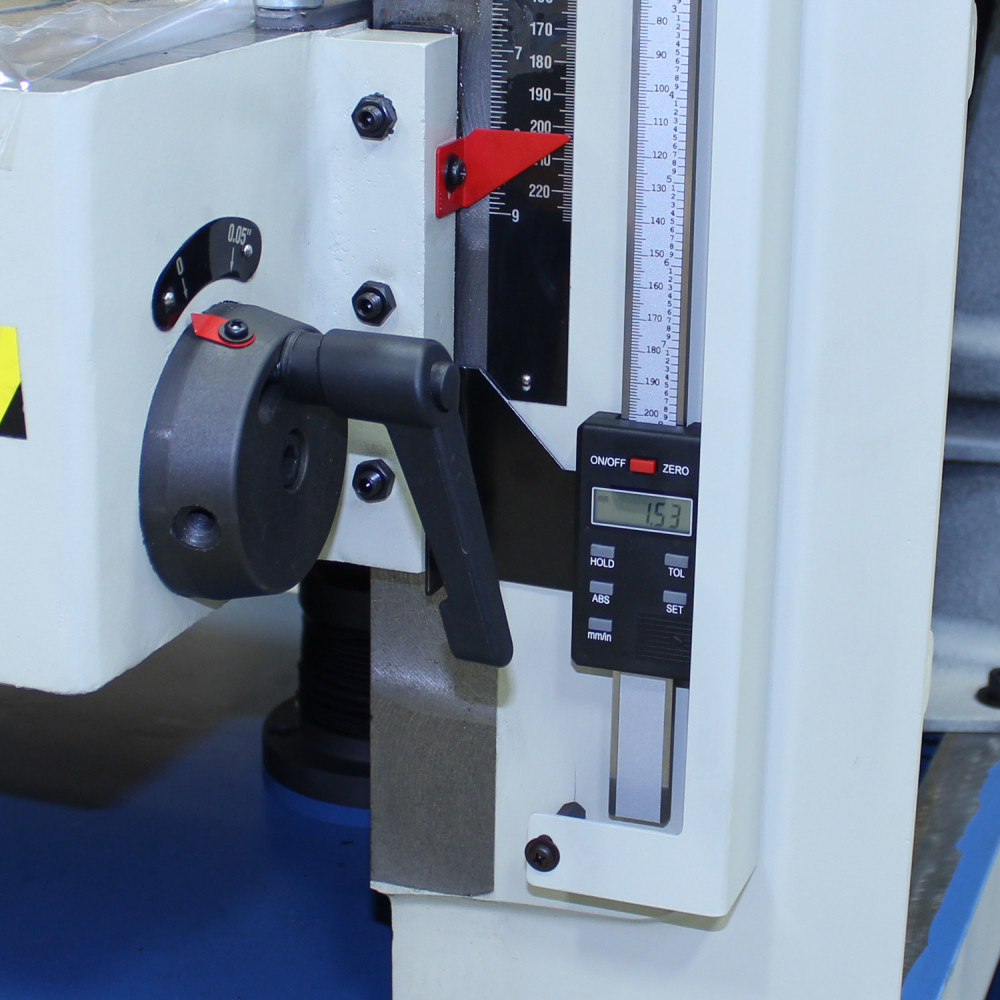

Handwheel lets you adjust the table elevation, digital readout shows the changes for easy repeatability, segmented chip breaker stops debris from clogging the industrial wood planer (or your dust collector)
Chip breaker also prevents wood from chipping by holding the material down right in front of the cutter head, solid iron pressure bar maintains even force across the planed stock

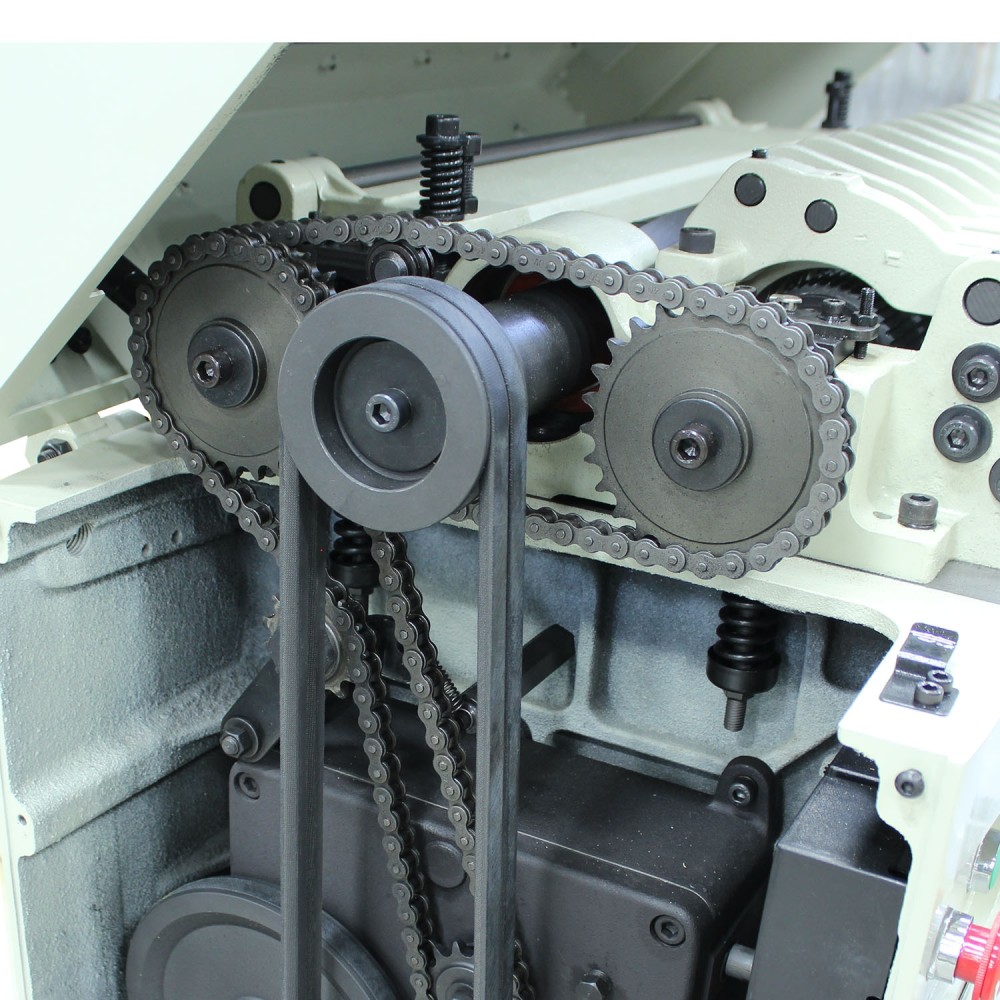

Steel outfeed roll moves the material consistently and reliably for fast production, quick-adjust bed rolls reduce friction
You can set the bed rolls high to keep rough-sawn stock from getting stuck, or set them lower to produce the straightest, smoothest boards possible
Anti-kickback fingers safely grip the material so that it’s less likely to shoot backwards if the cutter jams
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1014767
Amperage (A)
0.0
Assembled Weight (lbs)
1760
Bench or Stationary
Stationary
Blade Count
5
Blade Cutting Material
Carbide
Cordless / Corded
Corded
Country of Origin
Taiwan
Cutter Head Type
Spiral
Depth Measurement System
Yes
Feed Rate/s (Ft/Min)
20-30
Housing Material
Cast Iron and Steel
Integrated Chip Management
Yes
Maximum Board Thickness (in)
9
Maximum Cutting Depth (in)
0.25
Maximum RPM
5000
Maximum Width Cutting Capacity (in)
22 in
Motor Horsepower (hp)
10 HP
Package Contents
Heavy Duty Thickness Planer
Package Depth
66
Package Height
60
Package Weight
1760
Reversible
No
Set / Individual
Individual
Variable Speed
Yes
