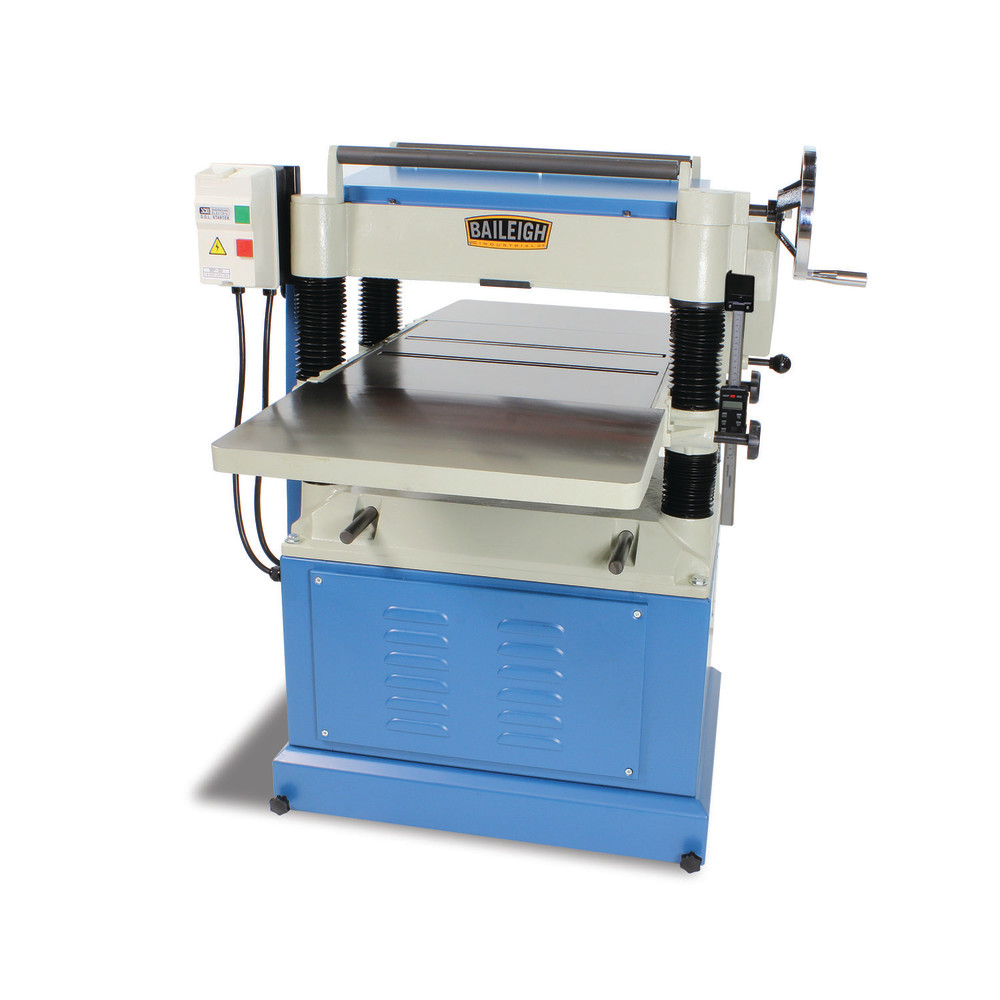

Baileigh IP-208 Industrial Planer 220V 1 Phase 5HP 20″
This 20 In. wide thickness planer can quickly turn rough lumber into boards with smooth faces. Heavy cast iron and steel construction keeps the material steady and supported.
Features

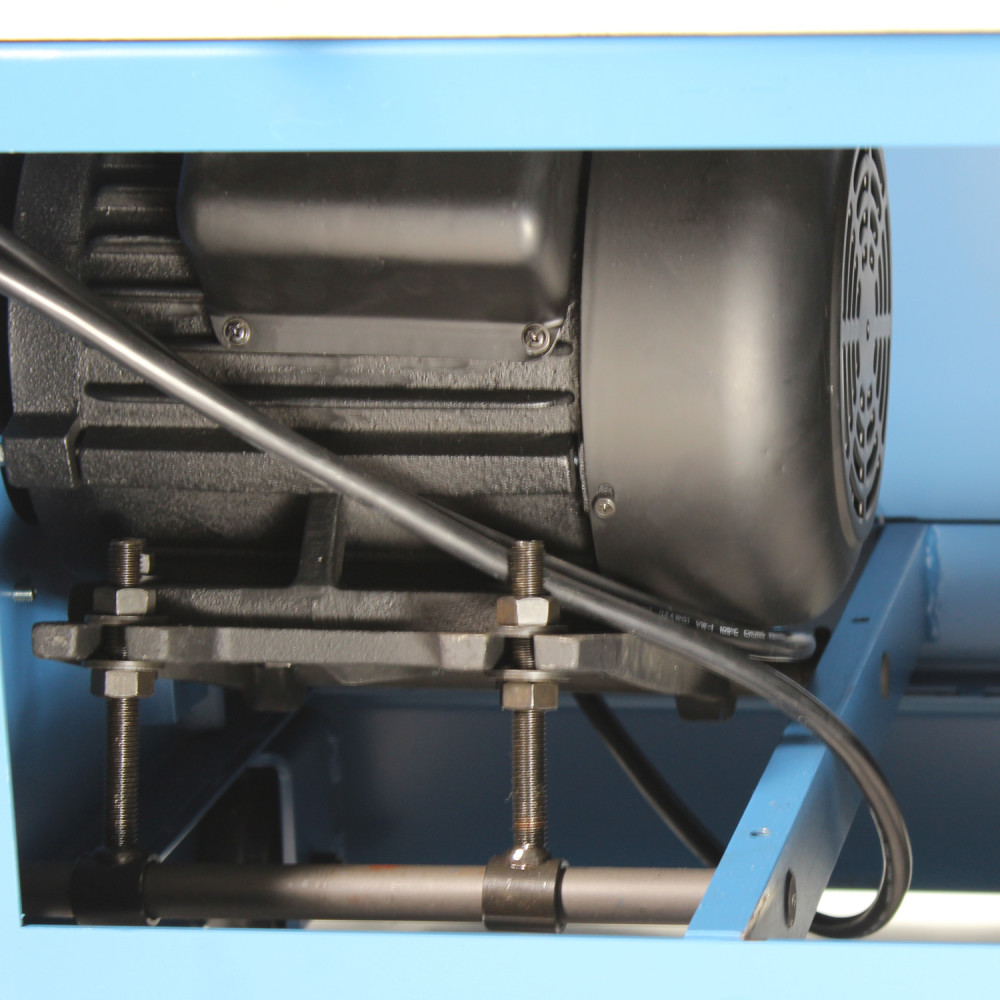

5HP motor turns the cutter head at a whopping 5000 Rpm, straight 4-knife cutter head comes standard

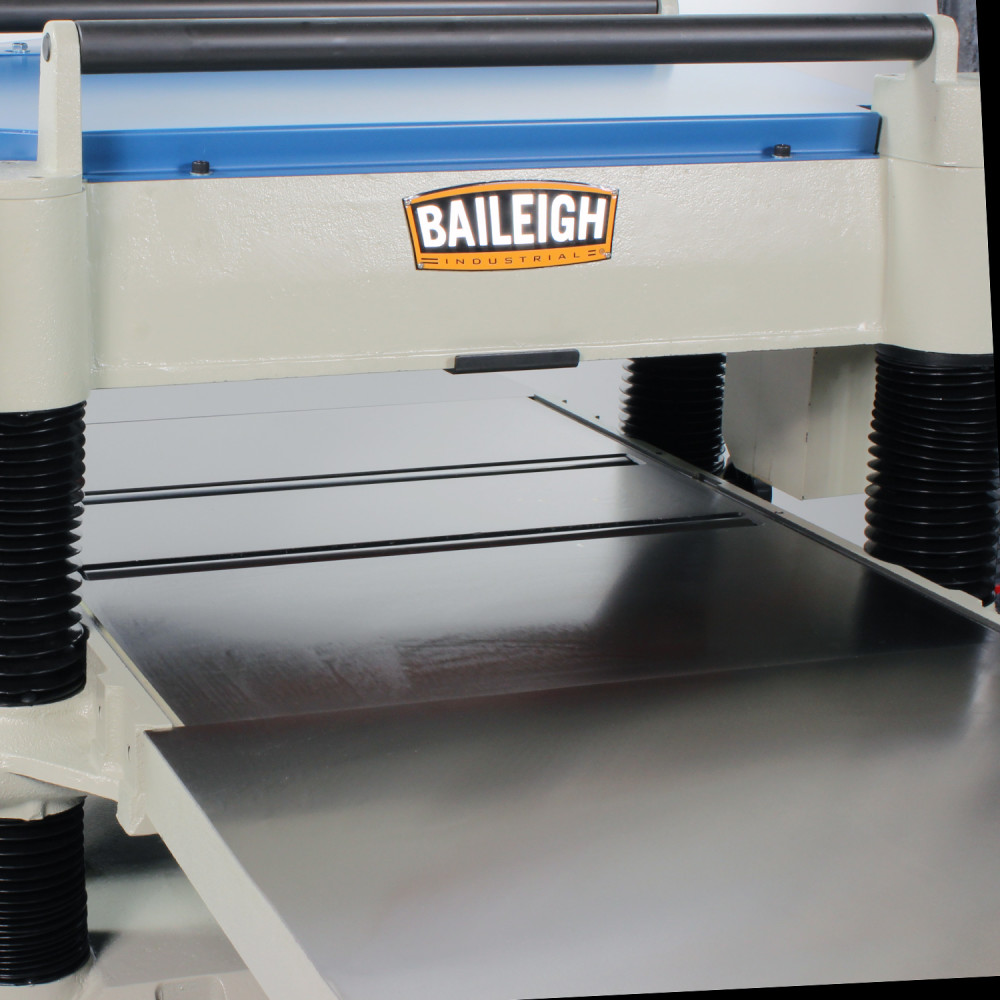

Runs on 220V 1 Phase power, so it can work almost anywhere, fully cast iron 20 In. x 25.75 In. table with 15 In. extensions can expand to an impressive 20 In. x 55.75 In.

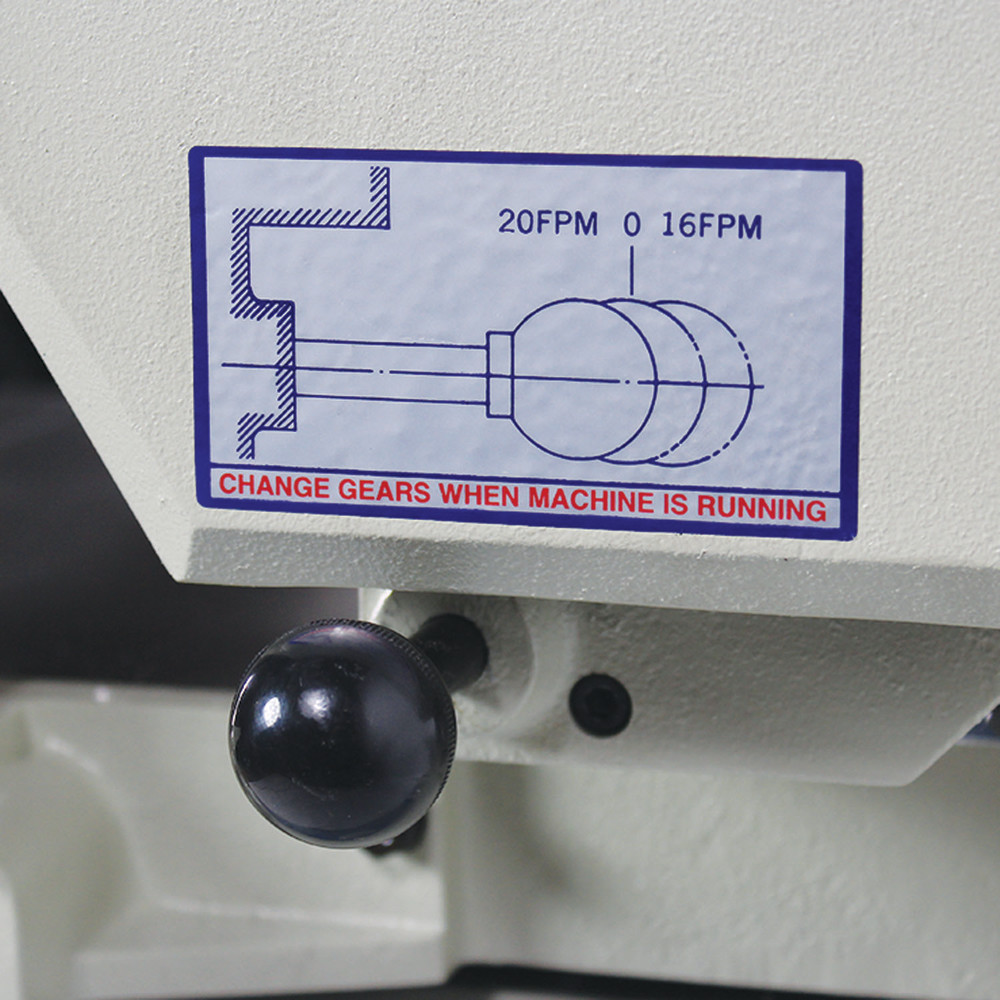

2 speeds allow you to pick what’s right for your project: 20 fpm when you need to smooth boards in shorter amount of time, 16 fpm when you want a more refined finish or you’re working with tougher material
8 In. maximum and 0.25 In. minimum cutting height, maximum 1/8 In. cut depth

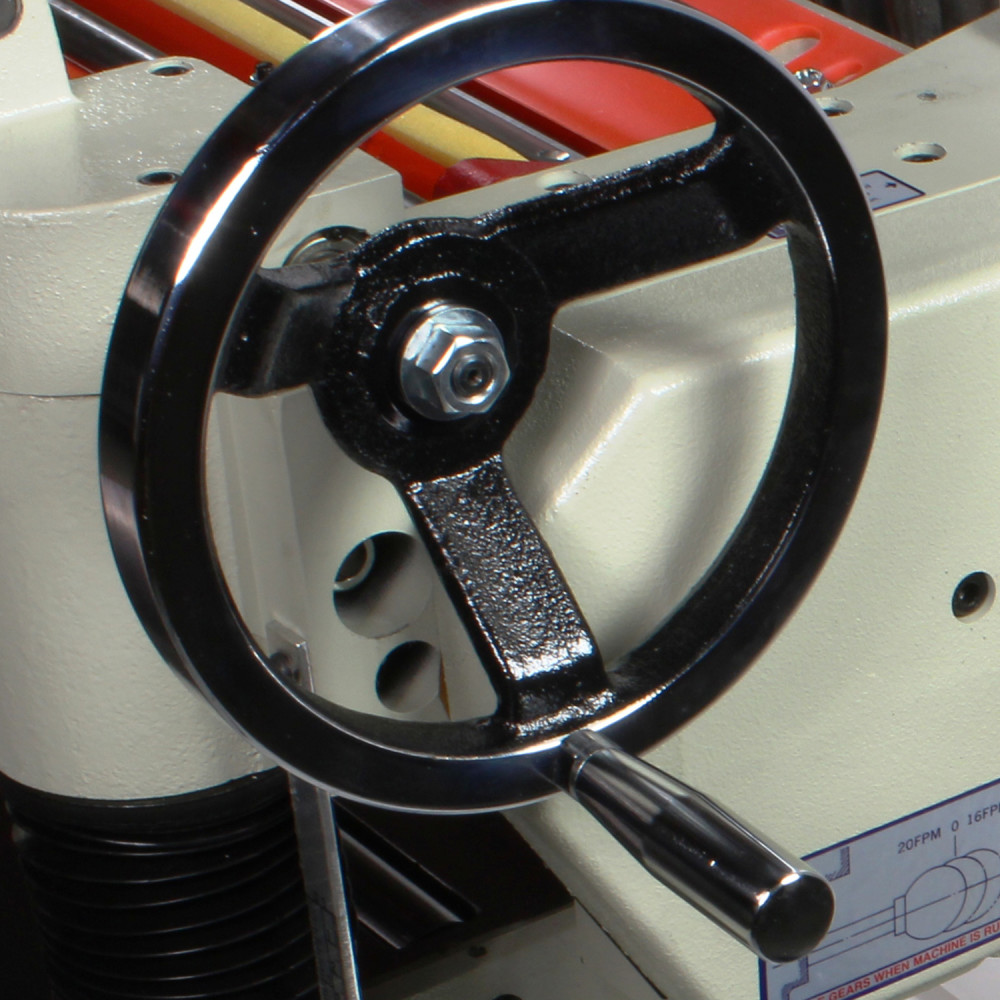

Handwheel with a scale on the side of the planer lets you precisely adjust the height in seconds, cast iron frame on the top and bottom stabilizes the machine and helps it last longer

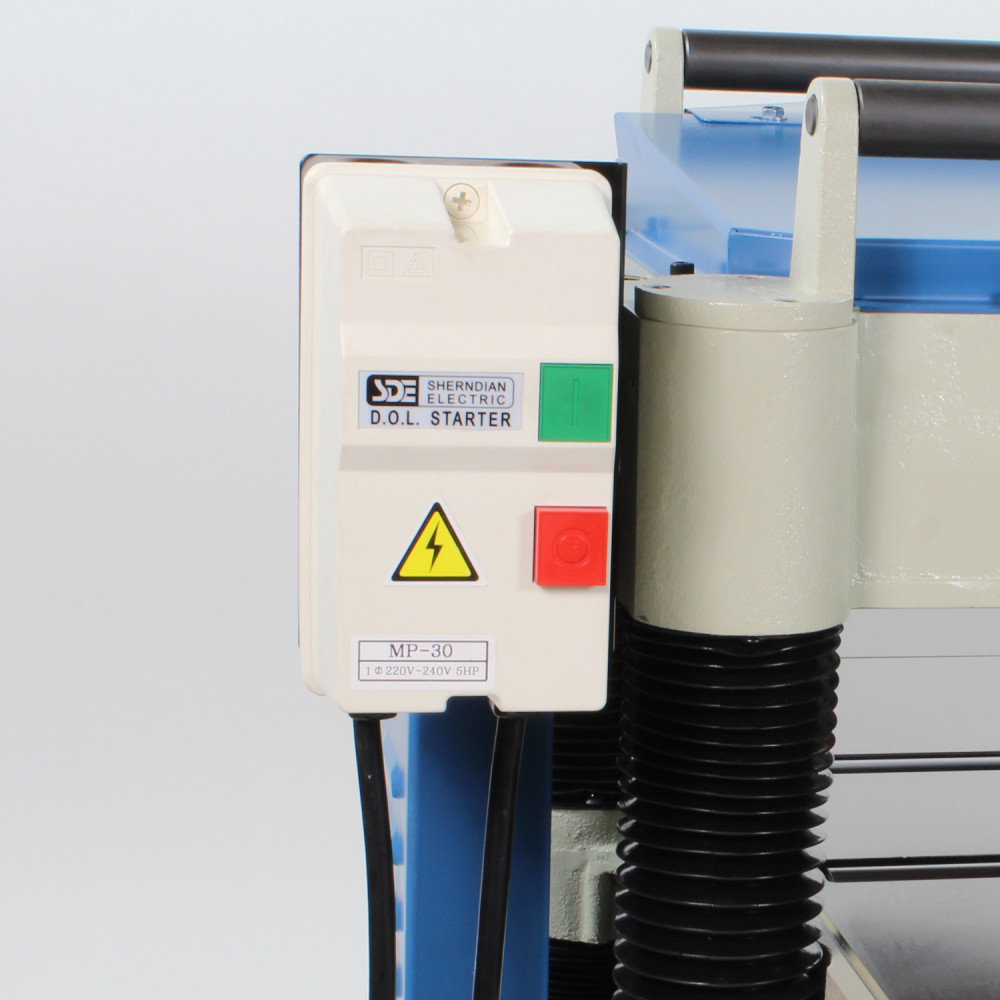

Magnetic safety switch automatically turns the machine off in case of a power outage or a problem with the current

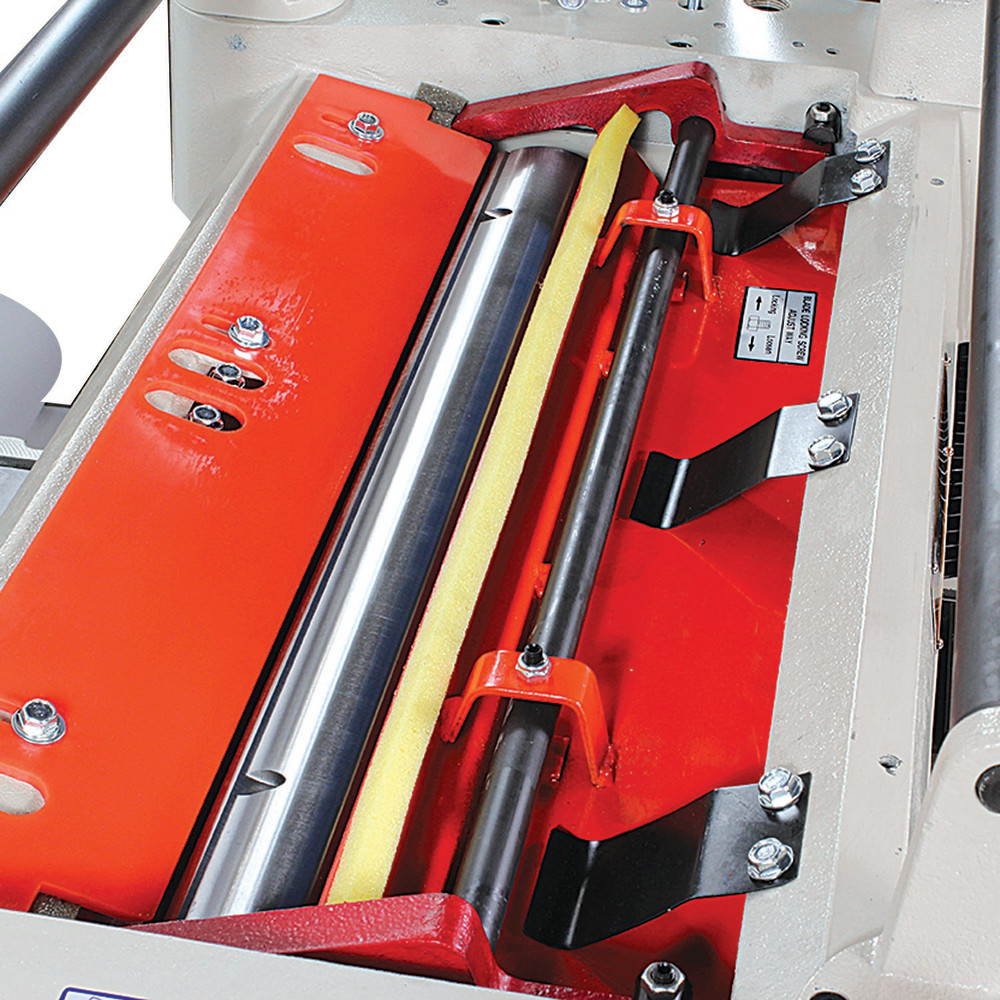

Anti-kickback fingers grip the material so it’s less likely to shoot back out if the blades get jammed
Extra-large 5 In. dust port prevents clogging, you can easily hook up your dust collection system, so your shop stays clean with breathable air
Built-in wheels on the base allow you to move the machine around your shop and store it
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1004940
Amperage (A)
0-30
Assembled Weight (lbs)
880
Bench or Stationary
Stationary
Blade Count
4
Blade Cutting Material
Carbide
Cord Length (ft)
25/50/100
Cordless / Corded
Corded
Country of Origin
Taiwan
Cutter Head Type
Straight Knives
Depth Measurement System
Yes
Drive Motor System
Electric
Feed Rate/s (Ft/Min)
16 or 20
Housing Material
Cast Iron and Steel
Integrated Chip Management
No
Maximum Board Thickness (in)
8
Maximum Cutting Depth (in)
0.125
Maximum RPM
5000
Maximum Width Cutting Capacity (in)
20 in
Motor Horsepower (hp)
5 HP
Package Contents
Industrial Planer
Package Depth
55
Package Height
60
Package Weight
880
Reversible
No
Set / Individual
Individual
Switch Type
Magnetic
Variable Speed
No
