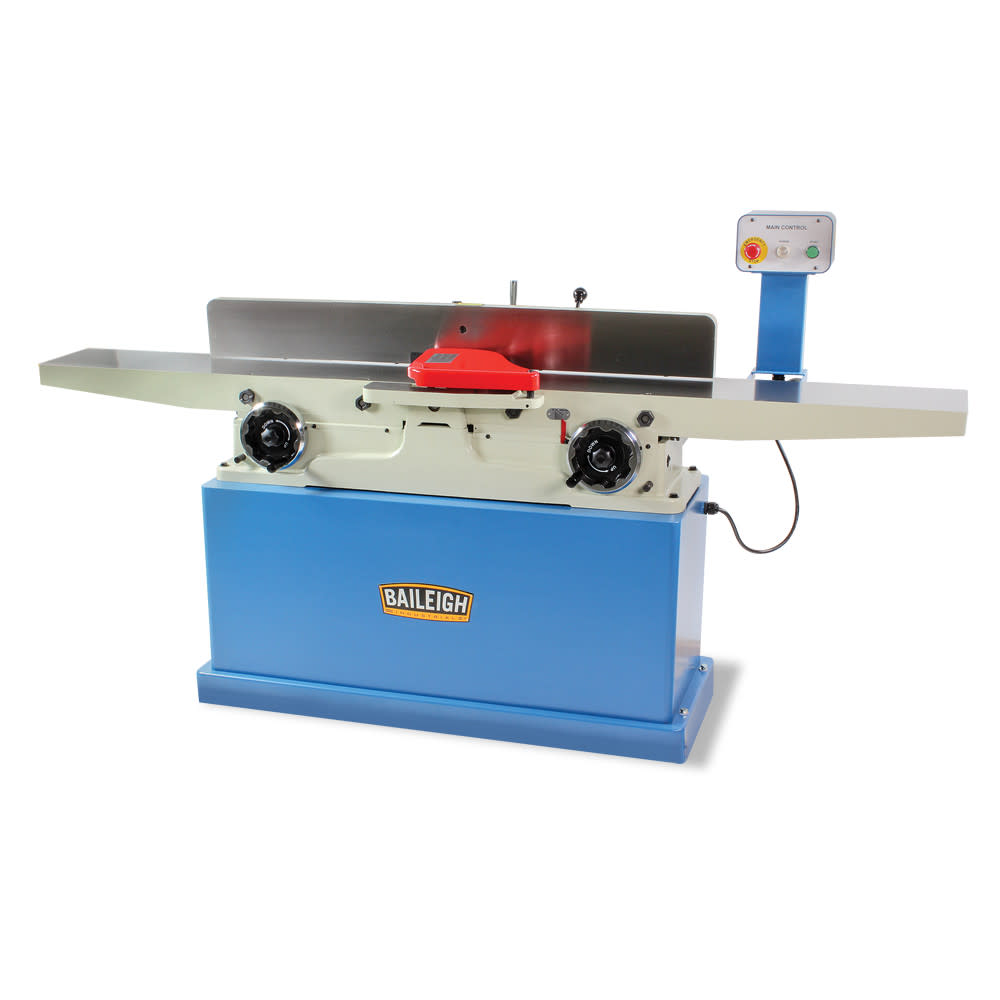

Baileigh IJ-883P-HH Parallelogram Jointer with Spiral Cutter Head
We built this parallelogram jointer to meet the highest standards of safety and accuracy. An 83 In. bed and 8 In. width let you easily cut flat surfaces and prepare edges for joining.
Features

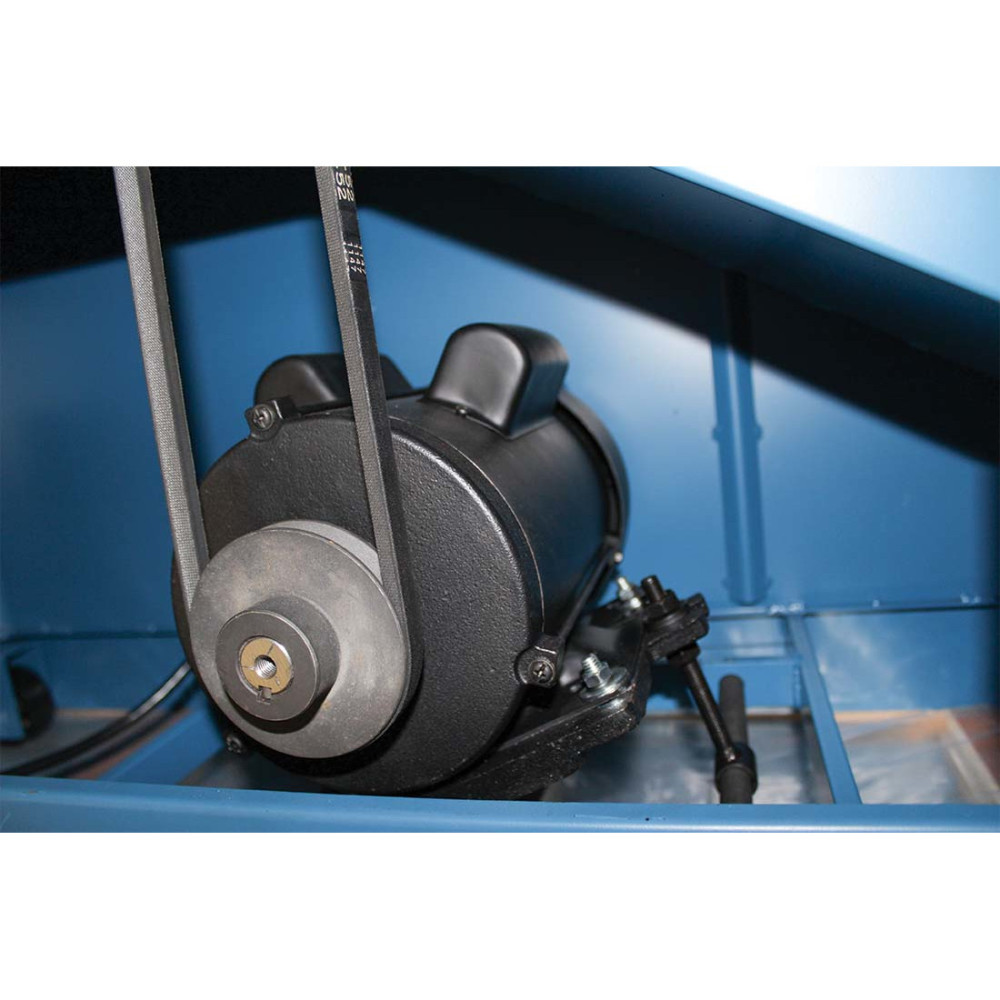

3HP motor can handle even the toughest woods, runs on 220V 1 Phase power, so you can use it just about anywhere

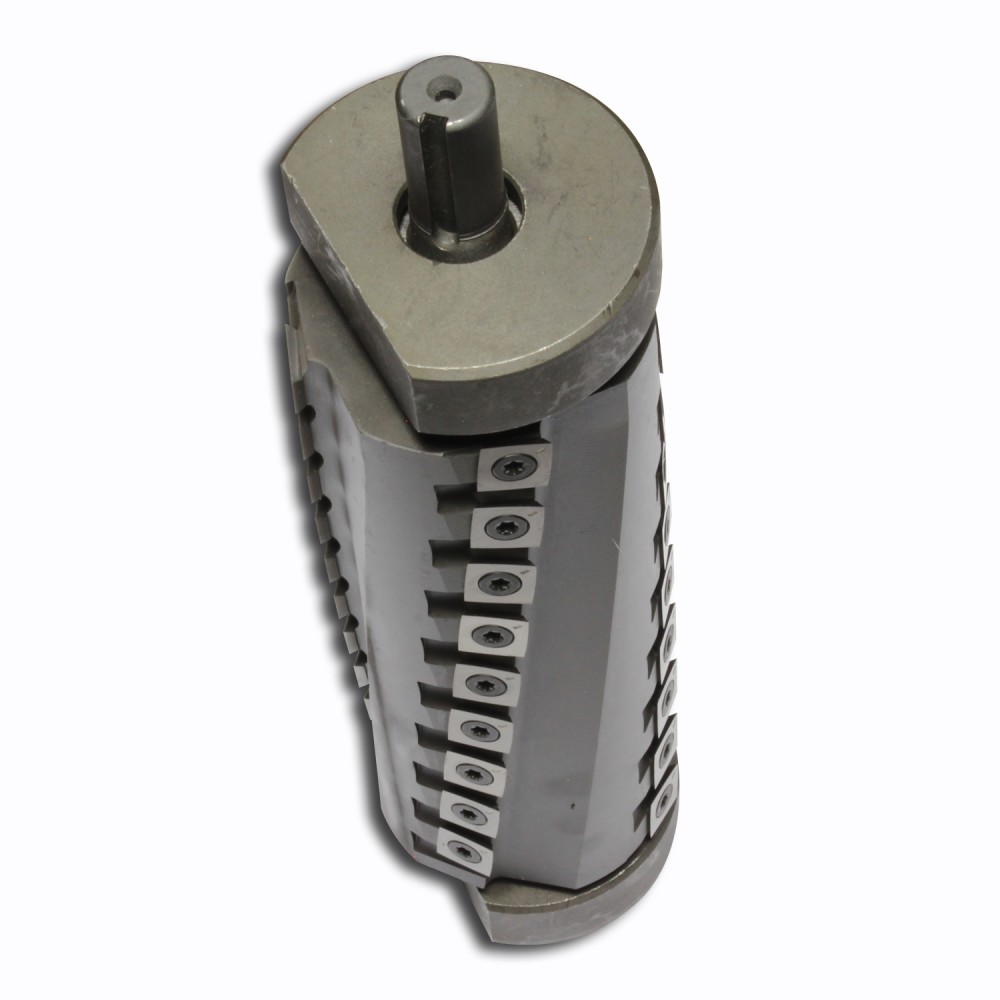

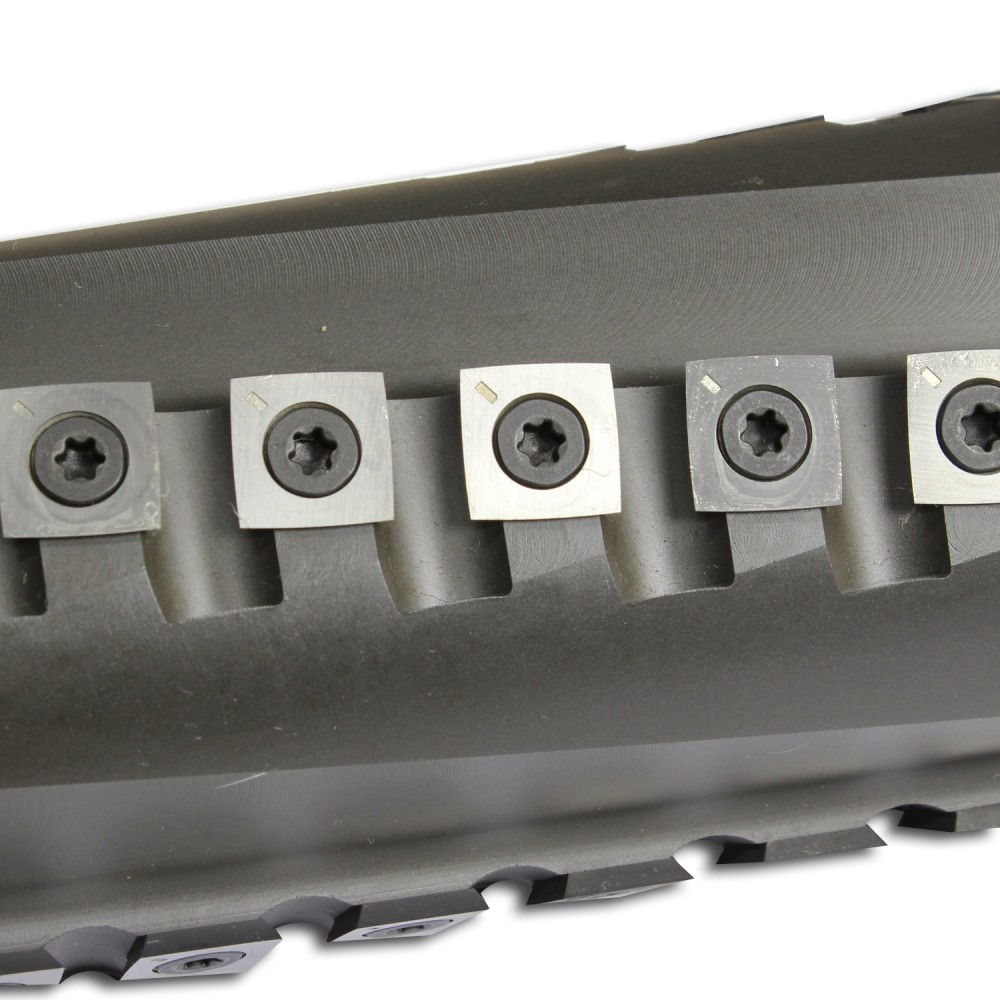

4 row helical cutter head spins at 5000 Rpm, extra-long 83 In. bed gives you support when handling large pieces of material
Built-in rabbeting ledge helps you easily make grooves down the sides of boards for edge joining

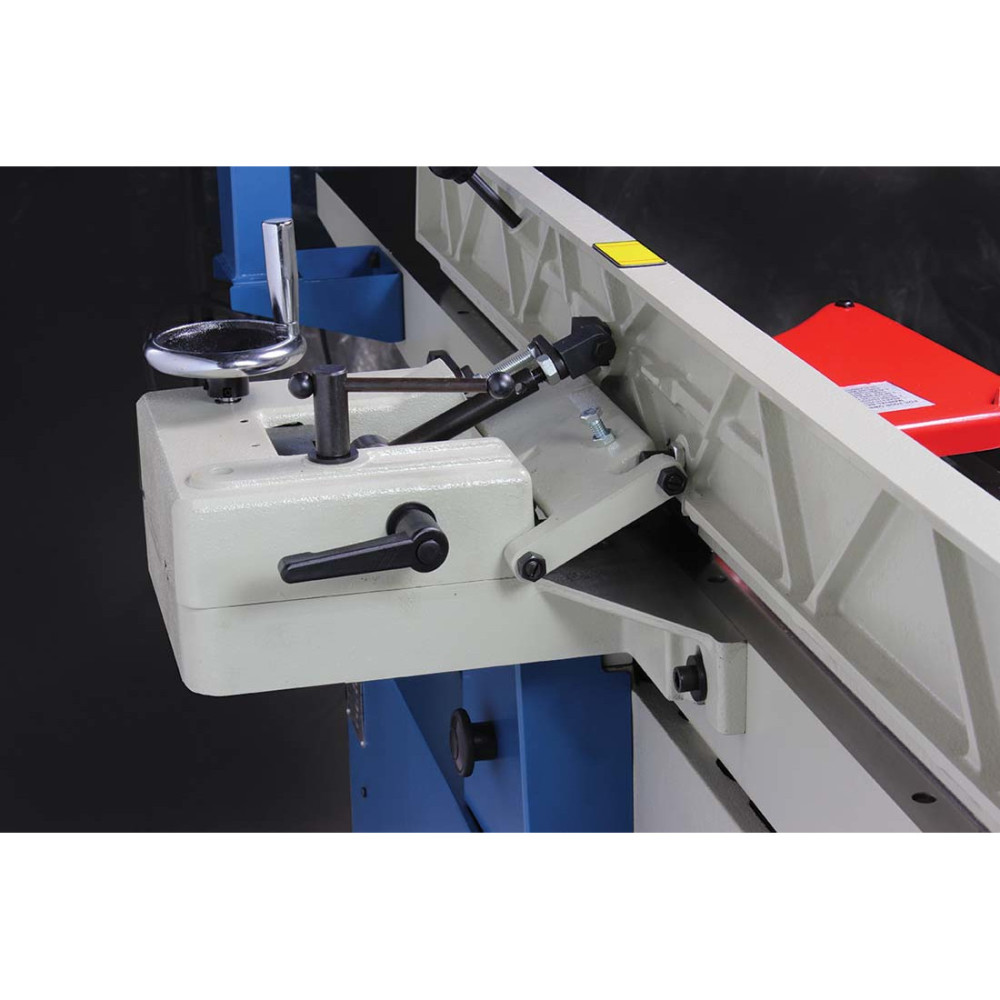

5.5 In. x 48 In. fence has positive stops at 45 Deg and 90 Deg, non-mar insert allows the fence to avoid scratching the table surface during adjustments

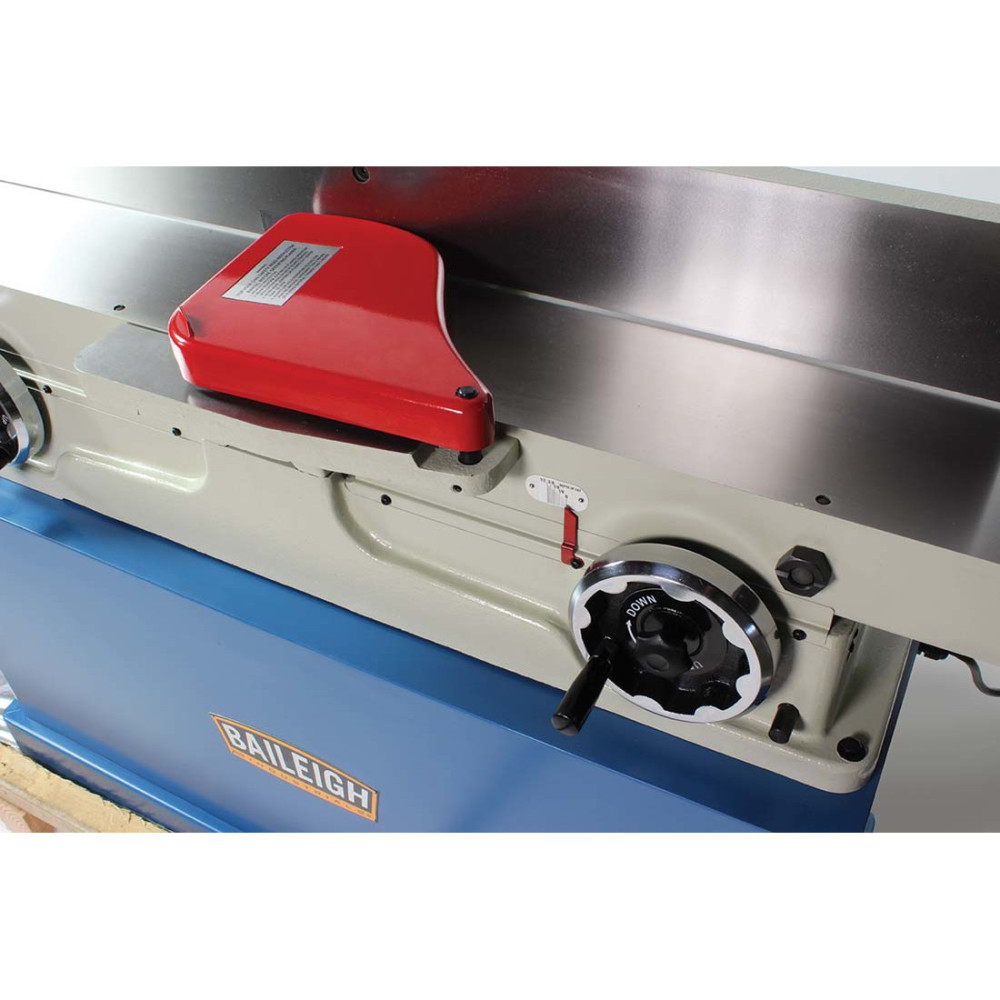

You can quickly adjust the cut depth up to 1/8 In. by turning a convenient handwheel

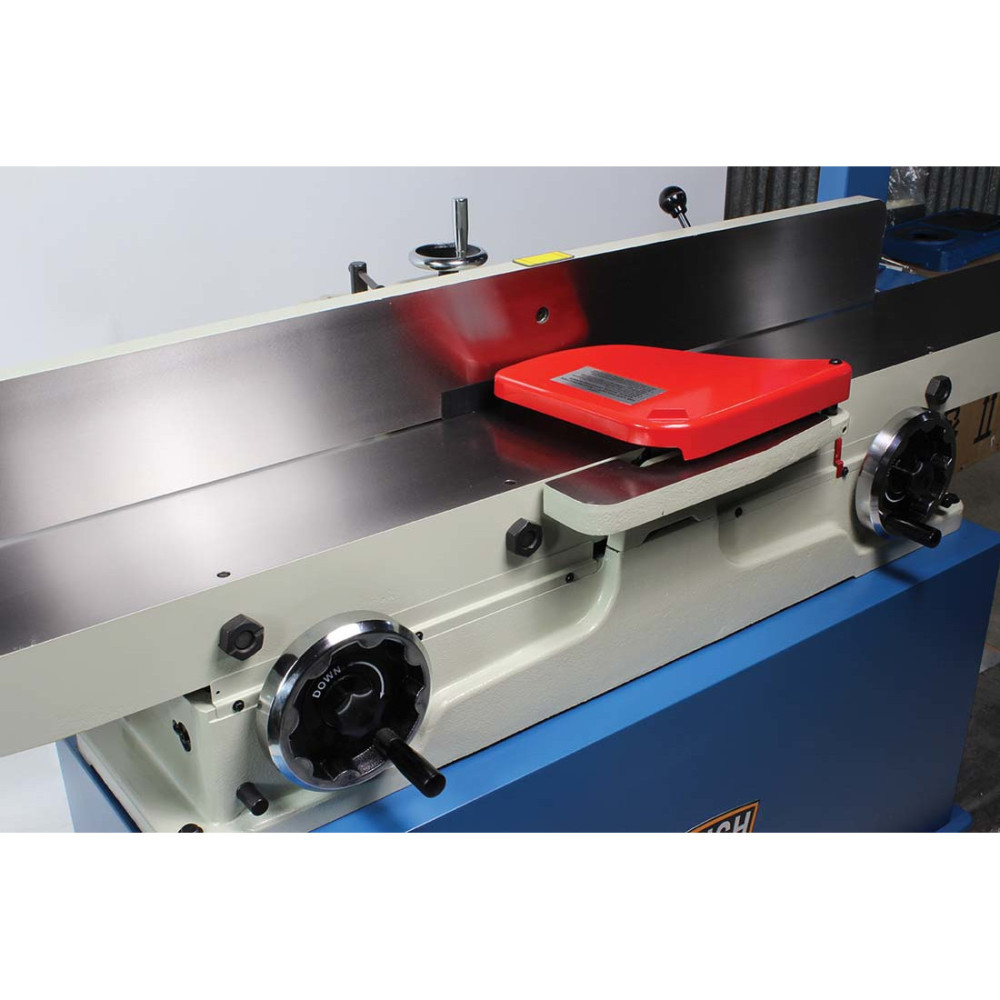

Parallelogram design moves the table edge in an arc around the cutter head, keeping the gap consistent, no matter the cut depth
This style of jointer helps prevent accidents, like tipping a board into the gap between the cutter and the table or getting your hand caught in there
Design ensures that the table remains perfectly parallel, even after years of use
4 In. dust port conveniently hooks up to your dust collection system, so your shop stays neat and clean, base includes linear wheels, enabling you to easily move the machine
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1021091
Amperage (A)
0-30
Assembled Weight (lbs)
710
Bench or Stationary
Stationary
Blade Count
4
Cord Length (ft)
25/50/100
Cordless / Corded
Corded
Country of Origin
Taiwan
Cutter Head Type
Spiral
Dust Port
Yes
Dust Port Outside Diameter (in)
4
Electrical Cord Configuration
3-Wire
Fence Height (in)
5.5
Fence Length (in)
48
Fence Tilt
Yes
Fence Tilt Range
45 degree and 90 degree
Helical Cutter Head
No
Integrated Rabbeting Edge
Yes
Maximum Cutting Depth (in)
0.125
Maximum RPM
5000
Maximum Speed (rpm)
5000
Motor Horsepower (hp)
3 HP
Package Contents
Long Bed Parallelogram Jointer with Spiral Cutter Head
Package Depth
44
Package Height
88
Package Weight
710
Phase
1
Positive Stops
45 degree and 90 degree
Rabbeting Depth (in)
0.5
Set / Individual
Individual
Switch Type
Magnetic
Table Length (in)
83
Table Width (in)
8
Variable Speed
No
Weight (lbs)
710
