Description

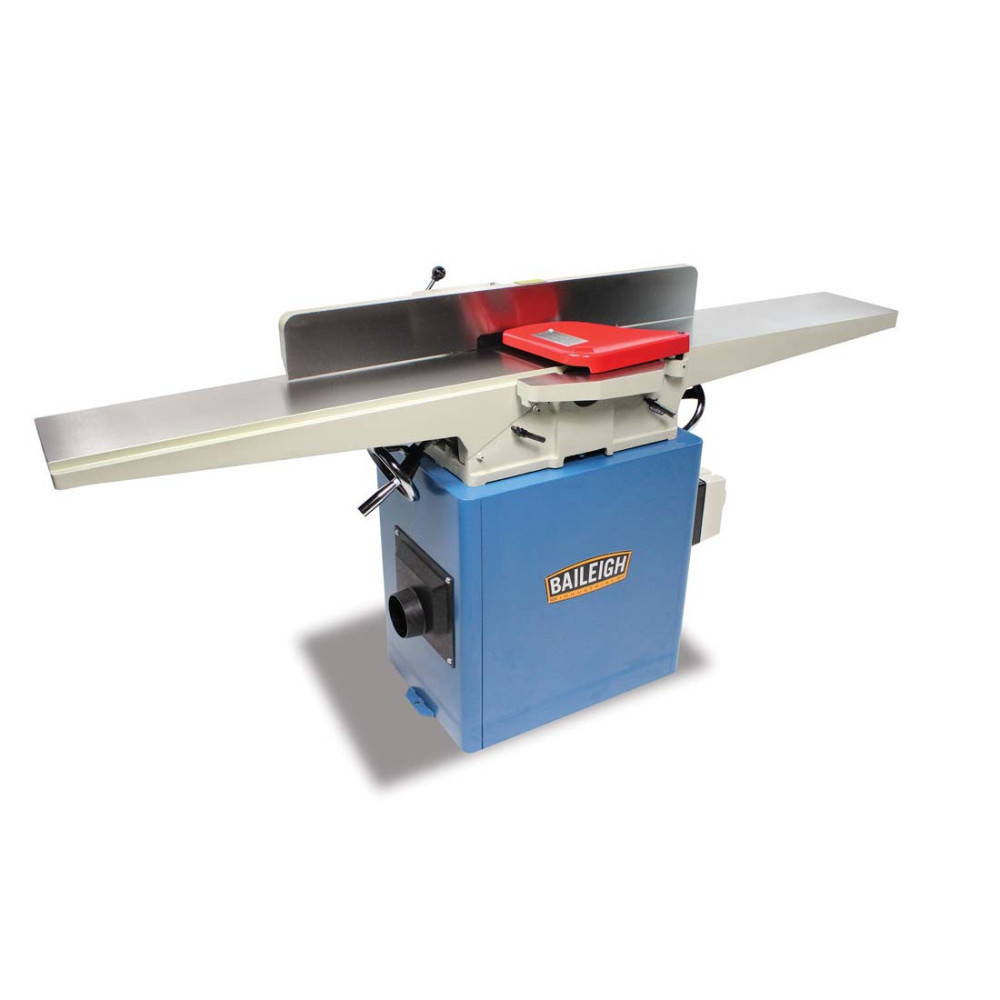

Baileigh IJ-872-HH Long Bed Jointer with Spiral Cutter Head 8″
Need a budget-friendly jointer to cut 8 In. wide lumber into flat pieces? The IJ-875 shows why long bed jointers are so popular: easy material handling and improved accuracy.
Features
2HP motor is robust enough to tackle hardwoods

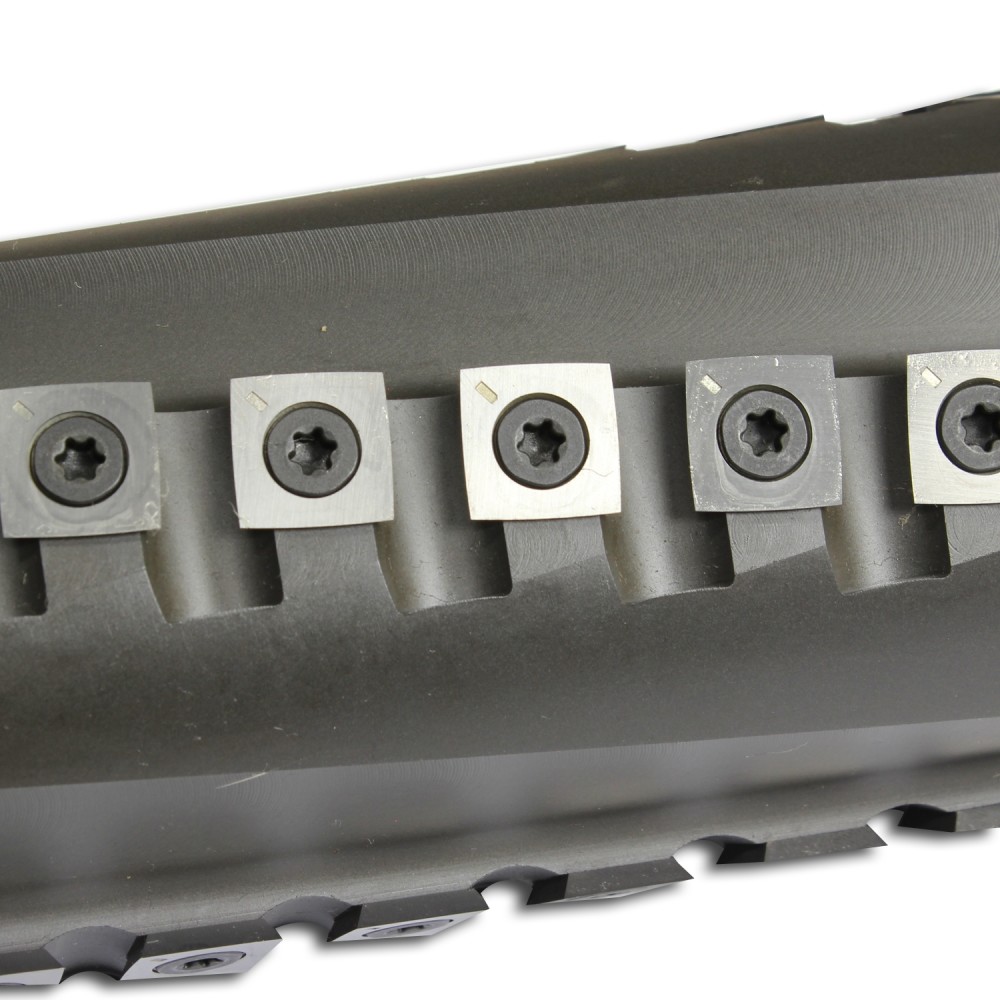

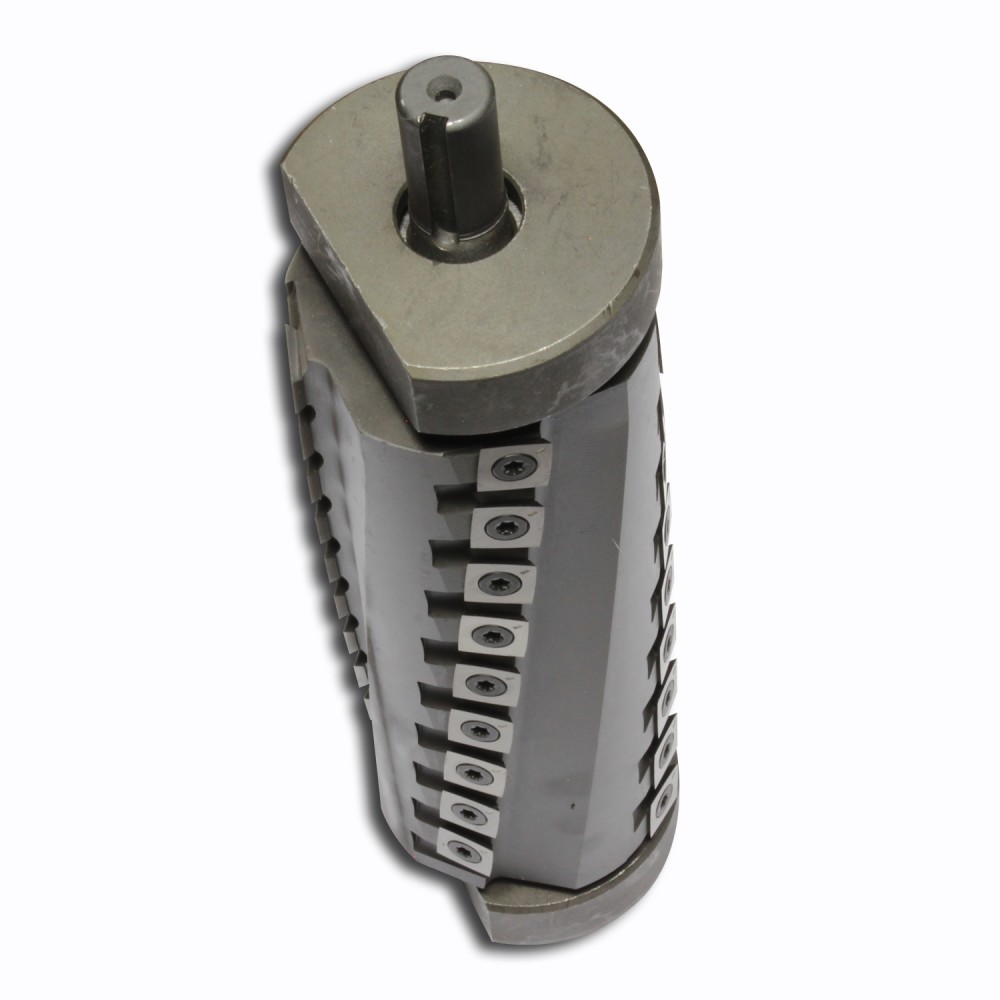

Straight 4 row helical cutter head spins at 5600 Rpm
Runs on 220V 1 Phase power
Classic wedge bed design has stood the test of time and proven itself a reliable choice for any shop

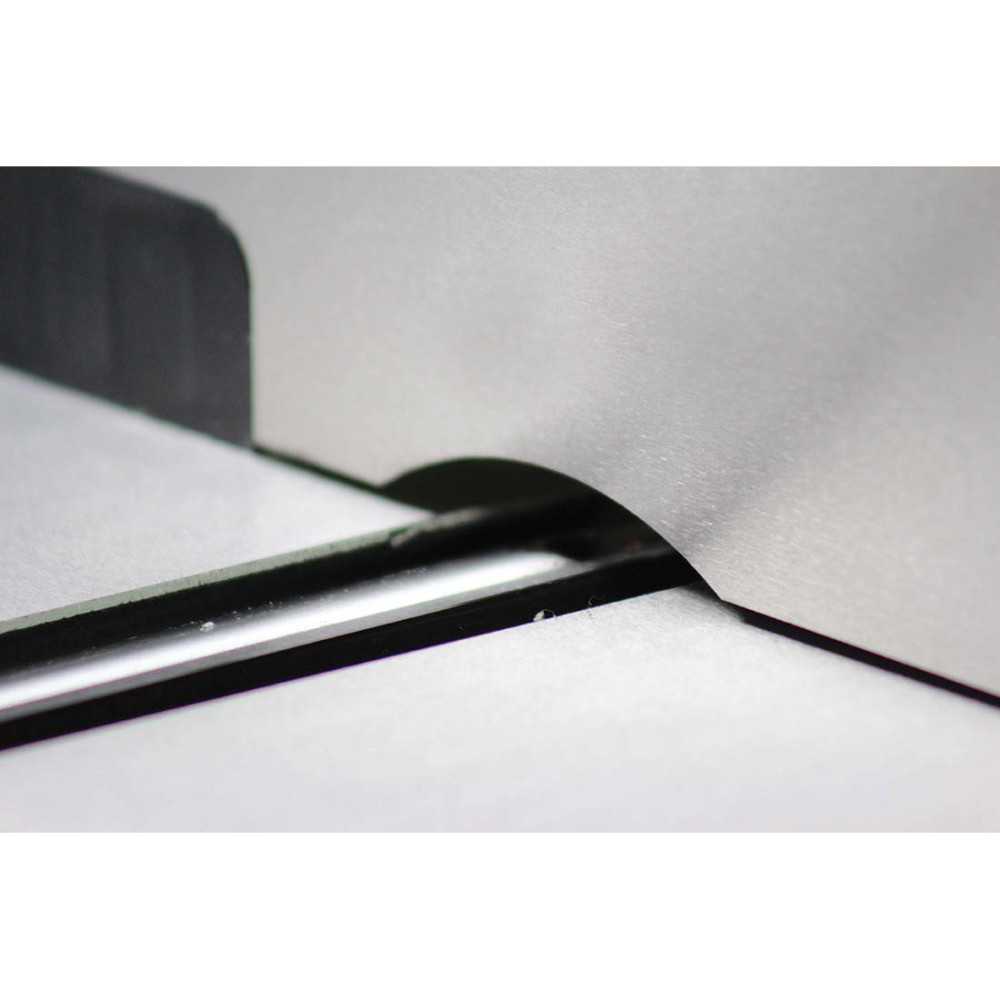

Sturdy 8 In. x 72 In. oversized table, mounted on dovetailed ways, includes a built-in rabbeting ledge
4.75 In. x 38 In. fence has 90 Deg and 45 Deg right and left stops for straight cutting and edge joining

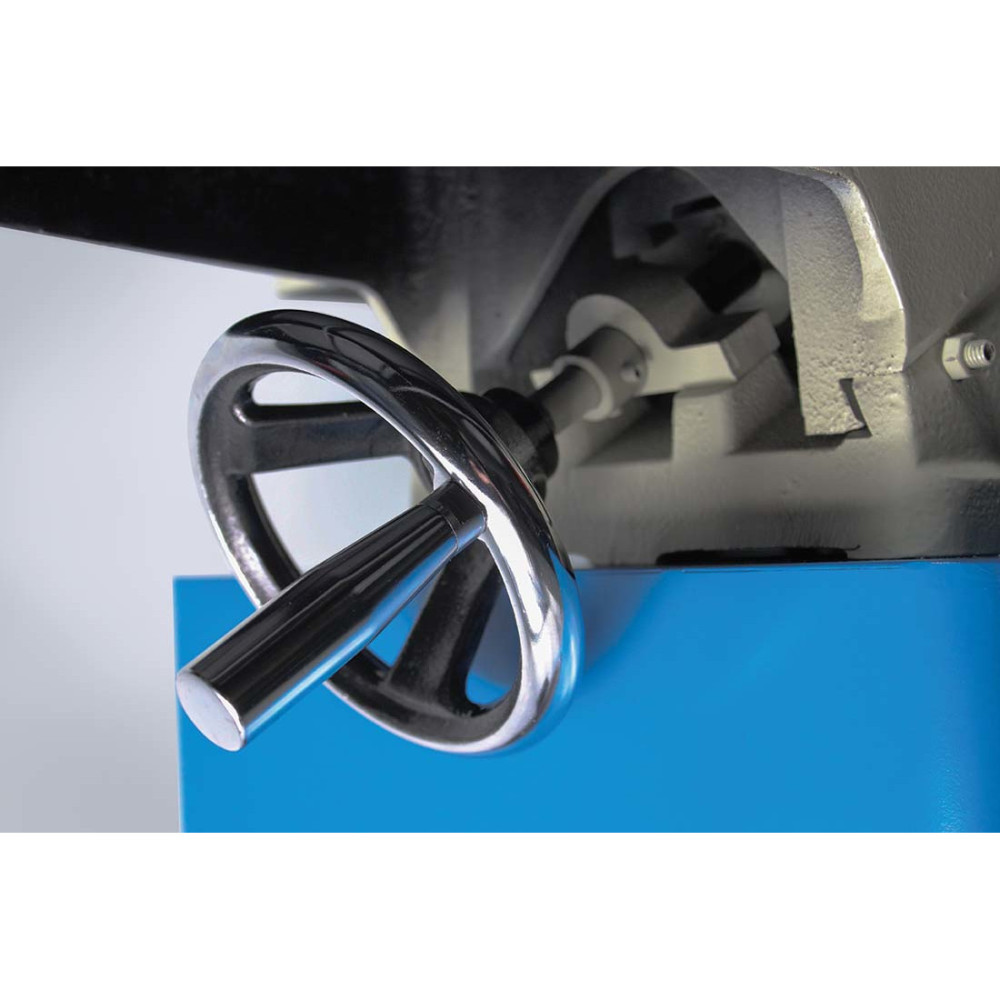

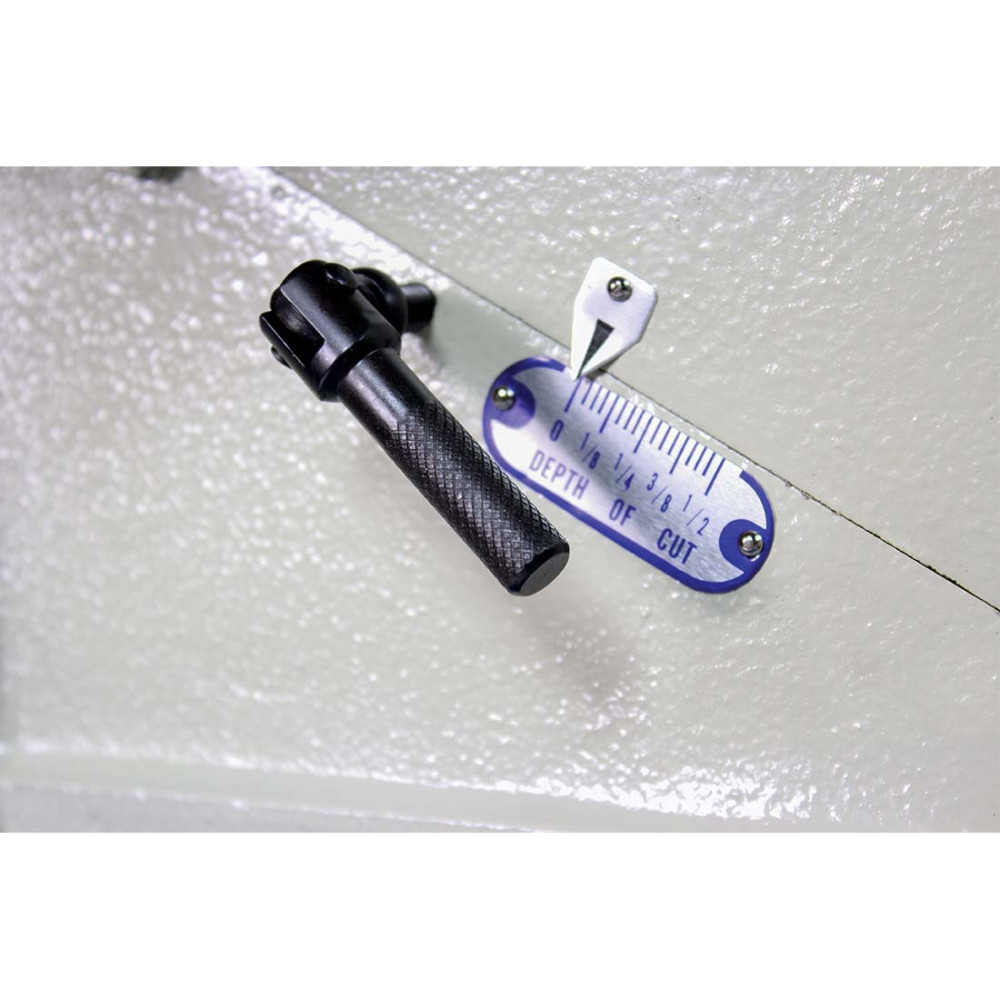

Adjustment wheel on the on the infeed table allows for fast setups and lets you control the cut depth up to the 1/8 In. maximum

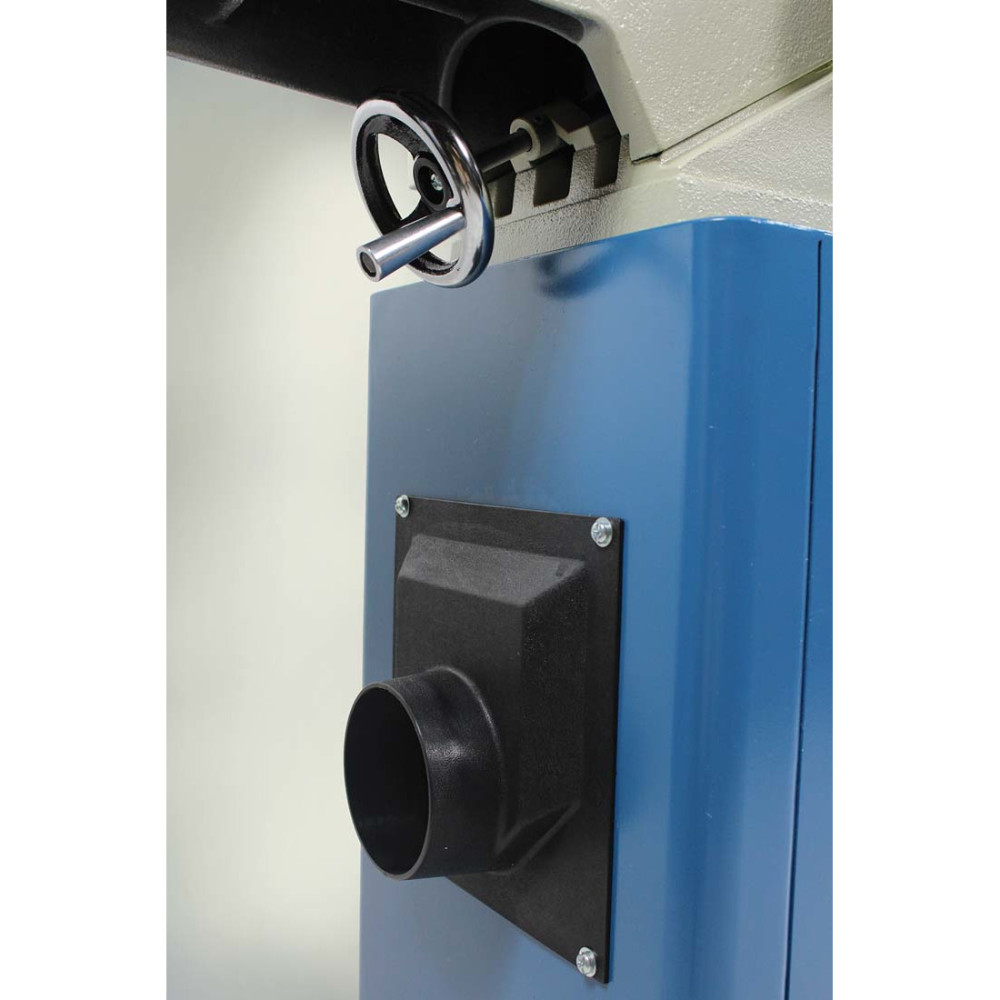

4 In. dust port can conveniently connect to a standard dust collector to suck up sawdust and clean your shop
Comes standard with a magnetic starter switch that turns the machine off if there’s a loss of power, It would cost a lot to add this safety feature to a different machine!
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1230365
Amperage (A)
0.0
Assembled Weight (lbs)
450
Bench or Stationary
Stationary
Cordless / Corded
Corded
Country of Origin
Taiwan
Cutter Head Type
Spiral
Dust Port
Yes
Dust Port Outside Diameter (in)
4
Fence Height (in)
4.75
Fence Length (in)
38
Fence Tilt
Yes
Fence Tilt Range
45 degree left and 90 degree right
Helical Cutter Head
No
Integrated Rabbeting Edge
Yes
Maximum Cutting Depth (in)
0.125
Maximum RPM
5600
Maximum Speed (rpm)
5600
Motor Horsepower (hp)
2 HP
Package Contents
Long Bed Jointer with Spiral Cutter Head
Package Depth
39
Package Height
83
Package Weight
450
Phase
1
Positive Stops
90 degree Right and 45 degree Left
Rabbeting Depth (in)
0.5
Set / Individual
Individual
Switch Type
Magnetic
Table Length (in)
72
Table Width (in)
8
Variable Speed
No
Weight (lbs)
450
