Description

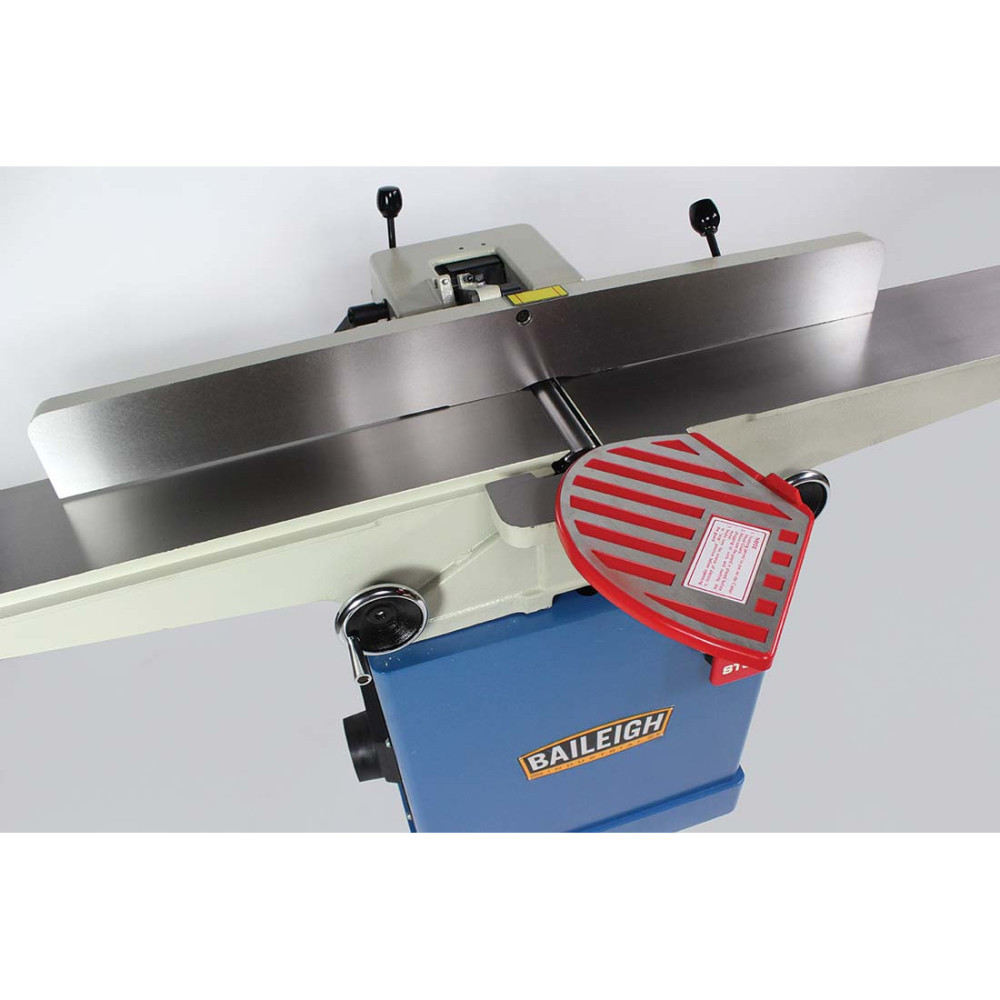

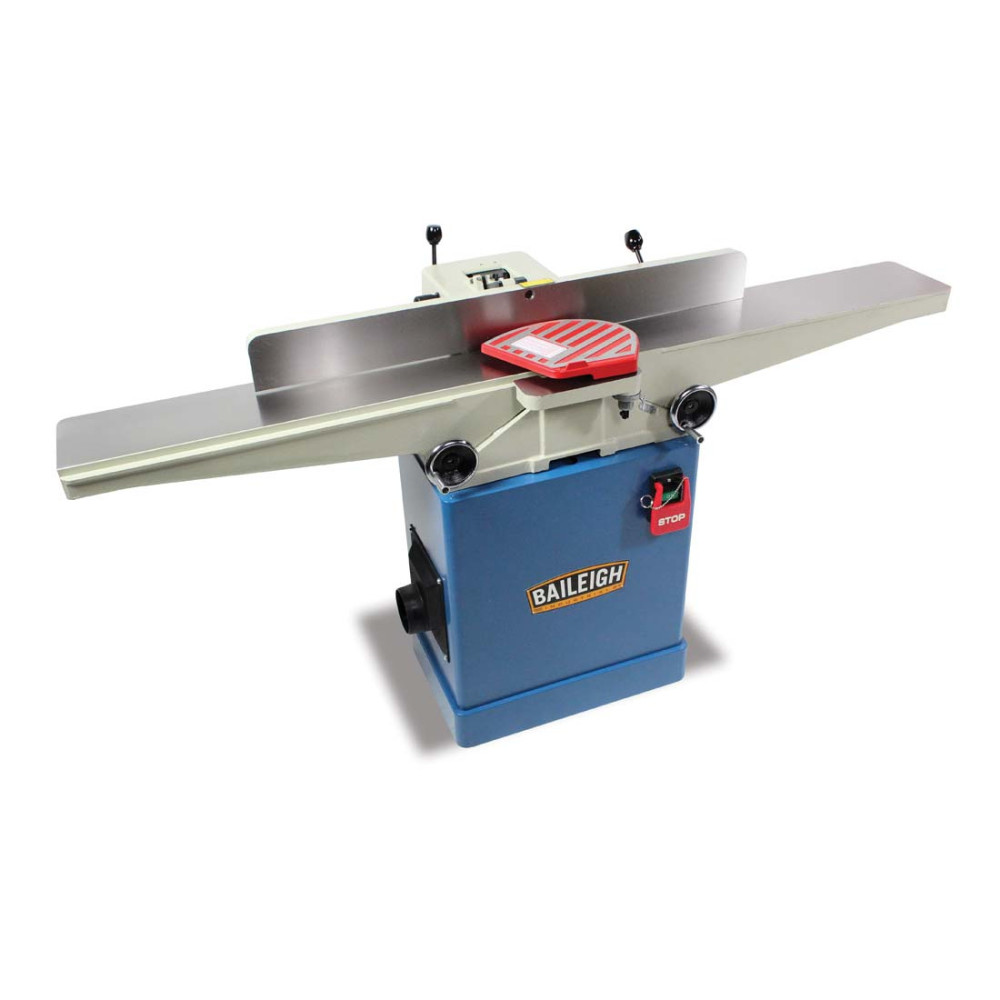

Baileigh IJ-666-HH Long Bed Jointer with Helical Cutter Head 110V
With a 66 In. table, this helical head bed jointer gives you extra support and delivers true cuts. A 1.5HP motor spins at 5000 Rpm with enough strength to tackle 6 In. wide pieces of hardwood.
Features
Runs on 110V or 220V 1 Phase power
Classic wedge bed design ensures many years of simple, reliable operation
Turn the wheel on infeed table to adjust the cutting depth up to 1/8 In. in seconds
You can also set your own minimum and maximum depth stops
Built-in rabbeting ledge helps you easily make grooves down the sides of boards for edge joining

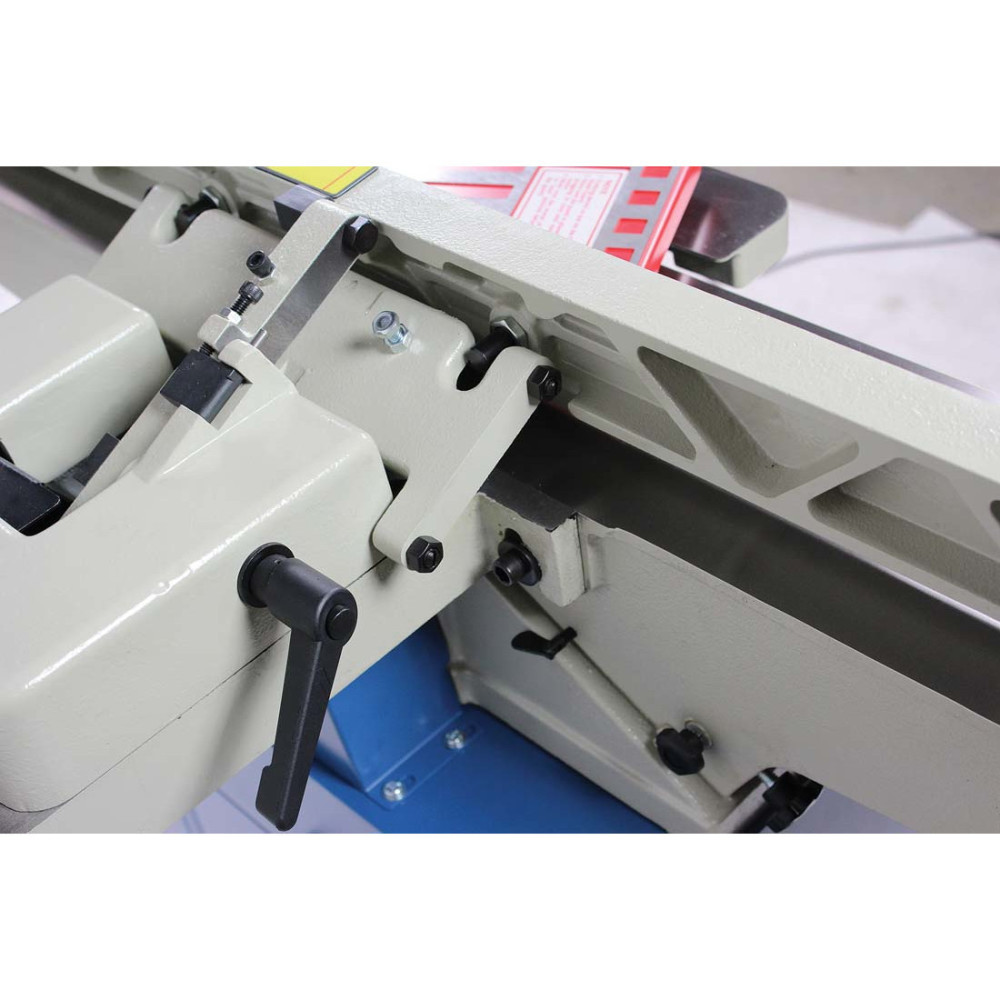

Includes a large 4 In. x 38 In. fence with stops at 90 Deg and 45 Deg right and left

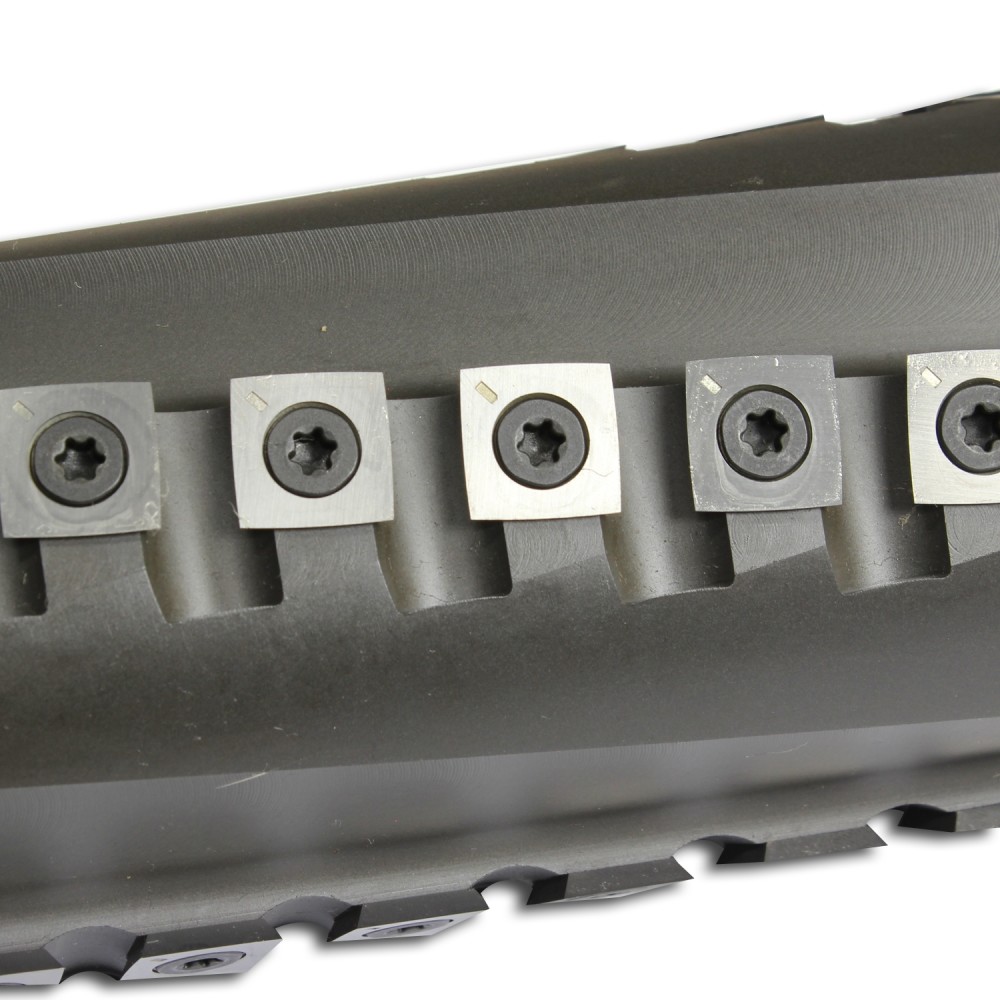

Comes standard with a 2.5 In. cutter head, equipped with a 4 row spiral cutter head with 4 sided inserts

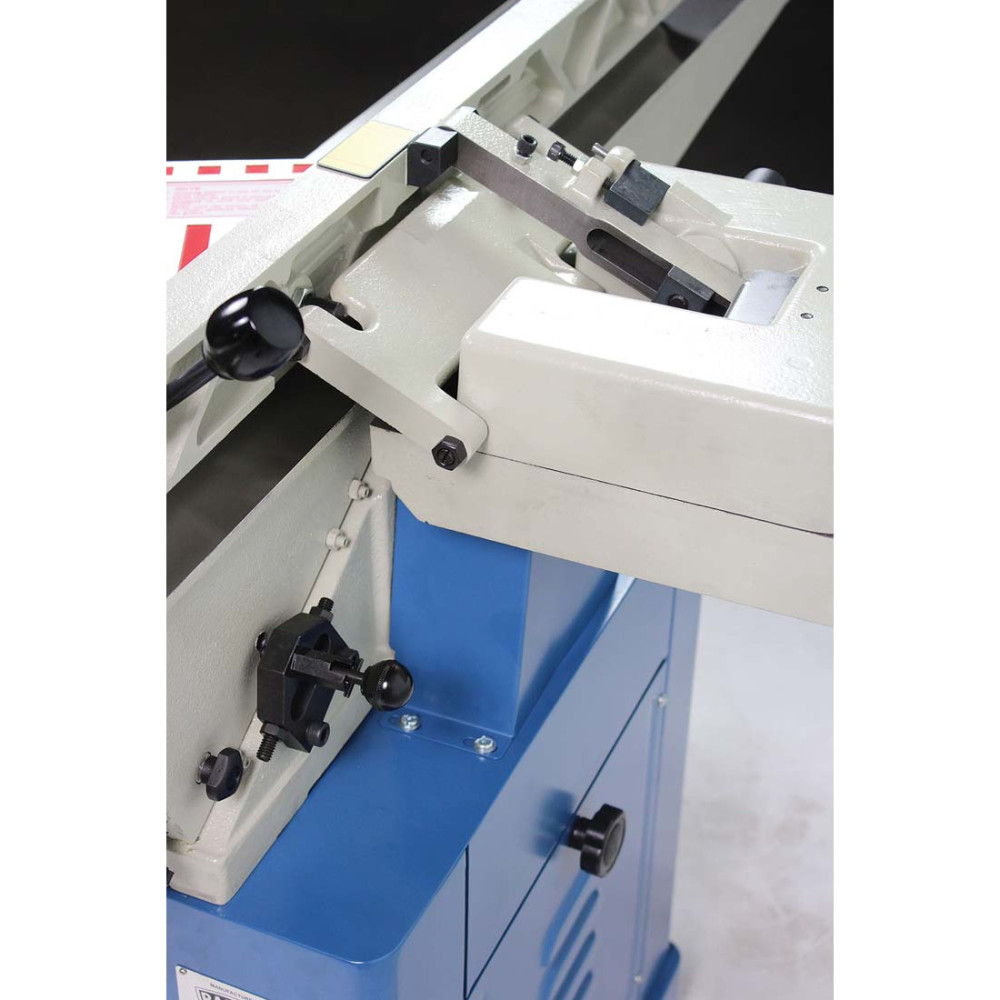

Cast aluminum safety guard protects you from the cutter head when it’s not in use
4 In. dust port makes it easy to hook up your dust collection system and suck wood dust right out of the jointing machine
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1021089
Amperage (A)
0-30
Assembled Weight (lbs)
344
Bench or Stationary
Stationary
Cord Length (ft)
25/50/100
Cordless / Corded
Corded
Country of Origin
Taiwan
Cutter Head Type
Helical
Dust Port
Yes
Dust Port Outside Diameter (in)
4
Electrical Cord Configuration
3-Wire
Fence Height (in)
4
Fence Length (in)
38
Fence Tilt
Yes
Fence Tilt Range
45 degree left and 90 degree right
Helical Cutter Head
Yes
Integrated Rabbeting Edge
Yes
Maximum Cutting Depth (in)
0.125
Maximum RPM
4800
Maximum Speed (rpm)
4800
Motor Horsepower (hp)
1 1/2 HP
Package Contents
Long Bed Jointer with Helical Cutter Head
Package Depth
34
Package Height
69
Package Weight
344
Phase
1
Positive Stops
90 degree Right and 45 degree Left
Rabbeting Depth (in)
0.5
Set / Individual
Individual
Switch Type
Stop
Table Length (in)
66
Table Width (in)
6
Variable Speed
No
Weight (lbs)
344
