Description

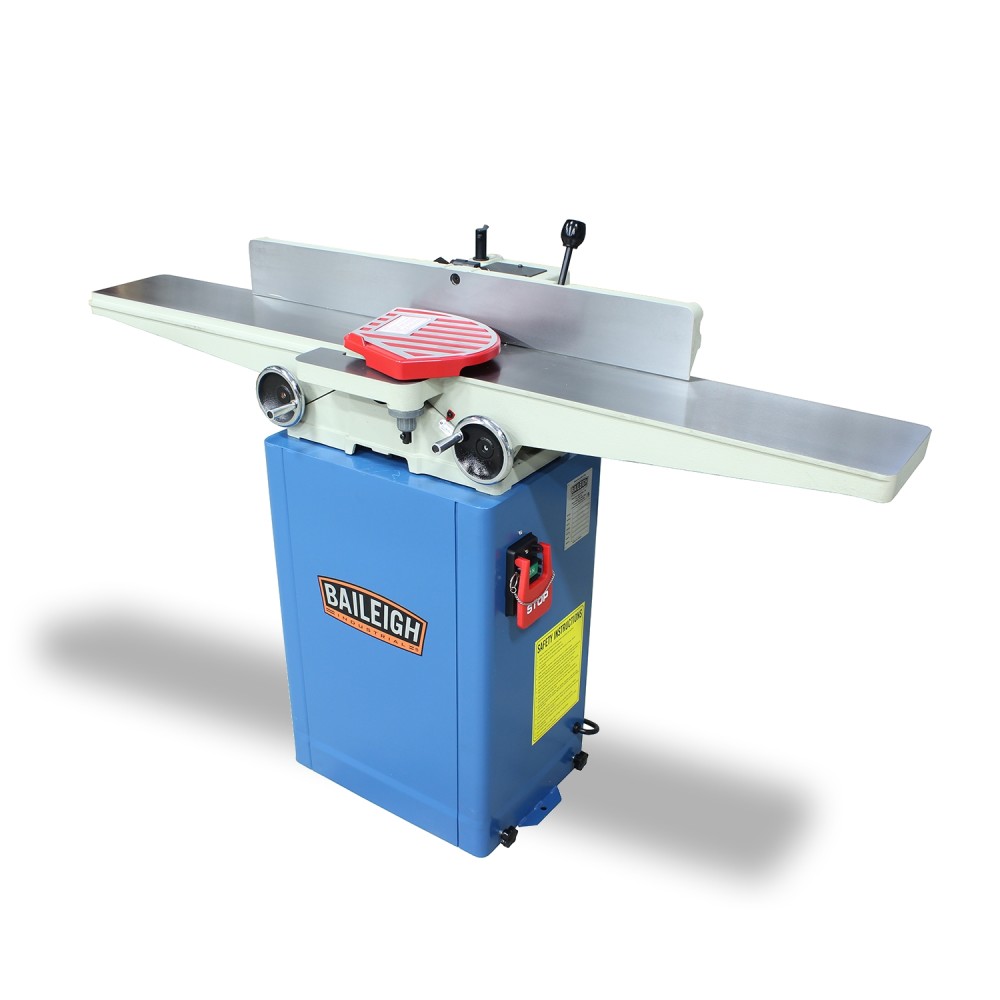

Baileigh IJ-655-HH Wood Jointer with Spiral Cutter Head 110/220V
Looking for an entry-level wood jointer? Want to upgrade from a small benchtop model? This affordable wood jointer is perfect for home shops or anyone working with 6 In. wide pieces.
Features
1HP motor spins the blade at 5000 Rpm
Runs on 110V 1 Phase power, so it will work almost anywhere

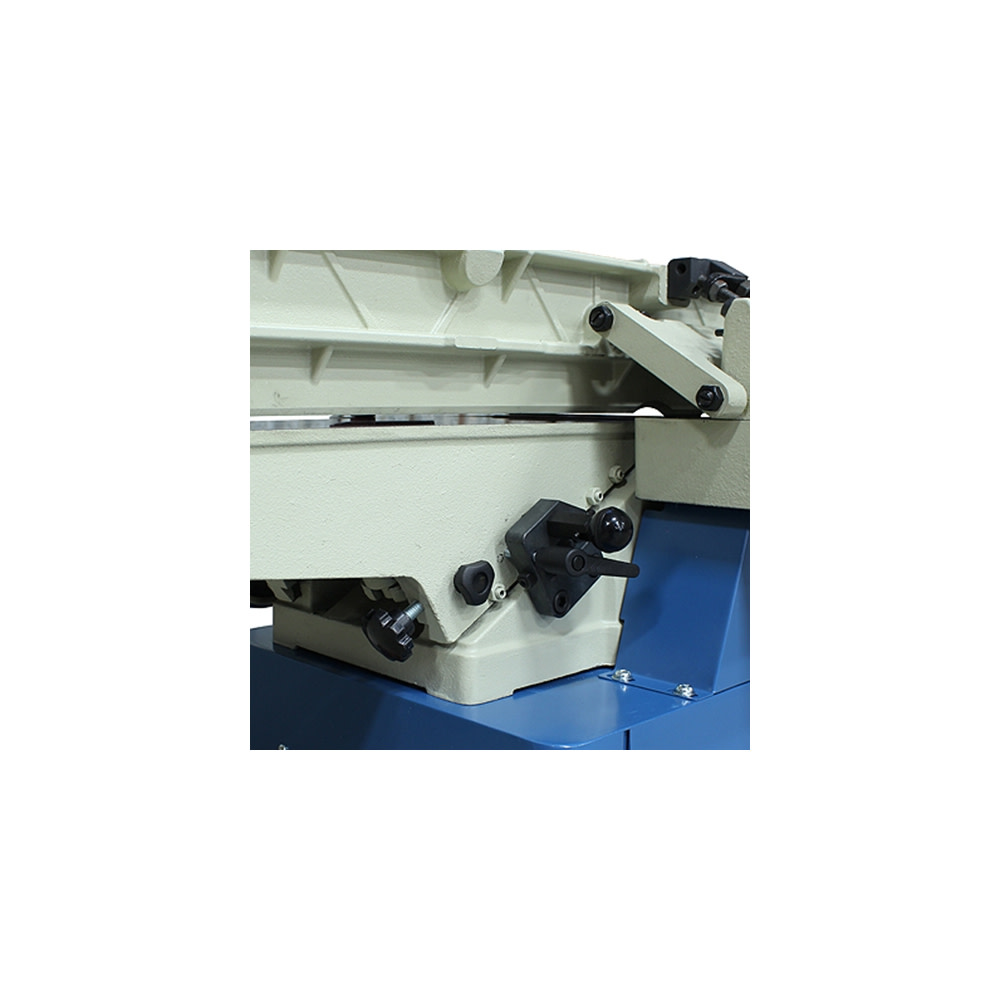

Tried and true wedge bed design is durable and simple to use
6 In. x 55 In. oversized steel table, mounted on dovetailed ways, gives you support and minimizes vibrations

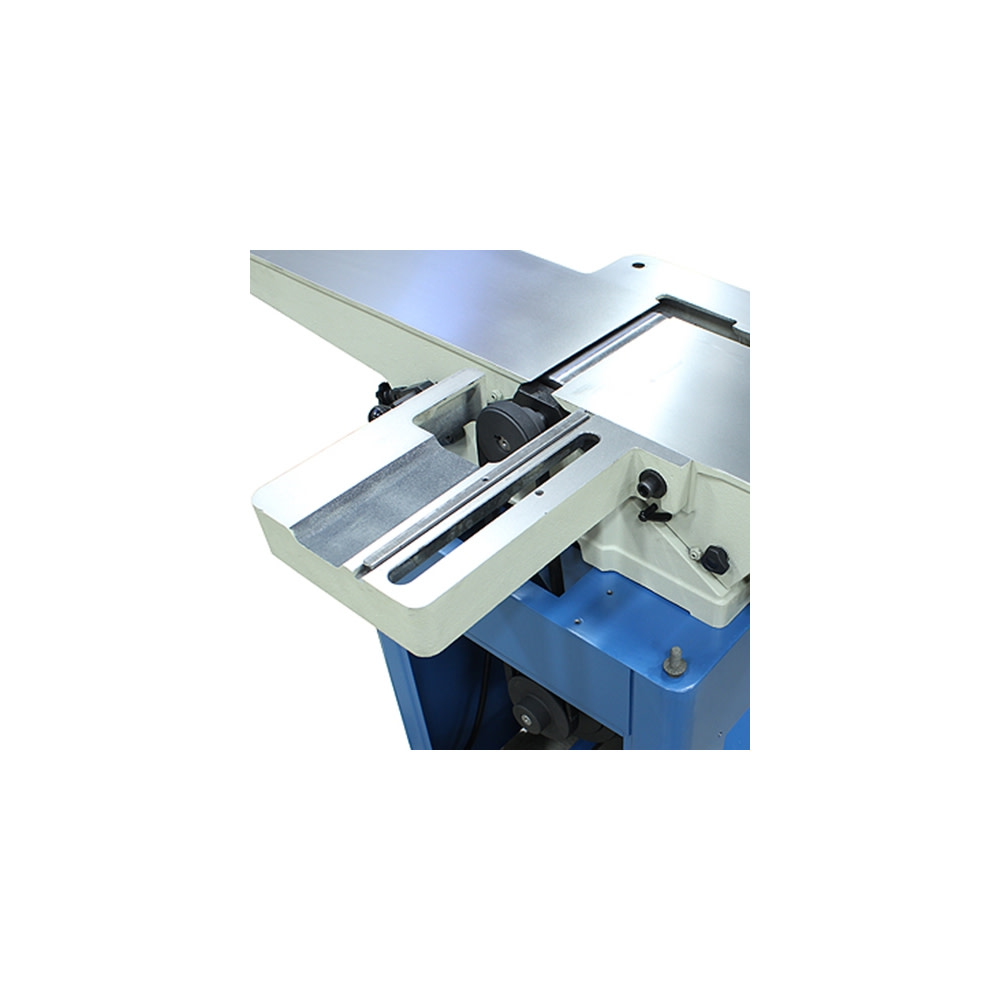

Built-in rabbeting ledge helps you easily make grooves down the sides of boards for edge joining

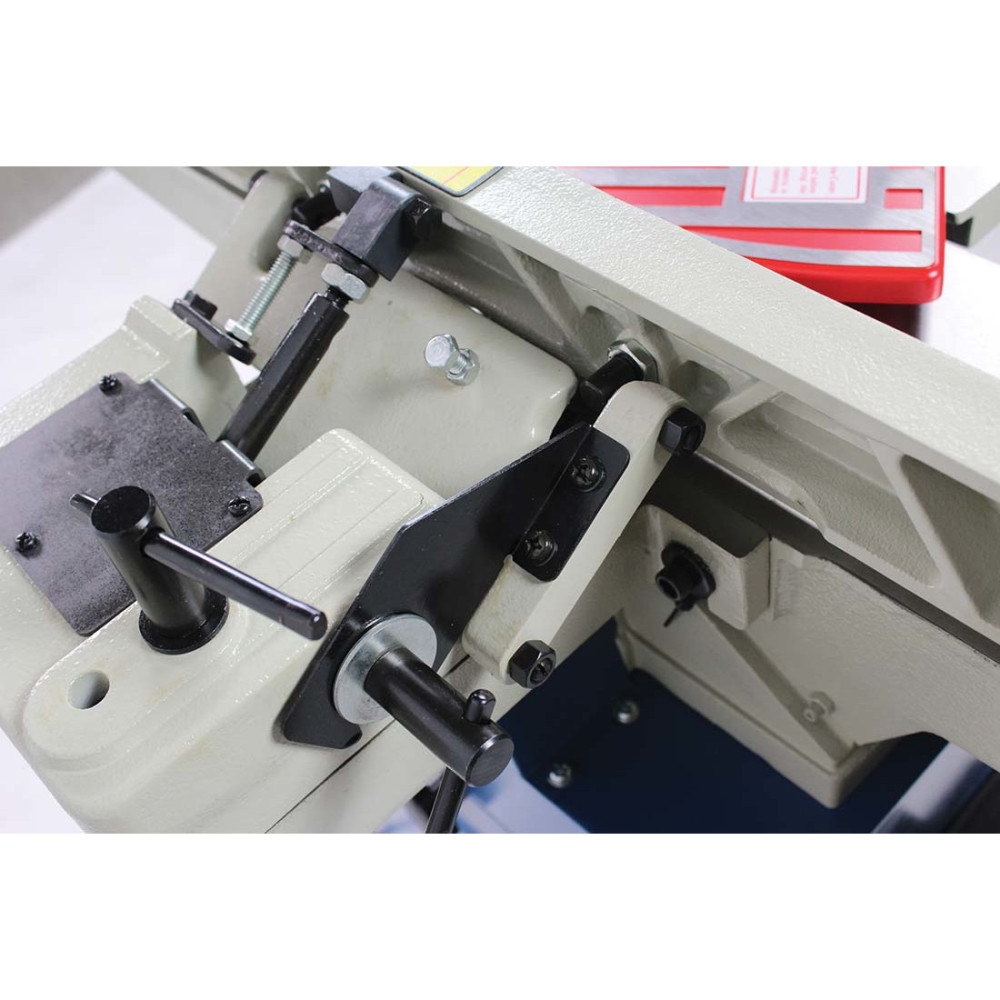

29 In. long, 4 In. tall fence has positive stops at 90 Deg and 45 Deg right and left

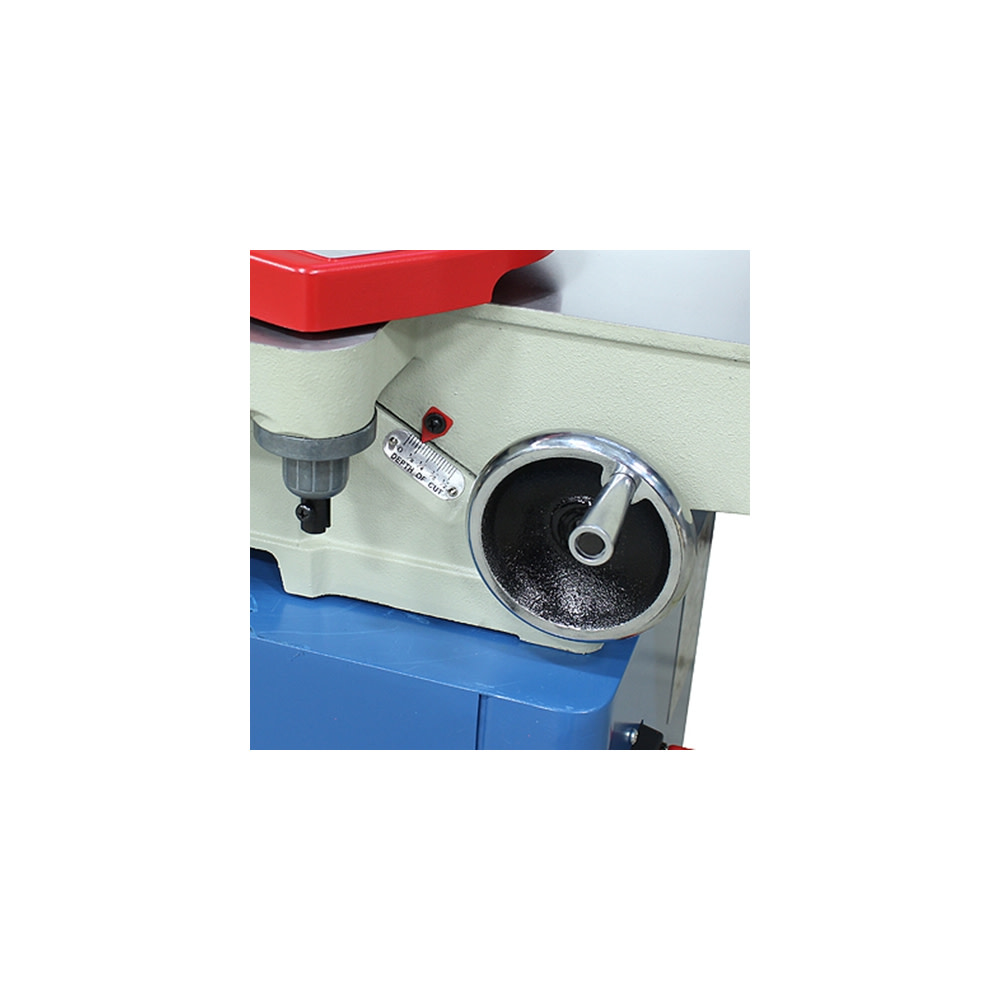

Lever on the infeed table allows you to adjust the cut depth up to 1/8 In. for quick set-ups

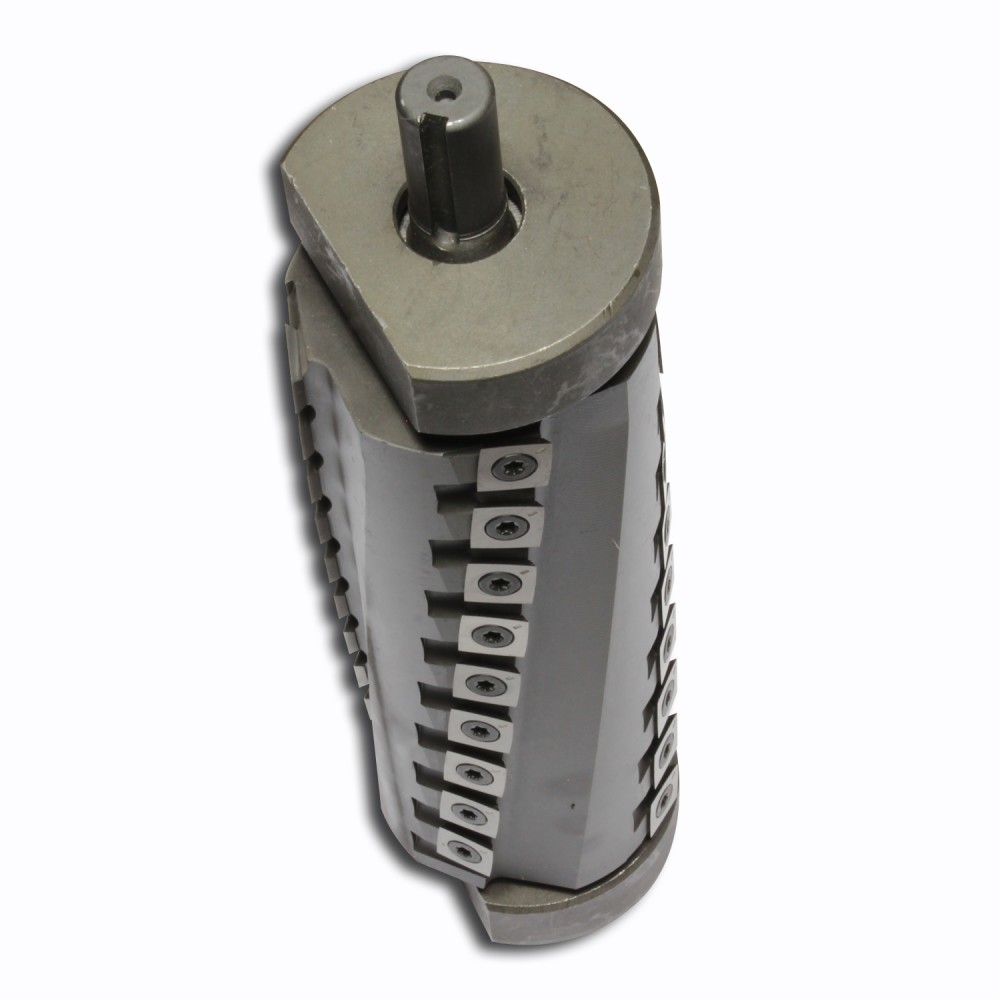

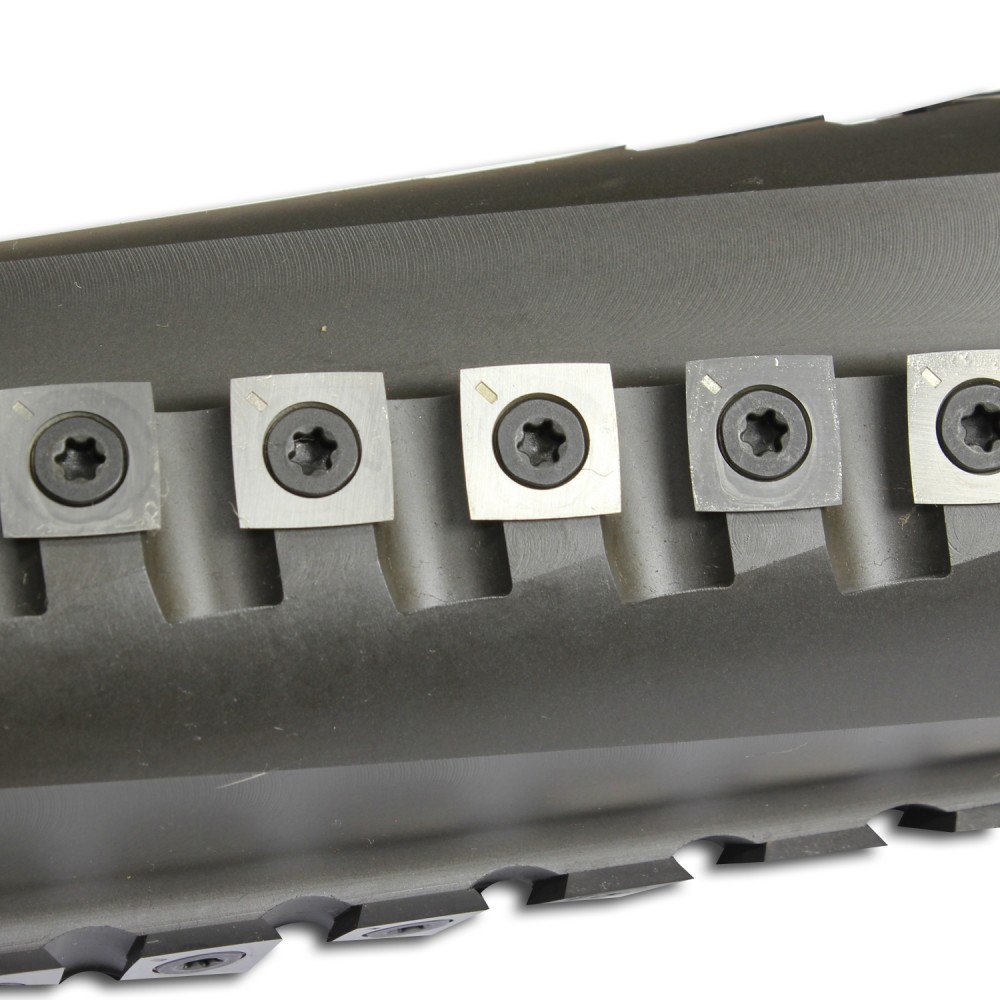

Straight 4-row spiral cutting head comes standard with the jointer table
4 In. dust port can connect to your dust collection system and keep your shop clean
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1023065
Amperage (A)
0-30
Assembled Weight (lbs)
240
Bench or Stationary
Stationary
Cord Length (ft)
25/50/100
Cordless / Corded
Corded
Country of Origin
Taiwan
Cutter Head Type
Spiral
Dust Port
Yes
Dust Port Outside Diameter (in)
4
Electrical Cord Configuration
3-Wire
Fence Height (in)
4
Fence Length (in)
29
Fence Tilt
Yes
Fence Tilt Range
45 degree left and 90 degree right
Helical Cutter Head
No
Integrated Rabbeting Edge
Yes
Maximum Cutting Depth (in)
0.125
Maximum RPM
4800
Maximum Speed (rpm)
4800
Motor Horsepower (hp)
1 HP
Package Contents
Wood Jointer with Spiral Cutter Head
Package Depth
38
Package Height
69
Package Weight
240
Phase
1
Positive Stops
90 degree Right and 45 degree Left
Rabbeting Depth (in)
0.5
Set / Individual
Individual
Switch Type
Safety
Table Length (in)
55
Table Material
Steel
Table Width (in)
6
Variable Speed
No
Weight (lbs)
240
