Description

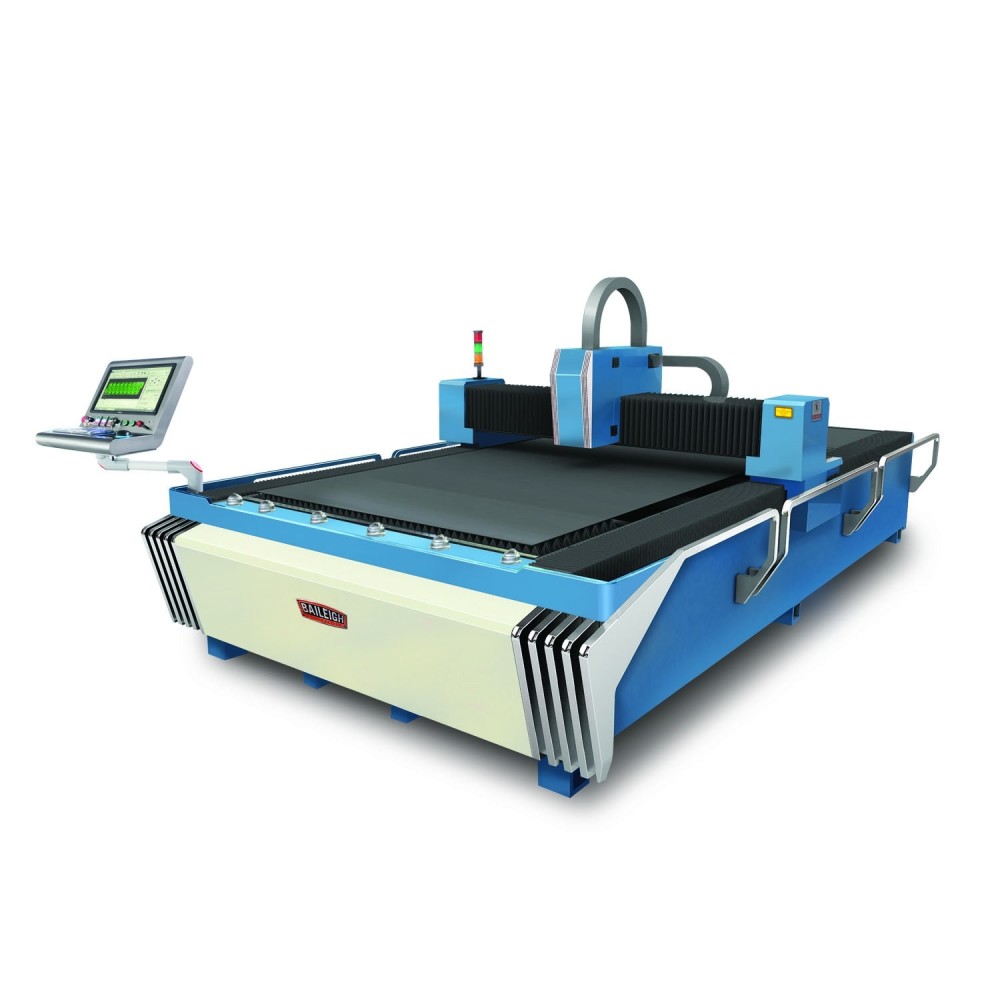

Baileigh FL-510HD-1000 Industrial CNC Fiber Laser Cutting Table
Our laser CNC table – FL-510HD-1000 has the structural strength to handle 5 Ft. x 10 Ft. sheets. Its 1000W fiber laser is ideal for production runs. It arrives fully assembled and comes with software.
Features
Efficient 1000W fiber laser

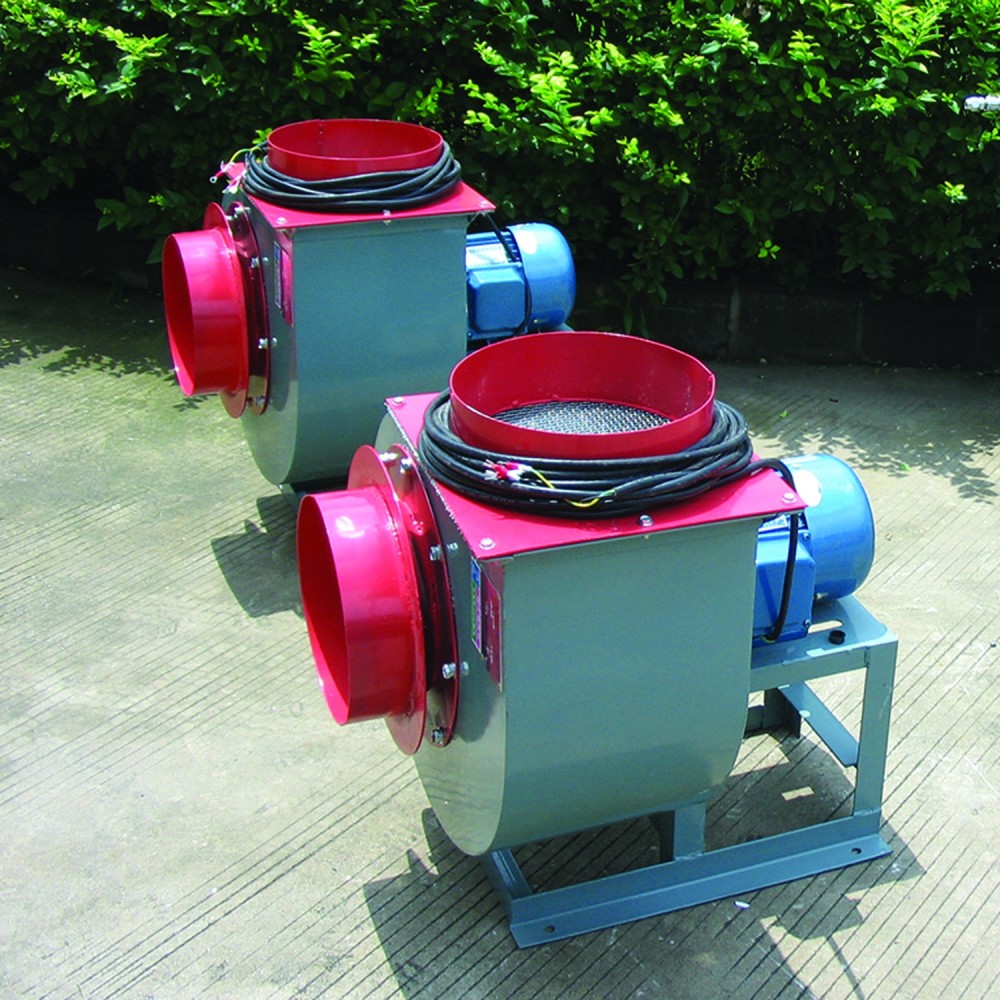

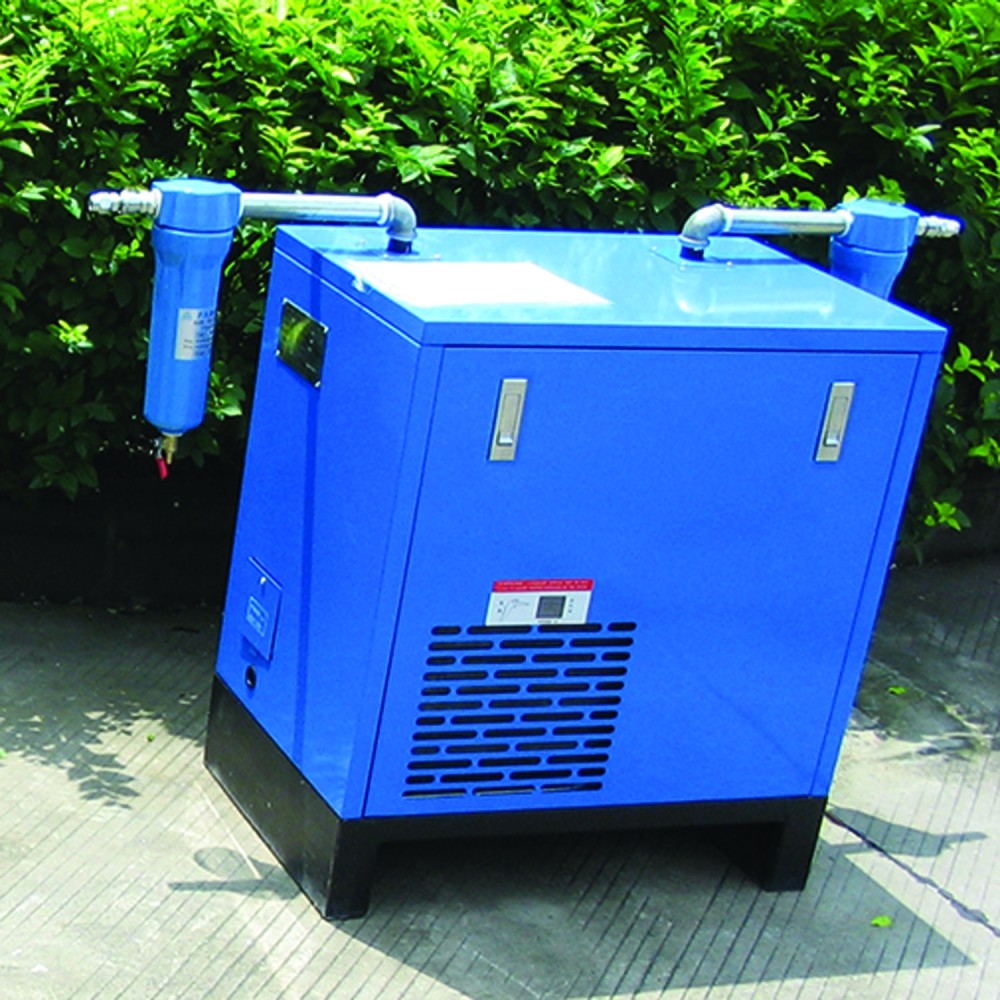

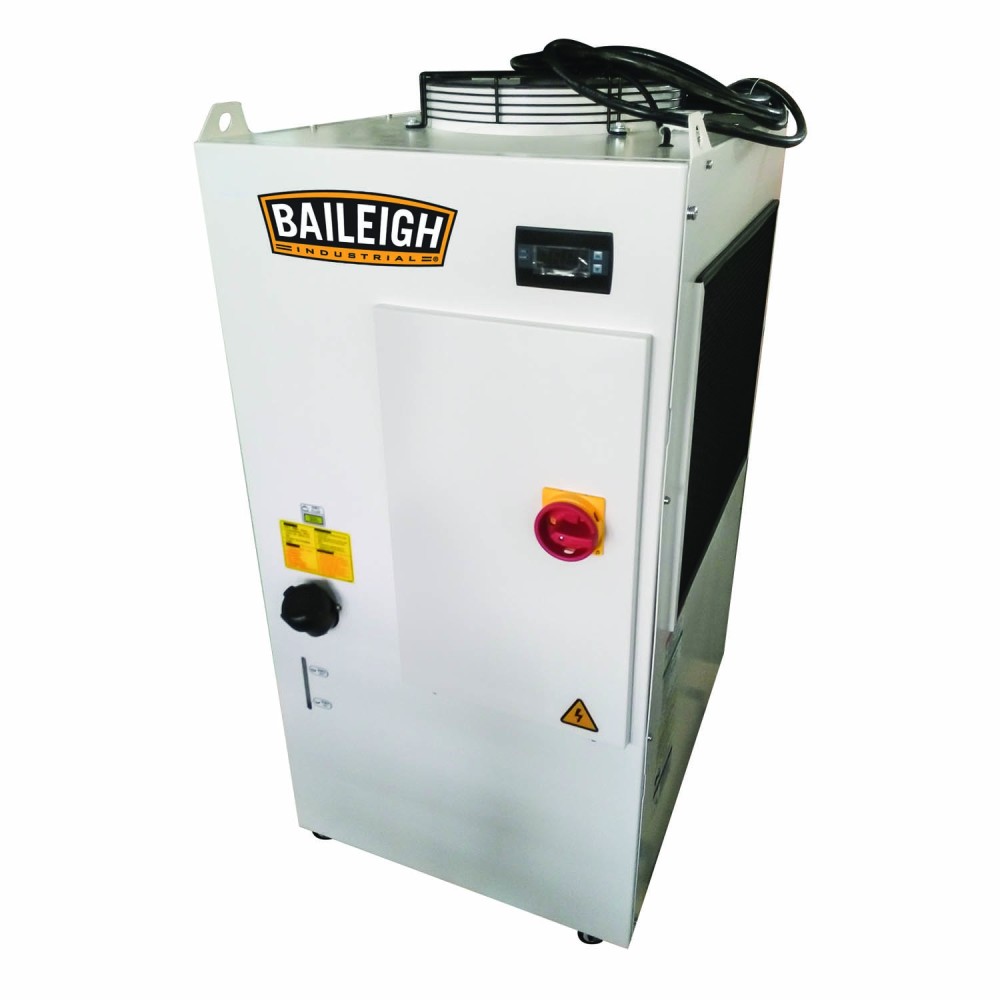

Includes chiller, air dryer and exhaust system
Runs on 220V 3 Phase power
Includes easy-to-learn design software that you can load into any basic PC
Delta® brushless servo motors, controlled by Delta® servo motion controllers, drive the gantry
Industrial-grade gantry travel system for the X, Y & Z axis made from extremely rigid extruded aluminum
Gantry can move out of the way for a full 10 Ft. sheet during loading, minimizing the chance of machine damage
Axes ride on heavy-duty ground and polished square shafts
Wiper dies on shafts keep welding dust out of the slide for a smooth transfer without noisy friction caused by dirt build-up
Baileigh FL-510HD-1000 220V 3 Phase 1000W 9.8 Ft. x 4.9 Ft. Industrial CNC Fiber Laser Cutting Table
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1018675
Assembled Weight (lbs)
9000
Country of Origin
China
Package Contents
(1) Laser Cutting Table, (1) Bobcad-Cam Express Design Software, Chiller, Air Dryer & Exhaust System
Package Depth
90
Package Height
180
Package Weight
9000
Table Length (in)
117.6
Table Width (in)
58.8
Welder / Cutter Type
Plasma Cutter CNC
