Description

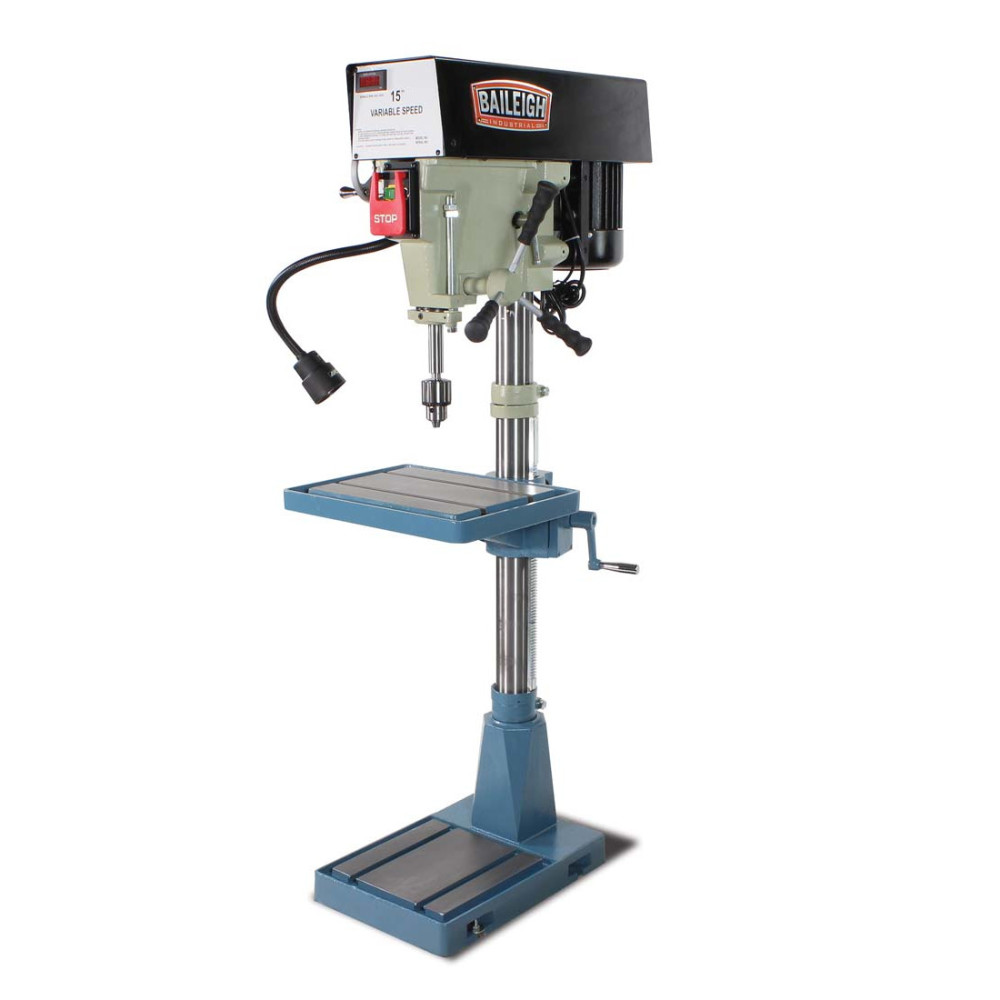

Baileigh DP-15VSF Floor Drill Press 110/220V 1 Phase 15″

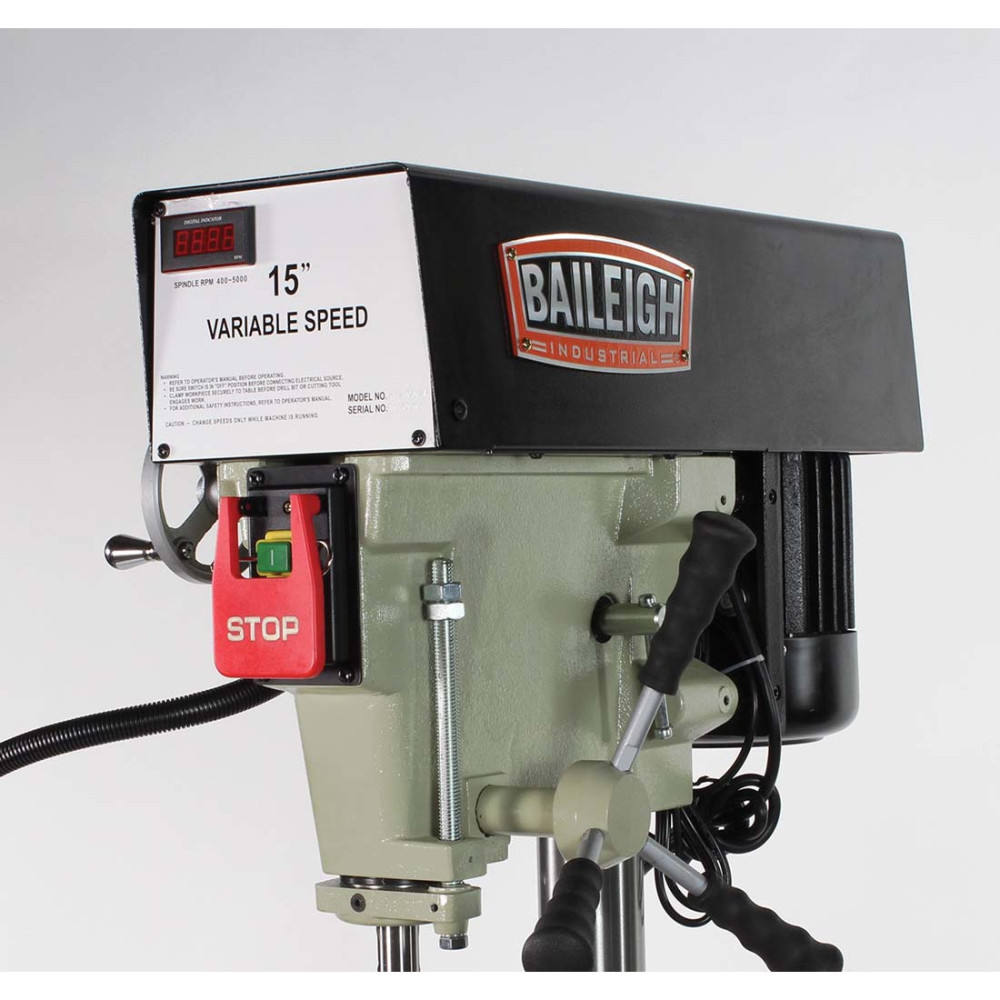

The DP-15VSF is the ultimate woodworking drill press. This belt driven variable speed drill press has a true 1HP motor that runs off of 110V, but can be wired to run on 220V 1 Phase should the need arise. The availability of variable speed lets theMT2 spindle on the DP-15VSF turn at any speed from 400 to 5000 Rpm, perfect for the wood worker. A digital readout helps determine the operating speed. a 6 In. spindle stroke.
Features
Built to last the DP-15VSF belt driven variable speed drill press has a large 3 In. diameter column that allows for 15 In. of swing

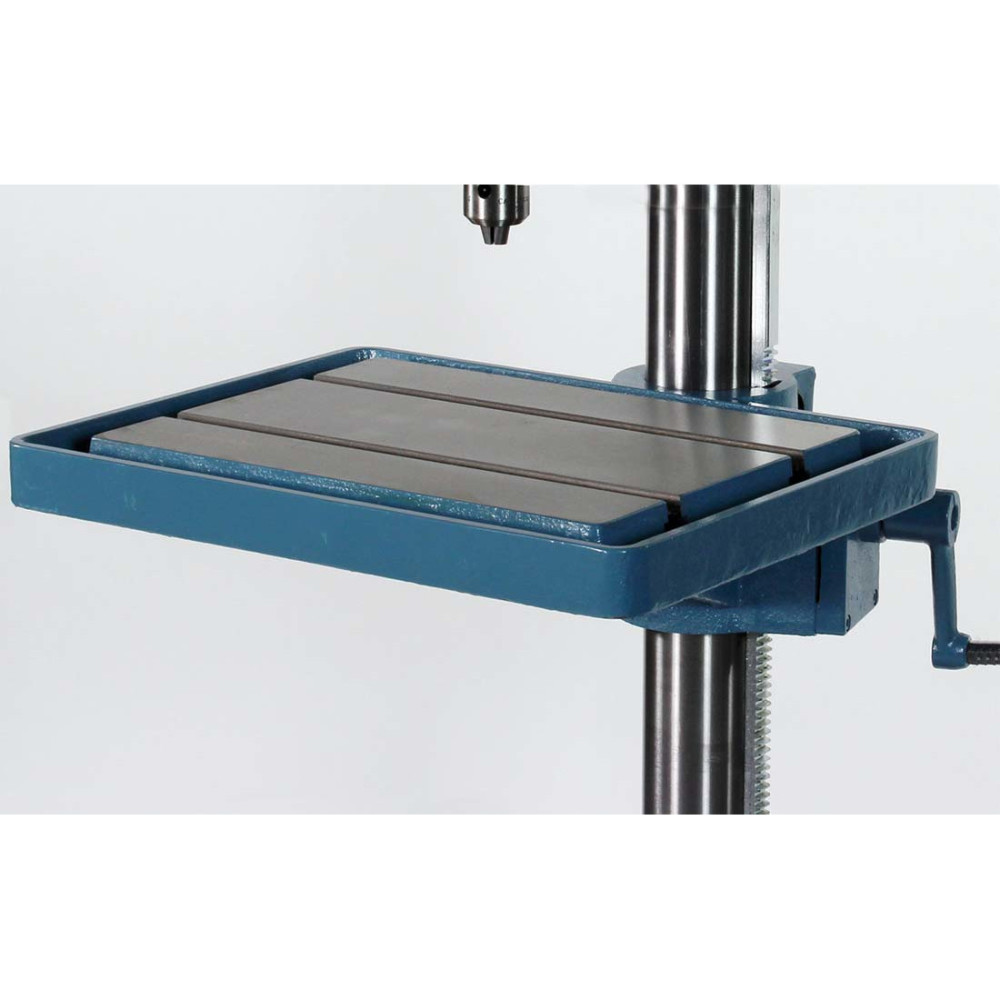

For those larger projects it has a 14 In. x 18 In. table with 5/8 In. t-slots
The table also incorporates a rack and pinion system for moving the table up and down

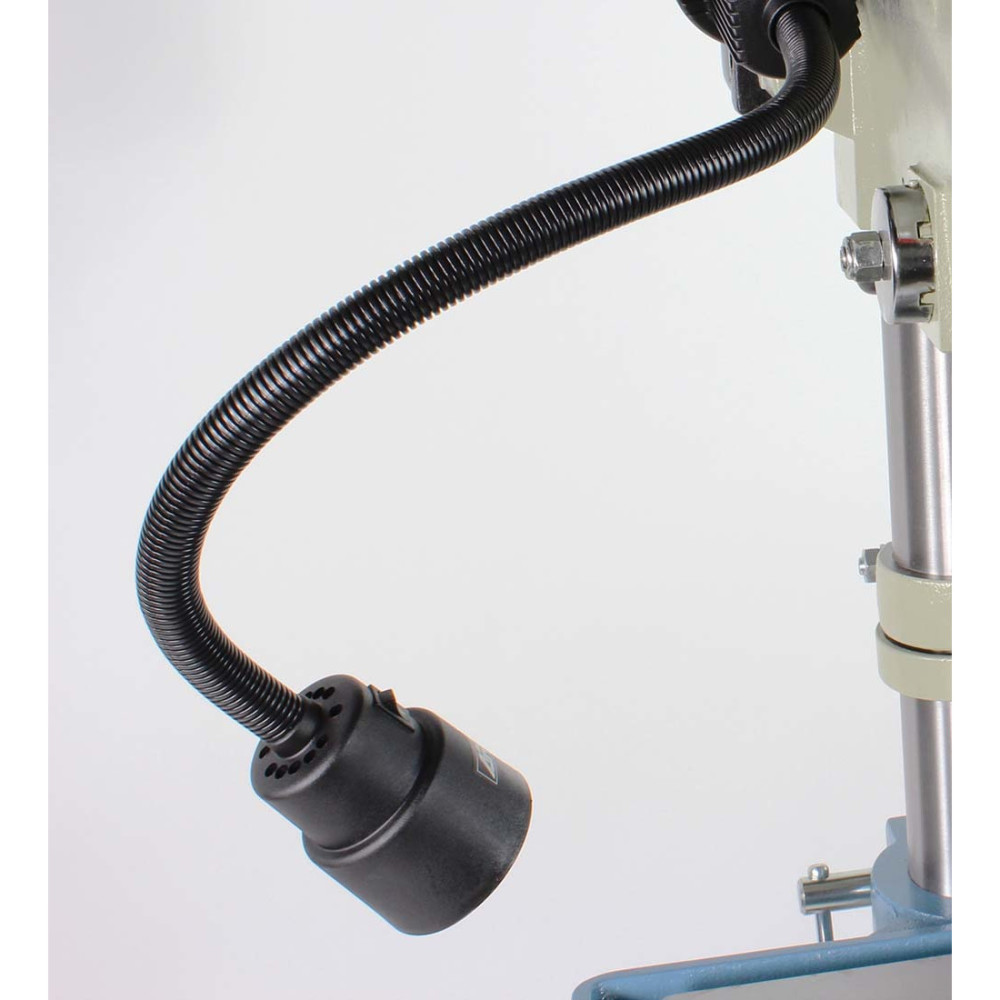

A halogen work light and drill chuck round out this great variable speed drill press package
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1002989
Amperage (A)
0.0
Assembled Weight (lbs)
450
Bench or Stationary
Stationary
Chuck Size
5/8 In
Country of Origin
Taiwan
Drill Press Type
Stationary
Drilling Depth (in)
0.625
Drive Motor System
Electric
Horsepower (hp)
1
Number of Spindle Speeds
Variable
Package Contents
Drill Press
Package Depth
77
Package Height
60
Package Weight
450
Speed Range High (rpm)
5000
Speed Range Low (rpm)
400
Speeds
Variable
Spindle Travel (in)
6
Stroke (in)
6
Stroke Length (in)
6
Table Work Surface Size
18 In. x 14 In.
