Description

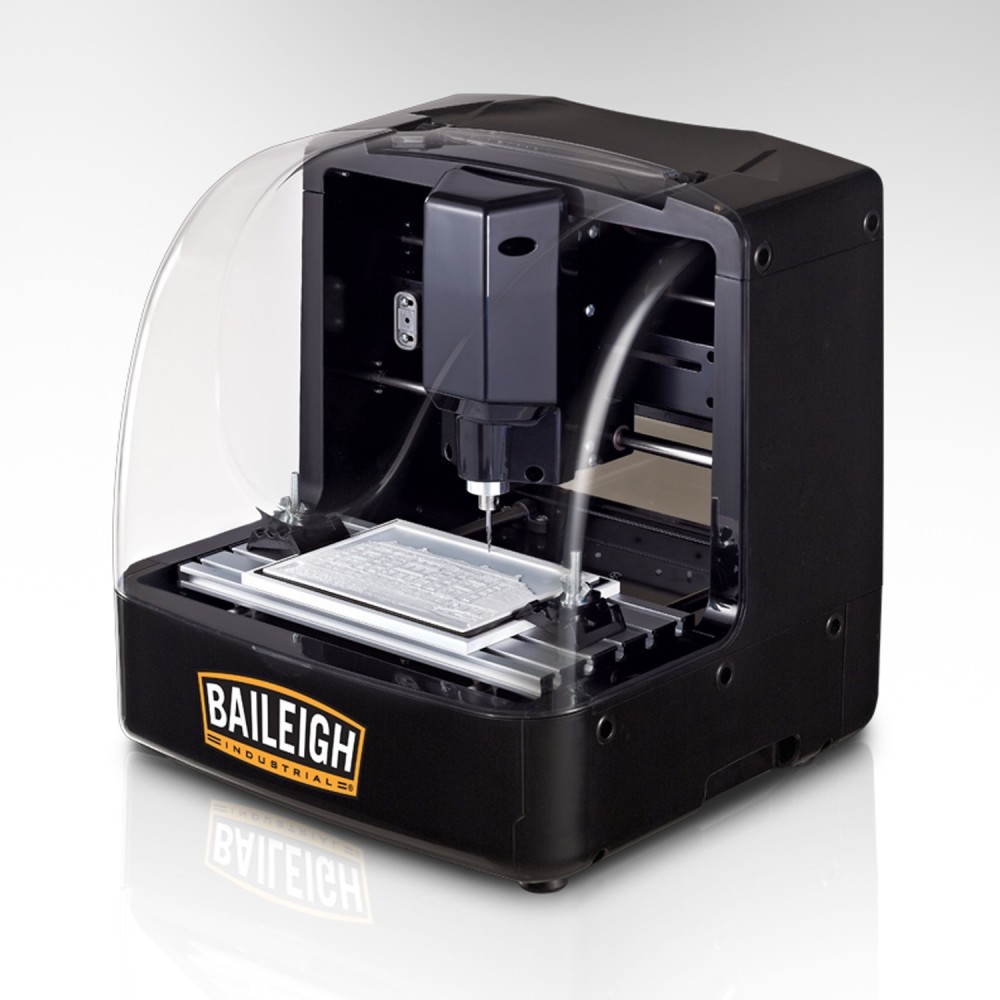

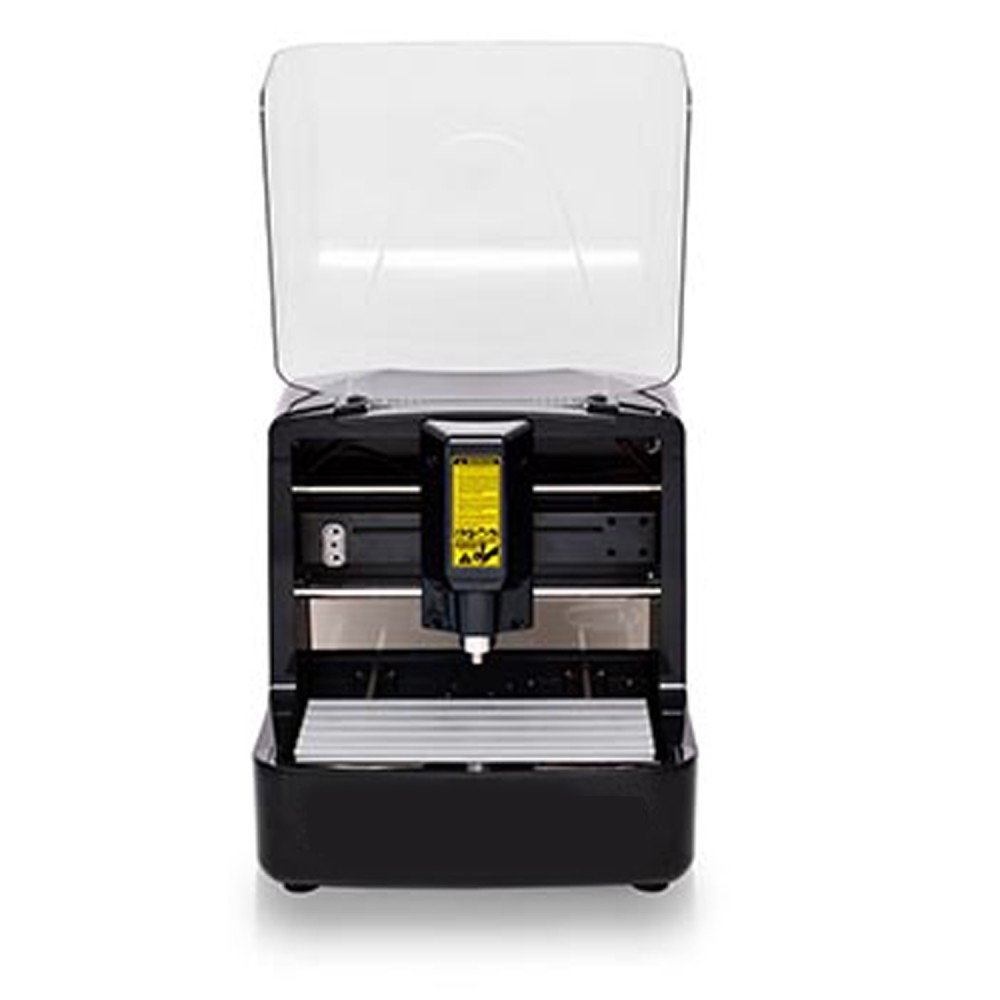

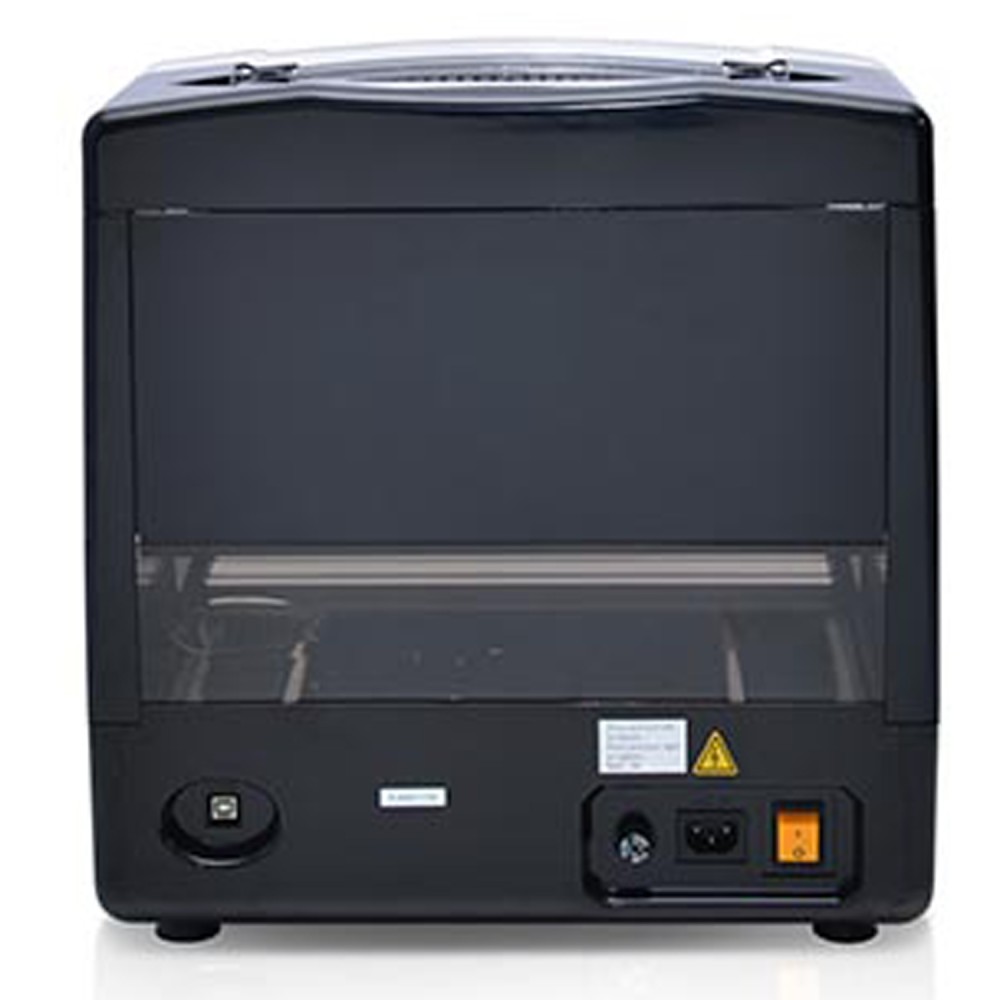

Baileigh DEM-0906 CNC Desktop Engraver 110V 9″ x 6″
The DEM-0906 is a small, lightweight, and portable mini desktop CNC engraver that is not only for small woodworking projects, but also for acrylic and ABS lithophane, EVA foam, styrofoam, modeling wax, plastic, soft metal. It’s able to carve products like tooling boards, toolboxes, tiny ornaments and other miscellaneous projects. The DEM-0906 portable CNC engraver comes with software, and tooling -often not included with competing tables that cost more. Built to last and the router arrives fully assembled.
Features
12.6 in. x 5.9 In. table, runs on 110V power
This small CNC engraver is recommended for sign-makers, and hobbyists
Powerful 150W DC brushless motor, up to 20000 Rpm variable spindle speed

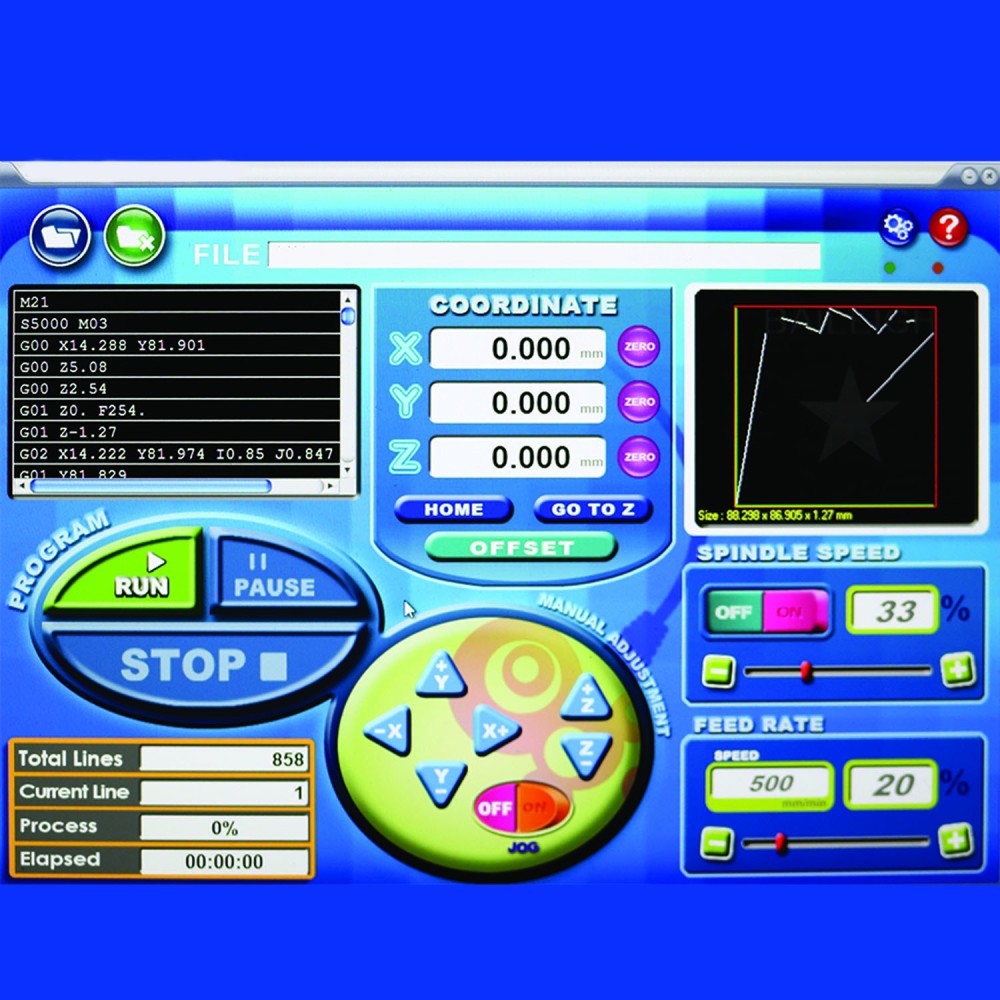

Easy-to-learn design software, just install it onto your computer and start creating patterns

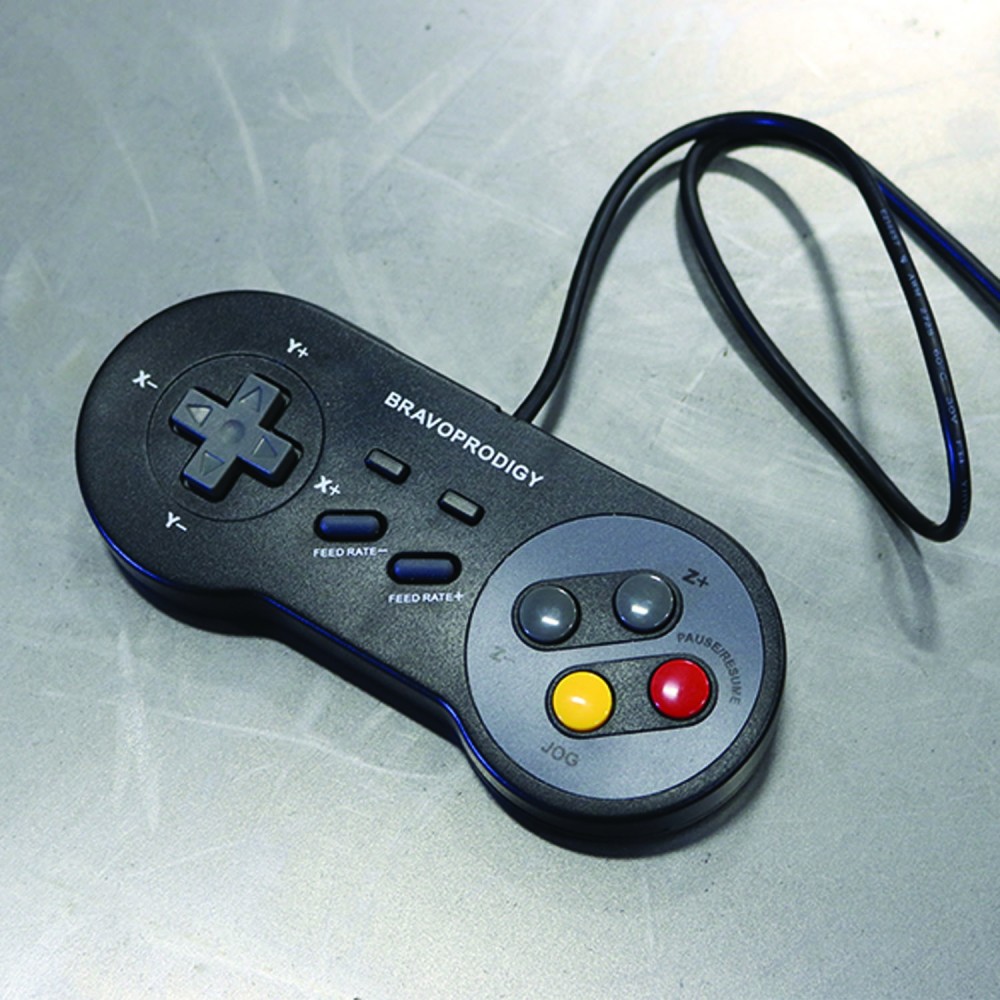

Upload your design file to the table via a USB drive, then use the convenient handheld controller to move the spindle
Stepper motors move the spindle at a maximum speed of 98.43 In. per minute
Belt driven X, Y, and Z axis movement for accurate positioning
4 T-slotted clamps fit on the table to hold the material down for clean cuts, laser engraver ready, (sold separately)
Structurally strong extruded aluminum table won’t buckle under material weight or spindle pressure
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1022102
Assembled Weight (lbs)
42
Cordless / Corded
Corded
Country of Origin
Taiwan
Package Contents
Engraving Table, Power Cord, USB 2.0 Cable, Controller, Allen Key 2.5 mm & Spare Socket Screw, Silicone Mat, Tungsten Carbide Tool, (2) Pieces Big & (2) Pieces Small Clamp Set, Support Board
Package Depth
21
Package Height
22
Package Weight
42
Spindle Speed (RPM)
20000
Table Length (in)
12.6
Table Width (in)
5.9
