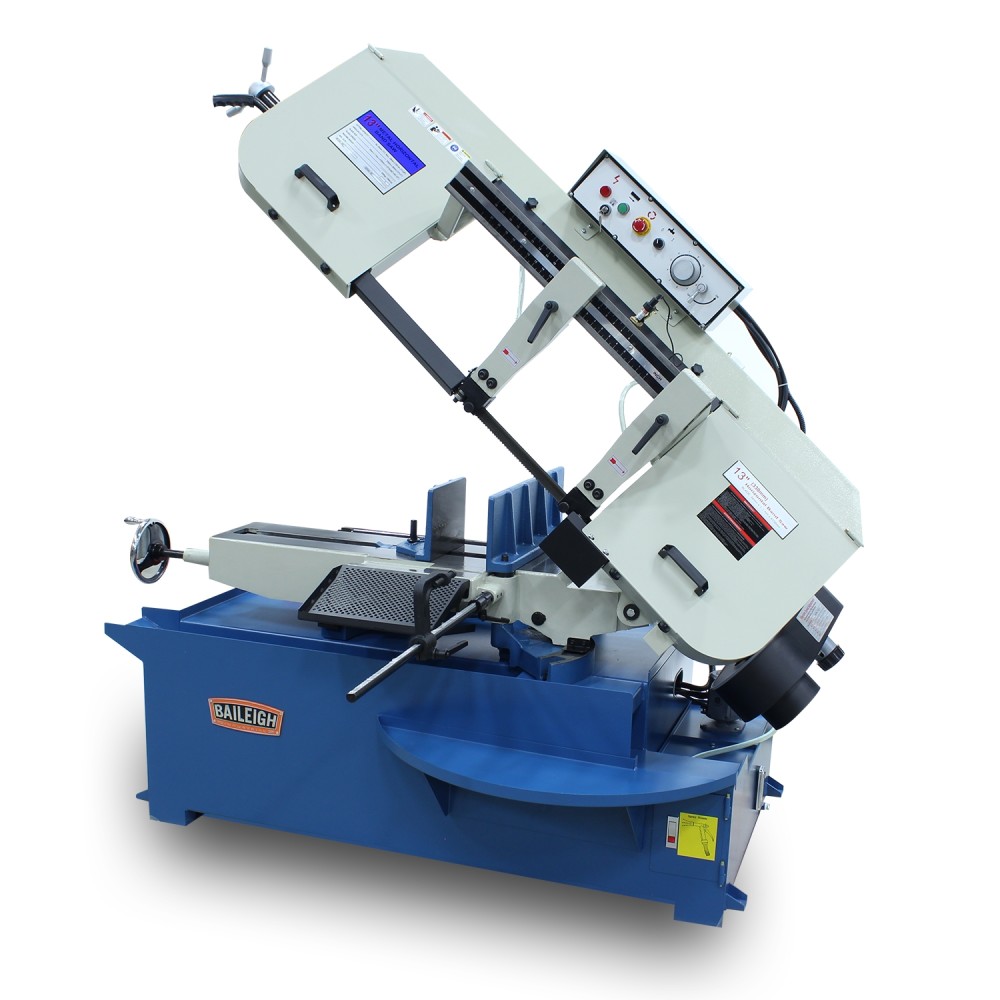

Baileigh BS-330M Band Saw Metal Cutting Manual 220V 3 Phase
In 2005, we introduced the BS-330M manual mitering band saw. With steel frames and smooth hydraulic descent, these saws have given shops trouble-free productivity for 10+ years.
Features
Maximum capacity of 13 In. OD round at 90 Deg, Accepts a large 1.25 In. blade

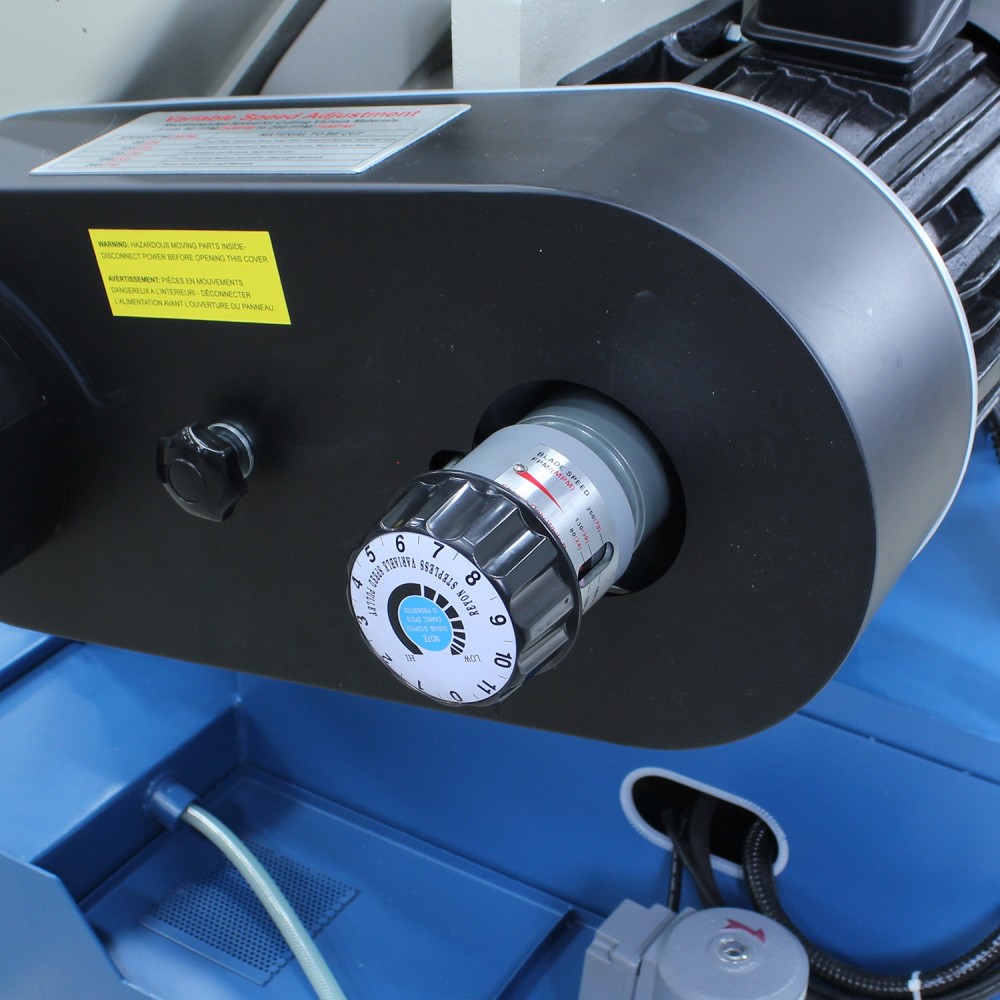

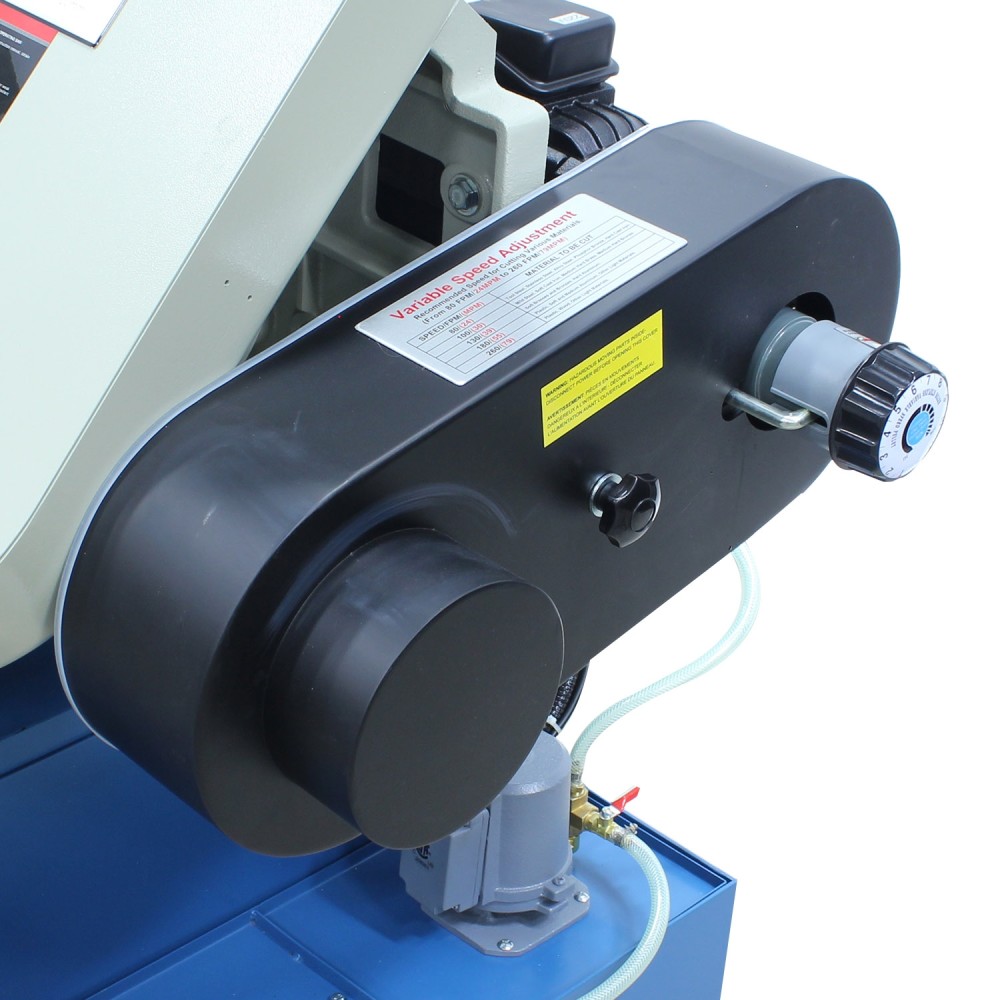

Variable blade speed from 82-270 Fpm lets you choose the right speed for metal, plastic, and wood

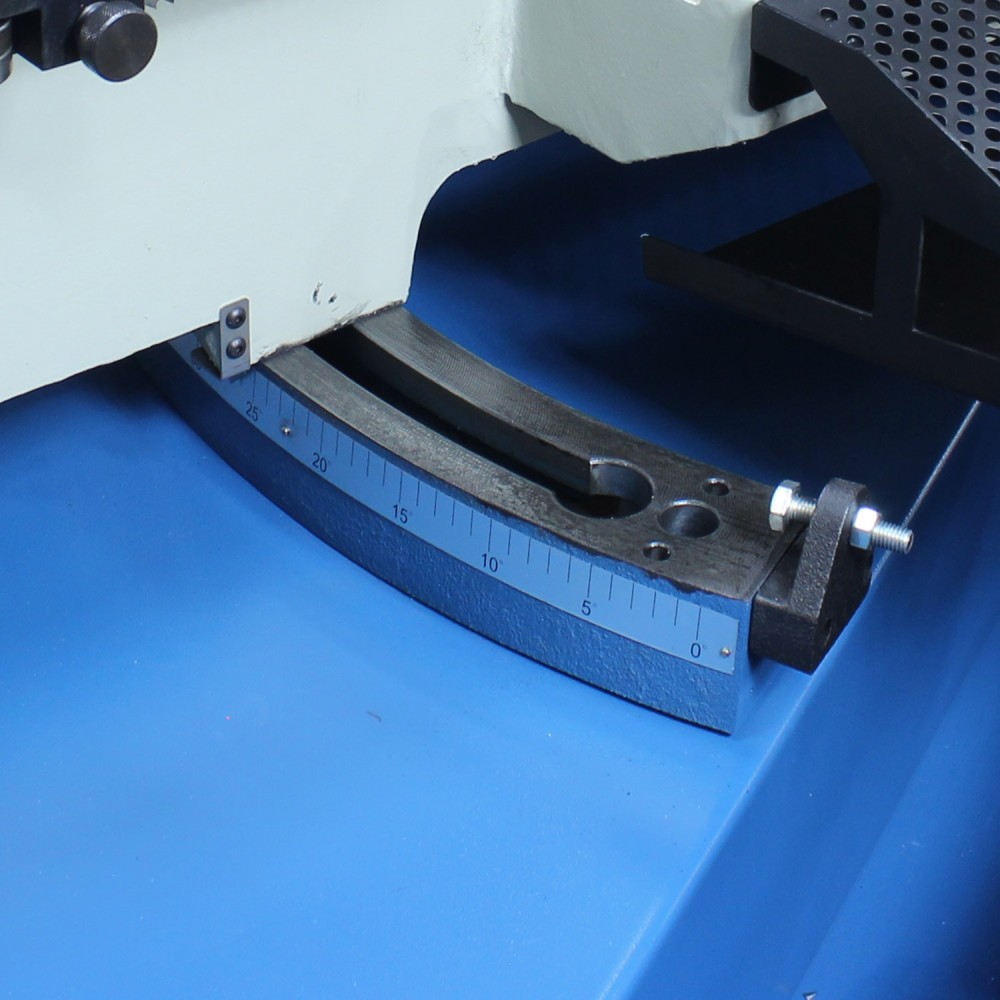

3HP motor runs on 220V 3 Phase power, more reliable and efficient than 1 Phase, saw head miters up to 45 Deg

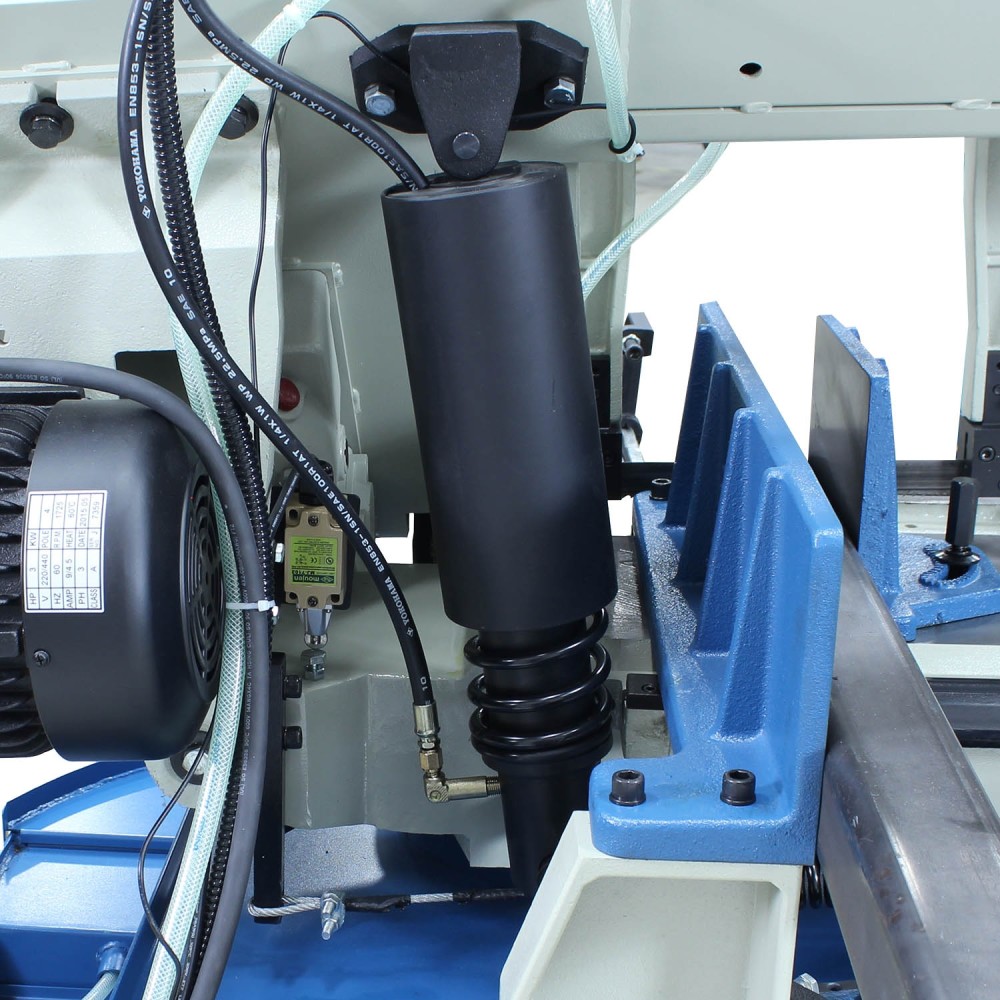

Heavy cast iron head and bow reduce vibrations while cutting, hydraulic descent makes production runs more efficient, increases blade life, and reduces operator fatigue

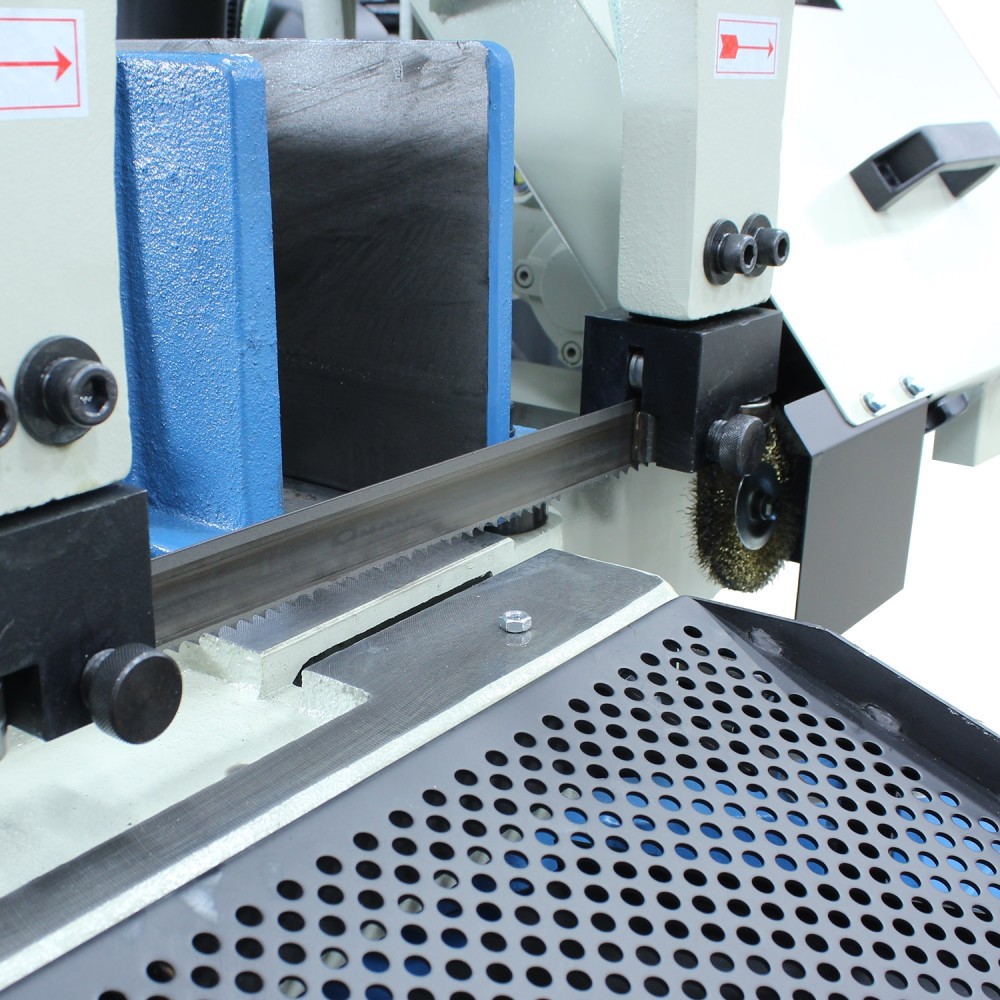

Tungsten carbide blade guides get as close as possible to the material to allow for more precise cuts, laser guide helps you see where your cut will be and line it up

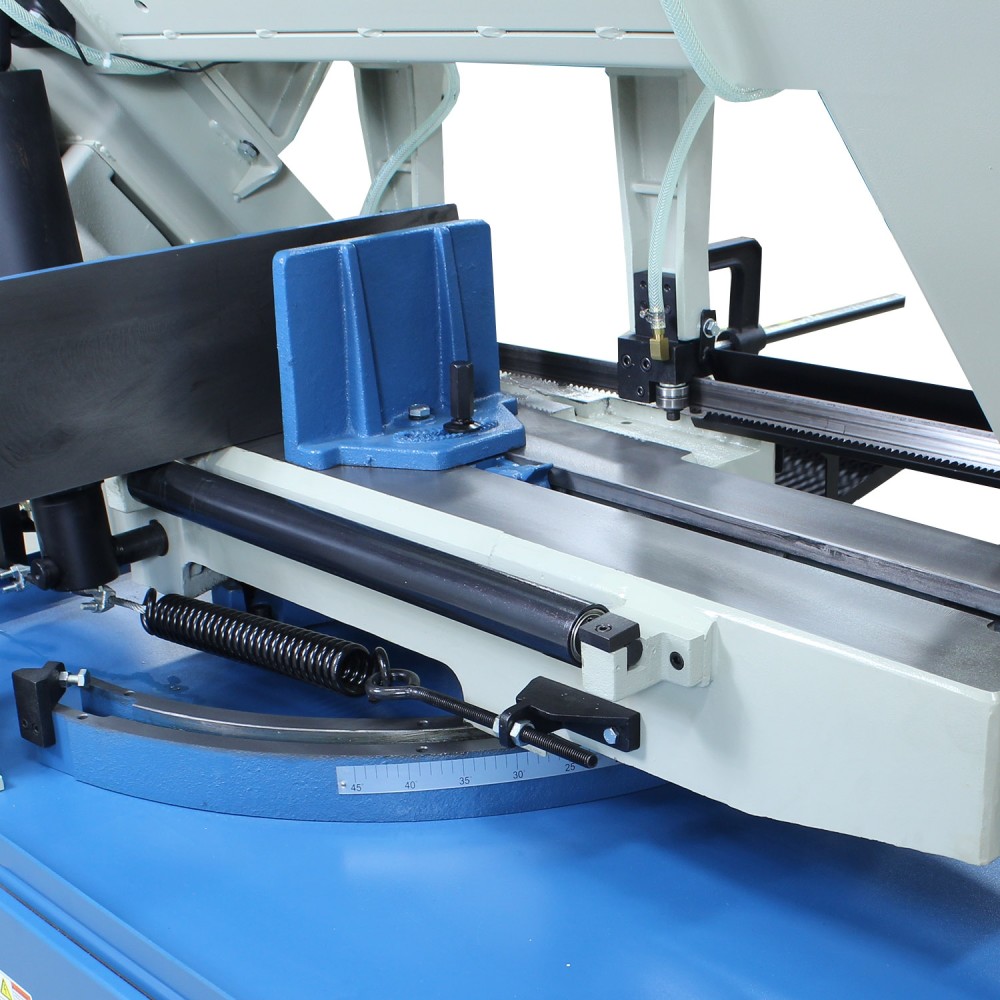

Durable steel flywheels drive the blade, adjustable vise can move back and forth. A quick cam lock system holds it in place

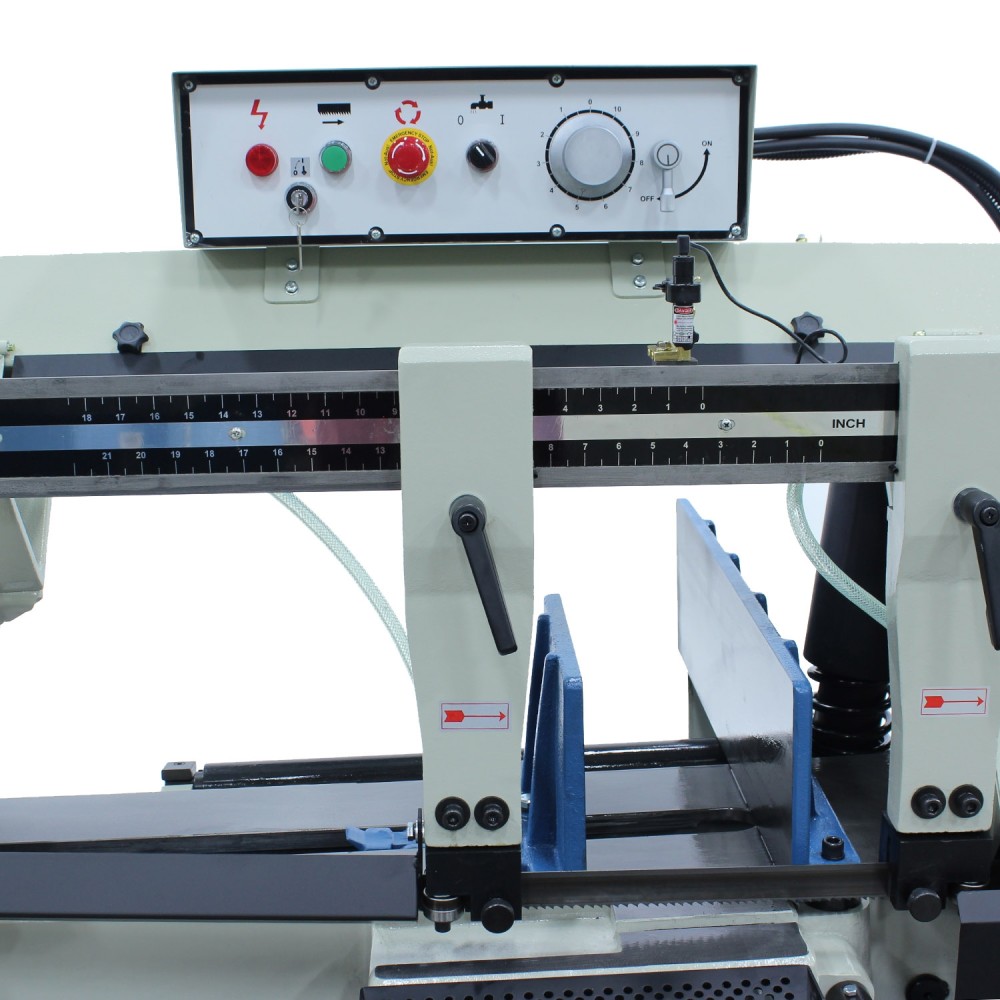

Control panel has large start and emergency stop buttons and a dial for adjusting the speed, swing-away material stop enables you to easily make repeatable cuts

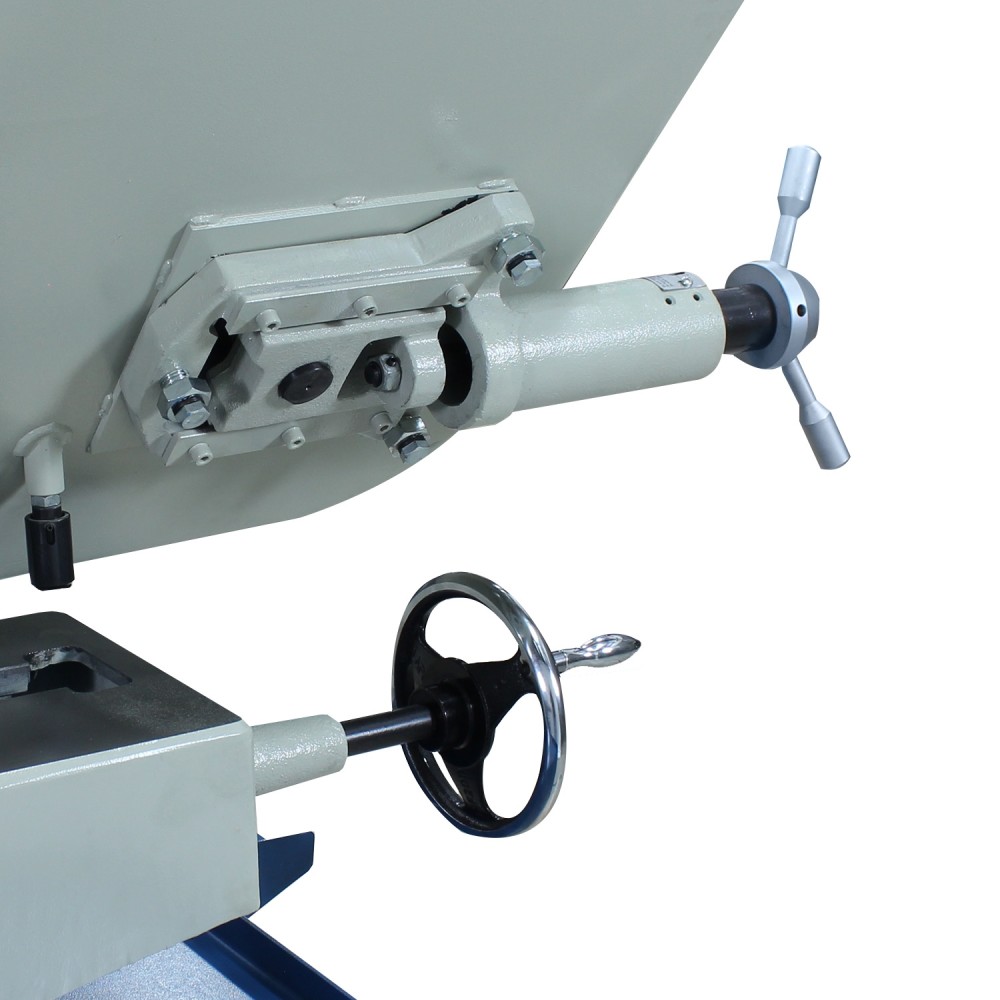

Baileigh’s patented blade tension gauge takes the effort out of getting the tension right, just line the arrow pointer up with the green zone and you’re good to go

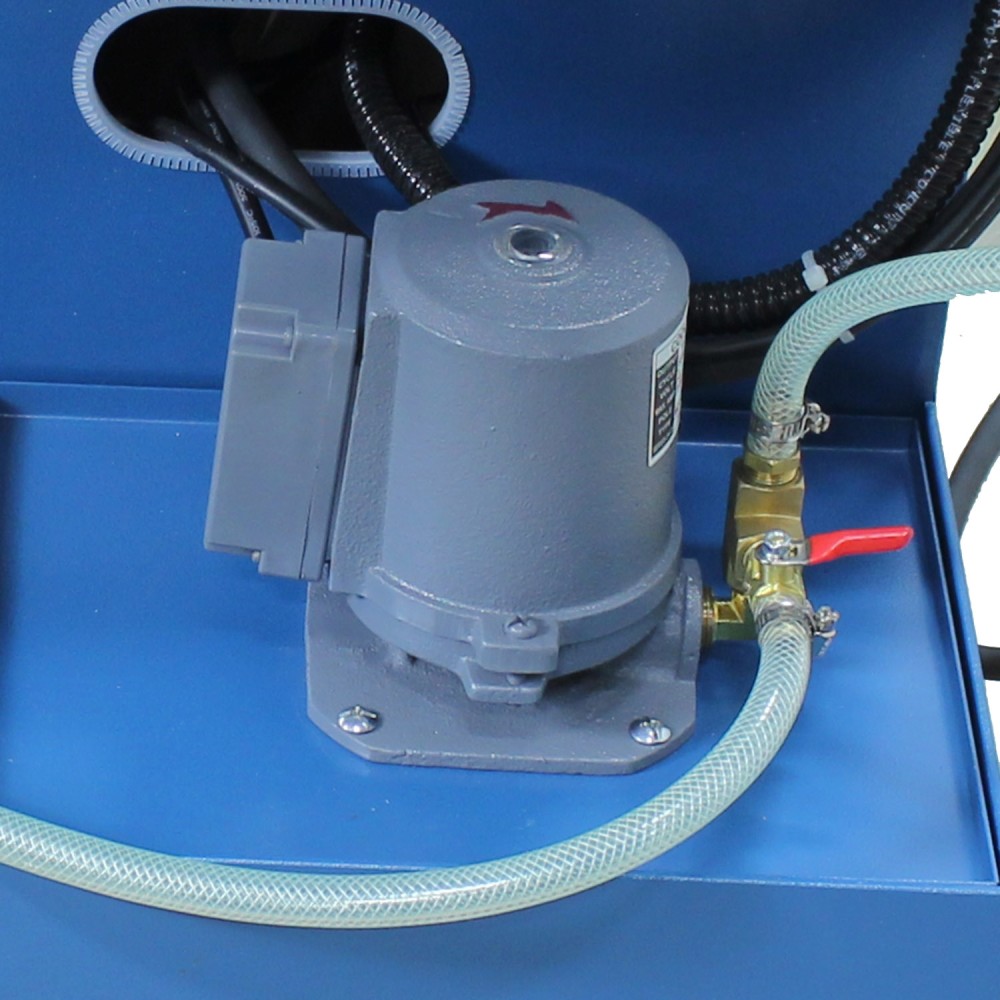

Comes standard with a flood coolant system that will wash away metal shavings and prolong blade life, heavy electro-welded steel construction minimizes vibrations to keep cuts accurate
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1001517
Assembled Weight (lbs)
1830
Band Saw Frame Material
Steel
Blade Guide Type
Bearings
Cordless / Corded
Corded
Country of Origin
Taiwan
Cutting Capacity Height (in)
Rectangular (90 Deg x 45 Deg): 13 In. x 18.9 In./11 In. x 10.04 In.; Round (90 Deg x 45 Deg): 13 In. x 8.86 In.; Square (90 Deg x 45 Deg): 13 In. x 8.86 In.
Horsepower (hp)
3
Maximum Blade Length (In)
161.4
Maximum Blade Width (In)
1.3
Maximum Feet Per Minute
270
Minimum Feet Per Minute
82
Package Contents
Band Saw, Accessories
Package Depth
90
Package Height
63
Package Weight
1830
Phase
3
Stand Included
No
Table Height (in)
30.5
Table Height From Floor (In)
30.5
Variable Speed
Yes
